Operation/Maintenance

www.comlaundry.com

Washer-Extractors

Cabinet Freestanding

Refer to Page 2 for Model Identification

CFD14C

Part No. 9001910R3

June 2008

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

Para bajar una copia de estas instrucciones en español,

visite www.comlaundry.com.

means without the expressed written consent of the publisher.

9001910 1

Table of

Contents

Introduction......................................................................................... 2

Model Identification ............................................................................. 2

Nameplate Location.............................................................................. 3

Replacement Parts ................................................................................ 3

Customer Service.................................................................................. 3

Safety Information.............................................................................. 5

Explanation of Safety Messages........................................................... 5

Important Safety Instructions ............................................................... 5

Safety Decals ........................................................................................ 7

Operator Safety..................................................................................... 8

Preliminary Information.................................................................... 9

About the Control ................................................................................. 9

Power Failure Recovery ....................................................................... 9

Operation............................................................................................. 10

Control Panel ........................................................................................ 10

Summary of Major Features ................................................................. 10

Operating Instructions .......................................................................... 11

Maintenance ........................................................................................ 13

Daily ..................................................................................................... 13

Weekly.................................................................................................. 13

Monthly................................................................................................. 14

Yearly ................................................................................................... 14

Daily Preventive Maintenance Checklist.............................................. 15

Weekly Preventive Maintenance Checklist.......................................... 16

Monthly Preventive Maintenance Checklist......................................... 17

Yearly Preventive Maintenance Checklist............................................ 18

Introduction

Model Identification

Information in this manual is applicable to these

models:

NX18BVPA6

NX18BVPA7

NX18BVQA6

NX18BVQA7

NX18BVXA6

NX18BVXA7

NX18BVXM6

NX18BVXM7

SX18BVPA7

SX18BVQA7

SX18BVXA7

SX18BVXM7

NX30BVPA6

NX30BVPA7

NX30BVQA6

NX30BVQA7

NX30BVXA6

NX30BVXA7

NX30BVXM6

NX30BVXM7

SX30BVPA7

SX30BVQA7

SX30BVXA7

SX30BVXM7

Introduction

9001910

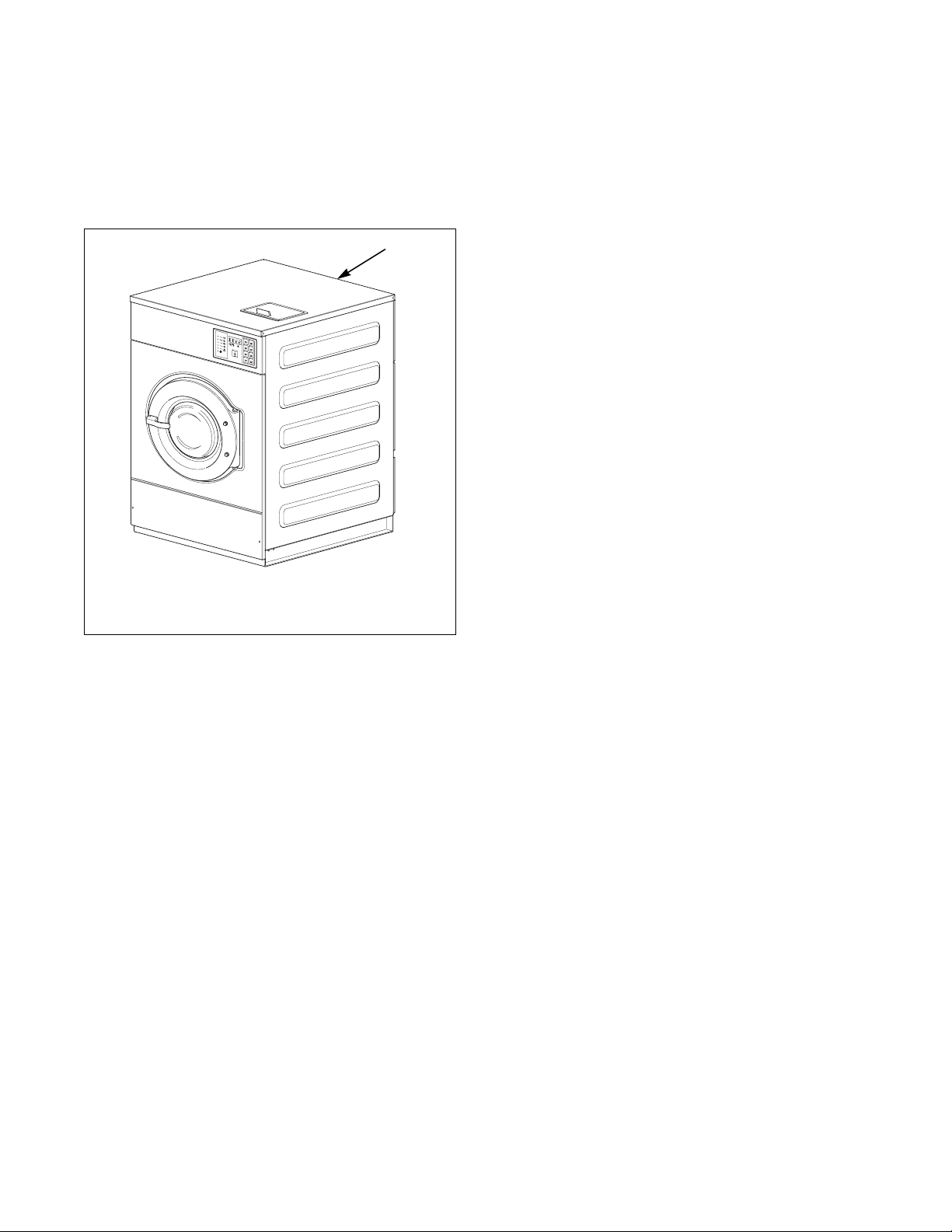

Nameplate Location

The nameplate is located at the rear of the machine.

Always provide the machine’s serial number and

model number when ordering parts or when seeking

technical assistance.

Figure 1

Replacement Parts

If literature or replacement parts are required, contact

the source from which the machine was purchased or

contact Alliance Laundry Systems at (920) 748-3950

for the name and address of the nearest authorized

parts distributor.

Customer Service

For technical assistance, call (920) 748-3121.

CFD14C

1Nameplate

Introduction

9001910

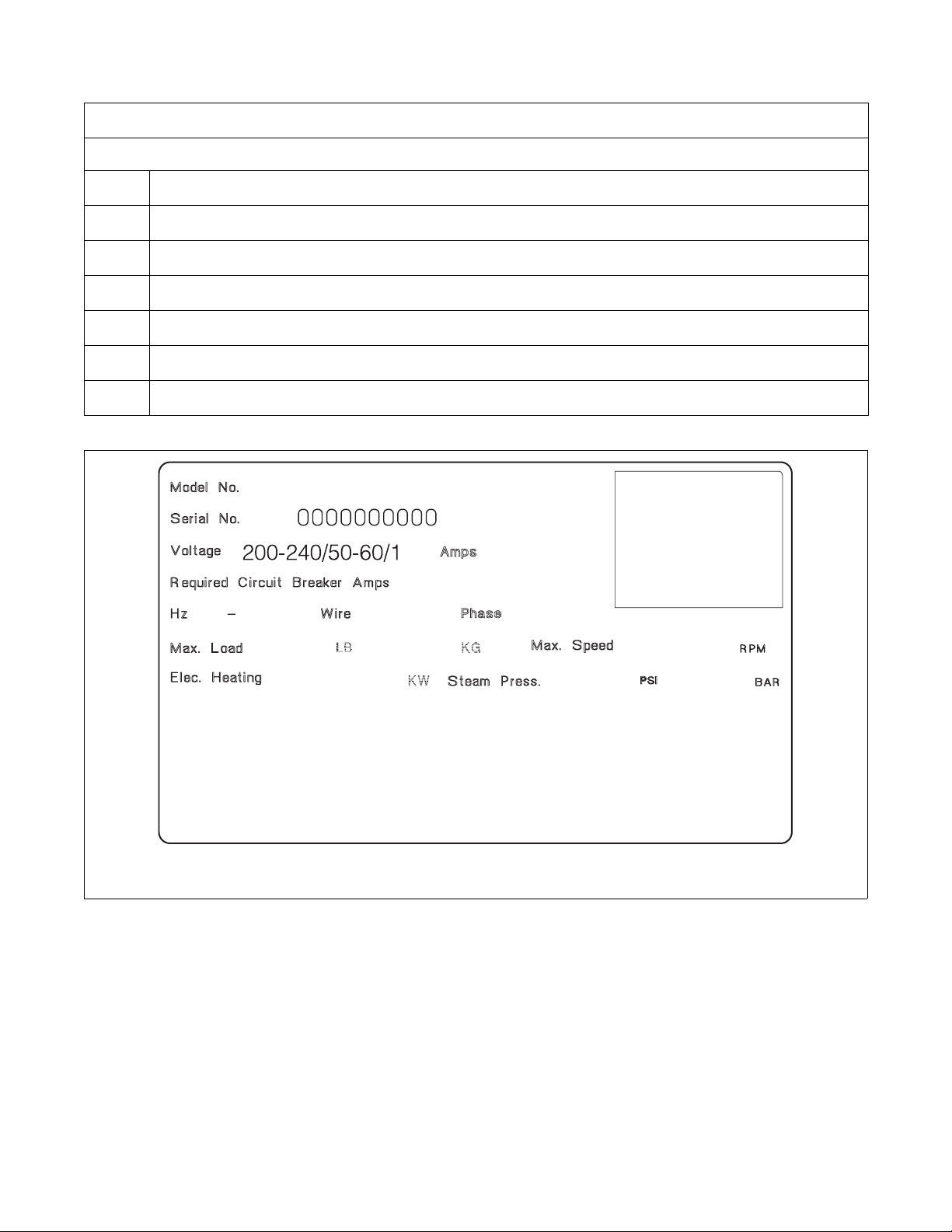

Figure 2

Model Number Familiarization Guide

Sample Model Number: *X18BVXM60001

*X Model Number Prefix

18 Washer-Extractor Capacity (pounds dry weight of laundry)

BType of Electrical Control

VWasher-Extractor Speed Capability (V = Variable-Speed)

XVoltage Code

M7 Design Series (M=Domestic, A=International)

0001 Option Identification (varies from machine to machine)

CFD532N

*X18BVXM70001

18 8

50 60

2/3+PE 1

1000

EXAMPLE OF NAMEPLATE

9001910

Safety Information

Explanation of Safety Messages

Precautionary statements (“DANGER,” “WARNING,”

and “CAUTION”), followed by specific instructions,

are found in this manual and on machine decals. These

precautions are intended for the personal safety of the

operator, user, servicer, and those maintaining the

machine.

Additional precautionary statements (“IMPORTANT”

and “NOTE”) are followed by specific instructions.

IMPORTANT: The word “IMPORTANT” is used

to inform the reader of specific procedures where

minor machine damage will occur if the procedure

is not followed.

NOTE: The word “NOTE” is used to communicate

installation, operation, maintenance or servicing

information that is important but not hazard

related.

Important Safety Instructions

1. Read all instructions before using the washer.

2. Refer to the GROUNDING INSTRUCTIONS in

the INSTALLATION manual for the proper

grounding of the washer.

3. Do not wash textiles that have been previously

cleaned in, washed in, soaked in, or spotted with

gasoline, kerosene, waxes, cooking oils, dry-

cleaning solvents, or other flammable or

explosive substances as they give off vapors that

could ignite or explode.

4. Do not add gasoline, dry-cleaning solvents, or

other flammable or explosive substances to the

wash water. These substances give off vapors that

could ignite or explode.

5. Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been

used for two weeks or more. HYDROGEN GAS

IS EXPLOSIVE. If the hot water system has not

been used for such a period, before using a

washing machine or combination washer-dryer,

turn on all hot water faucets and let the water

flow from each for several minutes. This will

release any accumulated hydrogen gas. The gas is

flammable, do not smoke or use an open flame

during this time.

6. Do not allow children to play on or in the washer.

Close supervision of children is necessary when

the washer is used near children. This is a safety

rule for all appliances.

7. Before the washer is removed from service or

discarded, remove the door to the washing

compartment.

8. Do not reach into the washer if the wash drum is

moving.

DANGER indicates the presence of a

hazard that will cause severe personal

injury, death, or substantial property

damage if the danger is ignored.

DANGER

WARNING indicates the presence of a

hazard that can cause severe personal

injury, death, or substantial property

damage if the warning is ignored.

WARNING

CAUTION indicates the presence of a

hazard that will or can cause minor

personal injury or property damage if the

caution is ignored.

CAUTION

To reduce the risk of fire, electric shock,

serious injury or death to persons when

using your washer, follow these basic

precautions:

W023

WARNING

Safety Information

9001910

9. Do not install or store the washer where it will be

exposed to water and/or weather.

10. Do not tamper with the controls.

11. Do not repair or replace any part of the washer, or

attempt any servicing unless specifically

recommended in the user-maintenance

instructions or in published user-repair

instructions that the user understands and has the

skills to carry out.

12. To reduce the risk of an electric shock or fire, DO

NOT use an extension cord or an adapter to

connect the washer to the electrical power source.

13. Use washer only for its intended purpose,

washing textiles.

14. Never wash machine parts or automotive parts in

the machine. This could result in serious damage

to the basket.

15. ALWAYS disconnect the washer from electrical

supply before attempting any service. Disconnect

the power cord by grasping the plug, not the cord.

16. Install the washer according to the

INSTALLATION INSTRUCTIONS. All

connections for water, drain, electrical power and

grounding must comply with local codes and be

made by licensed personnel when required.

17. To reduce the risk of fire, textiles which have

traces of any flammable substances such as

vegetable oil, cooking oil, machine oil,

flammable chemicals, thinner, etc., or anything

containing wax or chemicals such as in mops and

cleaning cloths, must not be put into the washer.

These flammable substances may cause the

fabric to catch on fire by itself.

18. Do not use fabric softeners or products to

eliminate static unless recommended by the

manufacturer of the fabric softener or product.

19. Keep washer in good condition. Bumping or

dropping the washer can damage safety features.

If this occurs, have washer checked by a qualified

service person.

20. If the supply cord is damaged, it must be replaced

by a special cord or assembly available from the

manufacturer or its service agent.

21. Be sure water connections have a shut-off valve

and that fill hose connections are tight. CLOSE

the shut-off valves at the end of each wash day.

22. Loading door MUST BE CLOSED any time the

washer is to fill, tumble or spin. DO NOT bypass

the loading door switch by permitting the washer

to operate with the loading door open.

23. Always read and follow manufacturer’s

instructions on packages of laundry and cleaning

aids. Heed all warnings or precautions. To reduce

the risk of poisoning or chemical burns, keep

them out of the reach of children at all times

(preferably in a locked cabinet).

24. Always follow the fabric care instructions

supplied by the textile manufacturer.

25. Never operate the washer with any guards and/or

panels removed.

26. DO NOT operate the washer with missing or

broken parts.

27. DO NOT bypass any safety devices.

28. Failure to install, maintain, and/or operate this

washer according to the manufacturer’s

instructions may result in conditions which can

produce bodily injury and/or property damage.

NOTE: The WARNINGS and IMPORTANT

SAFETY INSTRUCTIONS appearing in this

manual are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining, or operating the washer.

Any problems or conditions not understood should be

reported to the dealer, distributor, service agent or the

manufacturer.

Safety Information

9001910

IMPORTANT: Ensure that the recommended

clearances for inspection and maintenance

are provided. Never allow the inspection and

maintenance space to be blocked.

Safety Decals

Safety decals appear at crucial locations on the

machine. Failure to maintain legible safety decals

could result in injury to the operator or service

technician.

To provide personal safety and keep the machine in

proper working order, follow all maintenance and

safety procedures presented in this manual. If

questions regarding safety arise, contact the

manufacturer immediately.

Use manufacturer-authorized spare parts to avoid

safety hazards.

This machine must be installed, adjusted,

and serviced by qualified electrical

maintenance personnel familiar with the

construction and operation of this type of

machinery. They must also be familiar

with the potential hazards involved.

Failure to observe this warning may result

in personal injury and/or equipment

damage, and may void the warranty.

SW004

WARNING

Install the machine on a level floor of

sufficient strength. Failure to do so may

result in conditions which can produce

serious injury, death and/or property

damage.

W703

WARNING

Be careful around the open door,

particularly when loading from a level

below the door. Impact with door edges

can cause personal injury.

SW025

CAUTION

Never touch internal or external steam

pipes, connections, or components.

These surfaces can be extremely hot and

will cause severe burns. The steam must

be turned off and the pipe, connections,

and components allowed to cool before

the pipe can be touched.

SW014

WARNING

Safety Information

9001910

Operator Safety

To ensure the safety of machine operators, the

following maintenance checks must be performed

daily:

1. Prior to operating the machine, verify that all

warning signs are present and legible. Missing or

illegible signs must be replaced immediately.

Make certain that spares are available.

2. Check door interlock before starting operation of

the machine:

a. Attempt to start the machine with the door

open. The machine should not start with the

door open.

b. Close the door without locking it and attempt

to start the machine. The machine should not

start with the door unlocked.

c. Close and lock the door and start a cycle.

Attempt to open the door while the cycle is in

progress. The door should not open.

If the door lock and interlock are not functioning

properly, call a service technician.

3. Do not attempt to operate the machine if any of

the following conditions are present:

a. The door does not remain securely locked

during the entire cycle.

b. Excessively high water level is evident.

c. Machine is not connected to a properly

grounded circuit.

Do not bypass any safety devices in the machine.

NEVER insert hands or objects into

basket until it has completely stopped.

Doing so could result in serious injury.

SW012

WARNING

Never operate the machine with a

bypassed or disconnected balance

system. Operating the machine with

severe out-of-balance loads could result

in personal injury and serious equipment

damage.

SW039

WARNING

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Arandela de Alliance Laundry Systems

Alliance Laundry Systems

Alliance Laundry Systems V-Series Guía de solución de problemas

Alliance Laundry Systems

Alliance Laundry Systems UW60TV Instrucciones de funcionamiento

Alliance Laundry Systems

Alliance Laundry Systems UM202 Series Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems HWNLX2SP111CW01 Instrucciones de funcionamiento

Alliance Laundry Systems

Alliance Laundry Systems HFNNERSP116CW01 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems Home Laundry Automatic Washers Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems UW POCKET HARDMOUNT UW35B2 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems LWS01A* series Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems LTS95A*N Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems SF7000WE Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems Frontload Washer Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems F232198R4 Guía de solución de problemas

Alliance Laundry Systems

Alliance Laundry Systems A Series Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems UCN020HN2 Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems HCD020GD2 Guía de solución de problemas

Alliance Laundry Systems

Alliance Laundry Systems HF150 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems W001C Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems AFNE9BSP113TN01 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems Home Laundry Automatic Washer Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems HY105 HC-200 Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems WFF100 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems F8343001 Instrucciones de funcionamiento

Alliance Laundry Systems

Alliance Laundry Systems Hardmount Coin and OPL Manual de instalación y operación

Alliance Laundry Systems

Alliance Laundry Systems AA3410 Manual de usuario

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario
