Alliance Laundry Systems HC18SN2 Manual

Operation/Maintenance

www.comlaundry.com

Washer-Extractors

Cabinet Hardmount

S, P, and V-Series Microcomputers Coin and

Non-Coin Models

Refer to Page 3 for Model Identification

CHM166C

NOTA: El manual en

español aparece después

del manual en inglés.

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

Part No. F232137R2

April 2002

means without the expressed written consent of the publisher.

F232137 1

Table of

Contents

Introduction......................................................................................... 3

Model Identification ............................................................................. 3

Nameplate Location.............................................................................. 4

Replacement Parts ................................................................................ 4

Customer Service.................................................................................. 4

Safety Information.............................................................................. 5

Important Safety Instructions ............................................................... 5

Operation............................................................................................. 7

Control Panel ........................................................................................ 7

Display Indications ............................................................................... 8

Operating Instructions .......................................................................... 12

Maintenance ........................................................................................ 15

Daily ..................................................................................................... 15

Beginning of Day............................................................................. 15

End of Day ....................................................................................... 15

Weekly.................................................................................................. 16

Monthly................................................................................................. 16

Quarterly............................................................................................... 19

Care of Stainless Steel .......................................................................... 20

2F232137

Notes

F232137 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

Introduction

Model Identification

Information in this manual is applicable to these models:

HC18SN2 HC27VX2 HC50SN2 SC35VN2 UC20PN2 UC40VN2

HC18VC2 HC30SN2 HC50VC2 SC35VNV UC20VN2 UC40VNV

HC18VX2 HC30VC2 HC50VX2 SC40VN2 UC27PN2 UC50PN2

HC20SN2 HC30VX2 HC80VCV SC40VNV UC27VN2 UC50VN2

HC20VC2 HC35SN2 HC80VNV SC50VN2 UC30PN2 UC50VNV

HC20VX2 HC35VC2 HC80VXV SC50VNV UC30VN2 UC80VNV

HC25VC2 HC35VX2 SC18VN2 SC80VNV UC35PN2 UC125VNV

HC25VX2 HC40SN2 SC20VN2 SC125VNV UC35VN2

HC27SN2 HC40VC2 SC27VN2 UC18PN2 UC35VNV

HC27VC2 HC40VX2 SC30VN2 UC18VN2 UC40PN2

Introduction

F232137

4© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

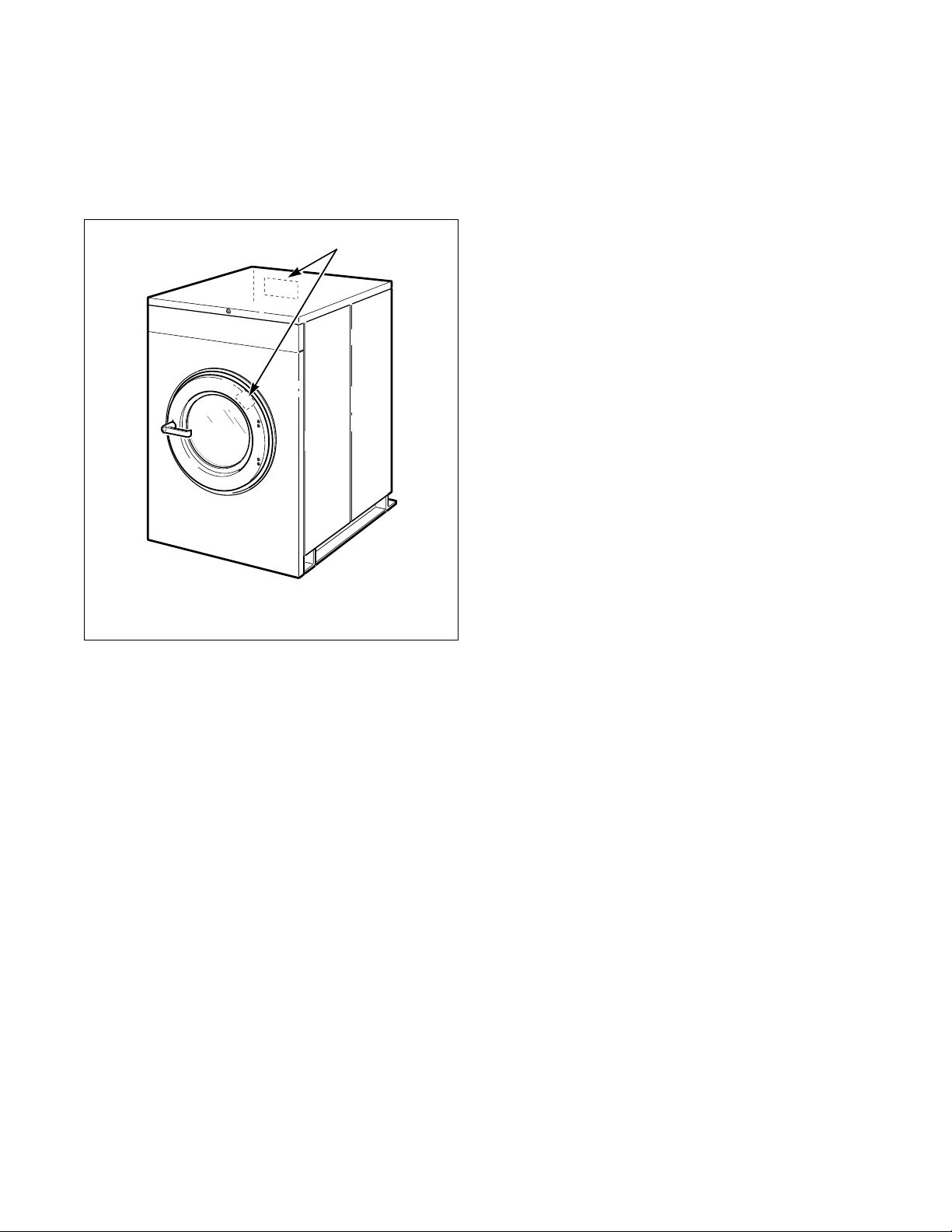

Nameplate Location

The nameplate is located at the rear of the machine and

inside door. Always provide the machine’s serial

number and model number when ordering parts or

when seeking technical assistance.

Figure 1

Replacement Parts

If literature or replacement parts are required, contact

the source from whom the machine was purchased or

contact Alliance Laundry Systems at (920) 748-3950

for the name and address of the nearest authorized

parts distributor.

Customer Service

For technical assistance, call any of the following

numbers:

(850) 718-1025

(850) 718-1026

Marianna, Florida U.S.A.

(920) 748-3121

Ripon, Wisconsin U.S.A.

CHM167R

1Nameplate

CHM167R

F232137 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

Safety Information

Precautionary statements (“DANGER”, “WARNING”

and “CAUTION”), followed by specific instructions,

are found in this manual and on machine decals. These

precautions are intended for the personal safety of the

operator, user, servicer and those maintaining the

machine.

Additional precautionary statements (“IMPORTANT”

and “NOTE”) are followed by specific instructions.

IMPORTANT: The word “IMPORTANT”is used

to inform the reader of specific procedures where

minor machine damage will occur if the procedure

is not followed.

NOTE: The word “NOTE”is used to communicate

installation, operation, maintenance or servicing

information that is important but not hazard

related.

Important Safety Instructions

1. Read all instructions before using the washer.

2. Refer to the Grounding Instructions in the

Installation Manual for the proper grounding of

the washer.

3. Do not wash textiles that have been previously

cleaned in, washed in, soaked in, or spotted with

gasoline, dry-cleaning solvents, or other

flammable or explosive substances as they give

off vapors that could ignite or explode.

4. Do not add gasoline, dry-cleaning solvents, or

other flammable or explosive substances to the

wash water. These substances give off vapors that

could ignite or explode.

5. Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been

used for two weeks or more. HYDROGEN GAS

IS EXPLOSIVE. If the hot water system has not

been used for such a period, before using a

washing machine or combination washer-dryer,

turn on all hot water faucets and let the water

flow from each for several minutes. This will

release any accumulated hydrogen gas. The gas is

flammable; do not smoke or use an open flame

during this time.

6. Do not allow children to play on or in the washer.

Close supervision of children is necessary when

the washer is used near children. This is a safety

rule for all appliances.

7. Before the washer is removed from service or

discarded, remove the door to the washing

compartment.

8. Do not reach into the washer if the wash drum is

moving.

DANGER indicates the presence of a

hazard that will cause severe personal

injury, death, or substantial property

damage if the danger is ignored.

DANGER

WARNING indicates the presence of a

hazard that can cause severe personal

injury, death, or substantial property

damage if the warning is ignored.

WARNING

CAUTION indicates the presence of a

hazard that will or can cause minor

personal injury or property damage if the

caution is ignored.

CAUTION

To reduce the risk of fire, electric shock,

serious injury or death to persons when

using your washer, follow these basic

precautions:

W023E

WARNING

Safety Information

F232137

6© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

9. Do not install or store the washer where it will be

exposed to water and/or weather.

10. Do not tamper with the controls.

11. Do not repair or replace any part of the washer, or

attempt any servicing unless specifically

recommended in the user-maintenance

instructions or in published user-repair

instructions that the user understands and has the

skills to carry out.

12. To reduce the risk of an electric shock or fire, DO

NOT use an extension cord or an adapter to

connect the washer to the electrical power source.

13. Use washer only for its intended purpose,

washing textiles.

14. ALWAYS disconnect the washer from electrical

supply before attempting any service. Disconnect

the power cord by grasping the plug, not the cord.

15. Install the washer according to the Installation

Instructions. All connections for water, drain,

electrical power and grounding must comply

with local codes and be made by licensed

personnel when required.

16. To reduce the risk of fire, textiles which have

traces of any flammable substances such as

vegetable oil, cooking oil, machine oil,

flammable chemicals, thinner, etc. or anything

containing wax or chemicals such as in mops and

cleaning cloths, must not be put into the washer.

These flammable substances may cause the

fabric to catch on fire by itself.

17. Do not use fabric softeners or products to

eliminate static unless recommended by the

manufacturer of the fabric softener or product.

18. Keep washer in good condition. Bumping or

dropping the washer can damage safety features.

If this occurs, have washer checked by a qualified

service person.

19. Replace worn power cords and/or loose plugs.

20. Be sure water connections have a shut-off valve

and that fill hose connections are tight. CLOSE

the shut-off valves at the end of each wash day.

21. Loading door MUST BE CLOSED any time the

washer is to fill, tumble or spin. DO NOT

bypass the loading door switch by permitting the

washer to operate with the loading door open.

22. Always read and follow manufacturer’s

instructions on packages of laundry and cleaning

aids. Heed all warnings or precautions. To reduce

the risk of poisoning or chemical burns, keep

them out of the reach of children at all times

(preferably in a locked cabinet).

23. Always follow the fabric care instructions

supplied by the textile manufacturer.

24. Never operate the washer with any guards

and/or panels removed.

25. DO NOT operate the washer with missing or

broken parts.

26. DO NOT bypass any safety devices.

27. Failure to install, maintain and/or operate this

washer according to the manufacturer’s

instructions may result in conditions which can

produce bodily injury and/or property damage.

NOTE: The WARNINGS and IMPORTANT

SAFETY INSTRUCTIONS appearing in this

manual are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining or operating the washer.

Any problems or conditions not understood should be

reported to the dealer, distributor, service agent or the

manufacturer.

F232137 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

Operation

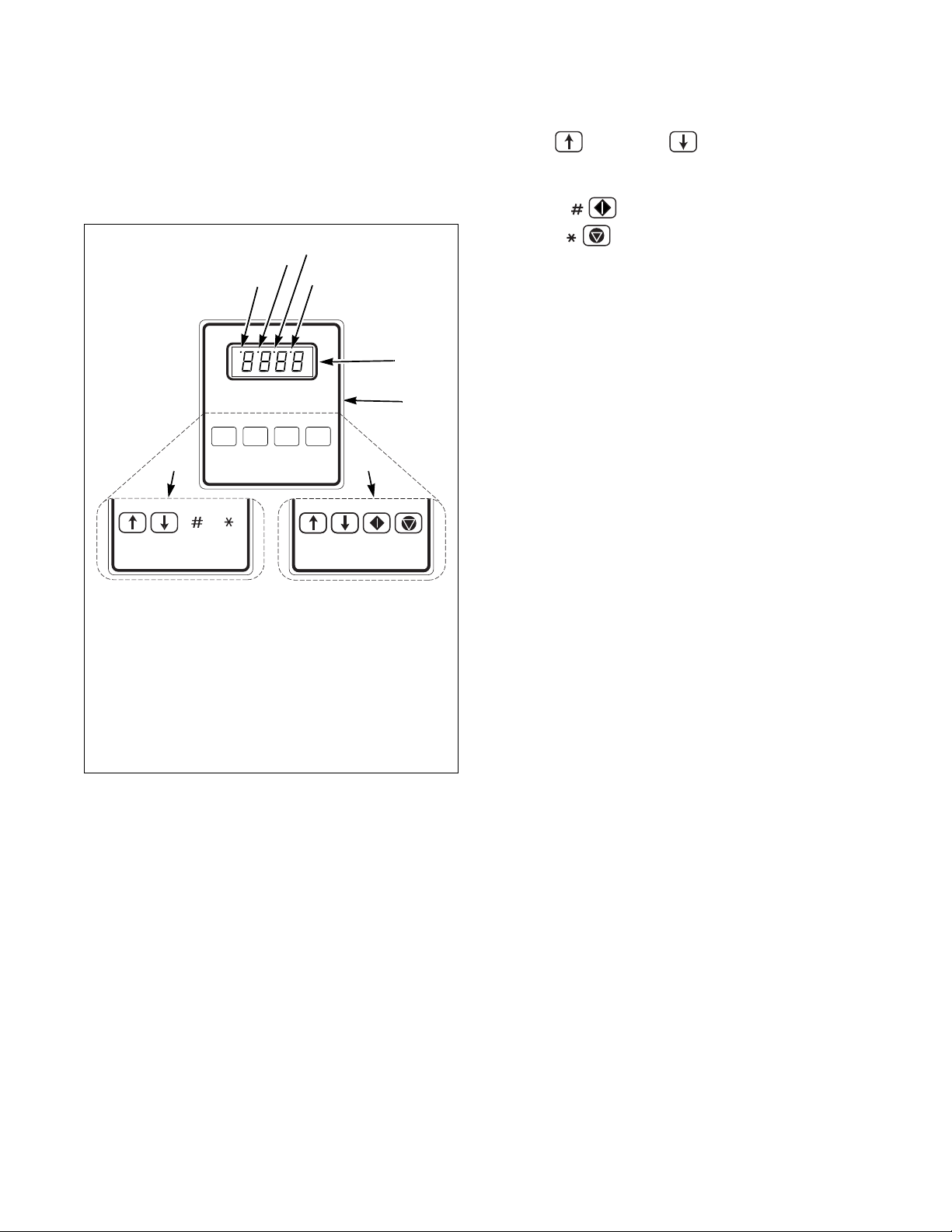

Control Panel

Figure 2 shows the control panel for S, P and

V-computer machines.

Figure 2

The Up and Down keys are used in cycle

selection. Press these keys to move among cycles from

smaller to greater, or greater to smaller.

The Start key is used to start a cycle.

The Stop key is not active in normal Run

Mode. In Run Mode it is used only for stopping test

cycle.

The LED display informs operator of various

functions throughout operation of machine. Refer to

tables on the following pages for displays and their

meanings. Indicator lights in LED display indicate

out-of-balance conditions and water levels. Refer to

Figure 2.

B161R

1Out-of-Balance Condition for VCV, VXV

2High Water Level

3Medium Water Level for V-Series

4Low Water Level

5LED Display

6Keys for Standard OPL

7Keys for Icon OPL

8Keys for VC2, VCV, VX2, VXV

Up Down Start Stop

B161R

8 7

Operation

F232137

8© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

Display Indications

Table 1 through Table 4 list the various displays and

what they mean. The operator should become familiar

with these computer displays.

Display Indications for S-Series – Non-Coin

Display Meaning Display Meaning

S-05 Program identification code (ROM)

(this is an example only)

bFIL Warm fill (both hot and cold)

HoLd Wait...power has just been turned on HFIL Hot fill

CY Cycle (followed by two-digit number) LOLE Low water level

CHEC/CYC* Test cycle selected HILE High water level

FAr Degrees Fahrenheit SUP1 Supply 1

CEL Degrees Celsius SUP2 Supply 2

PrE Prewash segment (1st of 8 segments) SUP3 Supply 3

UASH Wash segment (2nd of 8 segments) SUP4 Supply 4

FIL1 First rinse (3rd of 8 segments) SUP5 Supply 5 (supply 1 and 2)

FIL2 Second rinse (4th of 8 segments) SUP6 Supply 6 (supply 2 and 3)

FIL3 Third rinse (5th of 8 segments) SUP7 Supply 7 (supply 3 and 4)

FIL4 Fourth rinse (6th of 8 segments) STOP Stop routine

FIL5 Fifth rinse (7th of 8 segments) SdLY Spin coast delay

FIL6 Sixth rinse (8th of 8 segments) donE Cycle and stop routine have ended

CFIL Cold fill door Door not properly closed

SPIn/tInE* Reads “SPIn”for one second, then

“tInE”followed by time for spin

FILL/STOP* Programmed water level not reached

after 30 minutes

tSFL Temperature sensor failure or

temperature out of range

FULL The computer detects low water level or

higher when none should be present

*Display indications separated by a slash (/) represent an alternating display.

Table 1

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Arandela de Alliance Laundry Systems

Alliance Laundry Systems

Alliance Laundry Systems UM202 Series Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems W001C Guía

Alliance Laundry Systems

Alliance Laundry Systems 1305 Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems 802715 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems StGeorge Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems NetMaster HC18NC2 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems UM202 Series Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems HX18PVQM6 Guía de solución de problemas

Alliance Laundry Systems

Alliance Laundry Systems UW35P3 Guía de mantenimiento y servicio

Alliance Laundry Systems

Alliance Laundry Systems HWNLX2SP111CW01 Instrucciones de funcionamiento

Alliance Laundry Systems

Alliance Laundry Systems 802733R4 Guía

Alliance Laundry Systems

Alliance Laundry Systems TC5003WN Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems FLW1548C SVG Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems SW039 Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems NetMaster HWTB21 Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems H2641 Guía

Alliance Laundry Systems

Alliance Laundry Systems 38900R11 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems NX18BVPA6 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems LWS01A* series Instrucciones de funcionamiento

Alliance Laundry Systems

Alliance Laundry Systems 802749r1 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems HFNBCF Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems CHF455 Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems TLW22C_SVG Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems Hardmount Coin and OPL Manual de instalación y operación

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario
