Alliance Laundry Systems D715I Manual de usuario

Installation

www.comlaundry.com

Automatic Clothes

Dryers

Electric and Gas Models

D715I

Part No. 510963R5

June 2007

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

Para bajar una copia de estas instrucciones en español, visite www.comlaundry.com.

The following information applies to the state of Massachusetts, USA.

●This appliance can only be installed by a Massachusetts licensed plumber or gas fitter.

●This appliance must be installed with a 36 inch (91 cm) long flexible gas connector.

●A “T-Handle” type gas shut-off valve must be installed in the gas supply line to this appliance.

●This appliance must not be installed in a bedroom or bathroom.

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or

any other appliance.

• WHAT TO DO IF YOU SMELL GAS:

– Do not try to light any appliance.

– Do not touch any electrical switch; do not use any phone in your building.

– Clear the room, building or area of all occupants.

– Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s

instructions.

– If you cannot reach your gas supplier, call the fire department.

• Installation and service must be performed by a qualified installer, service agency or the

gas supplier. W052

FOR YOUR SAFETY, the information in this manual must be followed to minimize the risk

of fire or explosion or to prevent property damage, personal injury or death. W033

WARNING

2510963

Notes

means without the expressed written consent of the publisher.

510963 3

Table of

Contents

Replacement Parts .............................................................................. 5

Installation........................................................................................... 7

Dimensions and Specifications............................................................. 7

Before You Start ................................................................................... 8

Tools ................................................................................................ 8

Exhaust............................................................................................. 8

Electrical .......................................................................................... 8

Gas ................................................................................................... 8

Location ........................................................................................... 8

Installing the Dryer ............................................................................... 9

Step 1: Position and Level the Dryer ............................................... 9

Step 2: Connect Dryer Exhaust System ........................................... 9

Step 3: (Gas Dryer Only) Connect Gas Supply Pipe ....................... 10

Step 4: (Electric Dryer Only) Connect Electrical Plug.................... 11

Step 5: Wipe Out Inside of Dryer .................................................... 12

Step 6: Plug In the Dryer ................................................................. 13

Step 7: Check Installation ................................................................ 13

Heat Source Check ............................................................................... 14

Electric Dryers ................................................................................. 14

Gas Dryers ....................................................................................... 14

Reversing Door Procedure.................................................................... 15

Manufactured (Mobile) Home Installation........................................... 16

Electrical Requirements........................................................................ 17

Electric Dryers ................................................................................. 17

Gas Dryers ....................................................................................... 21

Gas Requirements................................................................................. 23

Location Requirements......................................................................... 25

Dryer Exhaust Requirements................................................................ 26

Exhaust System Materials................................................................ 26

Make-Up Air Requirements............................................................. 26

Exhaust System................................................................................ 27

Exhaust Direction............................................................................. 27

Exhaust System Maintenance .......................................................... 28

Dryer Airflow................................................................................... 28

Maintenance ........................................................................................ 29

User-Maintenance Instructions............................................................. 29

Lubrication....................................................................................... 29

Care of Your Dryer .......................................................................... 29

Exhaust System................................................................................ 29

Information for Handy Reference......................................................... 30

Installer Checklist................................................................. Back Cover

4510963

Notes

510963

Replacement Parts

If replacement parts are required, contact the source

where you purchased your dryer, or contact:

Alliance Laundry Systems LLC

Shepard Street

P.O . B ox 99 0

Ripon, WI 54971-0990

Phone: (920) 748-3950

for the name and address of the nearest authorized

parts distributor.

Notes

510963

Installation

Dimensions and Specifications

DRY2208N

* With leveling legs turned into base.

DRY2208N

23.5 in.

(59.7 cm) 28 in.

(71.1 cm)

0.4 in.

(1.1 cm)

8.0 in.

(20.3 cm)

*4.5 in.

(11.4 cm)

*36 in. (91.4 cm)

*43 in. (109.2 cm)

*4.0 in. (10.2 cm)

*15.44 in.

(39.2 cm)

26.9 in.

(68.3 cm)

ELECTRIC DRYERS

22.38 in.

(56.85 cm)

*40.25 in. (102.24 cm)

15.4 in. (39.1 cm)

DRY2209N

*With leveling legs turned into base.

13/8 in. NPT Gas Connection

DRY2209N

23.5 in.

(59.7 cm) 28 in.

(71.1 cm)

0.4 in.

(1.1 cm)

*4.5 in.

(11.4 cm)

8.0 in.

(20.3 cm)

*36in.(91.4cm)

*43 in. (109.2 cm)

*4.0 in. (10.2 cm)

*15.44 in. (39.2 cm)

26.9 in.

(68.3 cm) *2.8 in.

(7 cm)

2.3 in.

(6 cm) 1

GAS DRYERS

22.38 in.

(56.85 cm)

*40.25 in. (102.24 cm)

15.4 in. (39.1 cm)

Installation

510963

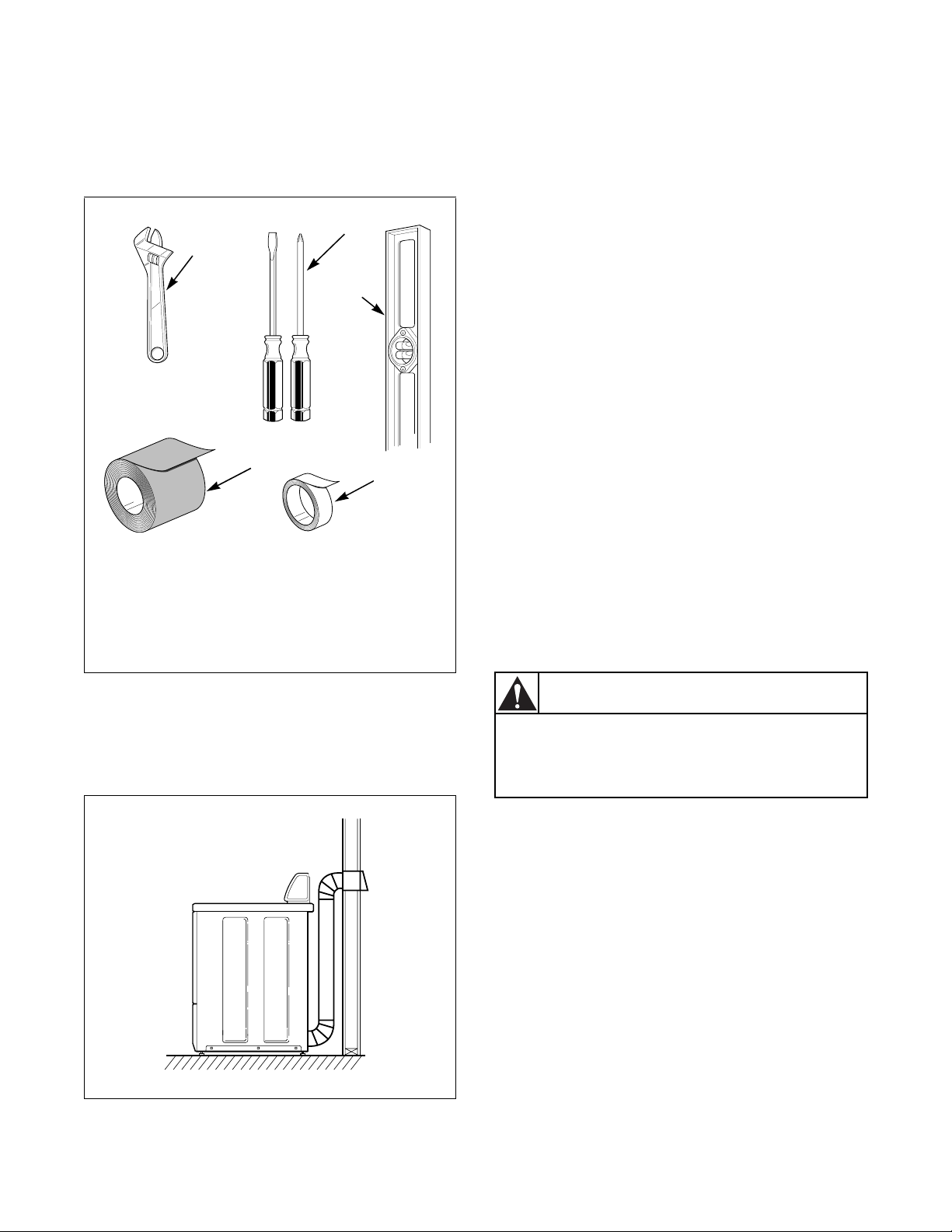

Before You Start

Tools

For most installations, the basic tools you will need are:

Figure 1

Exhaust

Use rigid metal duct and exhaust the dryer to the

outside by the shortest route possible.

Figure 2

NOTE: For more detailed information, refer to

Section on Dryer Exhaust Requirements.

Electrical

●ELECTRIC DRYER

Dryer needs a 3 or 4 wire 120/240 or

120/208 Volt, 30 Amp, 60 Hertz, 1 phase

electrical supply.

●GAS DRYER

Dryer needs a 120 Volt, 15 Amp, 60 Hertz,

polarized 3-slot effectively grounded receptacle.

NOTE: For more detailed information, refer to

Section on Electrical Requirements.

If the supply cord is damaged, it must be replaced by a

special cord or assembly available from the

manufacturer or its service agent and is to be replaced

by a qualified service person.

Gas

Dryer is equipped for Natural Gas with a 3/8 inch NPT

gas supply connection. For more detailed information,

refer to Section on Gas Requirements.

Location

Place the dryer on a solid floor with an adequate air

supply. For more detailed information, refer to Section

on Location Requirements.

D818I

1Wrench

2Screwdrivers

3Level

4Te f l o n Ta p e

5Duct Tape

D314I

Any disassembly requiring the use of

tools must be performed by a suitably

qualified service person. W299

WARNING
