Alliance Laundry Systems Drying Tumblers none Manual de funcionamiento

Preventative Maintenance

www.comlaundry.com

Drying

Tumblers

25-170 Pound Capacity

Please refer to your operating manual

for detailed maintenance procedures.

Part No. 70323301R6

December 2009

the expressed written consent of the publisher.

Table of Contents

70323301 1

Daily............................................................................................................................................................................2

Monthly ......................................................................................................................................................................3

Quarterly....................................................................................................................................................................5

Bi-Annually ................................................................................................................................................................7

Annually .....................................................................................................................................................................9

Daily Preventative Maintenance Checklist ...........................................................................................................10

Monthly Preventative Maintenance Checklist......................................................................................................10

Quarterly Preventative Maintenance Checklist ...................................................................................................11

Bi-Annually Preventative Maintenance Checklist ...............................................................................................11

Annually Preventative Maintenance Checklist.....................................................................................................11

IMPORTANT: Replace all panels that are removed to perform maintenance procedures. Do not operate the

tumbler with missing guards or with broken or missing parts. Do not bypass any safety devices.

270323301

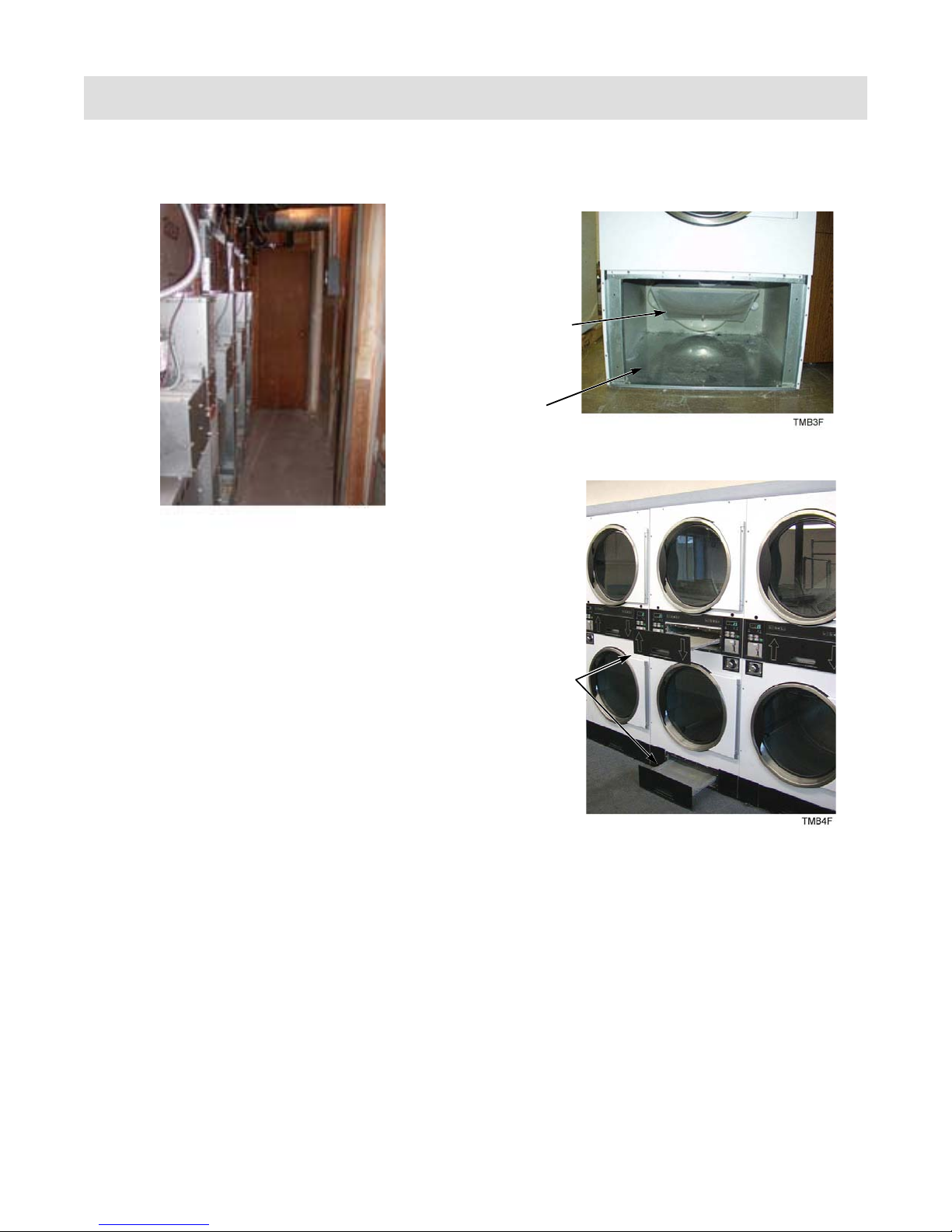

1. Inspect the area surrounding tumblers, remove all

combustible materials, including lint, before

operating the machines.

2. Check cylinder for foreign objects to avoid damage

to clothing and equipment.

3. Clean lint from lint compartment and screen(s) to

maintain proper airflow and avoid overheating.

Daily

TMB2F

Lint

Screen

Lint

Screens

Single Tumblers

Stack Tumblers

Lint

Compartment

70323301 3

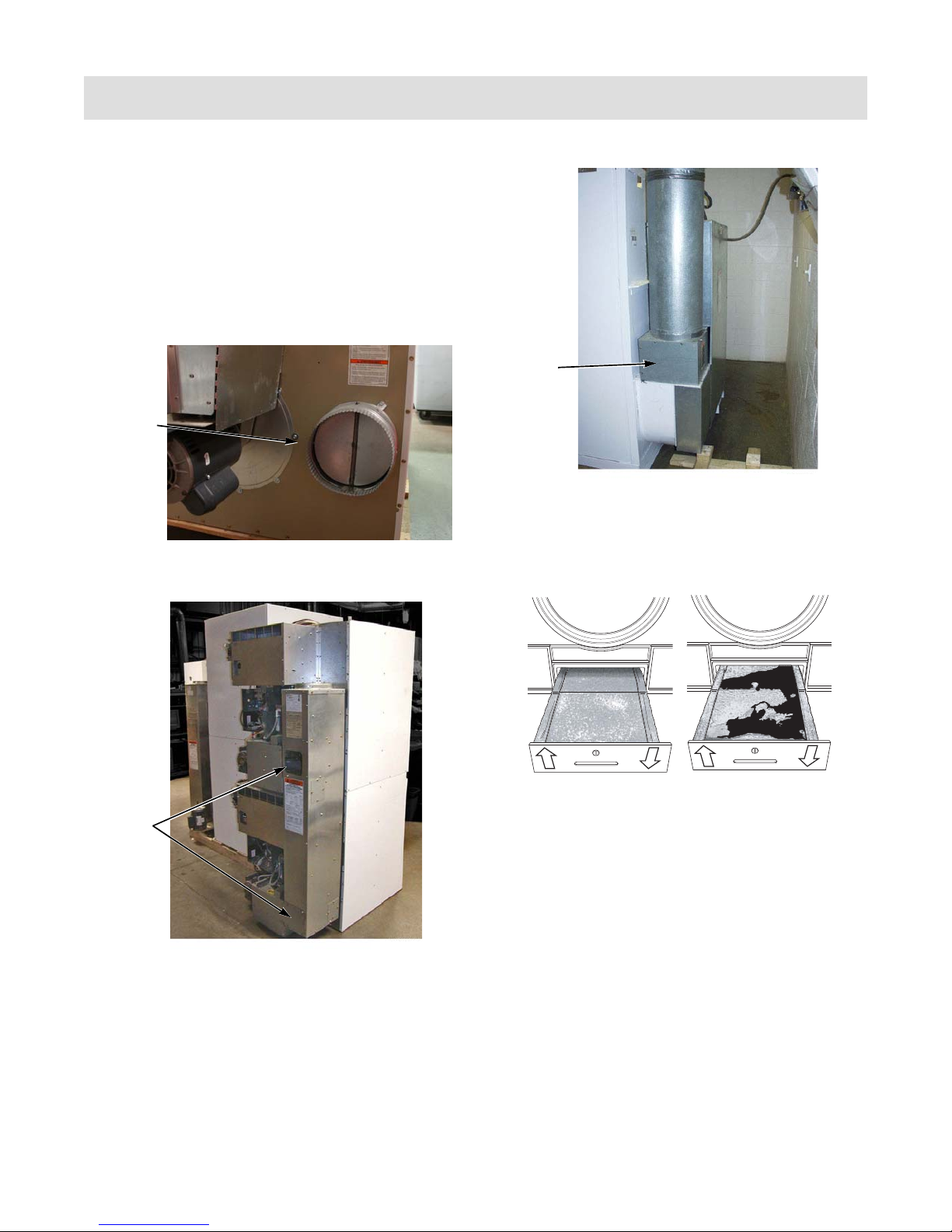

1. Remove lint and debris from inside exhaust duct to

maintain proper airflow and avoid overheating.

a. Remove external duct and duct access covers, if

present.

b. Clean inside of duct with a vacuum.

c. Clean dampers and make sure they operate freely.

d. Replace duct and all access covers before

returning tumbler to operation.

2. Ensure even lint distribution over lint screen, replace

if distribution of lint is uneven to maintain proper

airflow and avoid overheating.

Monthly

25, 30, 35, 50, 55 and 75 Pound Tumblers

External

Duct

TMB37F

Connection

30 and 45 Pound Stack Tumblers

Access

Covers

TMB6F

120 and 170 Pound Tumblers

Access

Covers

TMB7F

Uneven lint

TMB1809B

TMB2066P

Even lint

distributiondistribution

Stack Tumbler

470323301

Monthly

3. Carefully wipe any accumulated lint off the cabinet

high limit thermostat and thermistor, including

perforated cover. Lint buildup will act as an

insulator, causing machine to overheat.

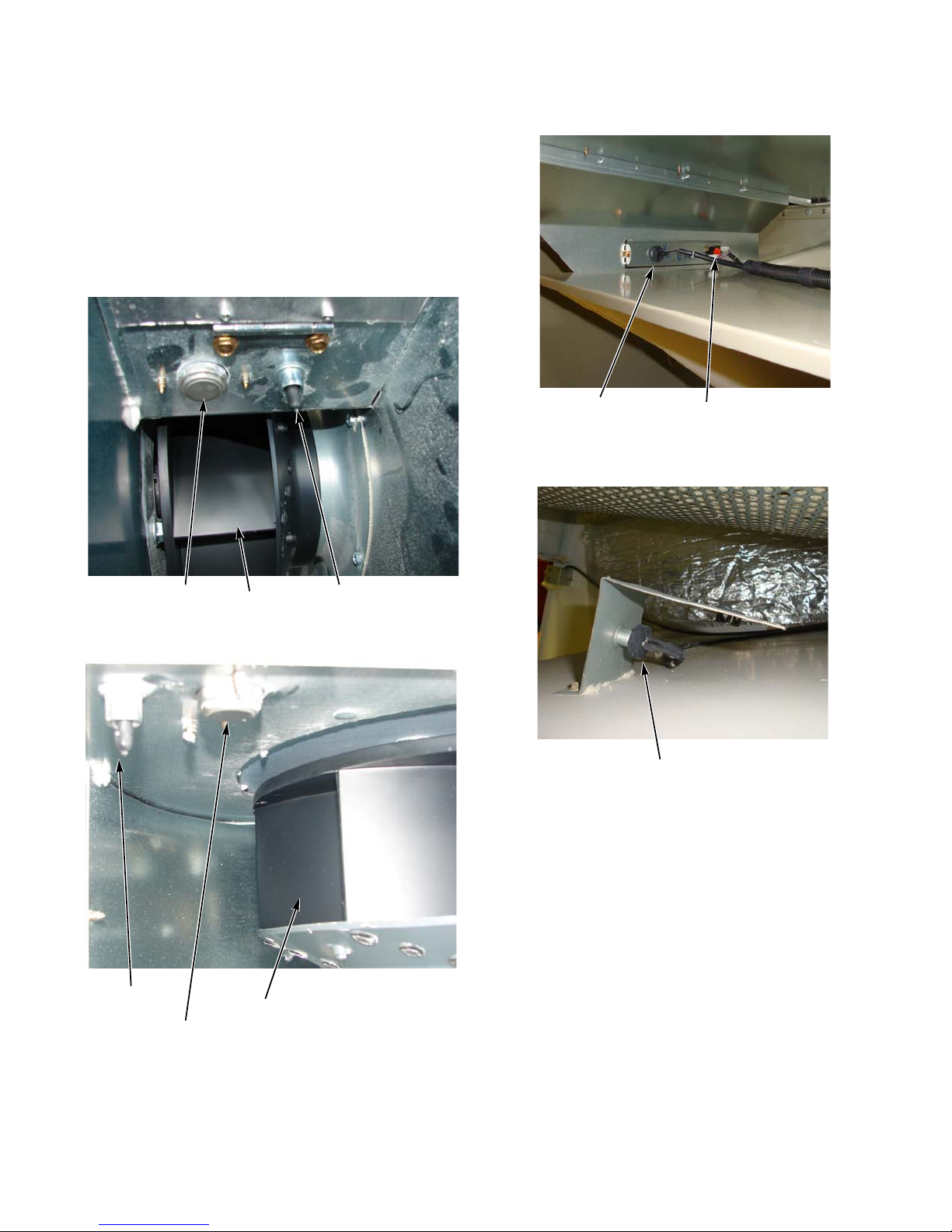

4. Clean lint and debris buildup from blower to

maintain proper airflow, avoid overheating and

prevent possible vibration.

25, 30, 35 and 55 Pound Tumblers

Thermistor

Thermostat Blower

Stack 30 and 45 Pound Tumblers

Thermistor

Thermostat

Blower

Thermostat

Thermistor

50 and 75 Pound Tumblers

TMB38F

Thermistor

120 and 170 Pound Tumblers

TMB39F

70323301 5

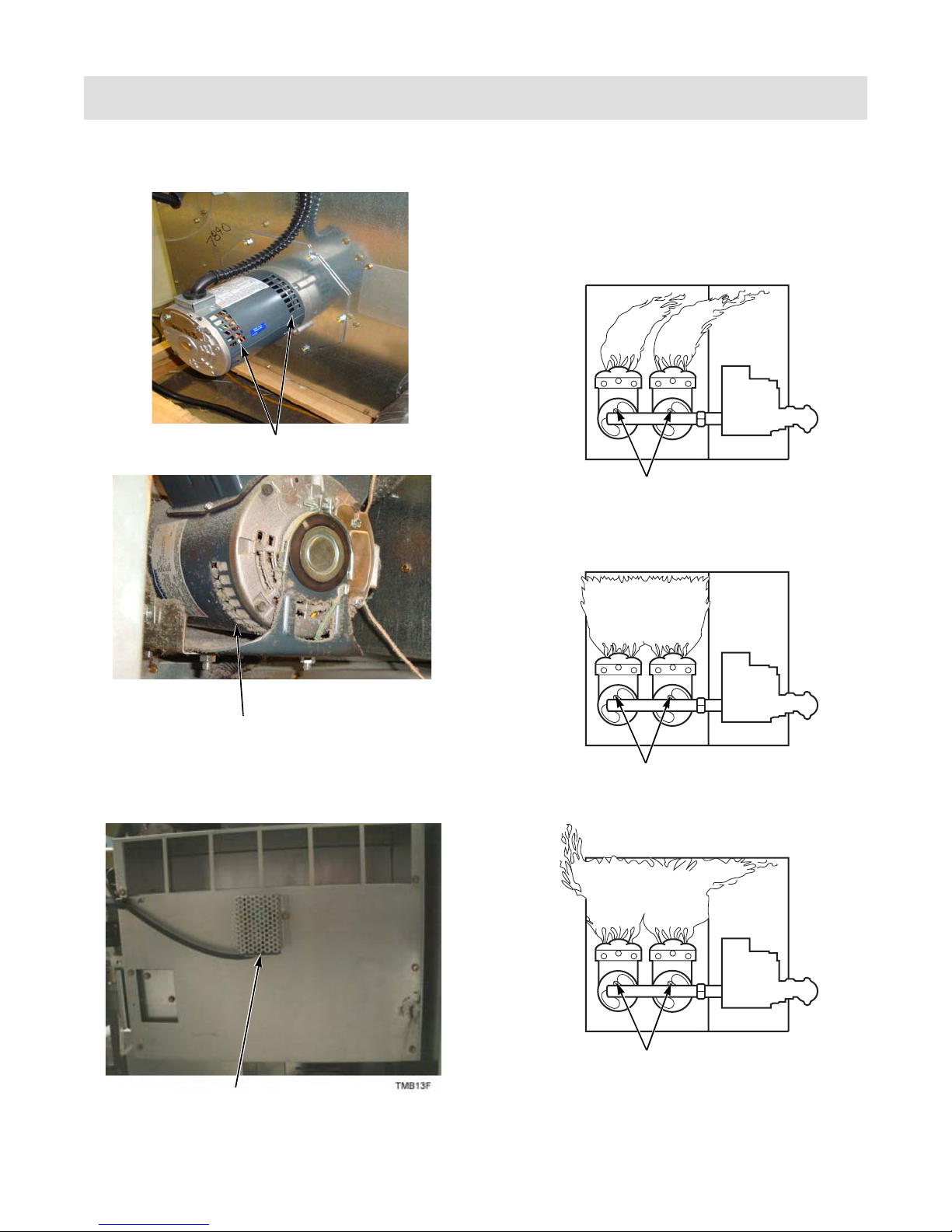

1. Use a vacuum to clean air vents on drive motors.

2. 25, 30, 35, 55, T30 and T45 Models: Use a

vacuum to clean lint from rear limit thermostat cover.

3. Check and clean steam coils.

4. Check flow of combustion and ventilation air.

Air Shutter Adjusting Screws on 50, 75, 120 and 170

pound machines can be used to obtain proper flame

intensity.

Quarterly

Vent

Single Tumbler Fan Motor

Stack Tumbler Fan Motor

Vents

TMB40F

TMB41F

Thermostat

Cover

T457I

Proper Airflow

Insufficient Airflow

No Airflow

Air Shutter

Adjusting Screws

Air Shutter

Adjusting Screws

Air Shutter

Adjusting Screws

670323301

Quarterly

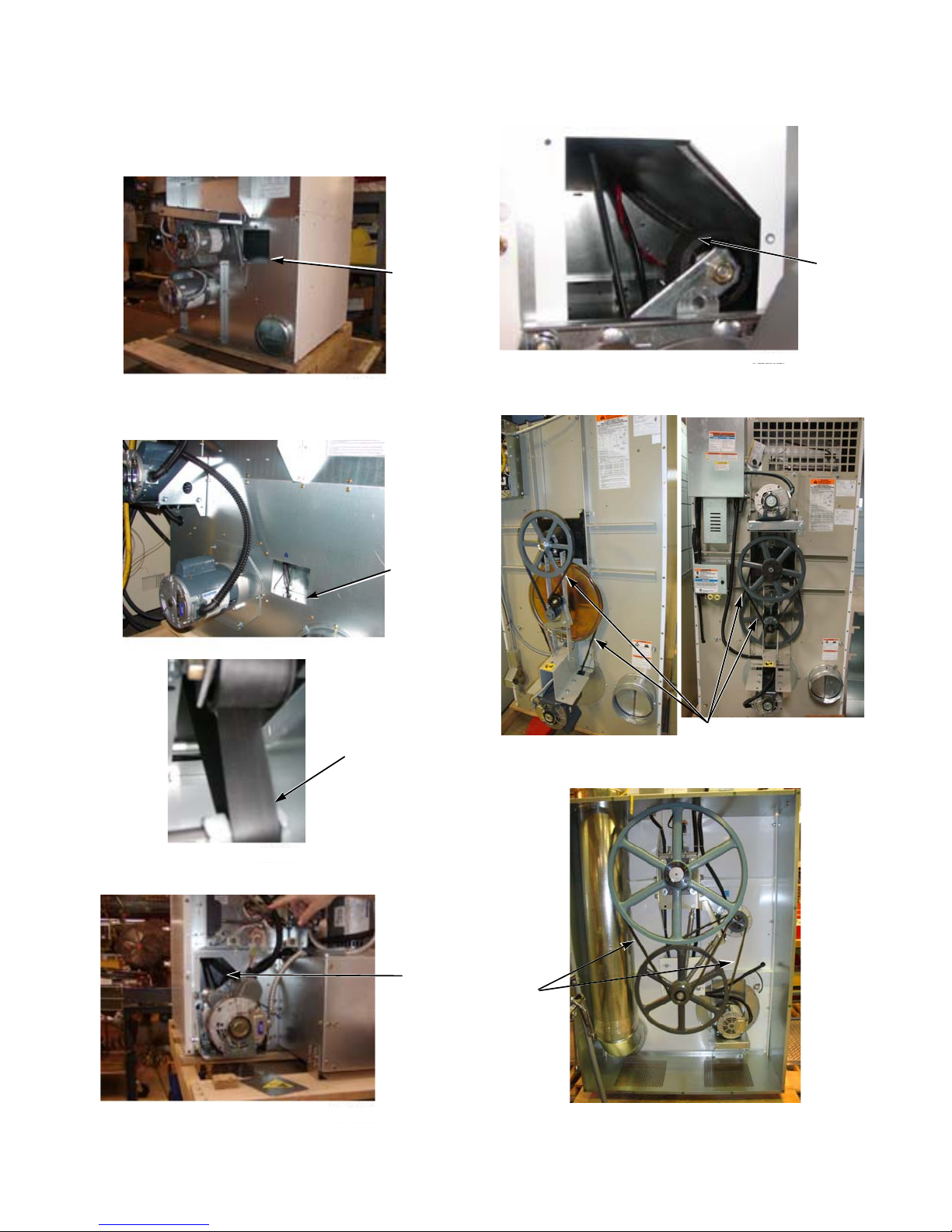

5. Check belt tension and condition. Replace worn or

cracked belts.

Belt

Opening

Prior to February 2006

TMB14F

25, 30 and 35 Pound Tumblers

Belt

Opening

After February 2006

TMB15F

25, 30, 35 and 55 Pound Tumblers

Belt

TMB16F

Stack 30 and 45 Pound Tumblers

Belt

Opening

TMB17F

Belt

Stack 30 and 45 Pound Tumblers

(cont.)

TMB18F

Belts

50 and 75 Pound Tumblers

Nonreversing Models

TMB42F

TMB43F

Reversing Models

Belts

120 and 170 Pound Tumblers

TMB48F

70323301 7

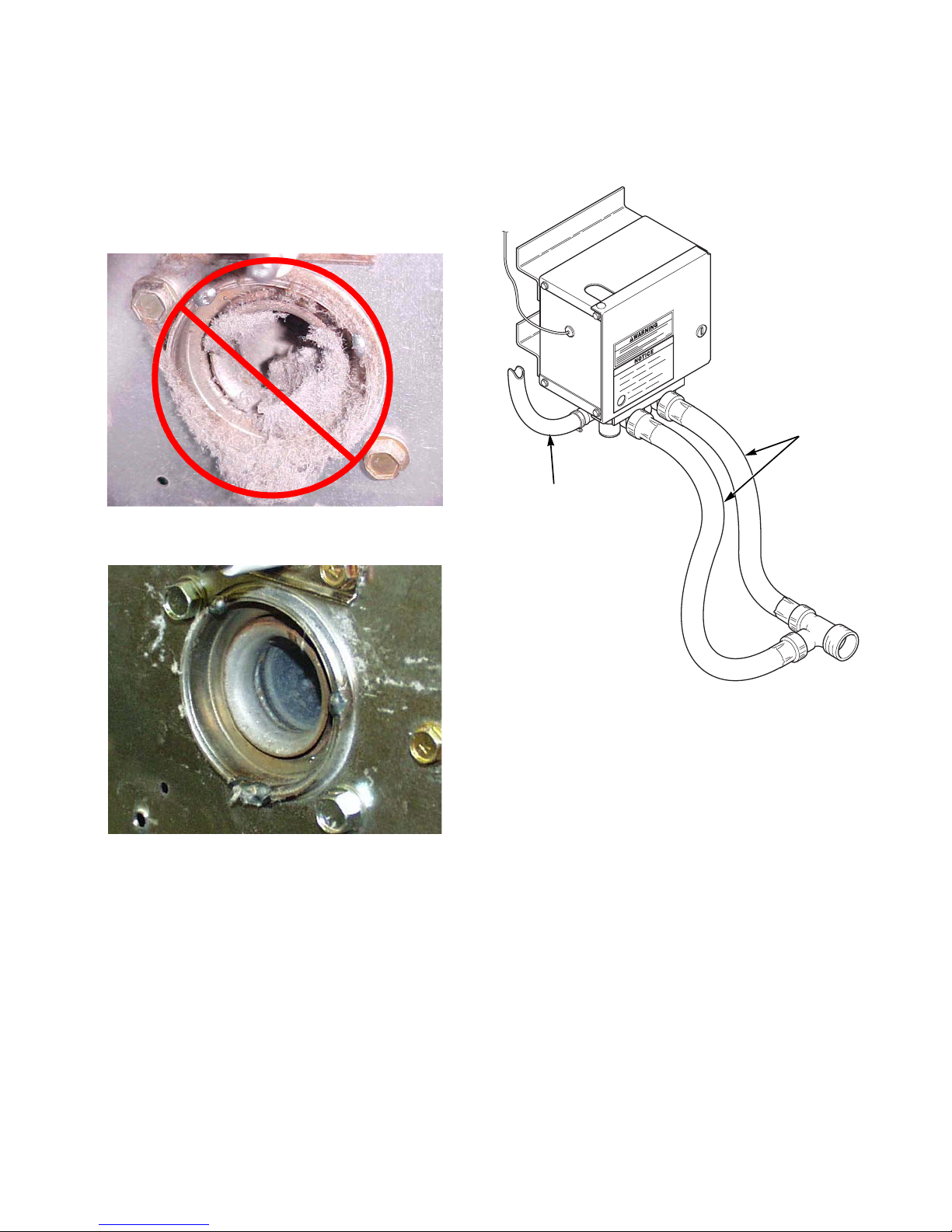

1. Check mounting hardware for any loose nuts, bolts

or screws.

2. Check gas connections for leakage.

3. Check for loose electrical connections.

4. Check steam connections for looseness and leakage.

5. Remove all front panels and vacuum, including coin

drop mechanisms.

Bi-Annually

25, 30, 35 and 55 Pound Gas Connection

Gas

Connection

TMB49F

Gas

Connection

Stack 30 and 45 Pound Gas Connection

TMB22F

50 and 75 Pound Gas Connection

Gas

Connection

TMB45F

120 and 170 Pound Gas Connection

Gas

Connection

TMB46F

Contactor Box with Electrical Connections

TMB47F

Steam

Connections

TMB25F

870323301

Bi-Annually

6. Check cylinder and front panel seals.

7. Inspect cabinet and inner panels for any damage,

replace or repair as needed.

8. Clean burner tubes and orifice area of any lint

buildup.

9. Machines equipped with a fire supression system:

All inlet and outlet hoses should be checked for any

visible signs of deterioration. Replace as necesssary

or every five years.

Burner Tube with Lint Buildup

TMB26F

Burner Tube without Lint Buildup

TMB27F

TMB2008N

Outlet

Hose

Inlet

Hoses
