Alliance Laundry Systems 25 Pound Capacity Manual

Operation/Maintenance

Drying Tumblers

25 Pound Capacity

30 Pound Capacity

35 Pound Capacity

55 Pound Capacity

Starting Serial No. 0602004144

Refer to Page 3 for Model Numbers

Part No. 70400001R4

August 2008

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

www.comlaundry.com

Installation must conform with local codes or in the absence of local codes with:

In the U.S.A., installation must conform to the latest edition of the American National Standard Z223.1/

NFPA 54 “National Fuel Gas Code” and Standard ANSI/NFPA 70 “National Electric Code.”

In Canada, installation must comply with Standards CAN/CSA-B149.1 or Natural Gas and Propane Code

CSA C22.1, latest edition, Canadian Electric Code, Part I.

In Australia, installation must comply with the Australian Gas Association Installation Code for Gas

Burning Appliances and Equipment.

IMPORTANT: Information must be obtained from a local gas supplier on instructions to be followed if the

user smells gas. These instructions must be posted in a prominent location. Step-by-step instructions of the

above safety information must be posted in a prominent location near the tumbler for customer use.

FOR YOUR SAFETY, the information in this

manual must be followed to minimize the

risk of fire or explosion or to prevent

property damage, personal injury or death.

W033

WARNING

• Do not store or use gasoline or other

flammable vapors and liquids in the

vicinity of this or any other appliance.

• WHAT TO DO IF YOU SMELL GAS:

– Do not try to light any appliance.

– Do not touch any electrical switch; do

not use any phone in your building.

– Clear the room, building or area of all

occupants.

– Immediately call your gas supplier from

a neighbor’s phone. Follow the gas

supplier’s instructions.

– If you cannot reach your gas supplier,

call the fire department.

• Installation and service must be

performed by a qualified installer, service

agency or the gas supplier. W052

FOR YOUR SAFETY

Do not store or use gasoline or other

flammable vapors and liquids in the

vicinity of this or any other appliance. W053

POUR VOTRE SÉCURITÉ

Ne pas entreposer ou utiliser d’essence ou

toutes autres vapeurs et liquides

inflammables à proximité de cette unité ou

de tout autre appareil. W053R2QU

POUR VOTRE SÉCURITÉ, les informations

de ce guide doivent être respectées afin de

réduire les risques d’incendie, d’explosion

ou d’éviter les dommages matériels,

personnels ou blessures mortelles. W033R3QU

MISE EN GARDE

• Ne pas entreposer ou utiliser d’essence

ou toutes autres vapeurs et liquides

inflammables à proximité de cette

machine ou de tout autre appareil.

• QUE FAIRE EN CAS D’ODEUR DE GAZ :

– Ne pas mettre d’appareil en marche.

– Ne pas toucher aux interrupteurs

électriques ; ne pas utiliser le

téléphone des lieux.

– Évacuer la pièce, le bâtiment ou la zone

de tous les occupants.

– Appeler immédiatement le fournisseur

de gaz de la maison d’un voisin.

Respecter les instructions

communiquées par le fournisseur.

– Si vous ne pouvez pas joindre le

fournisseur de gaz, appeler le service

d’incendie.

• L’installation et l’entretien doivent être

effectués par un installateur, service

d’entretien qualifiés ou par le fournisseur

de gaz. W052R5QU

means without the expressed written consent of the publisher.

270400001

Table of

Contents

Introduction......................................................................................... 3

Model Identification ............................................................................. 3

Customer Service.................................................................................. 4

Serial Plate Location............................................................................. 4

Wiring Diagram .................................................................................... 4

Safety Information.............................................................................. 5

Explanation of Safety Messages........................................................... 5

Important Safety Instructions ............................................................... 6

Operating Instructions ....................................................................... 8

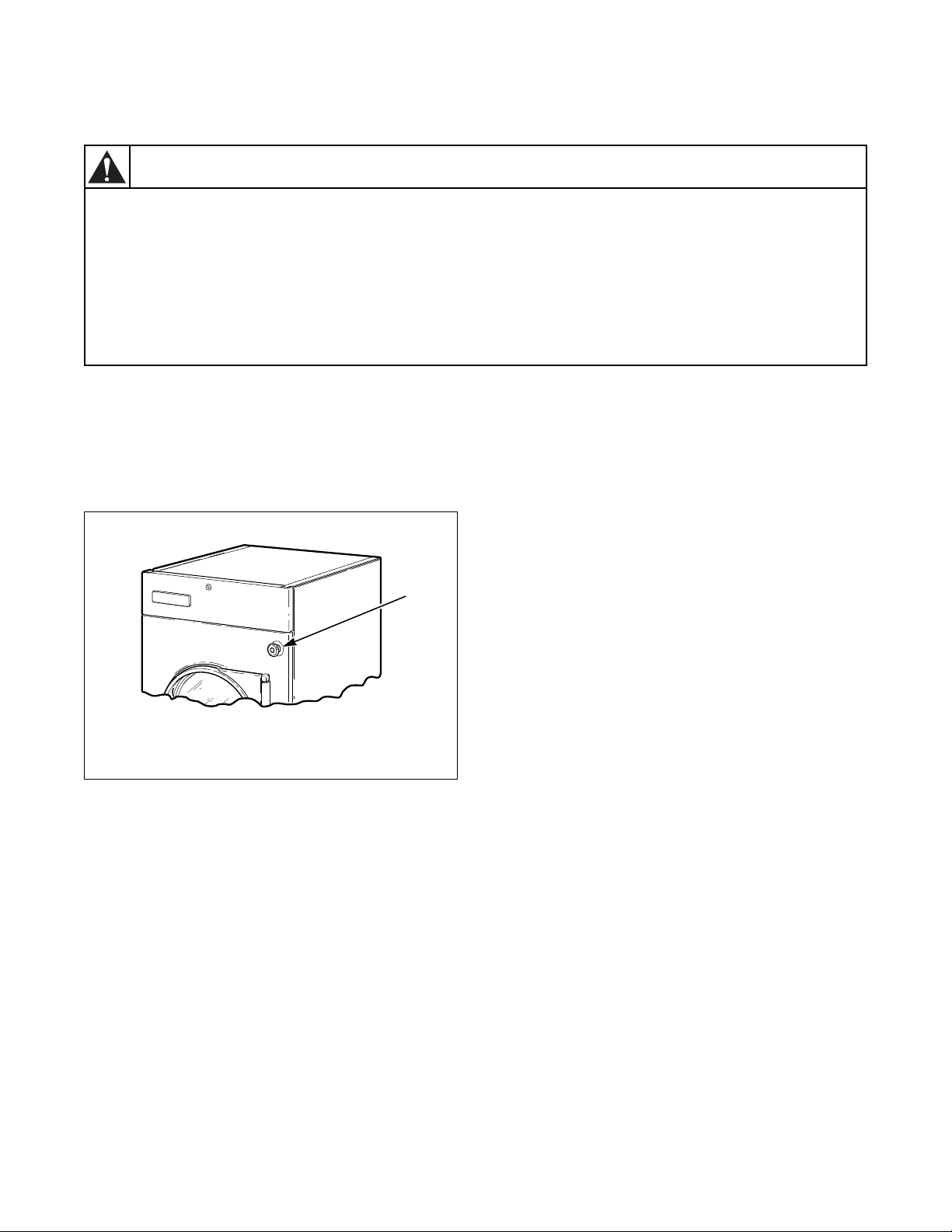

Emergency Stop Button on CE Models................................................ 8

Operating Instructions .......................................................................... 8

Control Instructions .............................................................................. 9

Dual Digital Timer Control.............................................................. 9

Single Drop Control......................................................................... 11

Preliminary Control Information ..................................................... 11

Diagnostic Microprocessor Control................................................. 13

DMP Coin ........................................................................................ 14

DMP OPL Models ........................................................................... 16

Ignition Control Operation ................................................................... 19

Maintenance ........................................................................................ 21

Daily ..................................................................................................... 21

Monthly................................................................................................. 23

Quarterly ............................................................................................... 23

Bi-Annually .......................................................................................... 23

Annually ............................................................................................... 23

Before You Call for Service ............................................................... 27

Customer Service.................................................................................. 27

70400001 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Introduction

Model Identification

Information in this manual is applicable to these models:

Includes the following control suffixes:

Gas Steam Electric

25 Pound

CHD25G2-CA025L

CHD25G2-CA025N

CHD25G2-CT025L

CHD25G2-CT025N

CHD25G2-CU025L

CHD25G2-CU025N

DR25G2-BA025L

DR25G2-BA025N

DR25G2-BT025L

DR25G2-BT025N

DR25G2-BU025L

DR25G2-BU025N

IPD25G2-IT025L

IPD25G2-IT025N

CHD25S2-CT025S

CHD25S2-CU025S

DR25S2-BT025S

DR25S2-BU025S

IPD25S2-IT025S

CHD25E2-CT025E

CHD25E2-CU025E

DR25E2-BT025E

DR25E2-BU025E

IPD25E2-IT025E

30 Pound

CHD30G2-CA030L

CHD30G2-CA030N

CHD30G2-CT030L

CHD30G2-CT030N

CHD30G2-CU030L

CHD30G2-CU030N

DR30G2-BA030L

DR30G2-BA030N

DR30G2-BT030D

DR30G2-BT030L

DR30G2-BT030N

DR30G2-BU030L

DR30G2-BU030N

IPD30G2-IT030L

IPD30G2-IT030N

CHD30S2-CT030S

CHD30S2-CU030S

DR30S2-BT030S

DR30S2-BU030S

IPD30S2-IT030S

CHD30E2-CT030E

CHD30E2-CU030E

DR30E2-BT030E

DR30E2-BU030E

IPD30E2-IT030E

35 Pound

CHD35G2-CA035L

CHD35G2-CA035N

CHD35G2-CT035L

CHD35G2-CT035N

CHD35G2-CU035L

CHD35G2-CU035N

DR35G2-BA035L

DR35G2-BA035N

DR35G2-BT035L

DR35G2-BT035N

DR35G2-BU035L

DR35G2-BU035N

IPD35G2-IT035L

IPD35G2-IT035N

CHD35S2-CT035S

CHD35S2-CU035S

DR35S2-BT035S

DR35S2-BU035S

IPD35S2-IT035S

CHD35E2-CT035E

CHD35E2-CU035E

DR35E2-BT035E

DR35E2-BU035E

IPD35E2-IT035E

55 Pound

CA055L

CA055N

CT055L

CT055N

CU055L

CU055N

IPD55G2-IT055L

IPD55G2-IT055N

Not Applicable

CT055E

CU055E

IPD55E2-IT055E

3O – DX4 OPL

3V – DX4 vended

3X – DX4 prep for coin

DO – DMP OPL

DV – DMP vended

DX – DMP prep for coin

QT – dual digital timer

SD – single drop

SX – single drop, prep for coin

Introduction

70400001

4© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Customer Service

If literature or replacement parts are required, contact

the source from which the machine was purchased or

contact Alliance Laundry Systems at (920) 748-3950

for the name and address of the nearest authorized

parts distributor.

For technical assistance, call (920) 748-3121.

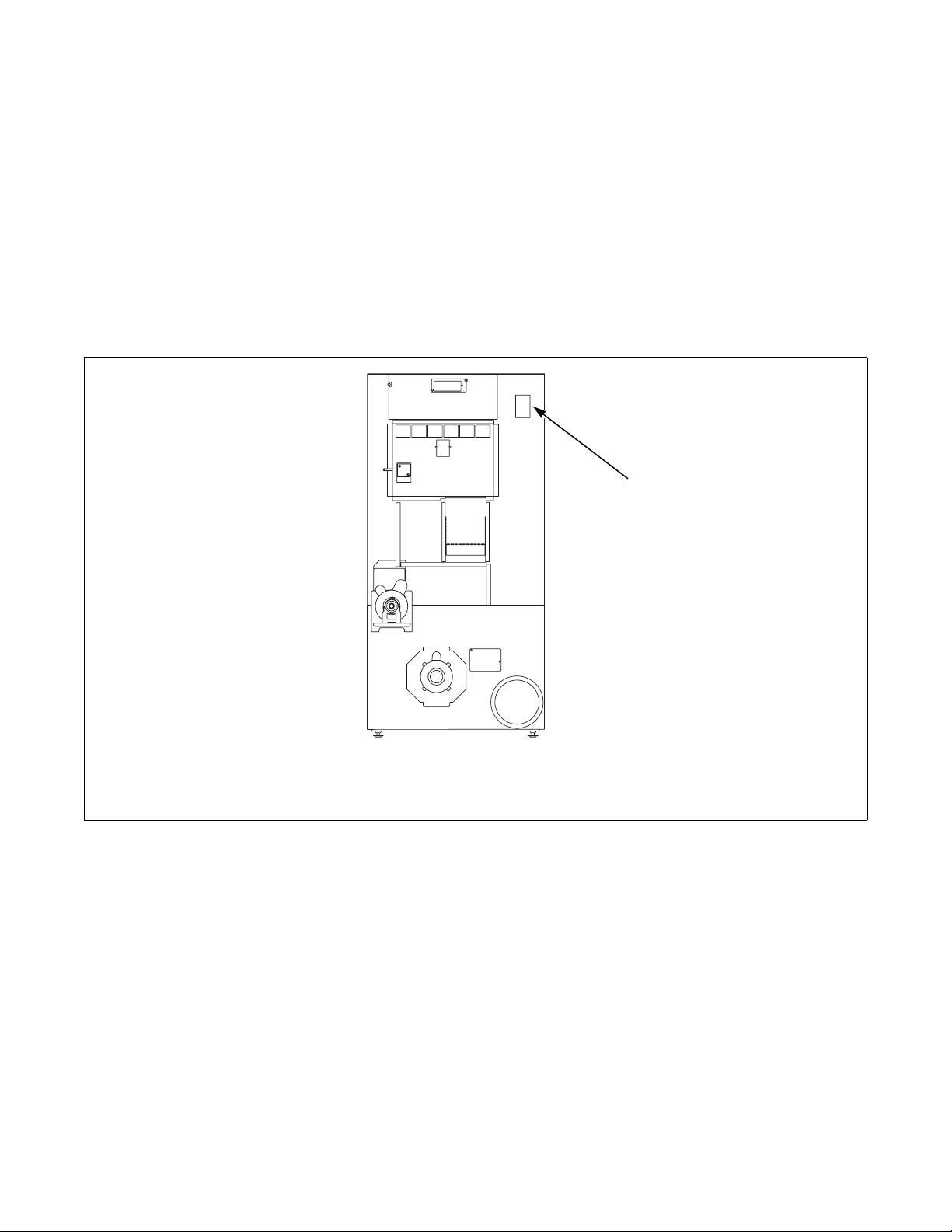

Serial Plate Location

Model and serial numbers are found on serial plate on

rear of machine, and inside the loading door hinge.

Refer to Figure 1.

Wiring Diagram

The wiring diagram is located inside the junction or

contactor box. The wiring diagram part number is in the

lower portion of the electrical data on the serial plate.

TMB2098N

1Serial Plate

Figure 1

70400001 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Safety Information

Explanation of Safety Messages

Precautionary statements (“DANGER,” “WARNING,”

and “CAUTION”) followed by specific instructions,

are found in this manual and on machine decals. These

precautions are intended for the personal safety of the

operator, user, servicer, and those maintaining the

machine.

Additional precautionary statements (“IMPORTANT”

and “NOTE”) are followed by specific instructions.

IMPORTANT: The word “IMPORTANT” is used

to inform the reader of specific procedures where

minor machine damage will occur if the procedure

is not followed.

NOTE: The word “NOTE” is used to communicate

installation, operation, maintenance or servicing

information that is important but not hazard

related.

IMPORTANT: Warranty is void unless tumbler

is installed according to instructions in the

Installation Manual. Compliance with minimum

specifications and requirements detailed herein,

and with applicable local gas fitting regulations,

municipal building codes, water supply regulations,

electrical wiring regulations, and any other

relevant statutory regulations. Because of varied

requirements, applicable local codes should be

thoroughly understood and all pre-installation

work arranged for accordingly.

NOTE: The WARNING and IMPORTANT

instructions appearing in this manual are not

meant to cover all possible conditions and

situations that may occur. It must be understood

that common sense, caution and carefulness are

factors which CANNOT be built into this tumbler.

These factors MUST BE supplied by the person(s)

installing, maintaining or operating the tumbler.

Always contact your dealer, distributor, service agent

or the manufacturer on any problems or conditions you

do not understand.

Indicates an imminently hazardous

situation that, if not avoided, will cause

severe personal injury or death.

DANGER

Indicates a hazardous situation that, if not

avoided, could cause severe personal

injury or death.

WARNING

Indicates a hazardous situation that, if not

avoided, may cause minor or moderate

personal injury or property damage.

CAUTION

Failure to install, maintain, and/or operate

this machine according to manufacturer’s

instructions may result in conditions which

can produce serious injury, death and/or

property damage. W051R1

WARNING

Safety Information

70400001

6© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Important Safety Instructions

Save These Instructions

1. Read all instructions before using the tumbler.

2. Refer to the GROUNDING INSTRUCTIONS

for the proper grounding of the tumbler.

3. Do not dry articles that have been previously

cleaned in, washed in, soaked in, or spotted with

gasoline, dry cleaning solvents, other flammable

or explosive substances as they give off vapors

that could ignite or explode.

4. Do not allow children on or in the tumbler. This

appliance is not intended for use by young

children or infirm persons without supervision.

Young children should be supervised to ensure

that they do not play with the appliance.

5. Before the tumbler is removed from service or

discarded, remove the door to the drying

compartment and the door to the lint

compartment.

6. Do not reach into the tumbler if the cylinder is

revolving.

7. Do not install or store the tumbler where it will

be exposed to water and/or weather.

8. Do not tamper with the controls.

9. Do not repair or replace any part of the tumbler,

or attempt any servicing unless specifically

recommended in the user-maintenance

instructions or in published user-repair

instructions that you understand and have the

skills to carry out.

10. Do not use fabric softeners or products to

eliminate static unless recommended by the

manufacturer of the fabric softener or product.

11. To reduce the risk of fire, DO NOT DRY plastics

or articles containing foam rubber or similarly

textured rubberlike materials.

12. Always clean the lint filter daily.

13. Keep area around the exhaust opening and

adjacent surrounding area free from the

accumulation of lint, dust and dirt.

14. The interior of the tumbler and the exhaust duct

should be cleaned periodically by qualified

service personnel.

15. If not installed, operated and maintained in

accordance with the manufacturer’s instructions

or if there is damage to or mishandling of this

product’s components, use of this product could

expose you to substances in the fuel or from fuel

combustion which can cause death or serious

illness and which are known to the State of

California to cause cancer, birth defects or other

reproductive harm.

16. Tumbler will not operate with the loading door

open. DO NOT bypass the door safety switch to

permit the tumbler to operate with the door open.

The tumbler will stop tumbling when the door is

opened. Do not use the tumbler if it does not stop

tumbling when the door is opened or starts

tumbling without pressing or turning the START

mechanism. Remove the tumbler from use and

call for service.

17. Tumbler will not operate with lint panel open.

DO NOT bypass lint panel safety switch to

permit the tumbler to operate with the lint panel

open.

18. Do not put articles soiled with vegetable or cooking

oil in the tumbler, as these oils may not be

removed during washing. Due to the remaining

oil, the fabric may catch on fire by itself.

19. To reduce the risk of fire, DO NOT put clothes

which have traces of any flammable substances

such as machine oil, flammable chemicals,

thinner, etc. or anything containing wax or

chemicals such as in mops and cleaning cloths, or

anything dry-cleaned at home with dry-cleaning

solvent in the tumbler.

20. Use the tumbler only for its intended purpose,

drying fabrics.

21. ALWAYS disconnect and lockout the electrical

power to the tumbler before servicing. Disconnect

power by shutting off appropriate breaker or fuse.

22. Install this tumbler according to the

INSTALLATION INSTRUCTIONS. All

connections for electrical power, grounding, and

gas supply must comply with local codes and be

made by licensed personnel when required.

Hazardous Voltage. Can cause shock, burn

or cause death. Allow machine power to

remain off for two minutes prior to working

in and around AC inverter drive. W359

WARNING

Safety Information

70400001 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

23. Remove laundry immediately after tumbler stops.

24. Always read and follow manufacturer’s

instructions on packages of laundry and cleaning

aids. Heed all warnings or precautions. To reduce

the risk of poisoning or chemical burns, keep

them out of reach of children at all times

(preferably in a locked cabinet).

25. Do not tumble fiberglass curtains and draperies

unless the label says it can be done. If they are

dried, wipe out the cylinder with a damp cloth to

remove particles of fiberglass.

26. Always follow the fabric care instructions

supplied by the garment manufacturer.

27. Never operate the tumbler with any guards and/or

panels removed.

28. DO NOT operate the tumbler if it is smoking,

grinding, has missing or broken parts.

29. DO NOT bypass any safety devices.

30. Solvent vapors from dry-cleaning machines

create acids when drawn through the heater of the

drying unit. These acids are corrosive to the

tumbler as well as to the laundry load being

dried. Be sure make-up air is free of solvent

vapors.

31. Failure to install, maintain, and/or operate this

machine according to the manufacturer’s

instructions may result in conditions which can

produce bodily injury and/or property damage.

WARNING

To reduce the risk of serious injury, install

lockable door(s) to prevent public access

to rear of tumblers. W055

70400001

Operating Instructions

Emergency Stop Button on CE

Models

All CE approved OPL tumblers are factory equipped

with an emergency stop button located on the front

panel. Refer to Figure 2.

Figure 2

To operate emergency stop button:

a. Press red emergency stop button to stop all

action.

b. To restart machine, pull red emergency stop

button out and press START pad or button.

NOTE: Activation of the emergency stop button

stops all machine control circuit functions, but

DOES NOT remove all electrical power from

machine.

Operating Instructions

Step 1: Clean Lint Screen/Compartment

Remove any accumulated lint from the lint screen and

compartment. Close panel tightly against tumbler

frame and lock panel securely, if applicable.

IMPORTANT: Clean lint screen and lint

compartment daily. Failure to clean the lint screen

daily will result in higher than normal

temperatures that may damage laundry.

Step 2: Load Laundry

Open loading door and load cylinder with laundry. DO

NOT OVERLOAD.

NOTE: Overloading causes slow drying and

wrinkling.

Close loading door. Tumbler will not operate with the

door open.

Step 3: Determine Control Type and

Temperature Setting

Refer to the various controls, pages 9 - 18, follow

instructions for the appropriate control type.

The type of fabric being dried will determine the

temperature setting. Consult the fabric care label or

fabric manufacturer to determine proper temperature

setting.

IMPORTANT: Always follow the fabric care

instructions supplied by the garment manufacturer.

Step 4: Remove Laundry

When the cycle is complete, open door and remove the

laundry.

To reduce the risk of fire:

• DO NOT DRY articles containing foam rubber or similarly textured rubberlike materials.

• DO NOT DRY plastics, anything containing wax or chemicals such as mops and cleaning

cloths, or anything dry-cleaned at home with a dry-cleaning solvent.

• DO NOT TUMBLE fiberglass curtains and draperies unless the label says it can be done. If

they are dried, wipe out the cylinder with a damp cloth to remove particles of fiberglass.W076

To reduce the risk of serious injury, allow cylinder to stop before cleaning lint screen. W412

WARNING

TMB1664N

1Emergency Stop Button

Otros manuales para 25 Pound Capacity

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Secadora de Alliance Laundry Systems

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen DF7000WG Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TR3003WN Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems PD3JGBGS403UG01 Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems BDEE6BGS173CW01 Instrucciones de funcionamiento

Alliance Laundry Systems

Alliance Laundry Systems JCD32DG Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems LES33A F4562 Series Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems SFE107*A Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems AE Series Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 50 Pound Series Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems T433I Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems CA050L Instrucciones de funcionamiento

Alliance Laundry Systems

Alliance Laundry Systems 602004144 Manual de instrucciones

Alliance Laundry Systems

Alliance Laundry Systems Clothes Dryer Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 120 Pound Capacity Manual de instalación y operación

Alliance Laundry Systems

Alliance Laundry Systems 70420801 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems LES33A Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems CA120L Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems LES33 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 25 Pound Capacity Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems SWD439C Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems Drying Cabinet Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems HE-HG Seies Instrucciones de montaje

Alliance Laundry Systems

Alliance Laundry Systems DR3003WX Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems SDE807 Guía

Manuales populares de Secadora de otras marcas

Bosch

Bosch WTA79200GB Manual de usuario

Amana

Amana W10233410A Manual de usuario

Miele

Miele TWH 780 WP Manual de usuario

Asko

Asko T760 Manual de usuario

Bosch

Bosch Logixx 10 WTB76556GB Hoja de especificaciones

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manual de instrucciones

Electrolux

Electrolux EW2H328R2 Manual de usuario

Beko

Beko DS8433RX1M Manual de usuario

Dawlance

Dawlance Spinner DS 6000 C Manual de usuario

Electrolux

Electrolux TP5080TW Manual de usuario

AEG

AEG TR838P4OB Manual de usuario

Indesit

Indesit IDV 75 Manual de usuario

Infiniton

Infiniton SD-DG85C Manual de usuario

BOMANN

BOMANN WT 5019 Manual de usuario

Asko

Asko T793C Manual de usuario

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manual de usuario

Frigidaire

Frigidaire CAQE7077KW0 Manual del propietario

Bosch

Bosch WTX8HKM9SN Manual de usuario
