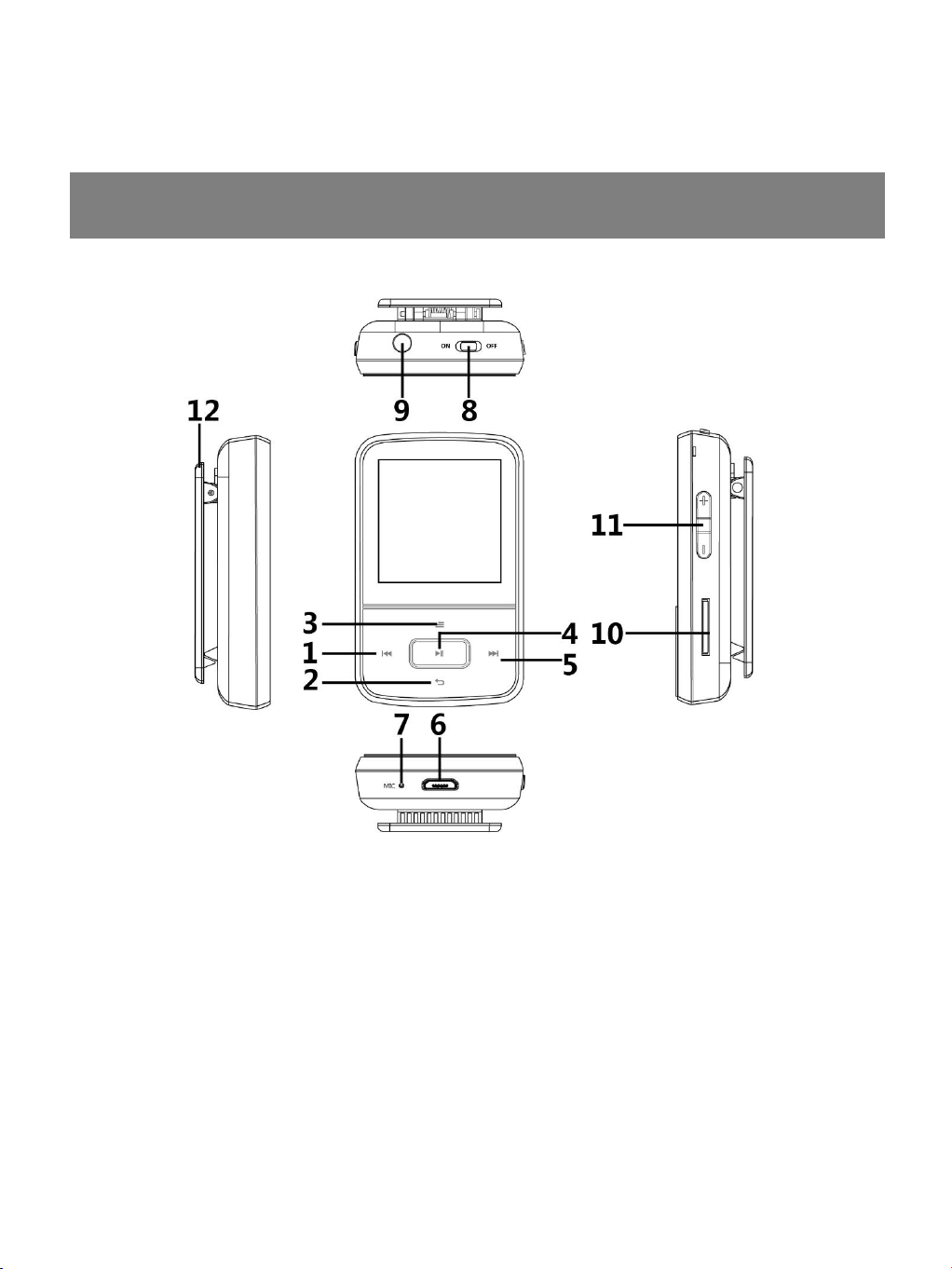

Unit overview

G05S USER MANUAL

1.Previous song/Fast backward/ Return

2.Return / Scroll down

3.Submenu button / Lock /Unlock / Scroll up

4.Play / Pause / Enter / Power On-off

5.Next song/Fast forward

6.Micro-USB port

7.MIC hole

8.Power on-off

9.Earphone jack

10. Micro SD card slot

11.Vol+/Vol-

12.Clip

13.1.5”TFT screen

Technical Specification

Basic Operation

Power On/Off

Push on-off button to the “on”side or long press button

for about 3 seconds to turn it on.

Push on-off button to the “off”side or long press button

for about 3 seconds to turn it off.

Scroll Up/Down

Click button / to scroll up/down one by one. Hold to

scroll up/down quickly.

Return

At any interface, long press to enter Main menu.(not

available for Bluetooth function)

At main menu, press back to the interface you just

use(music or FM).

Screen

1.5 inch 128*128 TFT display

Flash memory

8GB

Audio format

MP3/WMA/OGG/APE/FLAC/WAV/A

AC-LC/ACELP

Recording format

FM/MIC record and WAV

Battery

Li-polymer rechargeable 300mAh

FM frequency

87.0-108MHZ

Micro-SD card

Extend to 64GB

Photo format

JPG,BMP and GIF

Charging time

3 hours

MUSIC

Lock the Screen

Long press to lock the screen. Repeat to unlock. When

the screen is locked, all of the buttons on the key pad are

not available.

Note: You can not lock the screen under music/submenu

list interface.

Battery Charging

When there is a battery indicator on the screen, you must

charge the device.

The device has two charge options:

a)You can charge the device via the USB connector.

b)You can also charge the device via a 5V 500mA USB wall

adapter(not included)

Note:The charging time should not exceed 4 hours. It is

recommended to turn off the device before charging.

Press buttons definition

Action

Basic operation

Short press

Press time is less than 1-2 seconds

Long press

Press time is more than 1-2 seconds

Hold

Keep pressing one button

Note:Without special instruction, all pressing mean short

pressing in this user manual.

Play your music

On music menu, press to enter music function, and by

pressing / to view sub-menu from up to down: “All

songs”,“Now playing”,“Resume”,“Artists”,“Albums”,

“Genres”,“Playlists”and “Create playlists”. Press to

confirm your option and start to play your music.

Please note: The submenu for music is different under

Bluetooth mode and normal mode.

Repeat

Here appears 4 options, Repeat 1, and Repeat All, Repeat

off, View Playing.

Shuffle

Choose On or Off mode as you want.

Equalizer

Here are 7 equalizers for your option, Off, Rock, Funk, Hip

Hop, Jazz, Classical, Techno.

Variable Speed Playback

Adjust the play speed from (the slowest)-8 to +8(the

fastest).

Repeat settings(only available when the music is playing)

Repeat mode(A-B):choose the option Replay mode, click

to confirm the starting time A (A is flashing).

Then click the button to set the ending time B(B is

flashing). Click the button again to confirm. The icon for

A-B indication will appear on playing screen. And the audio

from time A to B will be repeated automatically.

Replay times: Set the replay times from 1 to 10.

Replay intervals: Set the replay interval for 1 to 10

(seconds).

Bookmarks

It is marked by the stopping time as “hh:mm:ss”. So you can

set the stopping time before you add it for continues

playing next time conveniently.

You can add up to 10 bookmarks for each of the song. If

there are more than 10 bookmarks, the old one bookmark

will be replaced by the new.

You can find the bookmarks you saved with the option “Go

to bookmark”under submenu “Bookmarks”, and you can

delete them with the option “Delete bookmark”.

SET

Note: Only when the song is playing, you can find all of the

bookmarks you added for this song with the option “Go to

bookmark”. That is to say, if you want to find the

bookmark of one song, you must play the song at first and

then find the option “Go to bookmark”. All of the

bookmarks for this song will be listed under the option “Go

to bookmark”.

Add to playlist

There are 3 options prepared for you, including “Playlist on

the go [1]”,“Playlist on the go [2]”and “Playlist on the go

[3]”, you can add the song which is playing to any one of

these three as you like.

Remove from playlist

You can remove the song which is playing to any one of

these three Playlist as you like.

Delete

It will show”...(song name)”delete? Press to choose yes

to delete this song.

To create playlists by yourself

There is a free program called Media Go. It's the easiest

program to use for transferring playlists to the AGPTek. Just

create your playlists in Media Go and then right-click its

name and select 'Add playlist to X :( Which is your MP3

player's disk) '. (You can download it at

http://mediago.sony.com/chs/download).

On setting menu and press to access the following

settings: “Language”,“Date and time”,“Screensave mode”,

RECORD

“play mode”,“sound settings”,“Brightness”,”Backlight

timer”,“Sleep timer”,”Power off”,“Format device”,

“Factory settings”,“Information”.

Press to default your setting.

Sleep timer: When it reaches the sleep time you set, the

player will power off automatically;

Power off : When it reaches the power-off time you set, the

player will shut off automatically when the

MP3 is not playing and you have no action on it.

Select Off to make it always on;

Backlight timer: Set the backlight time of your player;

Screensave mode: Choose “Screen off”to turn off the

screensave mode, or choose the clock style to

select from the 4 clock styles. You can press

and to select it;

Language : Choose the language according to your need;

Information : See information about your player.

On record menu and press to enter voice recording. The

following lists will show: Start Voice Recording, Recordings

library, Recording Format and Record Settings. Press /

to select from these lists.

•Quick Record: scroll to “Start Voice Recording”, press

to start your recording, click button to resume or stop

recording, and press and choose YES to save the

recording.

•In recording library view recording files(such as

REC001.WAV, you can play it as music) and delete all files.

FM RADIO

On radio menu press to enter below radio playing

interface.

You can press / to search programs manually.

At radio playing interface, press and will show a related

lists including “Bluetooth link”,“Presets”,“Save to preset ”,

“Clear preset”,“Auto tune”,“Start FM recording”and “Tuner

Region”.

Listen to the Radio by Bluetooth

Find Bluetooth link, and click button to access to its

submenu:

Bluetooth Status: choose to turn on/off the Bluetooth, turn

on Bluetooth before searching the Bluetooth around.

Bluetooth Search: all of the Bluetooth searched will be

listed, choose the device and click the button to

connect/disconnect.

Bluetooth Device: all of the Bluetooth connected before will

be listed.

Presets

You can see both preset station and auto tune station. Press

, you can see clear preset and clear all presets.

Clear preset: Press to enter the station list and

press / to select the station, and then press to

ensure. It will show etc: “Clear preset01?”press to

confirm Yes or No.

Clear all presets: Press It will show “Clear all

presets”. Press to confirm Yes or No.

Tip: if you use auto tune, all the station you had saved will

be deleted.

Save to preset

The frequency points of radio station are displayed with 30

FOLDER

BLUETOOTH

frequency points reserved at most.

Clear preset

Press to clear preset stations.

Auto tune

Press to enter Auto tune mode, it will show “Do you

want to auto-tune ”, press to confirm Yes or No. If

choose Yes, it will be searching automatically and

automatically save searched station in

“

Station list”.

FM recording

Press to start recording, and press , it will show“Save

recording?”press to confirm Yes or No. If choose Yes, it

will saved recording content in the formats of

FMREC001.WAV…

You will find saved FM recording in Record folder under

FOLDER menu.

Tuner region

The player is defaulted to command band, if you are in

Japan, you need to change to Japan Band. If you are in

Europe, you need to set to European band.

On folder view menu press to enter folder menu. Here

you can check files you have stored on the device

including music, recording and pictures.

When you play music under “Folder”, it will shuffle songs

by folder if you turn shuffle on.

Open the Bluetooth of the device you want to connect with

the player. Then click to search the nearby devices, then

all of the devices which has opened its Bluetooth will be

listed. Select the device you want to connect, then click

to connect. After successfully connected, this player is

ready to play music by Bluetooth earphones, Bluetooth

speaker etc. Press button to enter its submenu:

Bluetooth Search, choose to restart searching;

Bluetooth Device, choose from the available devices and

select to connect/disconnect;

Music list, choose to list all of the musics;

Music, choose to go to the music playing interface.

Note:

1.when playing music or FM radio by Bluetooth, it is not

allowed to go back to the main interface unless

disconnected with Bluetooth;

2. When the player is powered off by holding the middle

button, it will connect to last device it connected by

Bluetooth automatically once powered on next time;

3. If the player is connecting to external device by Bluetooth

with card inserted, there will be options popped out for

choosing internal memory or memory card.

If you have any questions about this player, please feel free

to contact [email protected]om.
