AGPtek B05 Manual de usuario

Statement

I. Thank you for purchasing the B05 Digital Audio Player produced

by AGPTek. Before using the player, please read the manual

carefully. If you have any question or any idea about this

product, please email support@agptek.com. We look forward

to hearing from you!

II. We strongly suggest you to back up the data in case there is

accident happening on the Digital Audio Player. We are afraid

that we could not bear responsibilities for data loss due to

mistaken operation or hardware damage.

III. Users are neither allowed to repair the machine nor to the

open the rear cover of the machine by themselves, or else we

won’t be able to provide you with regular after-sale service.

IV. Manufacturers of Flash machine usually calculate the capacity

by the scale 1000, i.e. 1K=1000byte, 1M=1000K and 1G=1000M.

The operation system equalizes 1024 k to 1M and the

formatted report capacity will be less than the nominal capacity.

System files would occupy a bit of space under different

systems.

Parts and Controls

1. Power

Short press for screen protection or screen

wakening and long press for power on/off.

2. Reset button

To reset the player.

3. Back key

Go back to the last menu. Long press to back

to the main menu directly.

4. UP

Select up/Volume+.

5. Previous

In menu interface, press to go to the last

item. On the song screen, short press to go

to the last track and long press to rewind.

6. Play/Pause key

Display play and pause function.

7. Menu key

Press to open the functional submenu. Long

press to lock/unlock.

8. Next

In menu interface, press to go next item. On

the song screen, short press to go to the next

track and long press to fast forward.

9. Down

Select down/Volume-.

10. Card slot

Support a maximum capacity of 64 GB

MicroSD card.

11. Earphone

interface

3.5mm earphone socket.

12. Micro USB port

To connect micro USB cable.

Main interface

In the main interface including “Music”, “Radio”, “Browser”,

“Setting”, “Record”, “Tools”, “Photo”, “E-book” and “Movie”.

Press / / / key to choose one application and press key to

enter.

When playing music, you could back to the playing interface by

pressing return key.

Music

1. In the music interface, choose which your prefer on “All songs,

Artists, Albums, Genres, Playlists, Album art, Create playlist, and

folder”. Press OK button to play music;

2.While the music is paused or playing, press M to select

items .(including Shuffle, Repeat, Bookmarks, Equalizer, Add to

playlist, Remove from playlist, Repeat settings, Variable speed

playback, Sleep timer or Delete. )

3. The player supports simultaneous display of “*.LRC” lyrics.

Filename of (“*.LRC”) lyrics file shall be consistent with song name.

The player would automatically identify lyrics file with the same

name of the song.

4. A-B repeater supports to repeat play any sections of a song.

Procedures are as follows:

a. When playing music or a speech, short press “ ” entering

“Repeat settings” and choose “Repeat Mode” (Repeat Times and

Replay Interval are also setting here). Press “ ” key to confirm the

starting point A and then you will see a flashing point B.

b. Press “ ” key to confirm the ending point B and you will see

“A—B” and it will repeat play “A-B”.

c. Press “ ” key to exit A-B mode.

Radio

1. In the main menu, select “Radio”. Press “ ” key entering and

press “ ” key exiting.

2.In the radio interface, press “ ” key, menu options in order are:

Save to preset, Clear preset, Auto-tuning, Presets, Start FM radio

recording and Tuner Region.

2. Press “ ” key to switch the pre-stored channel and press “ ”

key/ “ ” key to fine-tune the band. Long press “ ” key or “ ” key

entering the previous or next pre-stored channel.

3. Short press “ ”/ “ ” key to volume up and down.

Note: after select auto- tuning, radio saved before will be cleared

and upgraded for the radios searched latest.

Record

Select recoding and press “ ” entering the recoding and select

“Start voice recording/Recording library/Record format/Record

Settings. Press “ ” key to confirm entering. Press “ ” key to switch

between stop/ continue recoding. In the process of recording, if

press “ ” key or press “ ” key to choose save it or not.

E book

Only support txt format.

Select a file and press “ ” to start reading. In the process of

reading, you can short press “ ” entering the submenu and select:

Play setting, Delete E-book, Bookmark Select, Delete bookmark,

Add bookmark and page select.

Notes: you could use e-book while listening to music.

Video mode

1. In the main menu, select “video”

2. Press “ ” entering “video”, and press“ ” and “ ” key to select

the video. Press “ ” key to play or pause the video, long press “ ”

key or “ ” to fast rewind play or fast forward play.

3. Short press “ ”/ “ ” key to volume up or down.

Music Data transfer

Plug machine into PC with the micro USB cable, it will show up as a

removable disk as soon as PC recognize the machine; then copy and

paste files onto the machine and enjoy your music!

Setting

In the setting interface, press “ ” to select items.(Including

Language, Backlight timer, Date and time, Save mode, Sleep timer,

Ear health, Player information, Disk space, Factory settings and Exit

Settings.)

Language

Choose the language you need

Save mode

Press “ ” key entering options, and press “ ”/ “ ” key to select.(Th

e machine will be shut downwhileyou are not listening or press itin

1 minute or 2minutes). Or you could choose off to let it always on.

Player Information

You could review the version of the current software, the machine

body and the space information of MICRO SD card.

Disk space

You could review the machine body and the space information of

MICRO SD card.

Factory settings: You could recover the factory setting.

Sleep timer

Press “ ” key entering options and press “ ”/ “ ” key to select the

setting value. Set shutdown time of the player with no operation in

the playing status. Range: 00-99 minutes.

Create your own playlist

Editing Playlist by media player could be painful, no matter by iPod

or others. There is a free program called Media Go. It's the easiest

program to use for transferring playlists to the AGPTek. Just create

your playlists in MM and then right-click its name and select 'Synch

to X :( Which is your mp3 player's disk) '.

http://mediago.sony.com/enu/

After sending your playlist and music to the player, you may find it

in music, and then select playlists.

How to make you music or audio books sort by name

Playing from Music option, the order is sorted by alphabet (or

exactly called ASCII)

Playing from Playlist, the play order is as your playlist.

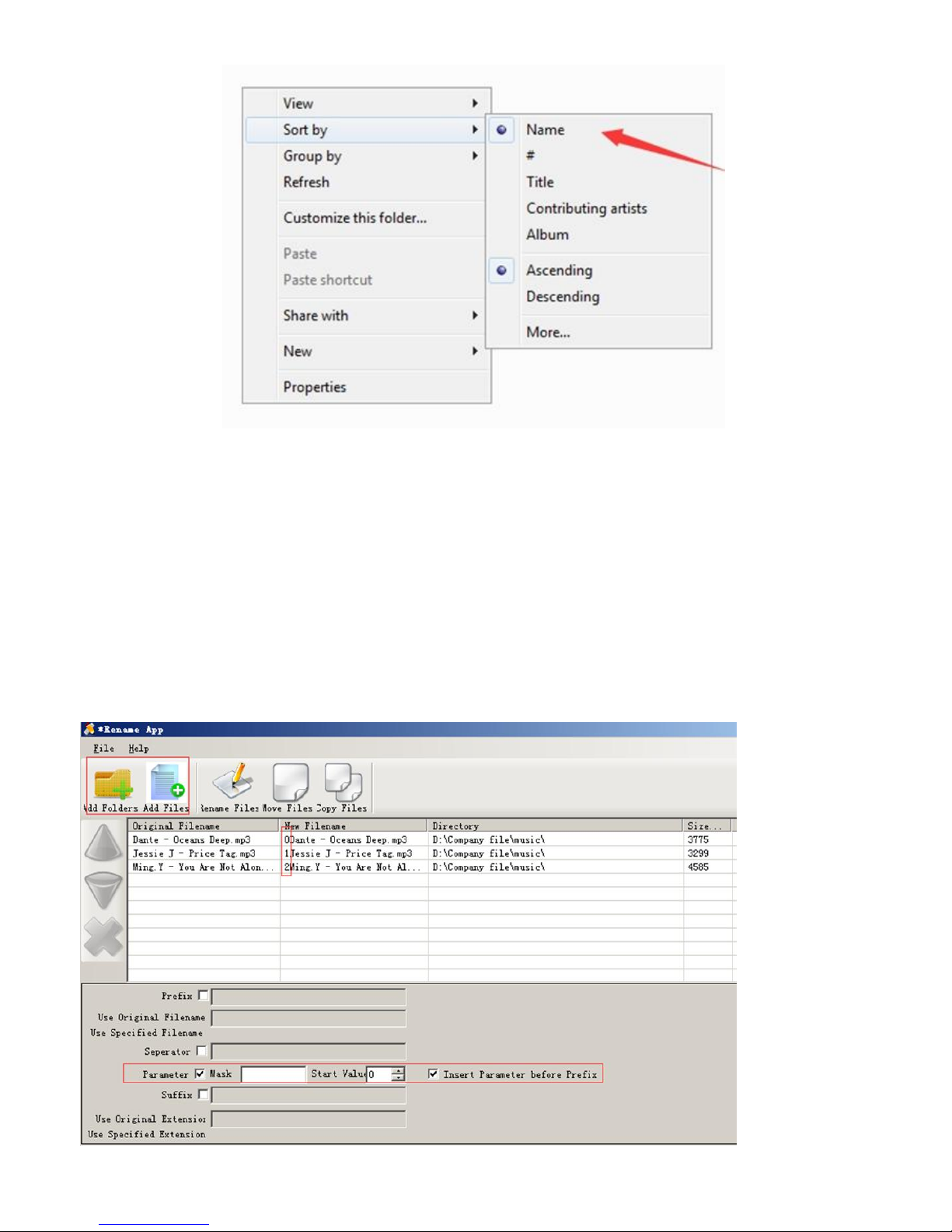

Playing from Folder option, the order is sorted by the order you

copy them. Before you copying them into the player, please

arrange the files to a right sequence in computer (by name, like the

picture below. Not by #).

If the file order is sort by name before you copying them into the

player, they would be right order.

If your music is not sort by the right number, use the application

“Renamer” to sort your music files by number. Download Renamer

on the website (http://renamer.en.softonic.com/), and then

choose the item “Add folders” or “Add files” to add your music into

list. (For more details, please kindly check the link).

Put your music into your MP3 player and press play key to enter

Folder to check it.

Add bookmark for your audio book

While in audio playing mode, press “ ” to access to the submenu.

From the list that appears, choose “Bookmarks” with the option

“Add bookmark”.

Bookmarks are marked by the stopping time as “hh:mm:ss”.

The next time this song is played, you press the

M >bookmarks >.go to bookmark, and choose the bookmark,

you could go back to the point you marked last time.

Maximum number of bookmarks supported by each audio file is

10. Additional bookmarks will override the ones set previously.

To find saved bookmarks, select “go to bookmark”. Select

“Delete bookmark” to delete it.

Troubleshooting

Unable to starting up

1. Check whether the power is sufficient

No sound when play

music

1. Turn up the volume

2. Check whether the earphones are well

inserted.

3. Check whether supports the music

format.

4. Check whether the music file has been

damaged

Unable to download

files to device

1. try another micro SD card

2. Check whether the device has been

correctly connected with computer.

3. Check whether there are enough

storage space in the device

3.Try another USB cable

There is noise when

play the device

1. Check whether the plug of earphone is

clean

2. Check whether the music file has been

damaged

System Reset:

System is no response for some reason, or other abnormal

circumstances, the system can be restarted by resetting the power

button, push down 10 seconds until you can reboot.

Specifications

Dimension

90×38.4×9 mm

Screen

1.8 inch TFT display

Audio format

MP3: bit rate 8Kbps-320Kbps

WMA: bit rate 5Kbps-384Kbps

FLAC：sampling rate 8KHz-48KHz

APE：sampling rate 8KHz-48KHz

WAV：sampling rate 8KHz-48KHz

Battery

In-built 420MA lithium battery

Lyrics format

LRC

Recorder format

WAV

Picture format

JPEG, BMP format

E-book

TXT

Storage

Internal storage of the machine is 8GB,

compatible with a maximum capacity of 64

GB Micro SD card.
