Advidia M-45-FW-V2 Manual de usuario

Network Fixed Dome Cameras

Quick Guide

V1.01

M-45-FW-V2

Waterproof Requirements

Please waterproof cables in accordance with the following instructions. User shall

assume all responsibility for device damage caused by water due to improper

waterproof measures.

NOTE!

⚫Before you start, connect all the needed cables and cut off the copper wires for

the cables that you don't use.

⚫Please use self-adhesive waterproof tape (supplied with some products) to

protect the cables.

⚫Use waterproof components to protect the network cable. Waterproof the

power cable separately if you don’t use it. The video cable does not need

waterproof treatment.

1. Use insulation tape (not included in the package) to insulate the connection part

of each cable.

2. Waterproof the cables with self-adhesive waterproof tape.

(1) Fully stretch the waterproof tape at both ends.

(2) Wrap the connection part and the cable ends tightly with waterproof tape.

Make sure the tape is fully stretched during the process.

(3) Tighten the tape at both ends to prevent water leakage.

Connection part

Insulation tape

3. Install the supplied waterproof components to the network cable in sequence.

CAUTION!

You need to mount the rubber ring onto the network cable interface first.

4. If your camera has a DC cable and you will not use it, insert the plug into the

interface.

5. (Optional) After the waterproof treatment is completed, put the cables into a

waterproof junction box (purchased separately).

CAUTION!

⚫The cable connector must not be exposed and must be kept away from water.

⚫Restore and fasten the device after dismounting.

⚫Place the power adapter in a power distribution box.

Wrap the unused cables together into a bundle

Tighten Tighten

Waterproof tape

Tighten

DC interface

Plug

1Packing List

Contact your local dealer if the package is damaged or incomplete. The attachments

may vary with models, please see the actual model for details.

No.

Name

Qty

Unit

Camera

PCS

Screw components（1）

Set

Mount accessory （2）

Set

User manual

Set

Remarks:

* means optional and supplied with certain models only.

(1)Including one or more accessories such as screws and hex key.

(2)Including one or more items from drilling template, bracket adapter, anti-static

gloves, etc.

2Safety Instructions

Installation and removal of the unit and its accessories must be carried out by

qualified personnel. You must read all of the safety instructions before installation

and operation.

2.1 Precautions

⚫Use a power adapter or a PoE device that meets requirements. Otherwise, the

device may be damaged.

⚫Be careful not to blur, scratch, damage the dome cover or leave fingerprints on

it because this could decrease image quality. Keep the protective film on the

dome cover until installation is complete.

⚫Make sure the length of the power cable between the power adapter and the

camera is not too long, otherwise the voltage of the camera is lowered, causing

the camera to work abnormally. If it is required to lengthen the power cable,

lengthen the cable between the power adapter and the mains.

⚫Do not overbend the cables during the installation, otherwise, poor cable contact

may cause malfunction.

⚫When connecting to an external interface, use an existing connection terminal,

and ensure that the cable terminal (latch or clamp) is in good condition and

properly fastened. Ensure that the cable is not tense during mounting, with a

proper margin reserved to avoid poor port contact or loosening caused by shock

or shake.

⚫During transportation, special attention is required to protect the transparent

dome cover from friction, scratch and stain, etc. Do not remove the protective

film from the cover until mounting is finished. Remove the protective film before

powering on the device.

⚫Make sure the wall or ceiling is strong enough to support the weight of the

camera. If dust falls during mounting, take off the dome cover and keep it away

from dust. Install the dome cover after the base is installed.

⚫Contact professionals for maintenance information. Do not attempt to dismantle

the device by yourself. We shall not assume any responsibility for problems

caused by unauthorized repair or maintenance.

2.2 Maintenance

⚫If there is dust on the front glass surface, remove the dust gently using an oil-

free brush or a rubber dust blowing ball.

⚫If there is grease or a dust stain on the front glass surface, clean the glass surface

gently from the center outward using anti-static gloves or an oil-free cloth. If the

grease or the stain still remains, use anti-static gloves or an oil-free cloth dipped

with detergent and clean the glass surface gently until it is clean.

⚫Do not use organic solvents (such as benzene and alcohol) to clean the

transparent dome cover.

3Appearance

3.1 Dimensions

The following figure shows device dimensions. The appearance may vary with device

model.

3.2 Cable Connection

The appearance and tail cable may vary with device model.

1. AUDIO_OUT

2. GND

3. AUDIO_IN

4. GND

5. ALARM_IMPUT

6. GND

7. ALARM_OUTPUT_P

8. ALARM_OUTPUT_N

4Mount Your Camera

The following part takes ceiling mount as an example. Wall mount is similar to ceiling

mount and therefore is omitted here. The figures are for your reference only.

1. Locate the positions of the holes. Paste installation positioning stickers on the

ceiling and lead the cables through the hole on the wall.

61.8mm

2.4"

108.6mm

4.3"

2.4"

60.8mm2-

0.2"

4.0mm

100.0mm

3.9"

Network

interface

Power

interface

1 2 3 5 64 8

2. Drill holes on the wall. Use a Ø6-6.5mm drill bit to drill 30 mm-depth guide holes

according to the positions marked by stickers.

3. Mount the plastic rivets of self-tapping screws. Knock the plastic rivets into the

guide holes and ensure that they are tightened up.

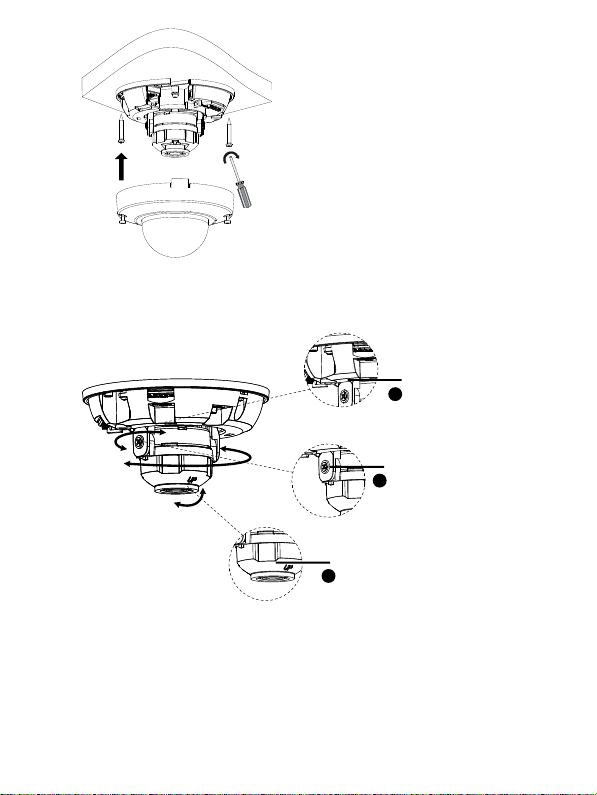

4. Mount the camera. Connect all cables of the ceiling and the camera, lead self-

tapping screws through the guide holes in the camera base, and fix the camera

on the ceiling by using a screwdriver.

5. Adjust the monitoring direction of the lens. Tighten the screws after vertically

adjusting the len.

6. Mount the transparent dome housing. Align the screw holes in the base, and

tighten the three star shape screws on theedge of the transparent dome housing

to fix it.

Lens base

Fastening screw

Rotate the lens base

horizontally.

Loosen the fastening

screws and rotate the

lens vertically.

Lens

Rotate the lens horizontally.

NOTE!

⚫The above process is concealed installation, tail cables are led out from the top

of camera. Cables are frapped to prevent messy cables from affecting camera

mounting. If open installation is adopted, tail cables are led out from the side

groove of the camera.

⚫After mounting the dome housing, check that the three star shape screws on

the edge of the dome housing are tightened up to ensure that the camera is

properly sealed. For details, see step 6.

5Startup

After you have installed the device, connect one end of the power adapter

(purchased separately) to power supply, and then connect the other end to the

power interface to start up the device.

6Access Your Camera

1. Open your Web browser, enter the camera's IP address in the address bar, and then

press Enter. The default IP is 192.168.1.13.

2. In the login page, enter the default username and password (admin/123456), then

click Login.

NOTE!

⚫DHCP is enabled by default. If a DHCP server is used in your network, your

camera may be assigned an IP address, and you need to use the assigned IP

address to log in.

⚫You may need to install a plug-in at your first login. Please follow the on-screen

instructions to complete the installation and then open the browser again to

⚫The default password is intended only for your first login. To ensure security,

please change the password after your first login. You are strongly

recommended to set a strong password of at least nine characters including all

three elements: digits, letters and special characters.

⚫If the password has been changed, please use the new password to log in.
