Advidia M-26-FW Manual de usuario

M-26-FW

Network Fixed Dome Cameras

Quick Guide

V1.00

Waterproof Requirements

Please waterproof cables in accordance with the following instructions. User shall

assume all responsibility for device damage caused by water due to improper

waterproof measures.

NOTE!

Before you start, connect all the needed cables and cut off the copper wires for

the cables that you don't use.

Please use self-adhesive waterproof tape (supplied with some products) to

protect the cables.

Use waterproof components to protect the network cable. Waterproof the

power cable separately if you don’t use it. The video cable does not need

waterproof treatment.

1. Use insulation tape (not included in the package) to insulate the connection part

of each cable.

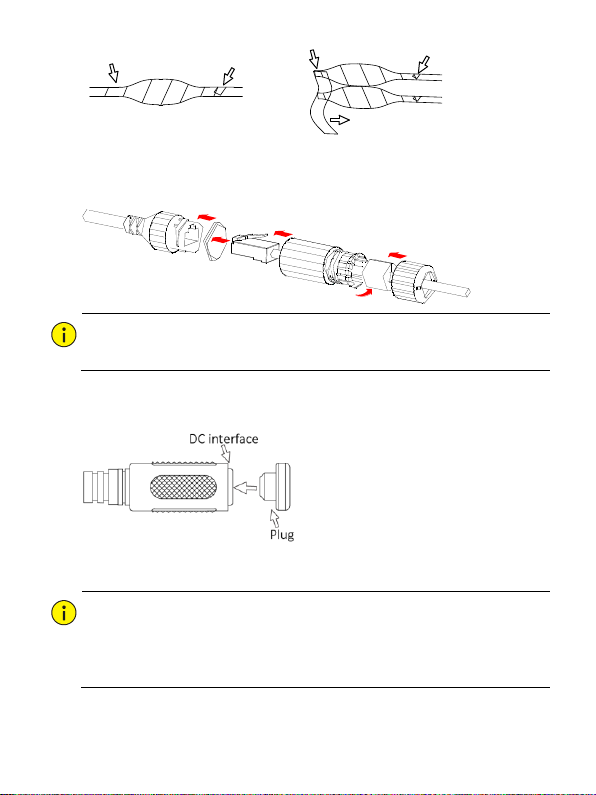

2. Waterproof the cables with self-adhesive waterproof tape.

(1) Fully stretch the waterproof tape at both ends.

(2) Wrap the connection part and the cable ends tightly with waterproof tape.

Make sure the tape is fully stretched during the process.

(3) Tighten the tape at both ends to prevent water leakage.

Connection part

Insulation tape

3. Install the supplied waterproof components to the network cable in sequence.

CAUTION!

You need to mount the rubber ring onto the network cable interface first.

4. If your camera has a DC cable and you will not use it, insert the plug into the

interface.

5. (Optional) After the waterproof treatment is completed, put the cables into a

waterproof junction box (purchased separately).

CAUTION!

The cable connector must not be exposed and must be kept away from water.

Restore and fasten the device after dismounting.

Place the power adapter in a power distribution box.

Wrap the unused cables

together into a bundle

Tighten

Wrap the used cables separately

Tighten Tighten Tighten

Waterproof tape

1Packing List

Contact your local dealer if the package is damaged or incomplete. The attachments

may vary with models, please see the actual model for details.

No.

Name

Qty

Unit

Camera

PCS

User manual

Set

Accessory pack

Set

2Safety Instructions

Installation and removal of the unit and its accessories must be carried out by

qualified personnel. You must read all of the safety instructions before installation

and operation.

2.1 Precautions

Use a power adapter or a PoE device that meets requirements. Otherwise, the

device may be damaged.

Be careful not to blur, scratch, damage the dome cover or leave fingerprints on

it because this could decrease image quality. Keep the protective film on the

dome cover until installation is complete.

Make sure the length of the power cable between the power adapter and the

camera is not too long, otherwise the voltage of the camera is lowered, causing

the camera to work abnormally. If it is required to lengthen the power cable,

lengthen the cable between the power adapter and the mains.

Do not overbend the cables during the installation, otherwise, poor cable contact

may cause malfunction.

When connecting to an external interface, use an existing connection terminal,

and ensure that the cable terminal (latch or clamp) is in good condition and

properly fastened. Ensure that the cable is not tense during mounting, with a

proper margin reserved to avoid poor port contact or loosening caused by shock

or shake.

During transportation, special attention is required to protect the transparent

dome cover from friction, scratch and stain, etc. Do not remove the protective

film from the cover until mounting is finished. Remove the protective film before

powering on the device.

Make sure the wall or ceiling is strong enough to support the weight of the

camera. If dust falls during mounting, take off the dome cover and keep it away

from dust. Install the dome cover after the base is installed.

Contact professionals for maintenance information. Do not attempt to dismantle

the device by yourself. We shall not assume any responsibility for problems

caused by unauthorized repair or maintenance.

2.2 Maintenance

If there is dust on the front glass surface, remove the dust gently using an oil-

free brush or a rubber dust blowing ball.

If there is grease or a dust stain on the front glass surface, clean the glass surface

gently from the center outward using anti-static gloves or an oil-free cloth. If the

grease or the stain still remains, use anti-static gloves or an oil-free cloth dipped

with detergent and clean the glass surface gently until it is clean.

Do not use organic solvents (such as benzene and alcohol) to clean the

transparent dome cover.

3Appearance

3.1 Dimensions

The following figure shows device dimensions. The appearance may vary with device

model.

3.2 Cable Connection

NOTE!

For specifications, see the latest product datasheets.

4Mount Your Camera

4.1 Ceiling Mount

You can adopt wall mount or pendant mount and purchase hardware accessories

separately. The following part takes wall mount as an example. Pendant mount is

similar to wall mount and therefore is omitted here.

1. Locate the positions of the holes. Paste installation positioning stickers on the

ceiling and lead the cables through the hole on the wall.

Network

interface

Power

interface

2. Drill holes on the wall. Use a Ø6-6.5mm drill bit to drill 30 mm-depth guide holes

according to the positions marked by stickers.

3. Mount the plastic rivets of self-tapping screws. Knock the plastic rivets into the

guide holes and ensure that they are tightened up.

4. Mount the camera. Connect all cables of the camera, lead self-tapping screws

through the guide holes in the camera base, and fix the camera on the ceiling by

using a screwdriver.

5. Adjust the monitoring direction of the lens (tighten screws after vertically

adjusting the lens). The lens can horizontally turn by rotating the lens base, as

shown by in the following figure. After relaxing the fastening screws, you can

vertically turn the lens, as shown by in the following figure.

6. Attach the lining and lock it into the buckle on the base. The following shows the

installation instructions of cameras 2-Axis. The linings are different. Please see

the actual products for the differences.

2-Axis:

Lens

base

Fastening

screw

7. Mount the transparent dome housing.

Align the screw holes in the base, and tighten the three star shape screws on the

edge of the transparent dome housing to fix it.

NOTE!

The preceding installation process is concealed installation, during which holes

are drilled in the ceiling and tail cable is led out from the top of the camera.

Cables are connected and frapped at the ceiling side to prevent messy cables

from affecting camera mounting. If open installation is adopted, tail cable isled

out from one side of the camera and can be routed from the side groove of the

camera.

After mounting the dome housing, check that the three star shape screws on

the edge of the dome housing are tightened up to ensure that the camera is

properly sealed. For details, see step 6.

5Startup

After you have installed the device, connect one end of the power adapter

(purchased separately) to power supply, and then connect the other end to the

power interface to start up the device.

6Access Your Camera

1. Open your Web browser, enter the camera's IP address in the address bar, and

then press Enter. The default IP is 192.168.1.13.

2. In the login page, enter the default username and password (admin/123456),

then click Login.

NOTE!

DHCP is enabled by default. If a DHCP server is used in your network, your

camera may be assigned an IP address, and you need to use the assigned IP

address to log in.

You may need to install a plug-in at your first login. Please follow the on-screen

instructions to complete the installation and then open the browser again to

The default password is intended only for your first login. To ensure security,

please change the password after your first login. You are strongly

recommended to set a strong password of at least nine characters including all

three elements: digits, letters and special characters.

If the password has been changed, please use the new password to log in.
