Advantech I/O Module 5000 Series Manual de usuario

ADAM-5000 Series

I/O Module

User's Manual

This document is copyrighted, 1997, by Advantech Co., Ltd. All rights are

reserved. Advantech Co., Ltd., reserves the right to make improvements to the

products described in this manual at any time without notice.

No part of this manual may be reproduced, copied, translated or transmitted in

any form or by any means without the prior written permission of Advantech Co.,

Ltd. Information provided in this manual is intended to be accurate and reliable.

However, Advantech Co., Ltd. assumes no responsibility for its use, nor for any

infringements upon the rights of third parties, which may result from its use.

Acknowledgments

ADAM is a trademark of Advantech Co., Ltd.

IBM and PC are trademarks of International Business

Machines Corporation.

Second Edition

March 2005

I/O Module Introduction

ADAM-5000 Series I/O Module User’s Manual

Table of Contents

Chapter 1 Introduction ….……..................…..................………….1-1

Chapter 2 Analog Input Modules..................….................…....... 2-1

2.1 ADAM-5013 3-channel RTD input module…............................2-2

2.2 ADAM-5017 8-channel analog input module…….…............... 2-5

2.3 ADAM-5017H 8-channel high speed analog input module…. 2-8

2.4 ADAM-5018 7-channel thermocouple input module ………..2-13

Chapter 3 Analog Output Modules .............................................. 3-1

3.1 ADAM-5024 4-channel analog output module...…...................3-2

Chapter 4 DigitalInput/OutputModules..................…....................4-1

4.1 ADAM-5050 16-channel universal digital I/O module...............4-2

4.2 ADAM-5051 series digital input module.........….......................4-5

4.2.1 ADAM-5051(D) 16-channel digital input module …….…......4-5

4.2.2 ADAM-5051S 16-channel Isolated Digital Input Module w/LED ..….4-7

4.3 ADAM-5052 8-channel isolated digital input module…...........4-9

4.4 ADAM-5055S 16-channel Isolated Digital I/O Module with LED……...4-11

4.5 ADAM-5056(D) series digital output module w/LED……........4-13

4.5.1 ADAM-5056(D) 16-channel digital output module w/LED..4-13

4.5.2 ADAM-5056S 16-channel Isolated Digital Output Module w/ LED.4-14

4.5.3 ADAM-5056SO 16-channel Isolated Digital Output Module wLED4-16

4.6 Relay Output Modules ………….…..................….................…4-18

4.6.1 ADAM-5060 relay output module……………….….......…….4-18

4.6.2 ADAM-5068 relay output module……………………………..4-19

4.6.3 ADAM-5069 relay output module……………………………..4-21

4.7 Counter/Frequency Module………………………………..……4-22

4.7.1 ADAM-5080 4-channel Counter/Frequency Module………..4.22

I/O Module Introduction

ADAM-5000 Series I/O Module User’s Manual

Chapter 5 Serial Communication Module………..….................... 5-1

5.1 ADAM-5090 4-port RS-232 Communication Module................5-2

Chapter 6 Analog I/O Modules Calibration.................................. 6-1

6.1 Analog input module calibration……………………………….. 6-2

6.2 ADAM-5013 RTD Input Resistance Calibration……………….. 6-7

6.3 Analog output module calibration .......………………………… 6-9

Introduction 1

Introduction

ADAM 5000 IO modules User’s Manual

This manual introduces the detail specifications functions and

application wiring of each ADAM-5000 I/O modules. To organize an

ADAM-5510 Series Controller, you need to select I/O modules to interface

the main unit with field devices or processes that you have previously

determined. Advantech provides 19 types of ADAM-5000 I/O modules for

various applications so far. Following table is the I/ O modules support list we

provided for user’s choice.

Module Name Specification Reference

ADAM-5013 3-ch. RTD input Isolated

ADAM-5017 8-ch. AI Isolated

ADAM-5017H 8-ch. High speed AI Isolated

ADAM-5018 7-ch. Thermocouple input Isolated

Analog I/O

ADAM-5024 4-ch. AO Isolated

ADAM-5050 7-ch. D I/O Non-isolated

ADAM-5051 16-ch. DI Non-isolated

ADAM-5051D 16-ch. DI w/LED Non-isolated

ADAM-5051S 16-ch. Isolated DI w/LED Isolated

ADAM-5052 8-ch. DI Isolated

ADAM-5055S 16-ch. Isolated DI/O w/LED Isolated

ADAM-5056 16-ch. DO Non-isolated

ADAM-5056D 16-ch. DO w/LED Non-isolated

ADAM-5056S 16-ch. Isolated DO w/LED Isolated

Digital I/O

ADAM-5056SO 16-ch. Iso. DO w/LED (source) Isolated

ADAM-5060 6-ch. Relay output Isolated

ADAM-5068 8-ch. Relay output Isolated

Relay Output

ADAM-5069 8-ch. Relay output Isolated

Counter/Frequency ADAM-5080 4-ch. Counter/Frequency Isolated

Serial I/O ADAM-5090 4-port RS232 Non-isolated

Table 1-1: I/O Module Support List

Analog Input Modules 2

Analog Input module

ADAM 5000 IO modules User’s Manual

Analog input modules use an A/D converter to convert sensor voltage,

current, thermocouple or RTD signals into digital data. The digital data is then

translated into engineering units. The analog input modules protect your

equipment from ground loops and power surges by providing opto-isolation

of the A/D input and transformer based isolation up to3,000V

2.1 ADAM-5013 3-channel RTD input module

The ADAM-5013 is a 16-bit, 3-channel RTD input module that features

programmable input ranges on all channels. This module is an extremely

cost-effective solution for industrial measurement and monitoring

applications. Its opto-isolated inputs provide 3,000 V

of isolation between

the analog input and the module, protecting the module and peripherals

from damage due to high input line voltage.

Note: Owing to the conversion time required by the A/D converter, the

initialization time of each ADAM-5013 module is 5 seconds. Thus the

total initialization time will be about 20 seconds if all 4 I/O slots in

an ADAM-5000 main unit contain ADAM-5013 modules.

Figure 2-1: ADAM-5013 module frontal view

Chapter 2

-3

Application wiring

Figure 2-2: RTD inputs

Analog Input module

ADAM 5000 IO modules User’s Manual

Technical specifications of ADAM-5013

Analog input channels three

Input type Pt or Ni RTD

Pt -100 to 100°C a=0.00385

Pt 0 to 100°C a=0.00385

Pt 0 to 200°C a=0.00385

Pt 0 to 600°C a=0.00385

Pt -100 to 100°C a=0.00392

Pt 0 to 100°C a=0.00392

Pt 0 to 200°C a=0.00392

Pt 0 to 600°C a=0.00392

Ni -80 to 100°C

RTD type and temperature

range

Ni 0 to 100°C

Isolation voltage 3000 VDC

Sampling rate 10 samples/sec (total)

Input impedance 2 MΩ

Bandwidth 13.1 Hz @ 50 Hz, 15.72 Hz @ 60 Hz

Input connections 2, 3 or 4 wire

Accuracy ± 0.1% or better

Zero drift ± 0.015 °C/°C

Span drift ± 0.01 °C/°C

CMR@50/60 Hz 150 dB

NMR@50/60 Hz 100 dB

Power consumption 1.2 W

Table 2-1: Technical specifications of ADAM-5013

Chapter 2

-5

2.2 ADAM-5017 8-channel analog input module

The ADAM-5017 is a 16-bit, 8-channel analog differential input module

that provides programmable input ranges on all channels. It accepts

millivolt inputs (±150mV, ±500mV), voltage inputs (±1V, ±5V and ±10V) and

current input (±20 mA, requires 125 ohms resistor). The module provides

data to the host computer in engineering units (mV, V or mA). This module

is an extremely cost-effective solution for industrial measurement and

monitoring applications. Its opto-isolated inputs provide 3,000 V

isolation between the analog input and the module, protecting the module and

peripherals from damage due to high input line volt- age. Additionally, the

module uses analog multiplexers with active over- voltage protection. The

active protection circuitry assures that signal fidelity is maintained even

under fault conditions that would destroy other multiplexers. This module

can withstand an input voltage surge of 70 Vp-p with ±15 V supplies.

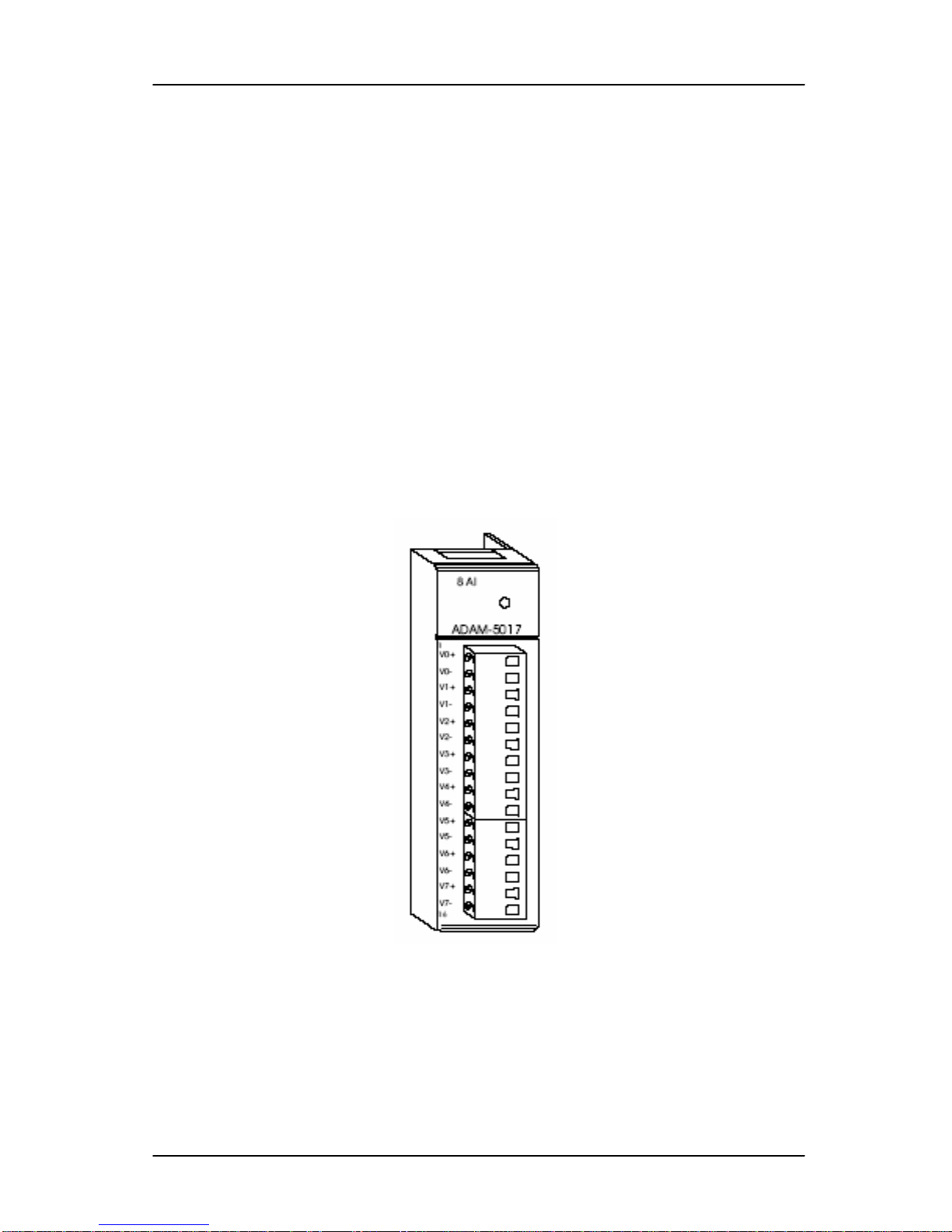

Figure 2-3: ADAM-5017 module frontal view
