Advantech PCA-6743 Manual de instalación y operación

PCA-6743 Startup Manual 1

Before you begin installing your system, please make sure

that the following materials have been shipped:

1 PCA-6743 ISA Half-size DM&P Vortex86DX-800MHz

SOC processor-based single board computer

1 PCA-6743 Startup Manual

1 CD with driver utility and manual (in PDF format)

1 FDD cable (700 mm) p/n: 1701340705

1 EIDE (HDD) cable p/n: 1701400607

1 COM2 and LPT cable p/n: 1701260305

1 SATA HDD data cable (F SKU) p/n: 1700003194

1 SATA HDD power cable (F SKU) p/n: 1703150102

Dual-COM port cable kit for

COM 3-4 (For F SKU) p/n: 1700008762

1 Y cable for PS/2 keyboard

and PS/2 mouse p/n: 1700060202

1 USB cable with 4 ports p/n: 1700014398

1 Jumper pack p/n: 9689000002

Warranty card

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note 1: For detailed contents of the PCA-6743 Series,

please refer to the enclosed CD-ROM or disk (in

PDF format).

•

PCA-6743 PCA Half-size SBC: DM&P Vortex86DX-800MHz

SOC/TTL/10_100 Ethernet/CFC/SATA/On board memory

Startup Manual

Standard SBC Functions

CPU: DM&P Vortex86DX 800MHz

BIOS: Award integrated 256KB ROM in DM&P Vor-

tex86DX

System memory: Onboard 256MB (VE SKU) /512MB (F

SKU) DDR2

Enhanced IDE interface: 1 EIDE channel for two devices.

BIOS auto-detect up to UDMA -100

USB interface: Support 4 USB 2.0 ports and USB 1.1

under DOS

SATA interface: Supports one SATA1 HDD (150 MB/s) (F

SKU)

Serial ports: Four serial ports, COMD1 as COM1 (RS-232

(VE SKU)/ RS-232/RS-422/RS-485 (F SKU)on real I/O)

and COM2 as COM2 (RS-232(VE SKU)/ RS-232/RS-

422/RS-485 (F SKU) on one 2.54mm pitch wafer box)

and COM34 as COM3, COM4 (2*RS-232 (F SKU) on one

2.0mm pitch wafer box).

Parallel port: One parallel port, supports SPP/ECP/EPP

mode

Infrared port: One support IrDA version 1.0 SIR protocol

up to 115K bps, support SHARP ASK-IR protocol up to

57600 bps.

Keyboard/mouse connector: Mini-Din connector supports

standard PC/AT keyboard and PS/2 mouse

Watchdog timer: 255 level timer interval. System reset or

IRQ11

Local-bus Flat Panel/VGA Interface

Chipset: SM712 graphic chip

Display memory: 4 MB display memory

Display type: Supports CRT, TFT and LVDS (optional)

LCDs. Able to display both CRT and ﬂat panel simultane-

ously

Flat-panel display mode: Panel resolution supports up to

1280 x 1024 @ 18/24 bit TFT LCD Panel and LVDS LCD

Panel (Optional)

CRT display mode: CRT monitor resolutions up to 1024 x

768 @ 24bit true color

Ethernet Interface (PCA-6743)

Chipset: Integrated Vortex86DX SOC

Ethernet interface: 10/100 Mbps Ethernet. IEEE 802.3 U

protocol compatible

Connection: On-board RJ-45 connector

Solid State Disk

Supports CompactFlash™ Type I/II, shared with primary

IDE

•

Specications

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit

our support website at:

http://www.advantech.com/support

This manual is for the PCA-6743 Series Rev.A1.

Part No. 2002674311

Printed in China

2nd Edition,

April 2010

All manuals and user guides at all-guides.com

all-guides.com

2 PCA-6743 Startup Manual

Mechanical and Environmental

• Dimensions (L x W): 185 mm x 122 mm

• Power supply voltage: +5 V (4.75 V ~ 5.25 V)

• Power requirements: 1.6 A @ 5 V

• Operating temperature: 0 ~ 60° C (32 ~ 140° F)

• Weight: 0.185 kg ( 0.4 lbs.)

Jumpers and Connectors

Connectors on the board link it to external devices such as

hard disk drives, a keyboard or expansion bus connectors.

In addition, the board has a number of jumpers that allow

you to conﬁgure your system to suit your application.

The tables below list the functions of each of the board’s

jumpers and connectors:

Jumpers

Label Function

CMOS1 CMOS Clear

JSETCOM1 COM1 function selection

JSETCOM2 COM2 function selection

JWDT1 Watchdog timer output selection

JOBS1 HW Monitor Alarm

SW1 LCD settings

JLVDS LVDS voltage selection

JBK1 Backlight control selection

Connectors

Label Function

JFP1(1-2) HDD LED

JFP1(3-4) Power LED

JFP1(5-6) N/C

JFP1(7-8) Reset switch

JFP1(9-10) N/C

JIR1 IR connector

IDE1 IDE connector (Secondary channel)

CF1 CF connector (Primary channel)

LPT1 Parallel port

USB12 USB port 1,2

USB34 USB port 3,4

COMD1 Serial Port: COM1 (RS232 (VE SKU)

RS232/422/485 (F SKU))

COM2 Serial Port: COM2 (RS232 (VE SKU)

RS232/422/485 (F SKU))

COM34 Serial Port COM3/COM4 (RS232 (F

SKU))

KBMS1 PS/2 keyboard and mouse connector

KBMS2 External keyboard and mouse connector

LANLED1 Front Panel LAN Indicator connector

JCASE1 Case Open

SYSFAN1 FAN connector (3-pin)

GPIO1 GPIO pin header

LCD1 LCD connector

INV1 Inverter connector

LPC1 LPC connector

SATA1 Serial ATA1

Front Panel Connectors (JFP1)

Pin Signal

1 HDD LED+

2 HDD LED-

3 Power LED+

4 Power LED-

5 N/C

6 N/C

7 Reset Switch

8 GND

9 5 VSB (Reserved)

10 Power Switch (Reserved)

CMOS1 CMOS Clear

Setting Function

1-2 Normal operation

2-3 CMOS clear

JSETCOM1 COM1 function selection

JSETCOM2 COM2 function selection

2 8

RS232 RS422 RS485

1 2 3

All manuals and user guides at all-guides.com

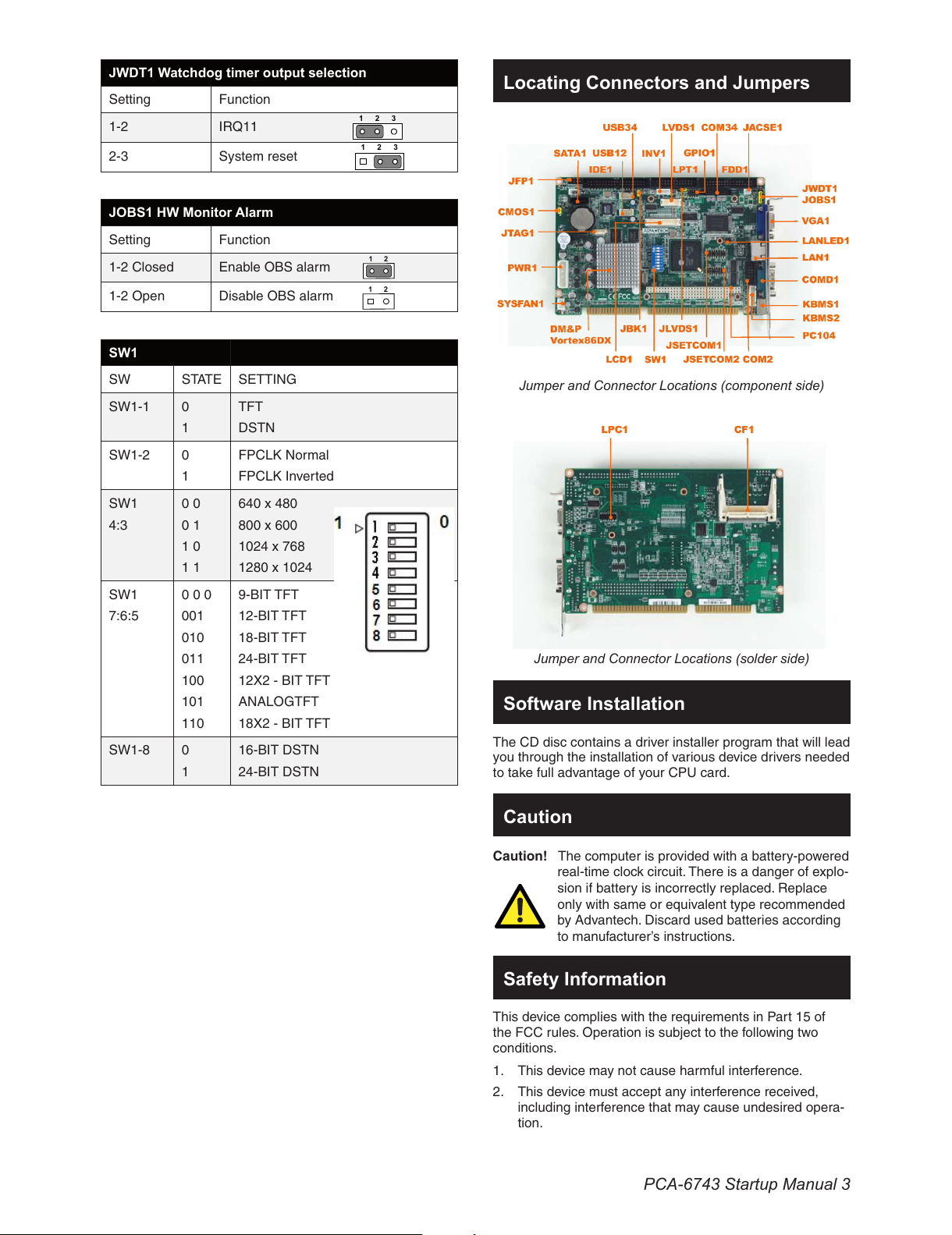

PCA-6743 Startup Manual 3

JWDT1 Watchdog timer output selection

Setting Function

1-2 IRQ11

2-3 System reset

JOBS1 HW Monitor Alarm

Setting Function

1-2 Closed Enable OBS alarm

1-2 Open Disable OBS alarm

SW1

SW STATE SETTING

SW1-1 0

TFT

DSTN

SW1-2 0

FPCLK Normal

FPCLK Inverted

SW1

4:3

0 0

0 1

1 0

1 1

640 x 480

800 x 600

1024 x 768

1280 x 1024

SW1

7:6:5

0 0 0

001

010

011

100

101

110

9-BIT TFT

12-BIT TFT

18-BIT TFT

24-BIT TFT

12X2 - BIT TFT

ANALOGTFT

18X2 - BIT TFT

SW1-8 0

16-BIT DSTN

24-BIT DSTN

Jumper and Connector Locations (component side)

Jumper and Connector Locations (solder side)

Software Installation

The CD disc contains a driver installer program that will lead

you through the installation of various device drivers needed

to take full advantage of your CPU card.

Caution

Caution! The computer is provided with a battery-powered

real-time clock circuit. There is a danger of explo-

sion if battery is incorrectly replaced. Replace

only with same or equivalent type recommended

by Advantech. Discard used batteries according

to manufacturer’s instructions.

Safety Information

This device complies with the requirements in Part 15 of

the FCC rules. Operation is subject to the following two

conditions.

This device may not cause harmful interference.

This device must accept any interference received,

including interference that may cause undesired opera-

tion.

Locating Connectors and Jumpers

1 2 3

1 2
