Advantech MIC-7 Series Manual de instalación y operación

MIC-75M11 Startup Manual 1

Before you begin installing your card, please make sure

that the following items have been shipped:

1. MIC-75M11 Module x1

P/N : MIC-75M11-00A1E

2. MIC-75M11 Startup Manual x1 P/N :20015M1100

3. Warranty Card P/N: 2190000902

4. Card Clamp Pad x 4 P/N:1990024989T000

5. Wall-Mount BKT (Left) x1 P/N:

1960070545N001

6. Wall-Mount BKT (Righ) x1 P/N:

1960070543N001

If any of these items are missing or damaged, please

contact your distributor or sales representative immediately.

Note: Acrobat Reader is required to view any PDF ﬁle.

Acrobat Reader can be downloaded at: get.

adobe.com/reader (Acrobat is a trademark of

Adobe)

MIC-75M11

PCIE/PCI Expansion Module for MIC-7 Series

Embedded System

Startup Manual

PCIe Slots

• One PCIex16 socket

Note 1: PCIEx16 power consumes 35W.

Note 2: MIC-73 series products (ATOM CPU), only sup-

ports PCIex4 or PCIex1 signals.

32-bit PCI

• One 32 Bit/33Mhz PCI socket

Note 1: PCI socket supports 15W power consumption.

Environment

• Operating Temperature:

-20 ~ 60° C with 0.7 m/sec air ﬂow: with 1 x Industrial SSD

without PC expansion boards

0 ~ 45° C with 0.7 m/sec air ﬂow: with 1 x 2.5” HDD

without PC expansion boards

• Storage Temperature: - 40 ~ 85 °C (-40 ~185 °F)

• Relative Humidity: 95% @ 40 °C (non-condensing)

Mechanical

• Dimensions (H x W x D): 92 x 90 x 230 mm

Note 1: Please add a fan to the i-module when add-on

card total power consumption is over 45W.

Specications Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://support.advantech.com.tw/support/default.

aspx

This manual is for the MIC-75M11 Series Rev. A1.

Part No. 20015M1100

Printed in China

1st Edition

January 2016

2 MIC-75M11 Startup Manual

2. Undo 6x screws.

3. Remove i-door cover and assemble and secure the

cover on i-module’s bottom cover.

4. Assemble MIC-75M11 and MIC-7 series devices and

secure by 4x screws.

The table below lists the functions of each of the connector.

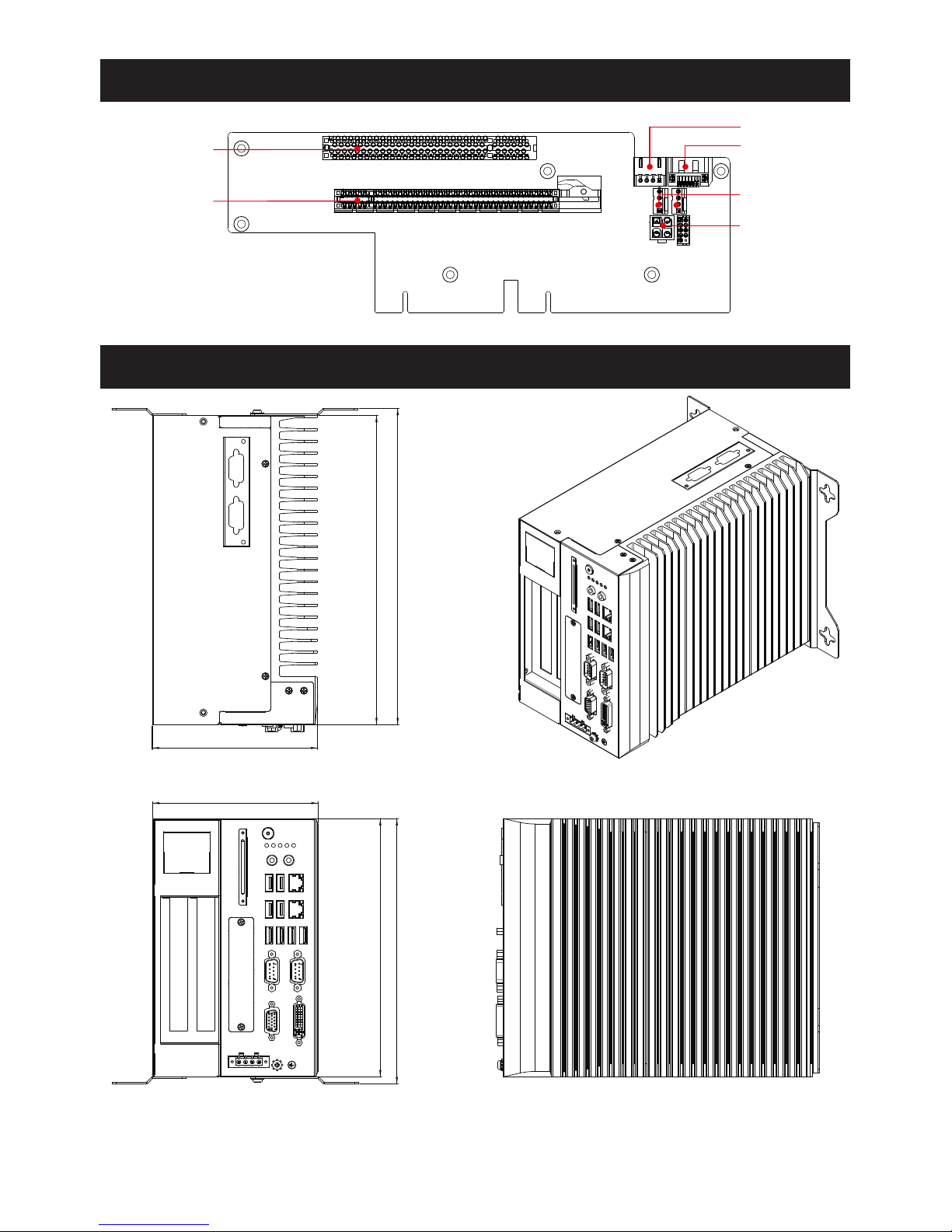

PCIE x 16 Socket

PCI Socket

12V Extral Power

SATA CON

SATA Power CON

FAN CON

Connectors

No. Item Function

1 SATAPWR1 4 Pin Power connector (5V)

2 PWR2 4 Pin Power connector (12V)

3 FAN 1 4 Pin FAN connector

4 FAN 2 4 Pin FAN connector

5 PCI_1 PCI socket

6 PCIEx16_1 PCIEx16 Socket

System Installation

MIC-7 series i-module can assemble with all MIC-7 series

IPC system.

1. Undo MIC-7 series system screws and remove the

bottom cover.

Simple Maintenance Process

Jumpers and Connectors

Simple Maintenance Process (Cont.)

MIC-75M11 Startup Manual 3

Note: MIC-75M11 has 2 bolts and it must be aligned

with the holes on the device.

5. Replace the cover and secure with screws.

Note: The chassis cover has a notch designed in and

it must mate with at a hook on the chassis.

Chassis Cover

Chassis hook

Fan Installation (Optional)

MIC-75M11 supports two 4x4CM fan spaces. If you want

to install high performance expansion cards (For example:

graphics or a PoE card) or total power consumption is over

45W, please install a fan for thermal issues.

A fan is an optional module. If your system needs a fan

module, please contact your distributor or sales represen-

tative.

Fan Module P/N: 98R1752000E.

Fan Connector

1. Undo fan 1 & 2 cover.

2. Secure fan protectoin nets with 4 screws.

3. Assemble and secure fan in chassis with 4 screws.

4. Plug the fan power cable into the connector on the-

backplane board.

Fan Filter Installation

If your system has a fan installed, we recommend you to

replace the system fan ﬁlter at regular intervals to ensure

the stability of the system cooling.

1. Undo system cover and remove old Fan ﬁlter.

2. Change new fan ﬁlter and replace system cover with screws.

Simple Maintenance Process

(Cont.)

Simple Maintenance Process (Cont.)

4 MIC-75M11 Startup Manual

PCIE x 16 Socket

PCI Socket

12V Extral Power

SATA CON

SATA Power CON

FAN CON

197.20

192

123

230

235.20

123

IO Connectors

System Dimensions
