FWA-3700 User manual

Rackmount Internet Security Platform with 4 GbE Front LAN Ports and 1 FE

10/100 manager port / 1 mini PCI Expansion Slots/ LCD Display

Advantech Internet Security Platform

This document is copyrighted, 2006. All rights are reserved. The original manufacturer

reserves the right to make improvements to the products described in this manual at

any time without notice. No part of this manual may be reproduced, copied, translated

or transmitted in any form or by any means without the prior written permission of the

original manufacturer. Information provided in this manual is intended to be accurate

and reliable. However, the original manufacturer assumes no responsibility for its use,

nor for any infringements upon the rights of third parties which may result from its use.

CE Notification

The FWA-3700, developed by Advantech Co., Ltd., has passed the CE test for

environment specifications when shielded cables are used for external wiring. We

recommend the use of shielded cables.

1st Edition Printed in Taiwan March 2006

Product warranty

Advantech warrants to you, the original purchaser, that each of its products will be free

from defects in materials and workmanship for two year from the date of purchase.

This warranty does not apply to any products which have been repaired or altered by

persons other than repair personnel authorized by Advantech, or which have been

subject to misuse, abuse, accident or improper installation. Advantech assumes no

liability under the terms of this warranty as a consequence of such events.

Because of Advantech’s high quality-control standards and rigorous testing, most of our

customers never need to use our repair service. If an Advantech product is defective, it

will be repaired or replaced at no charge during the warranty period. For

out-of-warranty repairs, you will be billed according to the cost of replacement

materials, service time and freight. Please consult your dealer for more details. If you

think you have a defective product, follow these steps:

1Collect all the information about the problem encountered. For example, CPU

speed, Advantech products used, other hardware and software used, etc. Note anything

abnormal and list any on-screen messages you get when the problem occurs.

2Call your dealer and describe the problem. Please have your manual, product,

and any helpful information readily available.

3If your product is diagnosed as defective, obtain an RMA (return merchandise

authorization) number from your dealer. This allows us to process your return more

quickly.

4Carefully pack the defective product, a fully-completed Repair and Replacement

Order Card and a photocopy proof of purchase date (such as your sales receipt) in a

shippable container. A product returned without proof of the purchase date is not

eligible for warranty service.

5Write the RMA number visibly on the outside of the package and ship it prepaid

to your dealer.

Packing List

Before installation, ensure that the following materials have been received:

ٛOne FWA-3700 Internet Security Platform

ٛOne box of accessories

ٛOne warranty certificate

ٛOne CD-ROM for user manual (PDF file) If any of these items are missing or

damaged, contact your distributor or sales representative immediately.

Technical Support and Sales Assistance

If you have any technical questions about the FWA-3700 or any other Advantech

products, please visit our support website at:

ٛhttp://www.advantech.com.tw/support

ٛhttp://www.advantech.com.

For more information about Advantech's products and sales information, please visit:

Contents

1. General Information....................................... 1

1.1 Introduction......................................................................... 2

1.2 Features................................................................................. 2

1.3 Specifications................................................................... 2

1.4 Dimensions....................................................................4

1.5 Model List....................................................................5

2System Setup............................................... 6

2.1 Removing the cover............................................................................. 7

2.2 Installing Central Processing Unit (CPU)...................................... 8

2.3 Installing Memory Module............................................................9

2.4 Installing Hard Drive........................................................................10

2.5 Installing Compact Flash...................................................11

2.6 Setting LAN Bypass function.........................................................12

Appendix A...................................................15

A.1 NAME-3700 Mother Board...............................................16

Figures

Figure 1-1: FWA-3700 dimensions................................................................... 4Figure 1-2:

Outlook of FWA-3700......................................................................... 4 Figure 2-1: Front

view of FWA-3700.......................................................... 7Figure 2-2: Removing the

cover............................................................. 7Figure 2-3: Top view of

FWA-3700.......................................................... 8Figure 2-4: Installing Central Processing

Unit steps..................................... 9Figure 2-5: Installing Memory Module

steps.................................................. 10Figure 2-6: Installing Hard Disk Drive

steps............................................. 11Figure 2-7: Installing Compact Flash

steps.................................... 12Figure 2-8: The illustration of LAN Bypass

function.................... 12Figure 2-9: LAN Bypass function jumps.......................................

13Figure 2-10: Setting LAN Bypass function from BIOS...................... 14

General Information

1.1 Introduction

Conceived as a powerful but low power consumption rack-mount Internet security

platform, the FWA-3700 was specifically designed for mainstream IDS/IPS, Anti-virus,

VPN gateway and Unified Threat Management (UTM) applications. Using the latest

Intel Pentium M processor combined with the Mobile Intel 915GM Express chipset and

Intel ICH6M I/O Controller Hub, the FWA-3700 provides unprecedented performance,

connectivity and throughput without compromising on system thermal design. It

supports up to 2 GB of DDR2 system memory at 400 or 533MHz on dual-channel

SODIMM banks. By leveraging PCI-Express technology, the FWA-3700 maximizes I/O

throughput by taking full advantage of the ICH6-M’s PCI Express (PCIe) capability.

Four PCIe lanes connect directly to the Marvell 8053 Ethernet controllers to provide

bi-directional 2 Gb/s peak bandwidth for Gigabit Ethernet support at wire speed. The

system supports one optional 3.5” IDE or SATA HDD, and Compact Flash for OS and

Internet security applications. The front panel has a 9-pin RS-232 serial port and one

10/100 managed LAN port, with LCD Module for local system management,

maintenance and diagnostics. It is FCC and CE compliant..

1.2 Features

ٛ1U rackmount Internet security platform

ٛSocket 479 Intel® Pentium® M or Celeron M

ٛOne 32-bit/33 MHz Mini PCI expansion slots

ٛFour 10/100/1000 Gigabit Ethernet ports, 1 10/100 Fast Ethernet

ٛConsole port for local setting

ٛHard drive mounting bracket for 3.5” drive

ٛLCD display module

ٛLAN Bypass function

1.3 Specifications

• Processor System:

CPU: Intel Pentium M 2.0G Hz, Celeron M processor

Max. Speed: 533/400 MHz FSB

L2 Cache: 2MB or 1MB

Chipset: Intel 915GM, ICH6M

BIOS: Award 4 Mb Flash

ٛMemory: Support DDR2 533/400, Max. Capacity 2 GB, Socket 200-pin SOD

DIMM x 2

ٛEthernet: 1 10/100 Fast Ethernet & 4 10/100/1000 Gigabit Ethernet, RJ-45 x

ٛDrive Bay: 3.5”HDD x1

ٛManagement: Console RS-232 x1

ٛCooling: Fan (15 CFM) x2, Blower x1

ٛMiscellaneous: Power Switch, 2 LED indicators for Power/HDD,

CompactFlash Socket x1, LCD Display Module x1

• Adapter Power Requirement: Input: ATX PS, AC 90 ~ 264 V @ 47 ~ 63 Hz, full range Output:

125W

• Operating Environment: Operating: Temperature 0 ~ 40 °C (32 ~ 104 °F), Humidity 5 ~ 85 %

Non-Operating: Temperature -20 ~ 75 °C (-4 ~ 167 °F), Humidity 5 ~ 95 %

ٛDimensions (W x H x D): 1U: 426 x 44.4 x 360 mm (16.7” x 1.7” x 15.7”)

ٛWeight: 4.5 Kg (9.9 lb)

1.4 Dimensions

1.5 Model List

ٛFWA-3700: 1U rackmount Internet security platform, 32-bit/33 MHz Mini PCI

expansion slots, LCD display module, Four 10/100 GbE Ethernet ports supporting two

LAN Bypass function.

ٛFWA-3700-A: 1U rackmount Internet security platform, 32-bit/33 MHz Mini

PCI expansion slots, LCD display module, Four 10/100 GbE Ethernet ports supporting

two LAN Bypass function. I/O card:Broadcom BCM5714 SFP (Fiber) with CN1010 x 2

ٛFWA-3700-B: 1U rackmount Internet security platform, 32-bit/33 MHz Mini

PCI expansion slots, LCD display module, Four 10/100 GbE Ethernet ports supporting

two LAN Bypass function. I/O card:Broadcom BCM5714 RJ45(GbE) with CN1010 x 2

System Setup

Setting up your FW-3700 requires only a screwdriver and a small amount of time.

Before you begin, you should also gather together all of the device you plan to install,

as well as the CPU, RAM, HDD, and etc. The front panel of FWA-3700 includes a LCD

display module, four Ethernet ports, aRS-232 console port, and two LEDs where one is

power LED and another is HDD LED. On the rear panel, there is a power switch

located on the top right hand corner.

Figure 2-1: Front view of FWA-3700

2.1 Removing the cover

There are screws which secure the cover to the chassis. They are along the sides,

near the top. Remove them, and then slide the cover to the rear of the chassis.

USB

COM

LCM module 1 Mgnt, 4 GbE Lan

Figure 2-2: Remove top cover

Figure 2-3: Inside of FW

-3700

PSU HDD

Mini PCI

2.2 Installing Central Processing Unit (CPU)

1Locate the 479-pin CPU ZIF socket on the motherboard. And unlock the Socket

actuation to the left side directly.

2Position the CPU above the socket that its marked corner (golden cut edge on

the CPU upper corner) matches the base of the socket lever. Insert the CPU into the

socket. (Do not force the CPU into the socket.) Then lock the socket to secure the

CPU.

3Apply the thermal tape to provide better heat conduction between your CPU

and cooling fan. Position the cooling fan on top of the CPU. Use screw driver to fix the

heatsink sequence.

4Make sure the CPU fan power connector is plugged to the motherboard fan

power connector, than installing CPU is completed.

2.3 Installing Memory Module

1Unlock a DIMM socket by. Align the notch of the DIMM memory module to

match on the socket and insert the DIMM into the socket until the DIMM is properly

seated.

2Press the DIMM inward to lock the DIMM memory module. Installing memory

module is completed.

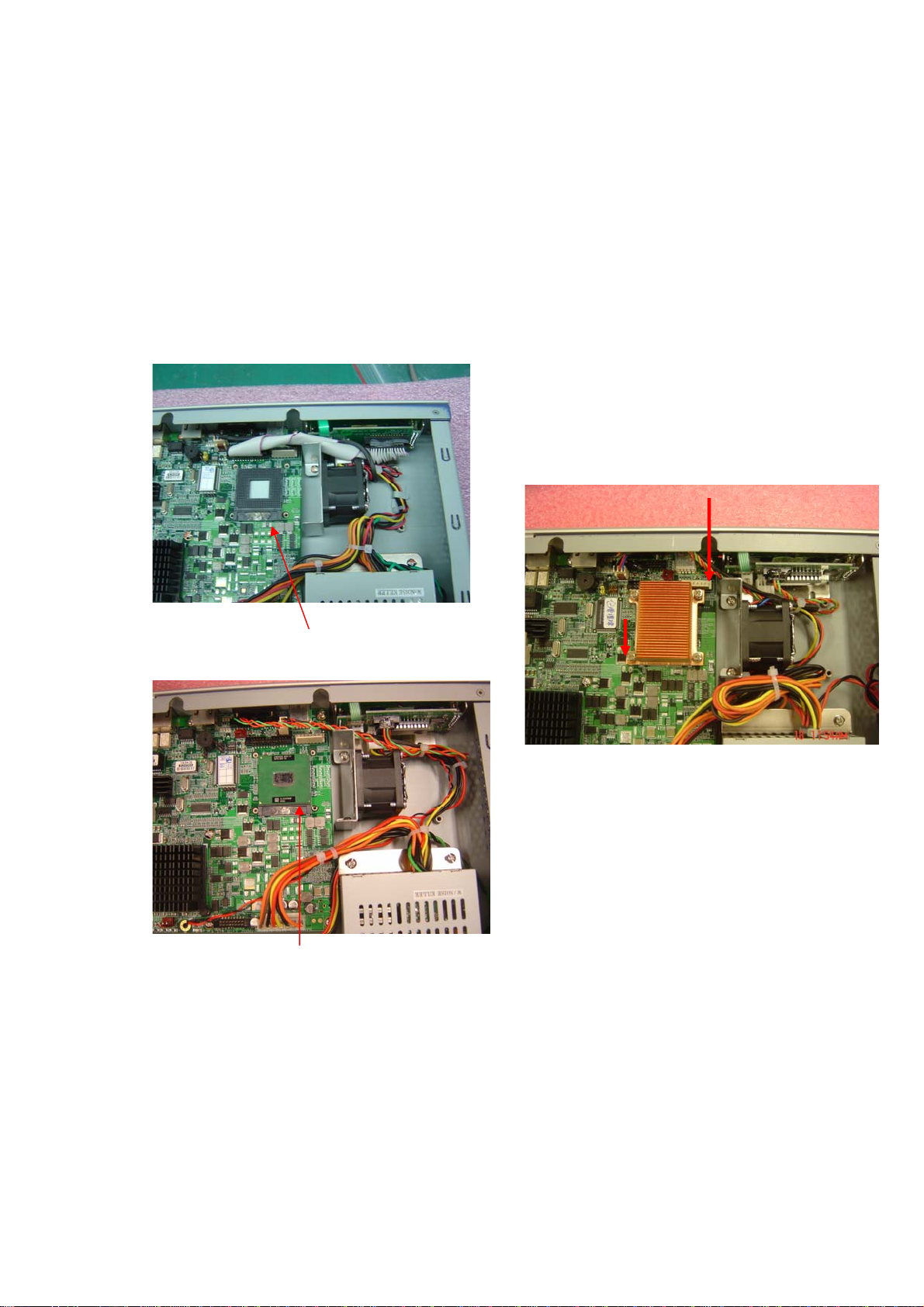

Figure 2-4: Install CPU

Unlock the socket of CPU as the symbol accordingly

Insert the CPU into the socket

Fix the CPU heatsink on the socket

2.4 Installing Hard Disk Drive

1Unscrew each side of the HDD supporting frame on the chassis and pull it out.

2Put the HDD above the HDD supporting frame and position the screws

accordingly.

3Screw each side of the HDD supporting frame to fix on the chassis.

4Connect the SATA cable included in the accessory box to the connector on the

HDD. Connect power connector to the HDD. Installing Hard Disk Drive is completed.

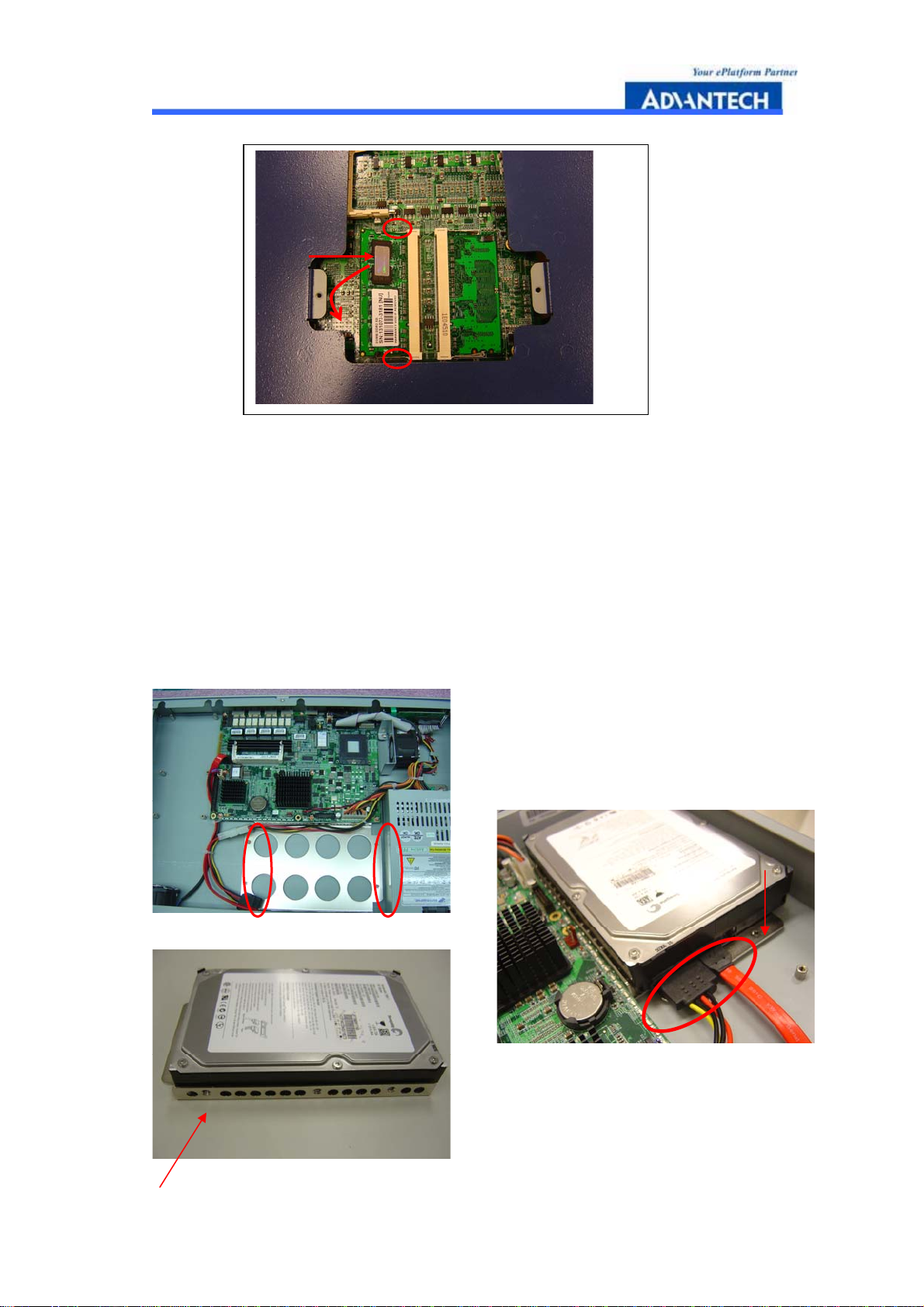

Figure 2-5: Install RAM module

Figure 2-6: Install HDD

Tabla de contenidos

Otros manuales de Hardware de computadora de Advantech

Advantech

Advantech PCA-6151 Manual de usuario

Advantech

Advantech PCM-3753I Manual de usuario

Advantech

Advantech MIO-5376 Manual de usuario

Advantech

Advantech PCM-3718H Manual de usuario

Advantech

Advantech MIC-3820 Manual de instalación y operación

Advantech

Advantech PCA-6004V-00A1 Manual de usuario

Advantech

Advantech AiMC-2000 Manual de usuario

Advantech

Advantech AMAX-4817 Manual de instalación y operación

Advantech

Advantech MIC-75G20-10A2 Manual de instalación y operación

Advantech

Advantech HPC-6240 Manual de usuario

Advantech

Advantech PCM-9591 Manual de instalación y operación

Advantech

Advantech ASMB-H90 Manual de instalación y operación

Advantech

Advantech IDK-2119 Series Manual de usuario

Advantech

Advantech MIC-6311 Manual de usuario

Advantech

Advantech ASMB-588 Manual de instalación y operación

Advantech

Advantech AIMB-723 Manual de usuario

Advantech

Advantech PCA-6743 Manual de instalación y operación

Advantech

Advantech PCE-7B13-0AA1 Manual de instalación y operación

Advantech

Advantech PCL-725 Manual de usuario

Advantech

Advantech PCM-23U1DG-CE Manual de instalación y operación

Advantech

Advantech MIO-2375 Manual de usuario

Advantech

Advantech ASMB-831 Series Manual de usuario

Advantech

Advantech SOM-C350 Manual de usuario

Advantech

Advantech PCE-2033 Manual de usuario

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario
