ADLINK Technology COM Express Type 7 Starter Kit Plus Manual de usuario

Leading EDGE COMPUTING

COM Express Type 7 Starter Kit Plus

Quick Start Guide

Manual Rev.: 1.0

Revision Date: September 21, 2017

Part Number: 50-1J092-1000

ii Preface

Preface

All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in

any form without prior written permission of the manufacturer.

Disclaimer

The information in this document is subject to change without prior notice in order to improve reliability, design, and

function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer

be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use

the product or documentation, even if advised of the possibility of such damages.

Environmental Responsibility

ADLINK is committed to fulfill its social responsibility to global environmental preservation through compliance with

the European Union's Restriction of Hazardous Substances (RoHS) directive and Waste Electrical and Electronic

Equipment (WEEE) directive. Environmental protection is a top priority for ADLINK. We have enforced measures to

ensure that our products, manufacturing processes, components, and raw materials have as little impact on the

environment as possible. When products are at their end of life, our customers are encouraged to dispose of them

in accordance with the product disposal and/or recovery programs prescribed by their nation or company.

Trademarks

Product names mentioned herein are used for identification purposes only and may be trademarks and/or

registered trademarks of their respective companies.

Revision History

Revision Description Date By

1.0 Initial release 2017-09-21 JC

Type 7 Starter Kit Plus

Preface iii

Table of Contents

Preface................................................................................................................................ii

1. Introduction................................................................................................................1

1.1. How to Order the Type 7 Starter Kit ...........................................................................1

1.2. What’s Included in the Type 7 Starter Kit Plus ...........................................................2

2. Getting Started...........................................................................................................5

2.1. Unpacking...................................................................................................................5

2.2. Board Installation........................................................................................................6

2.3. Power and I/O Connectors .........................................................................................8

2.4. Powering Up the Express-BASE7 System .................................................................9

3. 10GbE Adapter Cards .............................................................................................11

3.1. 10GbE SFP+ Card....................................................................................................11

3.2. 10GbE BASE-T Card................................................................................................12

3.3. 10GbE Adapter Card Installation..............................................................................13

4. PCIe x16 to two PCIe x8 Adapter Card...................................................................15

5. Debug Card..............................................................................................................17

5.1. Connecting the COM Express Module and Debug Card..........................................18

5.2. Buttons and Switches...............................................................................................18

5.3. Display and LEDs.....................................................................................................19

Safety Instructions...........................................................................................................21

Getting Service.................................................................................................................22

iv Preface

This page intentionally left blank.

Type 7 Starter Kit Plus

Introduction 1

1. Introduction

The Type 7 Starter Kit Plus is intended for testing and verification of COM Express systems based on Type 7

modules and includes everything customers need to begin their own design and development. The Type 7 Starter

Kit Plus includes the Express-BASE7 ATX size COM Express Type 7 reference carrier board, a COM Express

Type 7 module (of your choice), memory (of your choice), thermal solution (heatspreader or heatsink, of your

choice) and additional items such as a debug card, cabling, and ATX power supply.

The complete kit allows cusomters to quickly emulate the functionality of their end product for software

development and hardware verification. Drivers, BSP, carrier board design files (including schematics, mechanical

drawings and BOM), certificates, test reports, COM Express module user’s manual and thermal solution drawing

are included to assist cusomters in designing their own custom carrier board.

The Type 7 Starter Kit Plus also includes additional development cards, such as a 10GbE adapter card that

converts 10GBase-KR to 10GbE optical fiber (SFP+ Card) or 10GbE copper (BASE-T card) signals, a PCIe x16 to

two PCIe x8 adapter card (P16TO28) and a debug card (DB40).

The Type 7 Starter Kit Plus also includes a USB flash drive with SEMA pre-installed in a Linux OS environment.

This helps customers quickly review the features provided by the EAPI.

1.1. How to Order the Type 7 Starter Kit

Get the specific part number for

your starter kit

Select a COM Express module,

memory and thermal solution

Contact an ADLINK sales

representative in your region

2 Introduction

1.2. What’s Included in the Type 7 Starter Kit Plus

1.2.1. Standard Items

No. Photo Part Number Description

91-77105-0010 Express-BASE7

Type 7 reference carrier board

91-79301-0010 PCIe x16 to two PCIe x8

adapter card (P16TO28)

91-79007-0020

30-30016-0000

30-10192-0000

30-20736-0000

Debug Card (DB40)

40-pin flat cable

External SPI cable

(used for BIOS update)

DB40 to BMC cable

(used for BMC FW update)

31-32220-0000 Power Supply Unit

29-02480-0040 USB Flash Drive (2pcs)

One containing documents

One with SEMA pre-installed in

Linux OS

30-10057-5010 7-pin SATA cable

180° (-) to 180°

7. 30-20171-1000 SATA Power to Molex 4-pin

cable

30-20027-3000 PSU Converter Harness

ATX 20-pin to 24-pin

30-00001-0030 US Power Cord, 10A, 125V

30-00002-0010 EU Power Cord, 220V

40-pin flat cable

to module

DB40 to BMC

External

SPI

Type 7 Starter Kit Plus

Introduction 3

1.2.2. Optional Items

No. Photo Part Number Description

- COM Express Type 7 module

of your choice

- Memory module(s) of your

choice

- Thermal solution of your

choice

91-79010-0010 10GbE SFP+adapter card*

Converts 2x 10GBASE-KR to

2x 10GbE optical fiber, SFP+

signals (requires selection of a

Type 7 module supporting

Optical Fiber mode)

91-79009-0010 10GbE BASE-T adapter card*

Converts 2x 10GBASE-KR to

2x 10GbE copper signals

(requires selection of a Type 7

module supporting Copper

mode)

*Note: Only one 10GbE adapter card will be included, depending on your choice of Type 7 module.

4 Introduction

This page intentionally left blank.

Type 7 Starter Kit Plus

Getting Started 5

2. Getting Started

2.1. Unpacking

Check that the EPE foam layers contain the items shown below:

10GbE

adapter card

Express-BASE7 Heatsink

USB stick Memory &

USB stick

Type 7 module

Layer 1

Layer 2

Layer 3

EPE protection

on top

Remove the EPE foam layers and check accessory boxes contain items shown below:

6 Getting Started

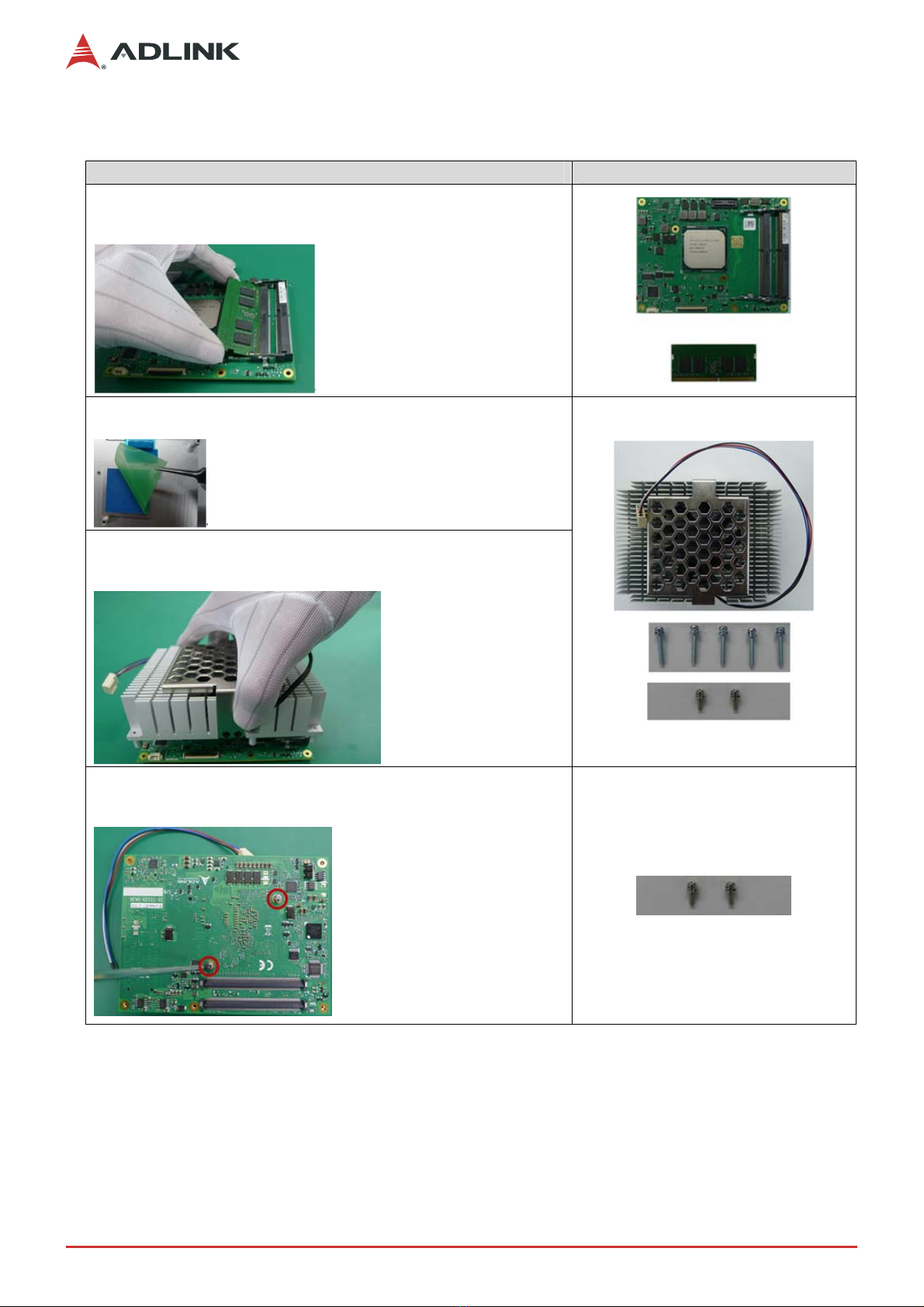

2.2. Board Installation

Procedure Required Items

Step 1

Insert SO-DIMM memory into the COM Express Type 7 module’s

SO-DIMM socket.

Step 2

Removed all protective membranes from the thermal pads.

Step 3

Assemble the thermal solution onto the COM Express Type 7

module.

Step 4

Use the M2.5, L=6mm screws provided to fasten the thermal

solution to the COM Express Type 7 module.
