ADDER AdderLink LPV154T Manual de usuario

AdderLink LPV154T

Signage Video Extender



 







SECT 1

Contents

Welcome

Introduction.................................................................................2

Cascading units to support more displays.............................2

What’s in the box ........................................................................3

What you may additionally need ...............................................3

Installation

Locations ......................................................................................4

Mounting .....................................................................................5

Using the self adhesive feet ...................................................5

Using the rear mounting slot.................................................5

Using the optional rack mount chassis..................................6

Connections .................................................................................7

Connections at the transmitter..............................................7

DDC information.....................................................................7

Connections at each receiver module .................................10

Cascade connections..................................................................11

Video sharpness adjustment.....................................................12

Resetting the transmitter unit..................................................12

Operation

Indicators....................................................................................13

Status indicators....................................................................13

Link indicators.......................................................................13

Further information

Troubleshooting ........................................................................14

Getting assistance......................................................................14

Safety information ....................................................................15

Warranty ....................................................................................15

Emissions and Immunity............................................................16

 







VIDEO IN

LOCAL VIDEO OUT

CATx LINKS UP TO 150m (492 feet)

LPV154

POWER

LPV150R

SECT 2

Welcome

Introduction

The AdderLink LPV154T allows you to distribute high quality analogue video to

four video displays, each of which can be up to 150 metres (492 feet) away. All

links are made using simple twisted pair cables (Category 5 or higher) with a

compact LPV150R module at each remote end. Each remote module converts

the long distance transmission signals back into high quality analogue video

signals for each display. LPV stands for Line Powered Video, which means that

all power for the remote modules is fed along the CATx cabling. What this

means for you is quick and straightforward installation using compact modules

at each remote location.

AdderLink LPV154T transmitter and (up to) four LPV150R receivers

driving remote displays in addition to a local monitor

VIDEO IN

LOCAL VIDEO OUT

CATx LINKS UP TO 150m (492 feet)

LPV154

POWER

Cascading units to support more displays

If you need to drive more than four

video displays you can connect up

to three AdderLink LPV154T units in

cascade.

To do this, the local video out port of

the ﬁrst AdderLink LPV154T unit is fed

to the video in port of the next one.

 







What’s in the box What you may additionally need

AdderLink LPV154T

transmitter

<Rack mount fascia plate

for modules.

Adder P/N: ALAV-RMK-FASCIA

19” rack mount chassis >

Adder P/N: ALAV-RMK-CHASSIS

One to four ALPV150R

receiver units, as

required

CD-ROM containing

documentation

Power supply adapter

and country-speciﬁc

mains cable

Self adhesive

rubber feet

4321

Safety

leaﬂet

Certain kits may include

up to four LPV150R

receiver modules

Analogue

video link

cable

 







Installation

Locations

Please consider the following important points when planning the positions of

your AdderLink AV modules:

• Takecarenottoexceedthemaximumlinkcablelengths(pleaserefertothe

section Cascade connections).

• Ensurethatthetransmitter(s)is/areascloseaspossibletothesourcePC

system and the receiver modules are similarly close to the video displays.

Each receiver module can be connected directly to the video display and no

power is required.

• Whereverpossible,chooseroutesfortheCATxtwistedpairlinkcablesthat

avoid mains power cables.

• Rememberamainspowersocketisrequiredforeachtransmitter.The

receivers do not require external power.

• ConsulttheprecautionslistedwithintheSafety information section.

SECT 3

 







Using the rear mounting slot

The slot at the rear of each module allows it to be hung upon a ﬁxed screw that

protrudes from the mounting surface.

IMPORTANT: The internal circuit board is accessible through the mounting slot.

Ensure that any mounting screws protrudes no further than ½” (12.5mm) into

the module casing - serious electrical damage will be caused if the screw makes

contact with the internal circuitry.

5mm ( )0.19"

9.5mm 0.37"( )

Using the self adhesive feet

Apply the supplied self-

adhesive rubber feet to the

underside corners of the

AdderLink LPV154T module.

Mounting

Before you begin connecting to the source PC system and display devices, it is

advisable to mount the AdderLink LPV154T module in place. There are a number

of mounting possibilities for the transmitter module:

• Onahorizontalsurfaceusingthesuppliedselfadhesivefeet,

• Mountedonascrewusingtherearslot,

• Withintheoptional rack mount chassis,

• OninclinedsurfacesusingselfadhesiveVelcro©strips (not supplied).

 







Using the optional rack mount chassis

1 Place the optional rack plate onto the front of the transmitter module and

secure it with the countersunk screws.

2 Orientthemoduleonitssidesothatitslabelledfaceisthecorrectwayup

and the securing plate is facing away from the rack.

3 Slide the module into the required rack position.

4 The rack mount chassis has a series of holes in its ﬂoor that are spaced to

accommodate the screws on the module’s lower edge. Ensure that the

screws correctly locate into the holes of the chosen slot. The rack securing

plate on the module should now be ﬂush with the front of the rack mount

chassis.

5 Use the supplied (pan-head) screws, in the top hole of the rack securing

plate to fasten the module to the rack.

 







Connections

Connections to the AdderLink LPV154T and 150R modules do not need to

follow the precise order given in this user guide although it is recommended

that you do not apply power to the transmitter until all other connections have

been made.

Connections at the transmitter

To connect video from the source PC system

1 Connect the supplied video cable to the socket labelled on the

transmitter.

2 Attach the other end of the video cable to the appropriate VGA video

output socket on the host system.

3 Optionally,connectalocalmonitortothesocketlabelled .

From VGA video

socket on the host

system

Video output socket

for connection

to optional local

video display

or for use when

cascading multiple

transmitters

DDC information

DDC information about the video displays is not sent from the receiver modules. Instead,

the transmitter holds a standard set of DDC details which are suitable for most video

displays. If the standard details are not suitable, temporarily connect the transmitter (using

the port) directly to the video display that is to be emulated and power on the screen

and the transmitter. In cascaded installations, only the initial transmitter needs to be taken

through this procedure.

If the DDC information is different to that already held, the red indicator (adjacent to the

LINK4 socket) will ﬂicker rapidly for 2 to 3 seconds while the new information is stored.

If a problem occurs while attempting to harvest DDC information, the red indicator on the

transmitter will show a number of distinct ﬂashes. Note the number of ﬂashes in case you

need to contact technical support, but otherwise retry the procedure.

Switches: Switch 4 is used to

reset the transmitter unit (see

Resetting the transmitter unit).

All other switches are reserved

for future use.

 







To connect the link cables

The links between the transmitter and receiver modules are made using

between one and four twisted pair cables, speciﬁed to Category 5 or higher.

Each cable carries video signals and power to each receiver module.

1 Attach the connector of the ﬁrst link cable (no longer than 150m, 492 feet)

to the socket labelled LINK1 on the transmitter. There should be a click when

the cable is fully inserted and locked in place.

2 Attach the connectors of the remaining link cables (no longer than 150m,

492 feet each) to the sockets labelled LINK2 to LINK4, as required.

IMPORTANT: The signals and power connections sent through the link

cables are NOT compatible with standard networking equipment

and could cause damage if connected. Do not connect the

transmitter or receiver modules to any other devices.

CATx LINKS UP TO 150m (492 feet)

LPV154

LPV150R

Link

cables to

the receiver

modules Note: All of the link ports are independent. The receiver modules may be

connected, disconnected or swapped around in any order without affecting the

operation of other modules.

 







To connect the power supply

NOTE: Please read and adhere to the electrical safety information given within

the Safety information section of this guide. In particular, do not use an

unearthed power socket or extension cable.

1 Attach the output connector of the power supply to the socket labelled

POWER on the transmitter.

2 Insert the IEC connector of the power cable into the corresponding socket of

the power supply.

3 When all other connections have been made at the transmitter and receiver

modules, connect the other end of the power cable to a nearby earthed

mains socket.

Tabla de contenidos

Otros manuales de Extensor de ADDER

ADDER

ADDER AdderLink AV100 series Manual de usuario

ADDER

ADDER ADDERLink INFINITY 101T Manual de usuario

ADDER

ADDER AdderLink X2 Dual Access Manual de usuario

ADDER

ADDER ADDERLINK X-DVI PRO Manual de usuario

ADDER

ADDER X-DVIPRO-DL Manual de usuario

ADDER

ADDER AdderLink Digital iPEPS Manual de usuario

ADDER

ADDER AdderLink Infinity Manager Manual de usuario

ADDER

ADDER ADDERLink INFINITY 4000 Manual de usuario

ADDER

ADDER AdderLink Digital iPEPS Manual de usuario

ADDER

ADDER Link DV100 Manual de usuario

ADDER

ADDER AdderLink AV series Manual de usuario

ADDER

ADDER AdderLink Infinity Manager Manual de usuario

ADDER

ADDER Link X200 Manual de usuario

ADDER

ADDER AdderLink XD150 Manual de usuario

ADDER

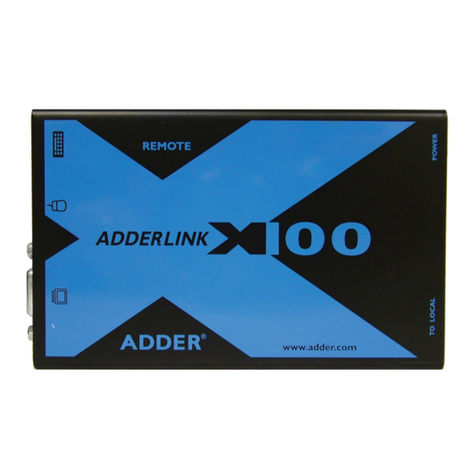

ADDER AdderLink X100 Manual de usuario

ADDER

ADDER AdderLink Infinity 1002 Manual de usuario

ADDER

ADDER AdderLink X-DVI Manual de usuario

ADDER

ADDER CUSBEXT100 Manual de usuario

ADDER

ADDER AdderLink X-DVIPRO Manual de usuario

ADDER

ADDER ALIF 2112T Manual de usuario

ADDER

ADDER ADDERLink INFINITY 3000 Manual de usuario

ADDER

ADDER AdderLink X-USBPRO Manual de usuario

ADDER

ADDER AdderLink X Series Guía de inicio rápido

ADDER

ADDER AdderLink XD150FX Manual de usuario

Manuales populares de Extensor de otras marcas

SY HDBT-60T Manual de usuario

Appsys ProAudio

Appsys ProAudio ADX-16 Manual de usuario

Atlona

Atlona RS232 Manual de usuario

IDK

IDK OPF-TH1000-A Manual de usuario

Enable-IT

Enable-IT 824WP Manual de usuario

Worx

Worx Landroid RadioLink WA0864 Hoja de especificaciones

TP-Link

TP-Link TL-WA730RE Manual de usuario

Camplex

Camplex CMX-HDMI-SFPL Manual de usuario

SC&T

SC&T HE03-4K Manual de usuario

Marmitek

Marmitek MegaView70 Manual de usuario

Samsung

Samsung SCS-26UC4 Manual de usuario

Foxun

Foxun SX-GES24 Manual de usuario

MuxLab

MuxLab 500771 Manual de usuario

foxunhd

foxunhd SX-AEX01 Manual de usuario

TERK Technologies

TERK Technologies LFIRX2 Manual de usuario

Devolo

Devolo Audio Extender Manual

Edimax

Edimax EW-7438RPn V2 Manual de usuario

Shinybow USA

Shinybow USA SB-6335T5 Manual de usuario
