Introduction

Welcome................................................................................................................2

Cable type and distance rules......................................................................2

Supplied items.......................................................................................................3

Optional extras.....................................................................................................4

Installation

Connections ..........................................................................................................5

Mounting the modules – desk or rack ......................................................5

Connections at the local module ...............................................................6

Power connection ....................................................................................7

Connections at the remote module ..........................................................8

Power connection ....................................................................................9

Operation

General use .........................................................................................................10

Video display (EDID) information ............................................................10

HDMI 1.3a operation ..................................................................................10

Power and activity indicators ....................................................................10

Further information

Troubleshooting..................................................................................................11

Getting assistance ..............................................................................................12

Appendix A - Cables for use with digital extenders ..................................13

Warranty..............................................................................................................15

Safety information..............................................................................................15

Radio frequency energy....................................................................................15

Contents

CONTENTSINTRODUCTIONINSTALLATIONOPERATION

FURTHER

INFORMATION

Introduction

WELCOME

Thank you for choosing the AdderLink X-DVIPRO-DL extenders.These compact

modules provide the quickest way to extend high quality dual link DVI digital video plus

USB keyboard, mouse and stereo audio with an additional two USB peripherals up to 50

meters away from your computer.

Thanks to our long involvement and investment in extender technology we have

succeeded in overcoming the numerous problems associated with extending digital video

signals. Using our proprietary transmission techniques the X-DVIPRO-DL modules can

extend all dual link video resolutions up to 2560 x 1600. In effect, the X-DVIPRO-DL can

reliably transfer video rates up to 330 Mpixels per second.This is in addition to multiple

USB channels plus stereo audio - all via the same single length of CAT6a or CAT7

shielded twisted pair cabling.

The AdderLink X-DVIPRO-DL extender modules have been designed to be quick to

install and totally transparent in operation.

Cable type and distance rules

• Cablescreeningisparamount.ThebestcablescreeningspecicationsfordigitalKVM

extension are: S/FTP, S/STP or PiMF. Please see Appendix A for further details.

• Extension distances up to 50m are supported with single uninterrupted runs of

recommended cable (Adder CAT7 patch cable) at full resolution.

• Extensions of 50m may be achieved with single uninterrupted runs of shielded CAT6a

bulk/trunk (not patch) cable at full resolution.

• Adder does not recommend CAT5e cables for use with this product.

• Overall cable runs must be reduced by 5m for each additional cable coupling.

• Runspecicationsmaybeincreasedby10mwhenusingresolutionsof1280x1024or

lower.

• All patch cables should be as short as possible and should be no longer than 2m.

• It is recommended that Adder CAT7 patch cables are used for maximum performance.

Recommended 50m link cable for best results:Adder part number - VSCAT7-50

X-DVIPRO-DL link with direct cable connection

X-DVIPRO-DL link with cable and patch panel connections

CONTENTSINTRODUCTIONINSTALLATIONOPERATION

FURTHER

INFORMATION

SUPPLIED ITEMS

AdderLink DVIPRO-DL

Local module

USB cable 2m (type A to B)

Part number:VSC24

Dual link video cable

DVI-D to DVI-D

Part number:VSCD3V

2 x

12.5W power

adapters and

country- specic

power cords

Information wallet

containing:

Four self-adhesive rubber feet

Safety document

3.5mm jack to jack

stereo audio cable

Part number:VSC22

AdderLink DVIPRO-DL

Remote module

CONTENTSINTRODUCTIONINSTALLATIONOPERATION

FURTHER

INFORMATION

OPTIONAL EXTRAS

Rack mount chassis

Partnumber:X-RMK-CHASSIS

Rack mount kit for X-DVIPRO-DL

Partnumber:X-RMK-FASCIA

HDMI to DVI-D video cable

Part number: VSCD11

50 meter CAT7 link cable

Part number: VSCAT7-50

CONTENTSINTRODUCTIONINSTALLATIONOPERATION

FURTHER

INFORMATION

Installation

CONNECTIONS

Installation of the X-DVIPRO-DL modules is straightforward and requires minimal

congurationinmostcases.

• Connections at the local module

• Connections at the remote module

Note:After all connections have been made, power up the display screen and the remote

module rst. Then power up the local module and nally switch on the computer. This will allow

each item to correctly discover, in order, the one immediately downstream.

Mounting the modules – desk or rack

The X-DVIPRO-DL modules can be situated on a desk or alternatively, for larger

installations, mounted within an optional rack mount chassis.

Desk mount

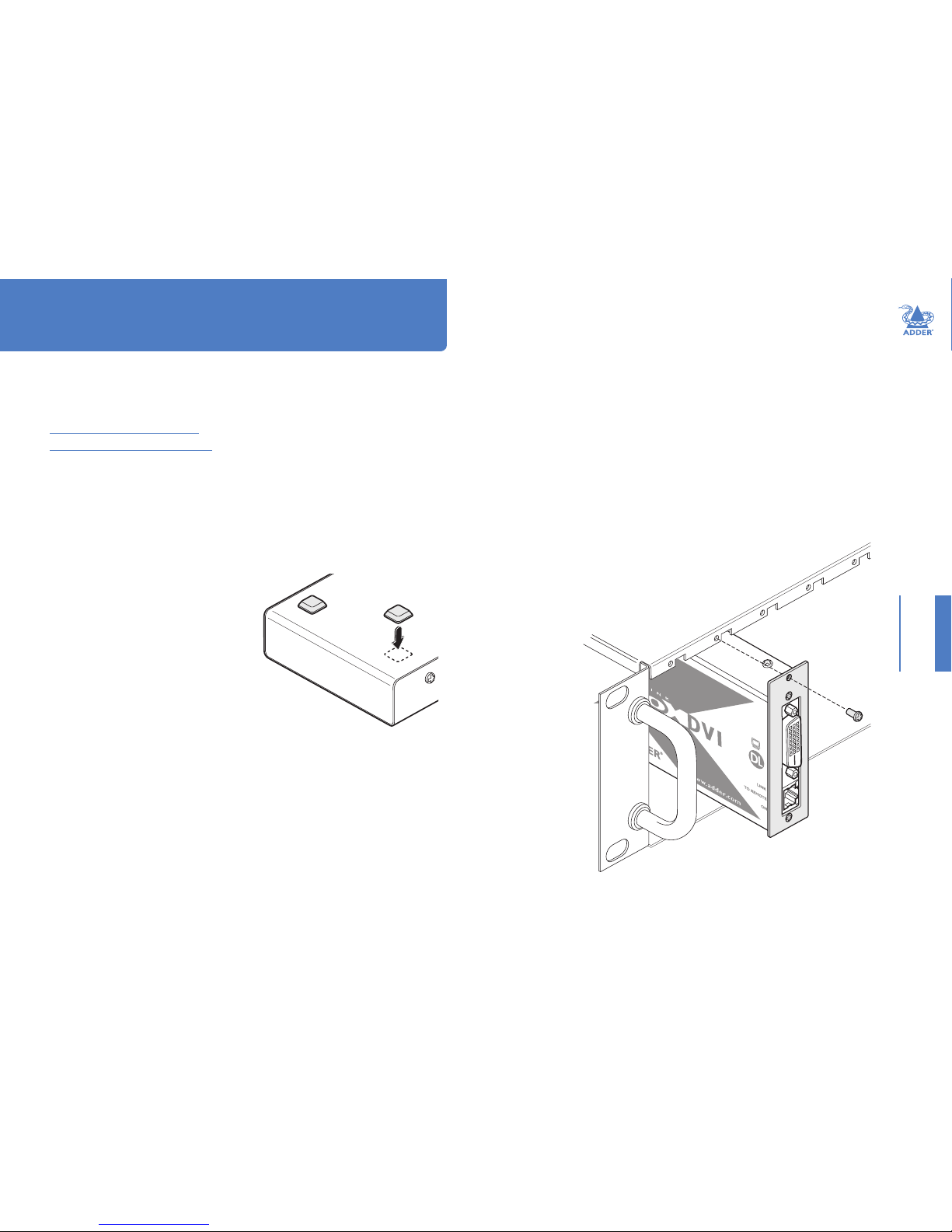

Apply the supplied self-adhesive rubber feet to

the underside of the module.

Rack mount

1 Place the rack securing plate (available as a separate kit) onto the front of the module

and secure it with the two countersunk screws.

2 Orient the X-DVIPRO-DL module on its side so that its labeled face is the correct

way up.

3 Slide the module into the required rack position.The rectangular cut-out in the front

upper lip of the rack allows the two screws on the module’s upper edge to slide

through.

4 Therackmountchassishasaseriesofholesinitsoorthatare

spaced to accommodate the two screws on the module’s

lower edge. Ensure that the screws correctly locate

into the two holes of the chosen slot.The rack

securing plate on the module should now be

ushwiththefrontoftherackmount

chassis.

5 Use the third (pan-head)

screw, in the top hole

of the rack securing

plate to fasten the

module to the rack.

CONTENTSINTRODUCTIONINSTALLATIONOPERATION

FURTHER

INFORMATION

Connections at the local module

1 Where possible, ensure that power is removed from the computer system to be

connected.

2 Use the supplied dual link DVI-D cable to connect the DVI

input socket of the local module to the digital video

output socket of the computer.

3 Use the supplied USB cable to link the USB socket of the

local module to a vacant USB socket on the computer.

To video output port

To USB port

Note: Do not use USB cables longer

than 3 meters to connect the local

module to the computer.

4 Optionally use the supplied audio cable to link

the audio port to the stereo audio output of the

computer.

To audio port

CATx link cable

5 Connect the link cable (see page 2 for cable advice) to

the local module socket labeled TO REMOTE.

IMPORTANT:

• This is NOT an Ethernet port and must not be connected to network

switches or any device other than the X-DVIPRO-DL remote module.

• The X-DVIPRO-DL (dual link) extenders are NOT compatible with the

standard X-DVIPRO (single link) versions.Where both types are being

used in close proximity, take care not to cross connect the local and

remote modules between the two versions.

CONTENTSINTRODUCTIONINSTALLATIONOPERATION

FURTHER

INFORMATION

Power connection

1 Connect the output lead of the supplied power

adapter to the socket labeled POWER on the

local module.

2 Insert the IEC connector of the supplied power cord into the corresponding socket of

the power adapter.

Output lead from the

power adapter

3 Wait before connecting the other end of the power cord to a nearby mains outlet,

until the remote module has been powered up. The correct power up sequence is:

a) Remote module and screen > b) Local module > c) Computer.

Note: Please pay close attention to

the power related items within the

Safety information section.

CONTENTSINTRODUCTIONINSTALLATIONOPERATION

FURTHER

INFORMATION

Connections at the remote module

1 Place the remote module adjacent to the user location.

2 Connect a dual link DVI-D cable from the video monitor to

the DVI output socket of the remote module.

To video monitor

3 Connect the leads from the keyboard and mouse

to the two USB sockets on the remote module.

To keyboard, mouse

and other USB

peripherals

Note: The total current that may be drawn from the USB ports is 1.2A, which should be

sufcient for a keyboard, mouse (no more than 100mA each) and any two other devices

(500mA maximum each). If more power for USB devices is required, please use a powered

USB hub.

4 Optionally connect a set of stereo speakers

to the module.

To speakers

5 Connect the link cable (see page 2 for cable advice) to

the remote module socket labeled TO LOCAL.

CATx link cable

IMPORTANT:

• This is NOT an Ethernet port and must not be connected to network

switches or any device other than the X-DVIPRO-DL local module.

• The X-DVIPRO-DL (dual link) extenders are NOT compatible with the

standard X-DVIPRO (single link) versions.Where both types are being

used in close proximity, take care not to cross connect the local and

remote modules between the two versions.

Note: If dual link screen resolutions are required,

the DVI-D cables used at both the local and

remote modules must be dual link types.

CONTENTSINTRODUCTIONINSTALLATIONOPERATION

FURTHER

INFORMATION

Power connection

1 Connect the output lead of the supplied power adapter

to the socket labeled POWER on the remote module.

Output lead from

the power adapter

2 Insert the IEC connector of the supplied power cord into the corresponding socket of

the power adapter.

3 After all connections are made, power up the display screen and connect the other

end of this power cord to a nearby mains outlet.Then power up the local module and

nallyswitchonthecomputer.Thiswillalloweachitem,inorder,tocorrectlydiscover

the one immediately downstream.

Note: Please pay close attention to

the power related items within the

Safety information section.

Tabla de contenidos

Otros manuales de Extensor de ADDER

ADDER

ADDER AdderLink X100 Manual de usuario

ADDER

ADDER AdderLink X Series Guía de inicio rápido

ADDER

ADDER X-KVM Guía de inicio rápido

ADDER

ADDER AdderLink X-DVIPRO Manual de usuario

ADDER

ADDER AdderLink Digital iPEPS Manual de usuario

ADDER

ADDER AdderLink X2 Dual Access Manual de usuario

ADDER

ADDER AdderLink Infinity 1002 Manual de usuario

ADDER

ADDER ADDERLink INFINITY 3000 Manual de usuario

ADDER

ADDER AdderLink X-Series Manual de usuario

ADDER

ADDER Adder X00 Extender Manual de usuario

ADDER

ADDER AdderLink X2 Dual Access Manual de usuario

ADDER

ADDER ADDERLINK AV200 Series Manual de usuario

ADDER

ADDER AdderLink Infinity Manager Manual de usuario

ADDER

ADDER ADDERLINK X-DVI PRO Manual de usuario

ADDER

ADDER AdderLink Digital iPEPS Manual de usuario

ADDER

ADDER ADDERLink INFINITY 4000 Manual de usuario

ADDER

ADDER ALIF 2112T Manual de usuario

ADDER

ADDER AdderLink LPV Manual de usuario

ADDER

ADDER ALGTX Guía de inicio rápido

ADDER

ADDER ADDERLink INFINITY 1100 Manual de usuario

ADDER

ADDER AdderLink X100 Manual de usuario

ADDER

ADDER AdderLink XD150 Manual de usuario

ADDER

ADDER AdderLink Infinity 100T Manual de usuario

ADDER

ADDER AdderLink X-DVIPRO Manual de usuario

Manuales populares de Extensor de otras marcas

SY HDBT-60T Manual de usuario

Appsys ProAudio

Appsys ProAudio ADX-16 Manual de usuario

Atlona

Atlona RS232 Manual de usuario

IDK

IDK OPF-TH1000-A Manual de usuario

Enable-IT

Enable-IT 824WP Manual de usuario

Worx

Worx Landroid RadioLink WA0864 Hoja de especificaciones

TP-Link

TP-Link TL-WA730RE Manual de usuario

Camplex

Camplex CMX-HDMI-SFPL Manual de usuario

SC&T

SC&T HE03-4K Manual de usuario

Marmitek

Marmitek MegaView70 Manual de usuario

Samsung

Samsung SCS-26UC4 Manual de usuario

Foxun

Foxun SX-GES24 Manual de usuario

MuxLab

MuxLab 500771 Manual de usuario

foxunhd

foxunhd SX-AEX01 Manual de usuario

TERK Technologies

TERK Technologies LFIRX2 Manual de usuario

Devolo

Devolo Audio Extender Manual

Edimax

Edimax EW-7438RPn V2 Manual de usuario

Shinybow USA

Shinybow USA SB-6335T5 Manual de usuario
