ADDERLink™INFINITY 3000

User Guide

Experts in

Connectivity

Solutions

KVM Extension

Solutions

INSTALLATION

CONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

Introduction

Welcome................................................................................................................2

Gigabit connections ......................................................................................2

Features ............................................................................................................2

Technical Specications.................................................................................3

ALIF3000 unit features........................................................................................4

Supplied items.......................................................................................................5

Optional extras.....................................................................................................6

Installation

Connections ..........................................................................................................7

Mounting ................................................................................................................7

Video displays..................................................................................................8

Audio.................................................................................................................8

USB devices .....................................................................................................9

Power in .........................................................................................................10

KVM & VM network links...........................................................................11

VM-only network link..................................................................................12

Conguration

ALIF3000 conguration ....................................................................................13

The recessed power button ......................................................................13

Performing a manual factory reset...........................................................13

Creating an RDP session..................................................................................14

Operation

OLED screen.......................................................................................................16

Front panel indications......................................................................................17

Further information

Getting assistance ..............................................................................................18

Appendix A - Conguration page...................................................................19

Appendix B - Tips for success when networking ALIF units ....................20

Appendix C - Troubleshooting ........................................................................22

Appendix D - Glossary.....................................................................................24

Appendix E - Fiber/copper modules and cables..........................................27

Appendix F - Using the optional ALIF3000 rack shelf ..............................28

Appendix G - Open source licenses..............................................................29

Index

Contents

INSTALLATION

CONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

Introduction

Safety

Please refer to the safety booklet provided in the box before use of this product.

WELCOME

Thank you for choosing the ADDERLink™

INFINITY 3000 (aka ALIF3000), a member of the

wide ranging ADDERLink INFINITY family of

advanced extenders.The ALIF3000 receiver has

been created to address the growing requirement

to connect users to both physical and virtual

machines. Using standardVDI (Virtual Desktop

Infrastructure) protocols - which are built-in; the

ALIF3000 delivers seamless access to legacy KVM

systems as well asVirtual Machine (VM) sources,

from the same common console.

Like all products within the ADDERLink INFINITY

family,ALIF3000 is fully administered by the AIM

application to allow centralized, secure management

of all aspects. Note, it is not possible to use

ALIF3000 outside of control by AIM.

Dual DisplayPort®video outlets provide support

for a single 2560x1600 display or two at a

maximum 1920x1200 resolution (60Hz refresh).

Gigabit connections

The ALIF3000 receiver has two SFP ports located on its rear panel, which can

accommodate a range of ber or copper networking modules, as suits your installation.

Each port can be connected to a separate gigabit ber (or copper) network to permit

access to a wider range of systems.A third network port (RJ45) is also provided to

allow separate access, where necessary, to a corporate network to gain theVM hosting

conguration data. All three connections are securely isolated within the ALIF3000 to

prevent any cross contamination between networks.

ALIF3000

ALIF TX

Network

switch

Virtual

machines

Legacy KVM

system(s)

Features

• Full management via ADDERLink INFINITY Manager (AIM),

• Pixel-perfect picture quality,

• Multiple 1Gb Ethernet links,

• Adder’s USB True Emulation for fast USB 2.0 switching,

• Bi-directional analog audio,

• Backwards compatibility with existing ADDERLink INFINITY range.

INSTALLATION

CONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

Technical Specications

Operating/storage conditions

Operating temperature: 0 to 40ºC / 32 to 104ºF

Storage temperature: 0 to 40ºC / 32 to 104ºF

Storage and operating relative humidity: 10 to 90% non-condensing

Altitude: < 2000m

Power

External power: 12VDC, 5A

Typical power consumption: 20W

BTU: 68.24BTU/hr

Physical

Dimensions (L)210mm /8.3” x (W)215mm/8.5” x

(D)40mm/1.6”

Weight: 1.8kg / 4 lbs

Materials

Aluminium and steel construction

Connectors

Desk: 2x DisplayPort, 6x USB type A,

3x 3.5mm audio jack sockets.

Ethernet: 1x 8p8c (RJ45), 2x SFP+ cages.

Power: 3-pin Kycon socket.

USB

6 ports of USB2.0 with USB True Emulation to support keyboard, mouse and touch.

Max video resolution

Supports 1x 2560x1600 up to maximum refresh rates of 60Hz or 2x 1920x1200

Audio

Analog Line in/out 2 channel 16bit 48KHz 1V RMS in / 1V RMS out

Ethernet

1GbE (10/100/1000 support)

Packing Box

Dimensions: (L) 285mm /11.2” x (W) 245mm/9.6” x (D)145mm/5.7”

Weight: 2.5kg / 5.5lb

Approvals / Compliance

CE and FCC: See the compliance web page for the full list

Product information labels

The product information labels are located on the base of each unit.

INSTALLATION

CONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

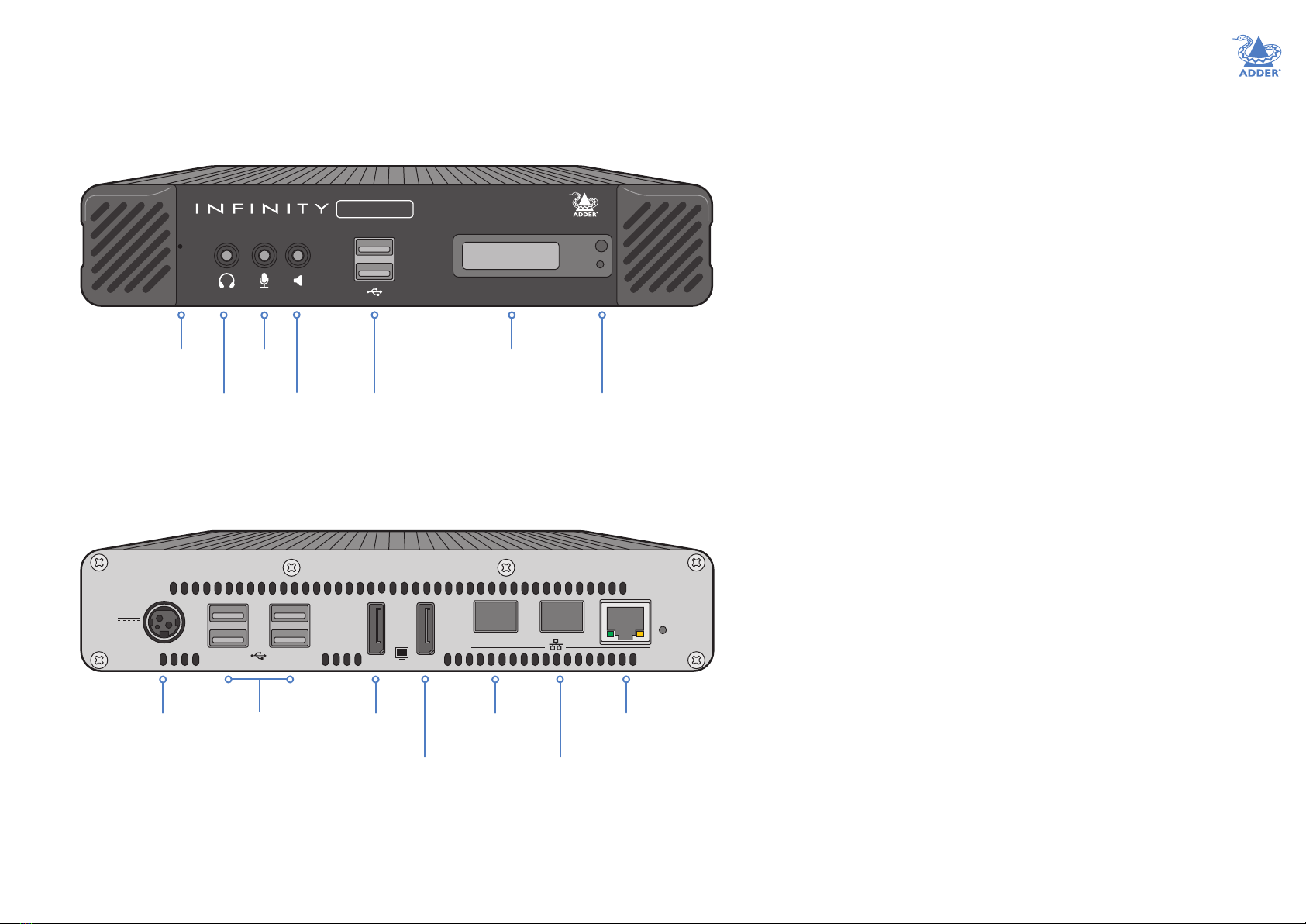

ALIF3000 UNIT FEATURES

The ALIF3000 units are housed within durable, vented enclosures with connectors situated on the front and rear panels.The smart front faces

also feature an OLED information screen with control button (to scroll through the various informational pages) and also a status indicator.

Rear

Front

AdderLink

3000

Micro-

phone

Headphones USB

Reset

switch

OLED

screen

Control

button

and status

indicator

Audio -

Line out

12VDC

Primary

display

Power

Secondary

display

RJ45

network

port

Secondary

SFP port

Primary

SFP port

USB

Note: Units shipped before July 1st 2020, will have

their network link ports incorrectly labeled in the

order (L to R): 1,2, 3.

INSTALLATION

CONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

AdderLink

3000

SUPPLIED ITEMS

ALIF3000 package

Information wallet

containing:

Four self-adhesive rubber feet

Quick start guide

Safety document

ALIF3000 RX unit

Power adapter with

locking connector

and country-specic

power cord

1GbE copper SFP module

INSTALLATION

CONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

OPTIONAL EXTRAS

Dual unit 19” (1U) rack-mount shelf

Part number: RMK12

Audio cable 2m

(3.5mm stereo jacks)

Part number:VSC22

USB cable 2m (type A to B)

Part number:VSC24

1GbE single mode ber SFP module

Part number: SFP-SM-LC

1GbE multi mode ber SFP module

Part number: SFP-MM-LC

Please refer to the table in Appendix F for

information about ber modules and cables.

Replacement power adapter

with locking connector

Part number: PSU-IEC-12VDC-5A

Country-specic power cords

CAB-IEC-AUS (Australia)

CAB-IEC-EURO (Central Europe)

CAB-IEC-UK (United Kingdom)

CAB-IEC-USA (United States)

CAB-IEC-JP (Japan)

CAB-IEC-CN (China)

Display port video cable 2m

Part number:VSCD10A

Rack mount blanking plate

Part number: RMK12-BP

1GbE copper SFP module

Part number: SFP-CATX-RJ45

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

MOUNTING

Please see Appendix F for details about mounting options for ALIF units.

IMPORTANT:When mounting the ALIF units (and their power

adapters), ensure that the vents are not obscured and that there is

sufcient airow. The operating temperature range is 0 to 40ºC (0

to 104ºF) and must not be exceeded. Each power adapter is rated at

a maximum of 68.24BTU/hr.

Installation

CONNECTIONS

Installation involves linking the ALIF3000 unit to networks and your peripherals

(collectively known as the Console):

Click a connection to see details

IMPORTANT:When using an ADDERLink™ INFINITY Management (AIM)

server to congure ALIF units, it is vital that all ALIF units that you wish to

locate and control are set to their factory default settings. Otherwise they

will not be located by the AIM server. If necessary, perform a factory reset on

each ALIF unit.

Please also see Appendix B - Tips for success when networking ALIF units

ALIF3000 RX

VIDEO

DISPLAYS

page8 KVM &VM

network

page11

VM-only

network

page12

AUDIO

SDEVICE

page8

POWER

page10

USB

DEVICES

page9

Suitable for installation in Information Technology Rooms in accordance with

Article 645 of the National Electrical Code and NFPA 75.

Peut être installé dans des salles de matériel de traitement de l’information

conformément à l’article 645 du National Electrical Code et à la NFPA 75.

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

Video displays

The ALIF3000 unit supports two video displays,

each up to 1920x1200 or a single display at

2560x1600, with refresh rates up to 60Hz.

2 If required, connect the lead from the second video display to the

DisplayPort socket marked ‘2’ on the rear panel.

To connect video displays

1 Connect the lead from the primary video display to the DisplayPort

socket marked ‘1’ on the rear panel:

secondary

video display

primary

video

display

Audio

The ALIF3000 unit can support a microphone

as well as speakers and/or headphones.

To connect a microphone, headphones and/or speakers

1 Connect the lead from a

mono microphone to the

3.5mm socket labeled

on the front panel.

2 Connect the lead from

headphones to the 3.5mm

socket labeled on the

front panel.

3 Connect the lead from

stereo speakers to the

3.5mm socket labeled

on the front panel.

3000

AdderLink

ALIF3000 RX

VIDEO

DISPLAYS

AUDIO

SDEVICE

POWER

USB

DEVICES

KVM&VM

NETWORK

VM-ONLY

NETWORK

ALIF3000 RX

VIDEO

DISPLAYS

AUDIO

SDEVICE

POWER

USB

DEVICES

KVM&VM

NETWORK

VM-ONLY

NETWORK

To/from

audio

devices

INSTALLATIONCONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

12VDC

USB devices

The ALIF3000 unit has six USB ports (two on the front panel and four on the rear) to

which peripherals may be connected.

To connect more than six peripherals, one or more USB hubs may be used.The total

current that may be drawn from the USB ports is 1.2A, which should be sufcient for

a keyboard, mouse (no more than 100mA each) and any two other devices (500mA

maximum each). If more power for USB devices is required, use a powered USB hub.

To connect USB devices

1 Connect the lead from the device to any

of the USB sockets on the front and rear

panels of the unit.

3000

ALIF3000 RX

VIDEO

DISPLAYS

AUDIO

SDEVICE

POWER

USB

DEVICES

KVM&VM

NETWORK

VM-ONLY

NETWORK

To USB

peripherals To USB

peripherals

Otros manuales para ADDERLink INFINITY 3000

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Extensor de ADDER

ADDER

ADDER AdderLink X2 Dual Access Manual de usuario

ADDER

ADDER AdderLink X-DVIPRO Manual de usuario

ADDER

ADDER AdderLink Infinity 100T Manual de usuario

ADDER

ADDER Link DV100 Manual de usuario

ADDER

ADDER ADDERLINK X-DVI PRO Manual de usuario

ADDER

ADDER ADDERLink INFINITY 101T-DVI Manual de usuario

ADDER

ADDER AdderLink Infinity Manager Manual de usuario

ADDER

ADDER AdderLink X-DVIPRO Manual de usuario

ADDER

ADDER AdderLink Infinity 100T Manual de usuario

ADDER

ADDER ADDERLINK AV200 Series Manual de usuario

ADDER

ADDER AdderLink Infinity Manager Manual de usuario

ADDER

ADDER AdderLink X2 Dual Access Manual de usuario

ADDER

ADDER AdderLink AV100 series Manual de usuario

ADDER

ADDER ALIF 2112T Manual de usuario

ADDER

ADDER AdderLink IP Manual de usuario

ADDER

ADDER X-KVM/P Guía de inicio rápido

ADDER

ADDER AdderLink XD150 Manual de usuario

ADDER

ADDER AdderLink LPV154T Manual de usuario

ADDER

ADDER AdderLink Infinity 1002 Manual de usuario

ADDER

ADDER ADDERLink INFINITY 101T Manual de usuario

ADDER

ADDER AdderLink LPV Manual de usuario

ADDER

ADDER AdderLink XD522 Manual de usuario

ADDER

ADDER AdderLink Infinity Manager Manual de usuario

ADDER

ADDER AdderLink Infinity ALIF2000 Manual de usuario

Manuales populares de Extensor de otras marcas

SY HDBT-60T Manual de usuario

Appsys ProAudio

Appsys ProAudio ADX-16 Manual de usuario

Atlona

Atlona RS232 Manual de usuario

IDK

IDK OPF-TH1000-A Manual de usuario

Enable-IT

Enable-IT 824WP Manual de usuario

Worx

Worx Landroid RadioLink WA0864 Hoja de especificaciones

TP-Link

TP-Link TL-WA730RE Manual de usuario

Camplex

Camplex CMX-HDMI-SFPL Manual de usuario

SC&T

SC&T HE03-4K Manual de usuario

Marmitek

Marmitek MegaView70 Manual de usuario

Samsung

Samsung SCS-26UC4 Manual de usuario

Foxun

Foxun SX-GES24 Manual de usuario

MuxLab

MuxLab 500771 Manual de usuario

foxunhd

foxunhd SX-AEX01 Manual de usuario

TERK Technologies

TERK Technologies LFIRX2 Manual de usuario

Devolo

Devolo Audio Extender Manual

Edimax

Edimax EW-7438RPn V2 Manual de usuario

Shinybow USA

Shinybow USA SB-6335T5 Manual de usuario
