Introduction

Welcome................................................................................................................2

Cable distance rules.......................................................................................2

Supplied items.......................................................................................................3

Optional extras.....................................................................................................4

Installation

Connections ..........................................................................................................5

Mounting the modules – desk or rack ......................................................5

Connections at the local module ...............................................................6

Optional power connection...................................................................7

Connections at the remote module ..........................................................8

Power connection ..................................................................................10

Operation

General use .........................................................................................................11

Video display (EDID) information ............................................................11

HDMI 1.3a operation ..................................................................................11

Power and activity indicators ....................................................................11

Further information

Troubleshooting..................................................................................................12

Getting assistance ..............................................................................................13

Warranty..............................................................................................................14

Safety information..............................................................................................14

Radio frequency energy....................................................................................14

Contents

CONTENTSINTRODUCTIONINSTALLATIONOPERATION

FURTHER

INFORMATION

Introduction

WELCOME

Thank you for choosing the AdderLink X-DVIPRO or X-DVIPRO-MS2 extenders.These

compact modules provide the quickest way to extend high quality single link DVI digital

video plus USB keyboard, mouse and stereo audio (plus on MS2 variants, a second digital

video channel and audio channel) with an additional two USB peripherals up to 50 meters

away from your computer.

Thanks to our long involvement and investment in extender technology we have

succeeded in overcoming the numerous problems associated with extending digital video

signals. Using our proprietary transmission techniques the X-DVIPRO and X-DVIPRO-

MS2 modules can reliably transfer video rates up to 165 Mpixels per second.This is in

addition to two USB channels for keyboard and mouse, plus stereo audio - all via the

same single length of CAT6a or CAT7 shielded twisted pair cabling.

The AdderLink X-DVIPRO and X-DVIPRO-MS2 extender modules have been designed

to be quick to install and totally transparent in operation.

Cable type and distance rules

• Cablescreeningisparamount.ThebestcablescreeningspecicationsfordigitalKVM

extension are: S/FTP, S/STP or PiMF.

• Extension distances up to 50m are supported with single uninterrupted runs of

recommended cable (Adder CAT7 patch cable) at full resolution.

• Extensions of 50m may be achieved with single uninterrupted runs of shielded CAT6a

bulk/trunk (not patch) cable at full resolution.

• Adder does not recommend CAT5e cables for use with this product.

• Overall cable runs must be reduced by 5m for each additional cable coupling.

• Runspecicationsmaybeincreasedby10mwhenusingresolutionsof1280x1024or

lower.

• All patch cables should be as short as possible and should be no longer than 2m.

• It is recommended that Adder CAT7 patch cables are used for maximum performance.

Recommended 50m link cable for best results:Adder part number - VSCAT7-50

X-DVIPRO link with direct cable connection

X-DVIPRO link with cable and patch panel connections

CONTENTSINTRODUCTIONINSTALLATIONOPERATION

FURTHER

INFORMATION

Local

module

Remote

module

Additional USB cable 2m

(type A to B)

Additional video cable

DVI-D to DVI-D

AdderLink X-DVIPRO-MS2 dual modules

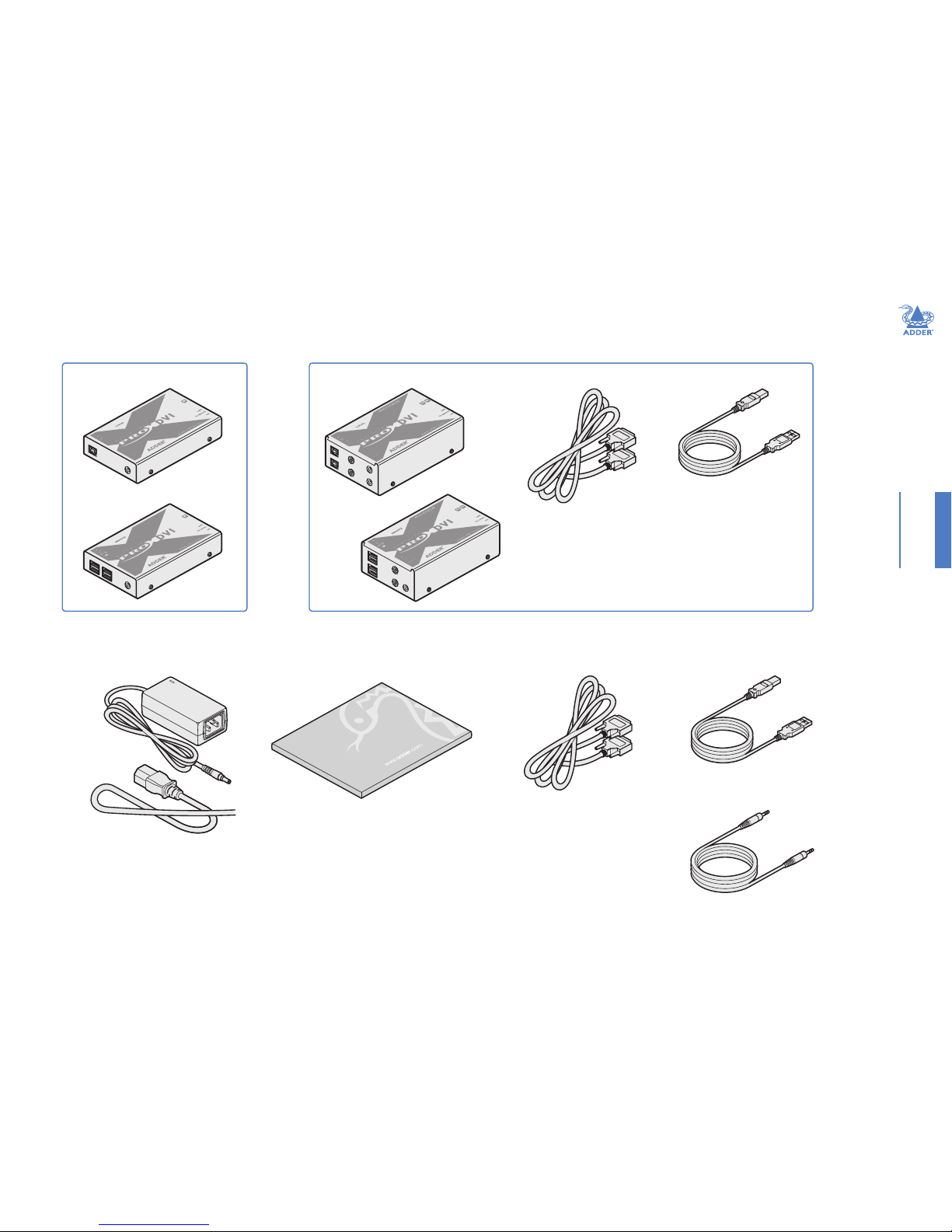

SUPPLIED ITEMS

Local

module

Remote

module

The standard and MS2-dual variant packages include the respective items shown above, plus the following:

USB cable 2m (type A to B)

Video cable DVI-D to DVI-D

12.5W power

adapter and

country- specic

power lead for

use with the

remote module

Information wallet

containing:

Four self-adhesive rubber feet

Safety document

AdderLink X-DVIPRO standard modules

3.5mm jack to jack

stereo audio cable

CONTENTSINTRODUCTIONINSTALLATIONOPERATION

FURTHER

INFORMATION

OPTIONAL EXTRAS

Additional power adapter and

country- specic power lead

for X-DVIPRO local module, if

powering via the USB port is

not possible. In such cases, two

power adapters are required for

X-DVIPRO-MS2 local modules.

Part number: PSU-IEC-5VDC-2.5A

Rack mount chassis

Partnumber:X-RMK-CHASSIS

Rack mount kit for X-DVIPRO

Partnumber:X-RMK-FASCIA

Rack mount kit for X-DVIPRO-MS2

Partnumber:X-RMK-FASCIA-DUAL

HDMI to DVI-D video cable

Part number: VSCD11

50 meter CAT7 link cable

Part number: VSCAT7-50

Extra 3.5mm jack to jack

stereo audio cable

Part number: VSC22

CONTENTSINTRODUCTIONINSTALLATIONOPERATION

FURTHER

INFORMATION

Installation

CONNECTIONS

Installation of the X-DVIPRO and X-DVIPRO-MS2 modules is straightforward and

requiresminimalcongurationinmostcases.

• Connections at the local module

• Connections at the remote module

Note: After all connections are made, power up the monitor and the REMOTE module rst

(followed by the LOCAL module, if using the X-DVIPRO-MS2 variant) and then switch on the

computer.

Mounting the modules – desk or rack

The X-DVIPRO and X-DVIPRO-MS2 modules can be situated on a desk or alternatively,

for larger installations, mounted within an optional rack mount chassis.

Desk mount

Apply the supplied self-adhesive rubber feet to

the underside of the module.

Rack mount

1 Place the rack securing plate (available as a separate kit) onto the front of the module

and secure it with the two countersunk screws.

2 Orient the X-DVIPRO (or X-DVIPRO-MS2) module on its side so that its labeled face

is the correct way up.

3 Slide the module into the required rack position.The rectangular cut-out in the front

upper lip of the rack allows the two screws on the module’s upper edge to slide

through.

4 Therackmountchassishasaseriesofholesinitsoorthatarespacedto

accommodate the two screws on the module’s lower edge. Ensure that the screws

correctly locate into the two holes of the chosen slot.The rack securing plate

onthemoduleshouldnowbeushwiththefrontoftherackmount

chassis.

5 Use the third (pan-head) screw, in the top hole of the rack

securing plate to fasten the module to the rack.

CONTENTSINTRODUCTIONINSTALLATIONOPERATION

FURTHER

INFORMATION

Connections at the local module

1 Where possible, ensure that power is disconnected from the computer system to be

connected.

2 Use the supplied DVI-D link cable to connect the DVI input socket of the local module

to the digital video output socket of the computer.

[MS2 variant only] Optionally attach

a second video input from the

computer system using the supplied

DVI-D link cable.

3 Use the supplied USB cable to link the USB socket of the local module to a vacant

USB socket on the computer.

To video output port

To secondary video output port

To primary video output port

To USB port

[MS2 variant only] Optionally attach a second

USB connection from the computer system

using the supplied USB cable.

To second USB port

To rst USB port

Note: Do not use USB cables longer

than 3 meters to connect the local

module to the computer.

[MS2 variant only] Optionally link a

second stereo audio source to the

module.

To secondary audio port

To primary audio port

Feeds the LOWER two USB

sockets on the remote unit

Feeds the UPPER two USB

sockets on the remote unit

4 Optionally use the supplied audio cable to link

the audio port to the stereo audio output of the

computer.

To audio port

CONTENTSINTRODUCTIONINSTALLATIONOPERATION

FURTHER

INFORMATION

X-DVIPRO: Use an optional

power adapter only if

powering from the host (via

USB) is not possible.

Note:After all connections are

made, power up the monitor and

the REMOTE module rst (followed

by the LOCAL module, if using the

X-DVIPRO-MS2 variant with power

adapters) and then switch on the

computer.

Optional power connection

The X-DVIPRO local module is designed to derive its power from the host computer via

the USB connection (two USB connections in the case of the MS version). If this is not

possible, then you will need to use one or two optional Adder power adapter(s).

Optionally for X-DVIPRO and X-DVIPRO-MS2 units:

[MS2 variant only] Attach a second

category 6a or 7 link cable (up to 50

meters in length) to the upper socket

on the MS2 local module.

Secondary CATx link cable

Primary CATx link cable

2 Insert the IEC connector of the separate power lead(s) into the corresponding

socket(s) of the power adapter(s). Connect the other end of the power lead(s) to one/

two nearby mains socket(s).

X-DVIPRO-MS2: Use two

optional power adapters if

powering from the host (via

dual USB connections) is

not possible.

1 Connect the output lead of the optional

power adapter(s) to the socket(s) labeled

POWER on the local module.

CATx link cable

Do not use squid cables or

power splitters.Two separate

power adapters must be used.

5 Connect the link cable (see page 2 for cable advice) to the local module socket labeled

TO REMOTE.

CONTENTSINTRODUCTIONINSTALLATIONOPERATION

FURTHER

INFORMATION

[MS2 variant only] Optionally attach a

second DVI video monitor using the

supplied additional video cable.

Connections at the remote module

1 Place the remote module adjacent to the user location.

2 Connect the supplied DVI-D lead from the video monitor to the DVI output socket of

the remote module.

To video monitor

To secondary video monitor

To primary video monitor

3 Connect the leads from the keyboard

and mouse to the two USB sockets on

the remote module.

Note: On the single head variant, it is not

important which of the four sockets are

used.

To keyboard, mouse

and other USB

peripherals

[MS2 variant] Connect the leads from

the keyboard and mouse to the two

USB sockets on the remote module.

To keyboard, mouse

and other USB

peripherals

IMPORTANT:The total current that may be drawn from the USB ports is 1.2A, which

shouldbesufcientforakeyboard,mouse(nomorethan100mAeach)andanytwo

other devices (500mA maximum each). If more power for USB devices is required,

please use a powered USB hub.

Fed from the LOWER USB

socket on the local unit

Fed from the UPPER USB

socket on the local unit

continued

CONTENTSINTRODUCTIONINSTALLATIONOPERATION

FURTHER

INFORMATION

[MS2 variant only] Optionally connect

a second set of stereo speakers to the

module.

To secondary speakers

To primary speakers

4 Optionally connect a set of stereo speakers

to the module.

To speakers

[MS2 variant only] Attach a second

category 6a or 7 link cable (up to 50

meters in length) to the upper socket

on the MS2 remote module.

Secondary CATx link cable

Primary CATx link cable

5 Connect the link cable (see page 2 for cable advice) to the remote module socket

labeled TO LOCAL.

CATx link cable

Otros manuales para AdderLink X-DVIPRO

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Extensor de ADDER

ADDER

ADDER AdderLink XD150FX Manual de usuario

ADDER

ADDER ALIF 2112T Manual de usuario

ADDER

ADDER Link DV100 Manual de usuario

ADDER

ADDER AdderLink Digital iPEPS Manual de usuario

ADDER

ADDER AdderLink Infinity 1002 Manual de usuario

ADDER

ADDER AdderLink XDIP Manual de usuario

ADDER

ADDER ADDERLink INFINITY 101T-DVI Manual de usuario

ADDER

ADDER AdderLink X2 Dual Access Manual de usuario

ADDER

ADDER AdderLink XD150 Manual de usuario

ADDER

ADDER AdderLink XD522 Manual de usuario

ADDER

ADDER ADDERLINK X-DVI PRO Manual de usuario

ADDER

ADDER ADDERLink INFINITY 1100 Manual de usuario

ADDER

ADDER AdderLink IP Manual de usuario

ADDER

ADDER AdderLink X50 USB Manual de usuario

ADDER

ADDER AdderLink AV100 series Manual de usuario

ADDER

ADDER AdderLink Infinity 100T Manual de usuario

ADDER

ADDER AdderLink X100 Manual de usuario

ADDER

ADDER Link X200 Manual de usuario

ADDER

ADDER ADDERLink XD612 Manual de usuario

ADDER

ADDER AdderLink XD522 Manual de usuario

ADDER

ADDER ADDERLINK AV200 Series Manual de usuario

ADDER

ADDER AdderLink X Series Guía de inicio rápido

ADDER

ADDER AdderLink AV series Manual de usuario

ADDER

ADDER Adder X00 Extender Manual de usuario

Manuales populares de Extensor de otras marcas

SY HDBT-60T Manual de usuario

Appsys ProAudio

Appsys ProAudio ADX-16 Manual de usuario

Atlona

Atlona RS232 Manual de usuario

IDK

IDK OPF-TH1000-A Manual de usuario

Enable-IT

Enable-IT 824WP Manual de usuario

Worx

Worx Landroid RadioLink WA0864 Hoja de especificaciones

TP-Link

TP-Link TL-WA730RE Manual de usuario

Camplex

Camplex CMX-HDMI-SFPL Manual de usuario

SC&T

SC&T HE03-4K Manual de usuario

Marmitek

Marmitek MegaView70 Manual de usuario

Samsung

Samsung SCS-26UC4 Manual de usuario

Foxun

Foxun SX-GES24 Manual de usuario

MuxLab

MuxLab 500771 Manual de usuario

foxunhd

foxunhd SX-AEX01 Manual de usuario

TERK Technologies

TERK Technologies LFIRX2 Manual de usuario

Devolo

Devolo Audio Extender Manual

Edimax

Edimax EW-7438RPn V2 Manual de usuario

Shinybow USA

Shinybow USA SB-6335T5 Manual de usuario
