Spec Sheet

ProPatch®Miniature Series

Super High-Density Coax Patching System

The ProPatch®Miniature (PPM) Series is an all new Super High-Density Coax (SHDC) patching

system designed for High Definition (HD), SDI, AES audio, 5.1 and 7.1 audio applications where

coax medium is preferred but space is at a premium. The system is available in both 1 and 1.5 rack

unit configurations. The 1 rack unit panel features a patent-pending pullout designation strip that

dramatically increases space for text, and a high-density 2x48 circuit configuration of ports. The

1.5 rack unit panel features 4x48 ports.

The new SHDC jack features a unique patent-pending switchable termination system that allows

the user to select terminating and non-terminating 75 Wfunctions on each circuit pair. The

normal-through system is also available in a straight-through configuration for tie-line panels and

applications where normals are not required. The SHDC high-performance normalling and straight-

through LCC jacks are rated to SMPTE 424M HD standard. The SHDC AES jacks are rated for AES

digital audio and analog video transmission. Both versions feature modular screwless mounting,

circuit identification icons on the rear of the jack, 10,000 insertion/withdrawal cycles and are fully

qualified to MIL-STD 202 for the ultimate in durability.

The system features two options. ADC’s patented push-pull LCC connector technology on the

backplane, or standard 1.0/2.3 connectors and ADC's patented LCC and LCP connectors terminate

like a BNC using standard tooling.

5/08 • 105548AE ProPatch®Miniature Series (SHDC)

www.adc.com • +1-952-938-8080 • 1-800-366-3891

1 Rack Unit Super High-Density Coax Patch Panel

ProPatch®Miniature Series

Super High-Density Coax Patching System

Features:

High-density: 48 total jacks (2x48)•

Large designation strips: .440" wide designation on top and bottom; plus a 1" slide out designation•

Lightweight: Less then 1 Kg (2 lbs) total panel weight•

1.5 Rack Unit Super High-Density Coax Patch Panel

Features:

High-density: 96 total jacks (4x48)•

Large designation strips: .440" wide middle designation, .289" on top and bottom•

Lightweight: Less then 1.8 Kg (3.8 lbs) total panel weight•

5/08 • 105548AE ProPatch®Miniature Series (SHDC)

www.adc.com • +1-952-938-8080 • 1-800-366-3891

ProPatch®Miniature Series

Super High-Density Coax Patching System

Normalling AES Straight-Through HD Normalling HD

LCC

SHDC-LCC SHDC-LCC-NN SHDC-LCC-HP

1.0/2.3

SHDC-1023 SHDC-1023-NN SHDC-1023-HP

1.5 Rack Unit Super High-Density Coax Patch Panel

Features:

High-density: 48 total jacks (2x48)•

Large designation strips: .680" designation on top and bottom•

Lightweight: Less then 1.4 Kg (3 lbs) total panel weight•

SHDC Jack

Features:

Switchable between terminating and non-terminating normalled-through•

Non-normalled jack offered in same jack housing, looping plug available for circuit patching•

5/08 • 105548AE ProPatch®Miniature Series (SHDC)

www.adc.com • +1-952-938-8080 • 1-800-366-3891

ProPatch®Miniature Series

Super High-Density Coax Patching System

Specifications

ELECTRICAL

Characteristic impedance: 75 W

Voltage rating: 600 Volts RMS

Bandwidth

HD LCC: Up to 3 GHz

HD 1.0/2.3: Up to 1.0 GHz

Straight-through LCC: Up to 3 GHz

Straight-through 1.0/2.3: Up to 1.0 GHz

AES: Up to 500 MHz

Contact resistance: .030 Wmax change post environmental

Insulation resistance: 200 MWmin change

MECHANICAL

Mechanical durability: 10,000 cycles min (Front port: LCP)

500 cycles min (Back port: LCC)

Center contact retention: 6 lbs min

SHDC jack panel retention: 20 lbs min

Patch cord cable bend and twist: 500 cycles min

ENVIRONMENTAL

Thermal shock: -40°C to 65°C, operating; -55°C to 85°C, non-operating

Moisture resistance: 0% to 95%; MIL-STD-202 Method 106

Corrosion (salt spray): MIL-STD-202 Method 101, test condition B

Flammability: UL 94-VO rated (center conductor insulator)

Vibration: MIL-STD-202 Method 201

Solvent resistance: MIL-STD-202 Method 215

FINISH

Sheet metal panel: .060 CRS with protective black finish

Jack plastic housing: 30% Glass Filled Valox

Nickel coax housings: Tarnish-resistant electroless nickel plating

Springs: Beryllium copper with 50 millionths inch gold plating

Center conductors: 50 millionths inch gold plating

Gated Return Loss

High-Performance SHDC LCC Jack

-55

-50

-45

-40

-35

-30

-25

-20

-15

-10

-5

0 250 500 750 1000 1250 1500 1750 2000 2250 2500 2750 3000

Frequency (MHz)

SMPTE 424M HD Limit

SHDC HD Jack Normal-through

SHDC Accessed

SMPTE 424M Standard

Return Loss (dB)

5/08 • 105548AE ProPatch®Miniature Series (SHDC)

www.adc.com • +1-952-938-8080 • 1-800-366-3891

ProPatch®Miniature Series

Super High-Density Coax Patching System

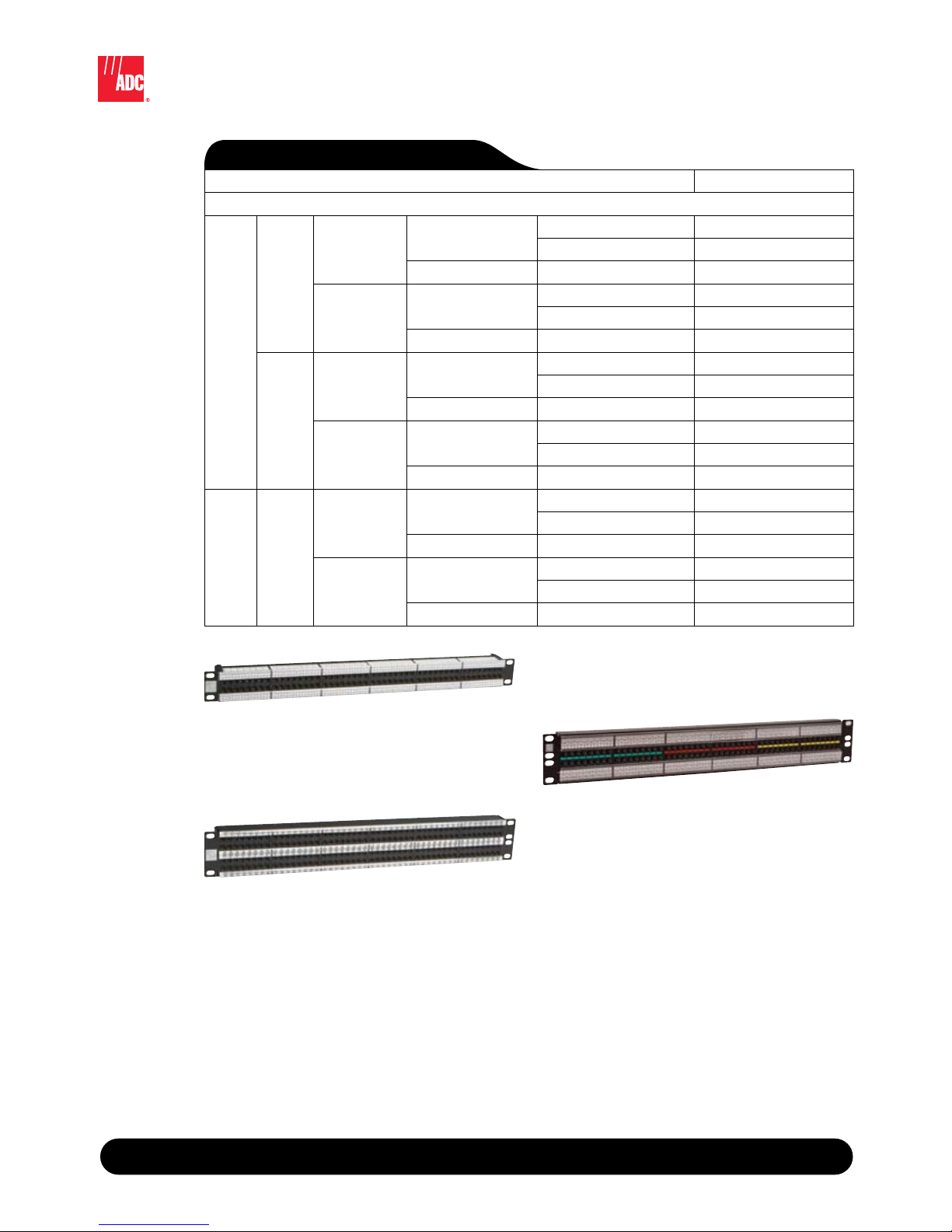

Description Catalog Number

ProPatch®Miniature Panels

2x48 1 RU LCC Normalling AES and Analog Video PPM1248-LCC-BK

High-Performance, HD PPM1248-LCCHP-BK

Non-Normalling High-Performance PPM1248-LCCNN-BK

1.0/2.3 jack Normalling AES and Analog Video PPM1248-1023-BK

High-Performance, HD PPM1248-1023HP-BK

Non-Normalling High-Performance PPM1248-1023NN-BK

1.5 RU LCC Normalling AES and Analog Video PPM15248-LCC-BK

High-Performance PPM15248-LCCHP-BK

Non-Normalling High-Performance PPM15248-LCCNN-BK

1.0/2.3 jack Normalling AES and Analog Video PPM15248-1023-BK

High-Performance PPM15248-1023HP-BK

Non-Normalling High-Performance PPM15248-1023NN-BK

4x48 1.5 RU LCC Normalling AES and Analog Video PPM15448-LCC-BK

High-Performance PPM15448-LCCHP-BK

Non-Normalling High-Performance PPM15448-LCCNN-BK

1.0/2.3 jack Normalling AES and Analog Video PPM15448-1023-BK

High-Performance PPM15448-1023HP-BK

Non-Normalling High-Performance PPM15448-1023NN-BK

Ordering Information

1.5 RU 2x48 PPM Panel

1.5 RU 4x48 PPM Panel

1 RU 2x48 PPM Panel

5/08 • 105548AE ProPatch®Miniature Series (SHDC)

www.adc.com • +1-952-938-8080 • 1-800-366-3891

ProPatch®Miniature Series

Super High-Density Coax Patching System

Description Catalog Number

Looping plug; LCP .48" Centers LP-SHDC-480

Ordering Information

Description Catalog Number

Super High-Density Coax Jacks

LCC Normalling AES and Analog Video SHDC-LCC

High-Performance, HD SHDC-LCC-HP

Straight-Through High-Performance, HD SHDC-LCC-NN

1.0/2.3 connectors Normalling AES and Analog Video SHDC-1023

High-Performance SHDC-1023-HP

Straight-Through High-Performance SHDC-1023-NN

Ordering Information

Description Catalog Number

LCP High-Performance Patch Cords

2 feet BK2VXM-LCP-LCP

3 feet BK3VXM-LCP-LCP

4 feet BK4VXM-LCP-LCP

6 feet BK6VXM-LCP-LCP

Ordering Information

LCP Patch Cords

LCP Looping Plug

LCC Jack

5/08 • 105548AE ProPatch®Miniature Series (SHDC)

www.adc.com • +1-952-938-8080 • 1-800-366-3891

ProPatch®Miniature Series

Super High-Density Coax Patching System

Ordering Information

LCC Connectors Bulk Pack

LCC Connector

Description

Catalog Number

Cable Type (or equivalent to)

1505, 9259

9100,

VPM2000

1855

VDM230

VDM250

0.6/2.8


SDV-25

179DT

LCC Connectors

1 each LCC-1-BE LCC-13-BE LCC-26-BE LCC-31-BE

bulk (100 pack) LCC-1B-BE LCC-13B-BE LCC-26B-BE LCC-31B-BE

Crimp Tools

Features ergonomic handle for ADC die sets WT-2

Features long ergonomic handle for ADC die sets WT-3

Crimp Die Sets WD-1 WD-2 WD-3 WD-2

WD-2 WD-4

WD-3

WD-5

Manual Stripper Tool

Includes One Stripper Replacement Cassette

STC-12B STC-13B STC-13B STC-13B

Manual Stripper Replacement Cassette CCS-BLK

Automatic Cable Stripper Tool BNC-S1

Cutter Head For Automatic Cable Stripper Tool BNC-H2 BNC-H5 BNC-H5 BNC-H5

Insertion/Withdrawl Tool LCA-400004

Replacement Tips

For Insertion/Withdrawal Tool (12-Pack)

LCA-400005-12

LCC Tester LCA-414001

Insertion/Withdrawal

Tool

Website: www.adc.com

From North America, Call Toll Free: 1-800-366-3891 • Outside of North America: +1-952-938-8080

Fax: +1-952-917-3237 • For a listing of ADC’s global sales office locations, please refer to our website.

ADC Telecommunications, Inc., P.O. Box 1101, Minneapolis, Minnesota USA 55440-1101

Specifications published here are current as of the date of publication of this document. Because we are continuously

improving our products, ADC reserves the right to change specifications without prior notice. At any time, you may

verify product specifications by contacting our headquarters office in Minneapolis. ADC Telecommunications, Inc.

views its patent portfolio as an important corporate asset and vigorously enforces its patents. Products or features

contained herein may be covered by one or more U.S. or foreign patents. An Equal Opportunity Employer

Spec Sheet
