LoopStar®EtherNID™

LoopStar®MetroNID™

ADC's network interface devices for Ethernet and IP networks

Define the boundaries of your network, establish assured, end-to-end SLAs and standards-based

management to deliver carrier-grade Ethernet and IP services.

EtherNID™

Designed to define the edge of your network, LoopStar® EtherNID™ offers advanced packet

performance assurance and service creation directly from customer premises and cell-sites. With a

full range of Ethernet rates and interfaces, the comprehensive EtherNID family fits your network

from end-to-end.

MetroNID™

High-performance LoopStar®MetroNID™ units provide carrier-grade demarcation within metro and

access networks. Designed for cellular hubs, aggregation nodes, and carrier hand-offs, MetroNIDs

segment, monitor and bridge diverse networks, delivering pervasive OAM and performance

monitoring visibility.

9/08 • 107033AE LoopStar®EtherNID™– LoopStar®MetroNID™

LoopStar®EtherNID™ – LoopStar® MetroNID™

ADC's network interface devices for Ethernet and IP networks

www.adc.com • +1-952-938-8080 • 1-800-366-3891

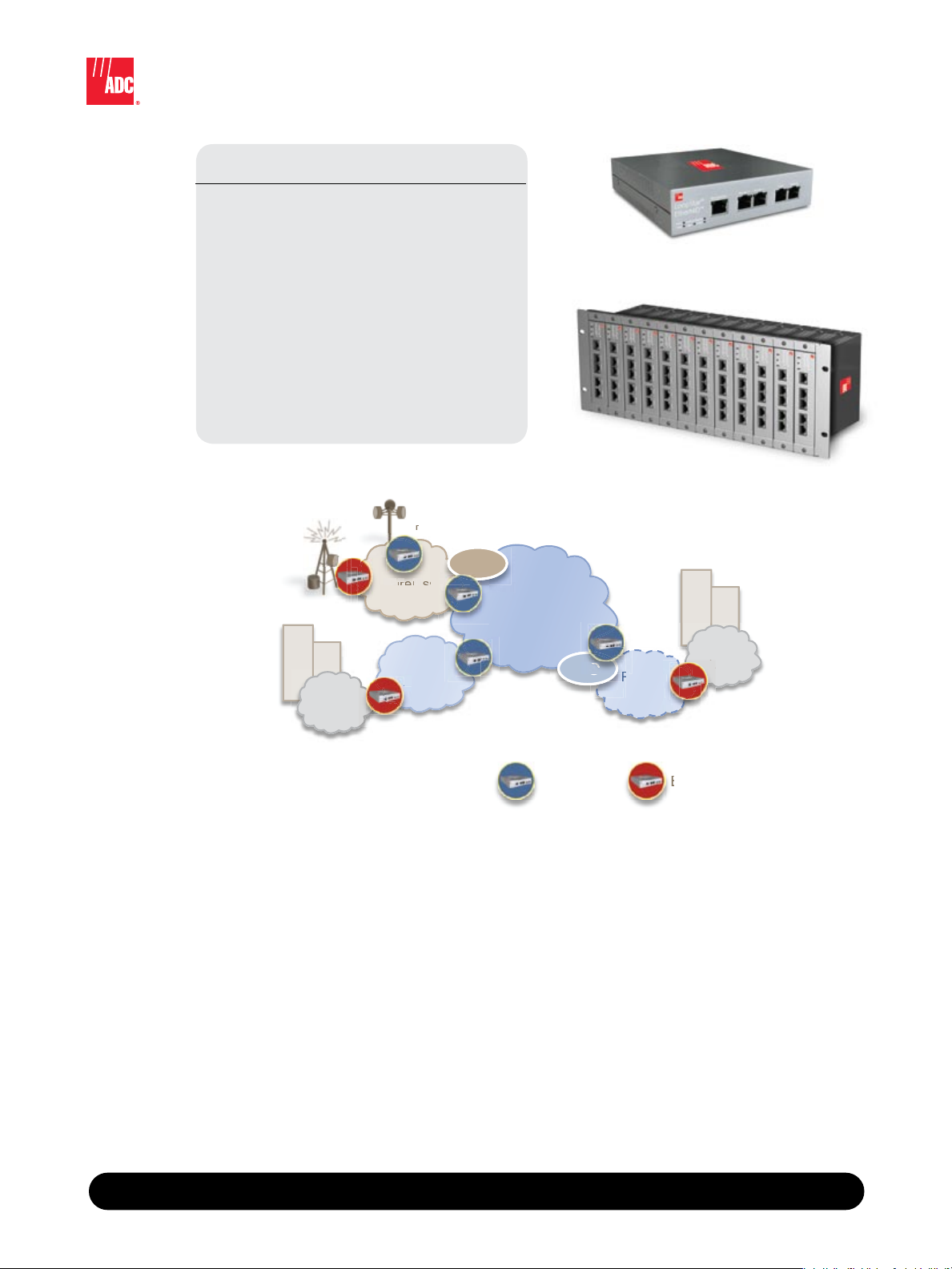

Defining Intelligent Demarcation

EtherNID and MetroNID demarcation units define the boundaries of your network, enabling end-to-end

service provisioning and assurance with carrier-grade performance. The EtherNID and MetroNID units

are built on a patent-pending architecture, a unique hardware-based design that provides advanced

performance testing and service creation capabilities in a compact, cost efficient, carrier-grade in-line

element. Unlike store-and-forward architectures, these units' proprietary silicon design provides wire-

speed pass-through performance without adding jitter or delay, while at the same time providing

microsecond measurement resolution and real-time processing for every packet flowing through the

unit.With transparent fail-over, NEBS Level 3 certification, no fans or moving parts, and 3-way redundant

power, EtherNID and MetroNID units are truly carrier-grade. A variety of mounting options mean flexible

installation at customer premises, cell sites, central offices and aggregation nodes

Customer

LAN

EtherNIDsMetroNIDs

Typical Demarcation Points:

Core /

Transport

Network

Metro /

Access Partner

Carrier

Customer

LAN

MSC

Wireless

Backhaul

Hub

Cell

Site

Aggregation

Node

Hand-Off

Point

Features

Proprietary Hardware Design

1 μs measurement resolution•

Ultra-low pass-through jitter & latency•

– Ideal for assuring real-time services

Service Assurance & Creation Features

Establish SLA-backed Ethernet services,•

point-to-point & multi-point

Monitor in-service: no effect on traffic•

– 1-way delay & jitter, throughput, packet

loss, continuity and usage statistics

Test Set & Monitoring System Support

12 unit 4U Rackmount

LoopStar EtherNID EE

9/08 • 107033AE LoopStar®EtherNID™– LoopStar®MetroNID™

LoopStar®EtherNID™ – LoopStar® MetroNID™

ADC's network interface devices for Ethernet and IP networks

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Product Family Feature Matrix

ADC has launched a wide range of packet assurance

demarcation units, each adapted and optimized for

popular demarcation, service assurance and creation

applications. All units are interoperable where common

functionality is supported. Our technical specialists can

help you determine the right combination of units to

provide complete packet performance assurance for

your network and services. Model

EtherNID™ EE

EtherNID™ GE

MetroNID™ TE

MetroNID™ TE-R

MetroNID™ TE-S

Interfaces

EE: Electrical-Electrical •••••

OE: Electrical-Optical ••••

OO: Optical-Optical ••••

10/100 Mbps •••••

1000 Mbps - Wirespeed GbE ••••

Electrical Interfaces 53331

SFP Interfaces 3324

Service Assurance

PAA™ & SLA Performance Monitoring •••••

Multicast PAA (L2 & 3) •••••

Layer 2 & 3 Throughput Testing •••••

Layer 2 & 3 In-Service Throughput Testing ••••

RFC-2544 Automated Test Suite and Reports •••

Intelligent Layer 1-4 Loopbacks •••••

Per-Flow Traffic Statistics ••••• •

802.1ag, 802.3ah, Y.1731 OAM Functionality •••••

Tapping and Monitoring •••••

Service Creation

Ethernet Service Mapping •••••

Zero-Latency Traffice Saping • •

Bandwidth Policing ••••• •

Traffic Filtering •••••

4-to-1 Multi-Port Aggregation (4x100 to GbE) • •

General and Management

Embedded GPS Option •••

SNM v1 v2c •••••

Radius Authentication and Security Support •••••

Jumbo Frames Support •••••

3-Way Redundant Power •••••

NEBS Level 3 Certified •••••

Temperature Hardened Option •••

Dual-Protected Optical Uplinks •••

Copper Failover Bypass Circuit ••••

•= with Electrical SFP •• = high capacity

9/08 • 107033AE LoopStar®EtherNID™– LoopStar®MetroNID™

LoopStar®EtherNID™ – LoopStar® MetroNID™

ADC's network interface devices for Ethernet and IP networks

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Service Assurance Functionality

Performance Assurance Agent™ (PAA) and SLA Monitoring

High-precision, hardware assisted, latency + jitter-free demarcation, monitoring and measurement of

latency, jitter, frame loss and continuity, including 1-way performance validation with microsecond

resolution.Multi-flow, multi-service, multi-site performance assurance enables real-time SLA assurance

over any network. Supports point-to-point, multipoint & mesh topologies, unicast& multicast testing.

In-Service Throughput Testing

Verify the throughput of EVCs in-service, without affecting customer traffic. EtherNID™ & MetroNID™

units generate & analyze traffic flows up to full wire-speed at both layer 2 & 3.

RFC-2544 Automated Test Suite & Reports

Advanced tool based on the RFC-2544 standard that can be used to measure and diagnose throughput,

delay, jitter (delay variation), frame loss, and back to back efficiency.

Intelligent Loopbacks

In-service layer 1-2-3-4 loopbacksper-flow, defined by VLAN, Service-Level, MAC / IP addresses or any

combination of layer 2-4 header criteria. Units respond to in-band loop-up commands from most third-

party Ethernet test sets and monitoring systems, as well as via Y.1731 standards.

Per-Flow Statistics

Real-time statistics of live traffic at layer 1-2-3-4 (per VLAN, Ethertype, ToS, CoS, MAC, IP, etc.).

Tapping and Monitoring

Single or dual monitor ports providing filtered, real-time access to unidirectional or bidirectional traffic.

9/08 • 107033AE LoopStar®EtherNID™– LoopStar®MetroNID™

LoopStar®EtherNID™ – LoopStar® MetroNID™

ADC's network interface devices for Ethernet and IP networks

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Service Creation and Traffic Conditioning

Service Mapping

Create E-Line, E-LAN & E-Tree services directly at the demarc point -service mapping applies C/V-LAN

tags (selective push) and/or configurable service class to traffic meeting detailed layer 2,3 & 4 criteria.

Bandwidth Policing

Limit upstream and downstream CIR/EIR by filtering criteria or for all traffic. Facilitates Carrier Ethernet

service provisioning and on-demand/incremental service upgrades.

Zero-Latency Traffic Shaping

Pre-conditioning of traffic to accelerate services and optimize access link bandwidth use. Passes highest-

priority traffic without added delay or jitter while other traffic is buffered until capacity is available.

Wire-speed Filtering

Filter wire-speed traffic at layer 1-2-3-4 (L2CP, BDPU, per VLAN, Ethertype, Protocol type, MAC, IP,

User Defined).

4-to-1 Multi-Port Aggregation

Latency-free, multi-port aggregation from 4 Fast Ethernet ports to a single GbE. De-aggregate by VLAN,

or any combination of Layer 2 -4 frame criteria.

General Functionality

Jumbo Frames Support: All functions supports Jumbo Frames up to 10,240 bytes at all rates

(10/100/1000 Mbps).

3 –Way Redundant Power: Units can be powered using 5VDC, or dual -48V feeds, all mutually

redundant.

SNMP v1 & v2c: Support SNMP v1 and v2c for monitoring, alarms, OSS integration and unit

configuration.

Embedded GPS: Optional feature, can be used as clock reference in place of the patent-pending

synchronization method normally used for 1-way delay & jitter measurements.

9/08 • 107033AE LoopStar®EtherNID™– LoopStar®MetroNID™

LoopStar®EtherNID™ – LoopStar® MetroNID™

ADC's network interface devices for Ethernet and IP networks

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Features

INTERFACES

EtherNID EE

Client 10/100Mbps, RJ-45(1)

Network: 10/100Mbps, RJ-45(1)

Monitor A/B Port: 2 x 10/100Mbps RJ-45(1)

Management port: 10/100Mbps, RJ-45(1)

EtherNID GE, MetroNID TE and MetroNID TE-R

Client/Network: Mix & Match Assignable Ports for Client, Network and Monitoring Functions

– 2 x 10/100/1000Mbps RJ-45(3)

– 2 x 10/100/1000Mbps SFP(4)

Monitor A/B port: Mix & Match with Client/Network Ports

Management Port: 10/100MBPS RJ-45(1)

GPS Antenna Input SMA Connector (5)

MetroNID TE-S

Client/ Network: Mix & Match Assignable Ports for Client, Network and Monitoring Functions)

– 4 x 10/100/1000Mbps SFP(4)

Monitor A/B port: Mix & Match with Client/Network Ports

Management Port: 10/100MBPS RJ-45(1)

GPS Antenna Input SMA Connector (5)

SERVICE ASSURANCE FEATURES

  

– Layer 1, Layer 2 (MAC Swap), Layer 3 (IP Swap), Layer 4 (TCP/UDP Port Swap)

– Automatically reacts to in-band loopback requests sent from popular 3rd

party Ethernet test-sets, as well as 802.3ah / Y.1731 OAM loopback commands.

– Loopback on specific VLANs, source/destination MAC/IP address(es), Ethertype, protocol type, service class,

or any logical combination.

– Loopback on specific MAC/IP source and/or destination address

  

– Stats per VLAN, per Ethertype, per ToS, per CoS, per MAC, per IP, etc.

– Stores up to 7 days of local and remote historical packet statistics in user configurable history buckets

(typically set from 1-15 minutes).

– Monitor up to 60 concurrent flows on MetroNID TE-R, 16 flows on other units

  

  

– Up to 100Mpbs of traffic can be monitored from each port

  

  

  

  

(1) 10/100Mbps (10/100 Base TX) RJ-45 Connectors: supports Auto-negotiation and Auto MDIX

(2) 100Mbps (100 Base FX/LX/SX/ZX/BX) SFP Connector: supports a wide range of SFPs

(3) 10/100/1000Mbps (10/100/1000 Base TX) RJ-45 Connectors: supports Auto-negotiation and Auto MDIX

(4)10/100/1000Mbps (10/100/1000 Base TX/FX/LX/SX) SFP Connectors: supports a wide range of SFPs including

copper SFPs

(5)Optional, available on MetroNID models only.

9/08 • 107033AE LoopStar®EtherNID™– LoopStar®MetroNID™

LoopStar®EtherNID™ – LoopStar® MetroNID™

ADC's network interface devices for Ethernet and IP networks

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Features (Con't)



  

– IEEE 802.3ah Ethernet OAM

– IEEE 802.1ag Service Layer OAM (Connectivity Fault Management)

– ITU-T Recommendation Y.1731

  

  

  

  

  

Performance Assurance Agent

  

 – One-way and Round-Trip Latency (Delay)

 – One-way and Round-Trip Jitter (Delay Variation)

 – One-way Packet Loss

 – Continuous End-to-End path continuity check, Availability (SES)

 – IGMP Group join / leave delays

  

– 1 μs resolution

  

  

  

  

 – Point-to-Point Multipoint-to-Multipoint Mesh

  

  

  



  

 – Layer 2 or Layer 3 (IP)

  

 – Layer 2 or Layer 3 (IP) Unidirectional or Bidirectional

 – Seamless operation, does not affect customer traffic

 – Up to full service or Wire-speed 1 or 2 test streams

  

 – Throughput Frame loss Back-to-Back

 – Delay (Latency)

 – Delay Variation (Jitter)

 – Supports all packet sizes including Jumbo Frames

 – Automatic report generation

(1) Available on MetroNID™ models only

(2) Available on EtherNID™ GE, MetroNID TE and MetroNID models only

9/08 • 107033AE LoopStar®EtherNID™– LoopStar®MetroNID™

LoopStar®EtherNID™ – LoopStar® MetroNID™

ADC's network interface devices for Ethernet and IP networks

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Features (Con't)



Service Mapping

  

  

 – Source or destination MAC or IP addresses, masks

 – Ethertype, Port(s), DSCP, IP Precedence or PCP

– Customer & Providers VLAN ID (C-VLAN, S-VLAN)

  

– S-VLAN tagging (selective push)

– CoS mapping (set C/S-VLAN tag priority based on DSCP, IP Precedence or PCP, Drop Eligibility)

– Bandwidth Policing (based on DSCP, IP Precedence or PCP values)

Bandwidth Policing

  

MEF-compliant services

  



  

  

Traffic Filtering & Per-Flow Statistics

  

  

  



  

  

  

(1) Available on MetroNID™ models only

(2) Available on EtherNID™ GE, MetroNID TE and MetroNID models only

(3) Available on MetroNID TE and TE-S models only

9/08 • 107033AE LoopStar®EtherNID™– LoopStar®MetroNID™

LoopStar®EtherNID™ – LoopStar® MetroNID™

ADC's network interface devices for Ethernet and IP networks

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Specifications



Pure Hardware Data-Path

  

Throughput: wire-speed (1000 Mbps at 100% utilization)

    < 3.3 μs

    < 0.1 μs

    < 0.8 μs

    < 0.1 μs

  

Integrated Management

    

    

    

    

    

    

  

  

  

  

Redundant Power, Connectivity & Timing

Power: External AC/DC adapter (120-240Vac auto-sensing, 50-60Hz), 5VDC input to unit

Dual (A/B) -48Vdc Central Office Supply inputs

Power Consumption: 5-8 watts

Cooling: Convection cooled (no fans)

Redundant Power: Transparent fail-over bypass on electrical-to-electrical models

Connectivity: Dual Protected Uplink allows two redundant connections on the network side for

increased reliability(1)

GPS: Optional embedded GPS with front-panel SMA input(1)

Physical Specifications

  1.60” x 5.34” x 5.80” (4.06 cm x 13.56 cm x 14.73cm)

  625 g or 1.37 lb

MTBF: 52-66 years (at 25 degree C ambient)

Mounting Options: Desktop, Wall-mount, Rack-mount:1 or 2 units side-by-side in 1U

EtherSHELF™: High density, 12-unit, 19” Central Office shelf in 4U

(23” adapter available)

Regulatory and Certification

    

    

    

  

Environmental

Standard operating temperature: -5º to +65°C (23º to 149ºF)

  -40º to +65°C (-40º to 149ºF)

 Storage temperature: -40º to +70°C (-40º to 149ºF)

 Operating/storage humidity: 5-95 %RH non-condensing

(1) Available on MetroNID™ models only

9/08 • 107033AE LoopStar®EtherNID™– LoopStar®MetroNID™

LoopStar®EtherNID™ – LoopStar® MetroNID™

ADC's network interface devices for Ethernet and IP networks

www.adc.com • +1-952-938-8080 • 1-800-366-3891



xxxx - yyy

xxxx Model

EE EtnerNID 10/100 Mbps Electrical

GE EtherNID 10/100/1000Mb/s Electrical/Optical

TE MetroNID TE 10/100/1000Mb/s

TEH MetroNID TE 10/100/1000Mb/s (Hardened)

TER MetroNID TR 10/100/1000Mb/s

TERH MetroNID TR 10/100/1000Mb/s (Hardened)

TES MetroNID TS 10/100/1000Mb/s

TESH MetroNID TS 10/100/1000Mb/s (Hardened)

yyy Power

NA North America Power AC/DC

EU European Power AC/DC

UK United Kingdom Power AC/DC

JP Japan Power AC/DC

IN India Power AC/DC

AU Australia/N-Z Power AC/DC

TB 48V Power with Terminal Block

CBL 48V Power with Cable

BLANK 48V w/No Accessories

Ordering Information

Description Model

EtherNID EE: 10/100 Mb/s Demarcation Device LPS-ENEE-yyy

EtherNID GE: 10/100/1000 Mb/s Demarcation Device LPS-ENGE-yyy

MetroNID TE-R 10/100/1000 Mb/s Unit with enhanced multi-ow processing

and statistics

LPS-ENTER-yyy

MetroNID TE : 10/100/1000 Mb/s Unitwith advanced trafcshaping and

packet processing functionality

LPS-ENTE-yyy

MetroNID TE-S: 4 SFP port version of the MetroNID TE0 LPS-ENTES-yyy

EtherNID and MetroNID Configurator

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hardware de red de ADC

ADC

ADC PG-PLUS PLL-722 Manual de usuario

ADC

ADC H2TU-C-202 Manual de usuario

ADC

ADC HiGain H2TU-C-231 Manual de usuario

ADC

ADC HRE-204 List 1 Manual de usuario

ADC

ADC HiGain H2TU-C-231 Instrucciones de funcionamiento originales

ADC

ADC H2TU-C-388 HiGain Instrucciones de funcionamiento originales

ADC

ADC H4TU-C-319 List 1 Line Unit Instrucciones de funcionamiento originales

ADC

ADC H2TU-C-388 HiGain Instrucciones de funcionamiento originales

ADC

ADC HiGain HDSL2 Manual de usuario

ADC

ADC HiGain H2TU-R-402 Instrucciones de funcionamiento originales

ADC

ADC FMT Drawers Featuring MicroVAM Modules Manual de usuario

ADC

ADC HiGain HRU-402 Manual de usuario

ADC

ADC Carrier-Grade WiMAX Base Station WMX 5000 Manual de usuario

ADC

ADC H2TU-C-231 List 2F Instrucciones de funcionamiento originales

ADC

ADC FlexWave WMX 300 Manual de usuario

ADC

ADC Campus-RS Remote Manual de usuario

ADC

ADC Campus-RS REX2 Manual de usuario

ADC

ADC HiGain H2TU-C-319 List 4E Instrucciones de funcionamiento originales

ADC

ADC H2TU-C-388 HiGain Instrucciones de funcionamiento originales

ADC

ADC HiGain HLU-200 Manual de usuario

ADC

ADC WiMAX Single-sector Base Station WMX 3000 Manual de usuario

ADC

ADC PG-FLEXPLUS PMU-712 Manual de usuario

ADC

ADC ComProtect Building Entrance Terminals (BET) Manual de usuario

ADC

ADC DSX-1 Manual de usuario

Manuales populares de Hardware de red de otras marcas

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manual de usuario

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manual de usuario

Yudor

Yudor YDS-16 Manual de usuario

D-Link

D-Link ShareCenter DNS-320L Manual de usuario

Samsung

Samsung ES1642dc Instrucciones de uso

Honeywell Home

Honeywell Home LTEM-PV Instrucciones de montaje

evertz

evertz 7700 Series Manual de usuario

D-Link

D-Link ShareCenter DNS-343 Manual de usuario

Asante

Asante AsanteBridge 1012 Manual de usuario

FireBrick

FireBrick FB2700 Manual de usuario

Audiovox Electronics

Audiovox Electronics ARWH2T Manual de usuario

NetComm

NetComm NF2 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 5620 Manual de usuario

Dell EMC

Dell EMC XC6420 Series Manual de usuario

Lanner

Lanner NCA-1020A Manual de usuario

Allied Telesis

Allied Telesis AT-TN121-A Manual de usuario

Arista

Arista CCA-ETM-Q12 Manual de usuario

Lanner

Lanner NCA-1525 Manual de usuario
