ADA INSTRUMENTS 6D SERVOLINER Manual de usuario
6D SERVOLINER
Operating manual
Line laser level
Model: 6D SERVOLINER
Manufacturer Address: WWW. ADAINSTRUMENTS.COM
6D SERVOLINER
MEASUREMENT FOUNDATION
Table of contents
1. Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2. Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
6. Functional description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
5. Laser lines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
6. Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
8. Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
8. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
9. To check the accuracy of cross line laser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 0
9.2. To check level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
9.3.To check plumb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
10. Care and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
12. Electromagnetic acceptability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
14. Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
15. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
16. Exceptions from responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
2
6D SERVOLINER
MEASUREMENT FOUNDATION
Kit*
ADA 6D SERVOLINER, aluminum carrying case, laser glasses, alkaline batteries, operating manual, target plate, power unit.
Applications
Laser cross level is a type of laser levels. With ADA 6D SERVOLINER you can take horizontal and vertical marking. You can use
the instrument inside and outside.
Spesications
Laser beam 4V4H1D
Laser safety class 2
Accuracy ±1mm/10m
Self-leveling range ±3.5°
Working range (with detector) radius 40~50m
Sensitivity of circular level 60'/2mm
Power supply 4 X AA batteries
Service time approx 5~10 h with all lines ON
Operating temperature -10°C ~ +40°C
Weight 1.35 kg
3
6D SERVOLINER
MEASUREMENT FOUNDATION
Functional description
The horizontal and vertical are separate button, it could make switches has more longer life span.
Can be used for indoor or outdoor, when using for outdoor, the receiver during the work can be used over 50m of radius.
When the instrument inclines over incline alarm range, the laser line automatically gleams.
When turning off the power, built-in locking system can automatically lock the compensator to avoid vibration in the
transportation.
1.
2.
3.
4.
5.
6.
4
6D SERVOLINER
MEASUREMENT FOUNDATION
Laser lines
5
6D SERVOLINER
MEASUREMENT FOUNDATION
Features
1. Switchboard
2. Vertical laser windows
3. Horizontal laser windows
4. Carrying belt
6. Battery cover
7. Leveling screw
8. Down point laser ��
mounting thread for
tripod
9. Limb 360º
10. Connector for power unit
6
1
2
3
4
5
6
7 8
9
10
6D SERVOLINER
MEASUREMENT FOUNDATION
Keypad
1. Leveling function switch
2. Power LED
3. Detector switch
4. Leveling indication LED
5. Detector LED
6. Horizontal switch (H)
7. Vertical switch (V)
8. Power switch
7
123
4 5
7
8
6
6D SERVOLINER
MEASUREMENT FOUNDATION
Operation
insert four alkaline batteries or rechargeable batteries to the battery socket,
then cover the battery lid.
hand and screw the centering screw into the centering nut female thread. Tighten the centering screw.
3. When the buzzer sounds while turn on the instrument (at the same time the LED will blink), that means the instrument is over
5. When the instrument inclines over alarm range, because of certain reason during the operation, the laser and the LEDWhen the instrument inclines over alarm range, because of certain reason during the operation, the laser and the LED
the buzzer sound stop.
8
6D SERVOLINER
MEASUREMENT FOUNDATION
Slant/slope ne adjustment mode
5. Bi-Bi sound mentions that you’ve reached the limit of slope position.
9
6D SERVOLINER
MEASUREMENT FOUNDATION
To check the accuracy of cross line laser

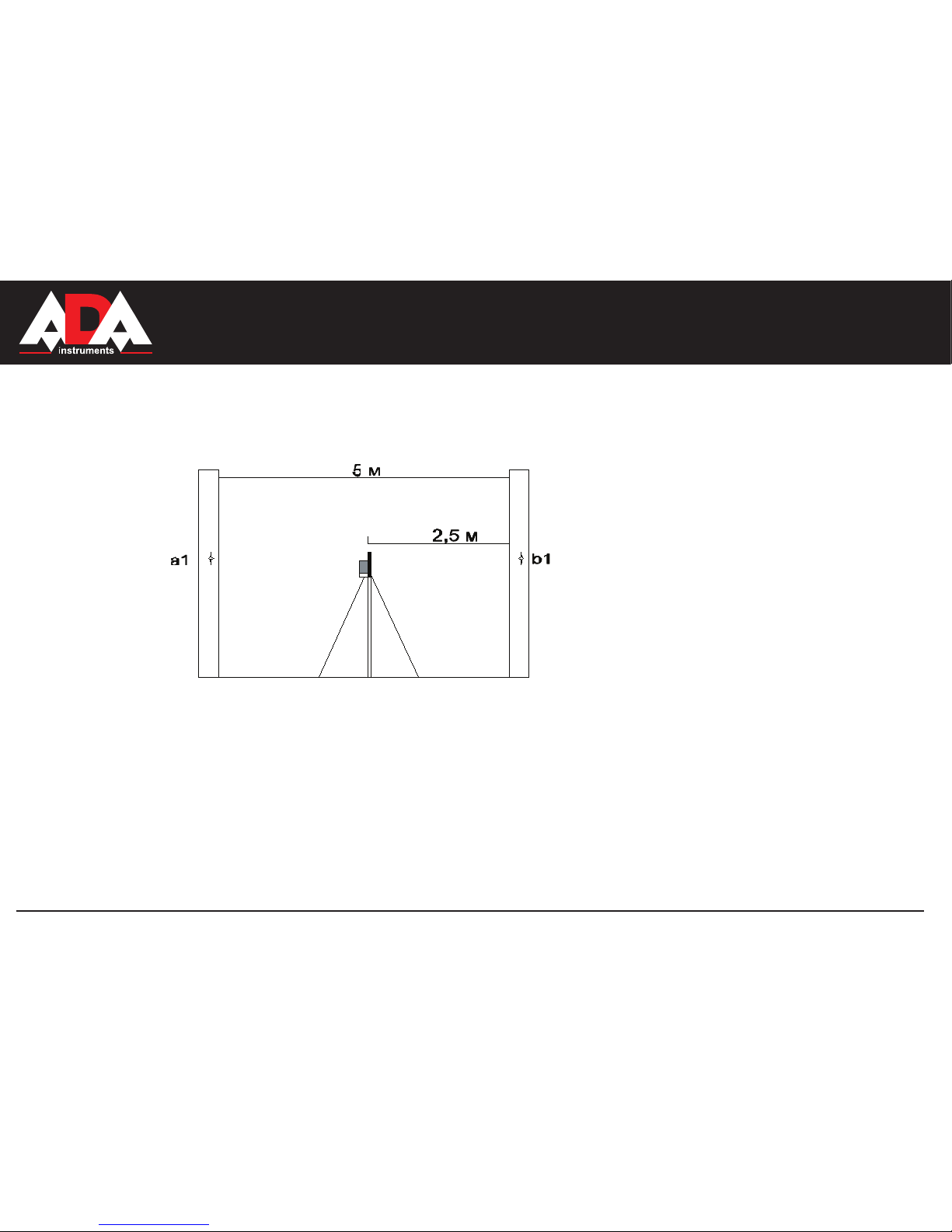

Set up the instrument between two walls, the distance is 5 m.Turn on the Cross Line Laser and mark the point of cross laser line on
the wall.
Set up the instrument 0,5-0,7m away from the wall and make, as described above, the same masrks. If the difference {a1-b2} and
Example: when you check the accuracy of Cross Line Laser the difference is {a1-a2}=5 mm and {b1-b2}=7 mm. The
instrument’s error: {b1-b2}-{a1-a2}=7-5=2 mm. Now you can compare this error with standard error.
If the accuracy of Cross Line Laser isn’t corresponding with claimed accuracy, contact the authorized service center.
10
