ACME IU-01 Manual de usuario

1. Safety Instruction

WARNING

Please keep this User Guide for future consultation. If you sell the unit to

another user, be sure that they also receive this instruction booklet.

Unpack and check carefully that there is no transportation damage before

using the unit.

The unit is for indoor use only. Use only in a dry location.

In the event of serious operating problem, stop using the unit immediately.

The housing must be replaced if they are visibly damaged.

There are no user serviceable parts inside the unit. Do not open the housing

or attempt any repairs by yourself. In the unlikely event your unit may

require service, please contact your nearest dealer.

Product Items:

IU-01

1 x USB cable

1 x CD

Please read carefully the instruction, which includes important

information about the installation, usage and maintenance.

1B

2. Features

Dimension/Weight:

98 x 53 x 40mm，0.2kg

3.8"x2.1"x1.6"in, 0.44lbs

3. Connection

Connect as below to update program for

lightings:

4. Operation

4.1 Download ACME Upgrade setup software from our web site and install it.

A. Double-click setup file, click “Next” to confirm.

2B

B. Click “Browse” select path to store installation files, Click “Next” to

confirm.

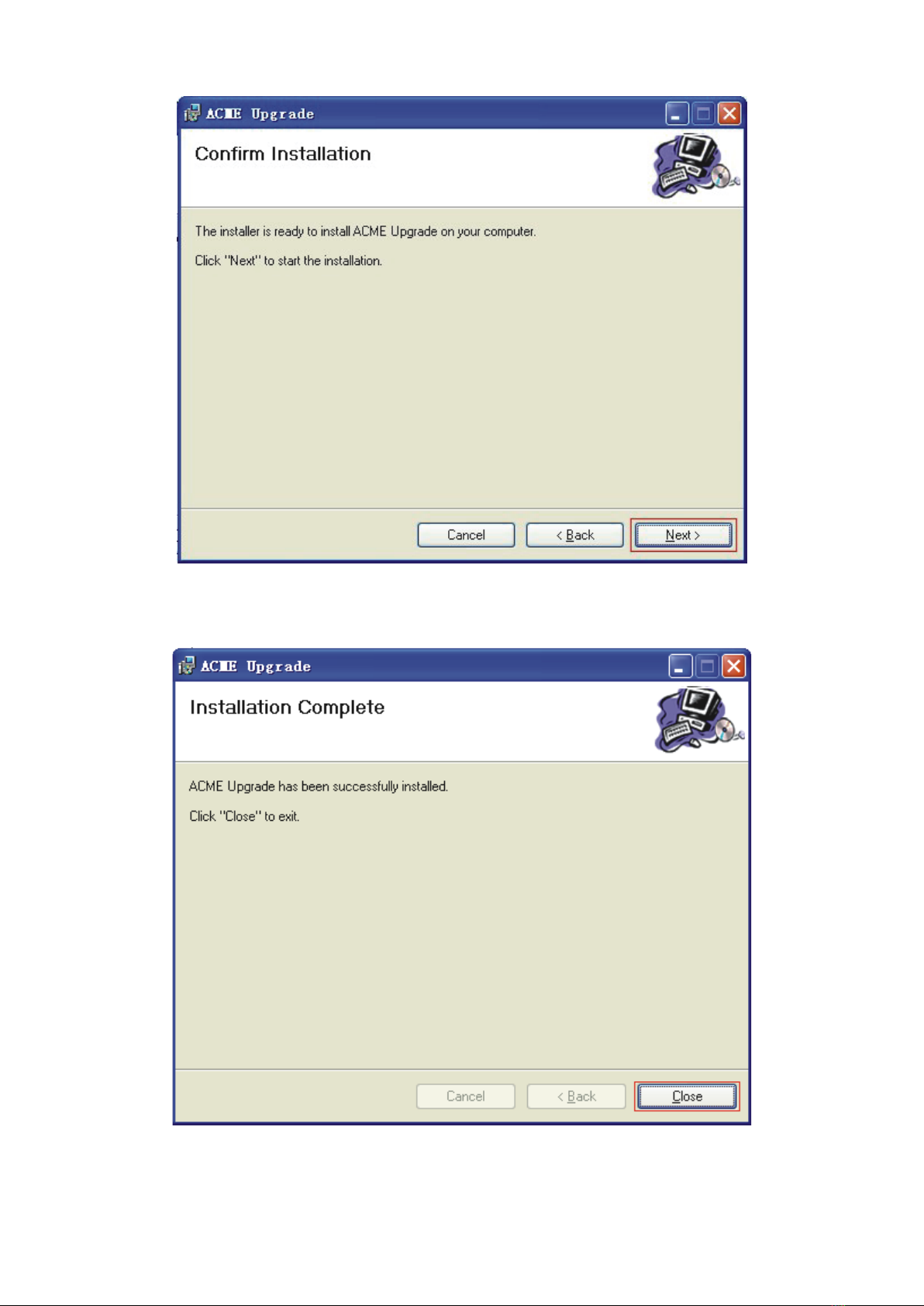

C. Click “Next” to start install.

3B

D. Click “Close” to finish installation.

4.2 Update Program

A. Double- click the shortcut on the desktop

4B

Click “DMX Console” to export DMX signal. Click “Fixture Firmware

Upgrade” to update software for fixtures.

B. DMX signal output

Click “DMX Console”, the red signal indicator LED of IU-01 will be on and

pop-out the dialog box shown below

Total 512 channels DMX output, click “DMX Out” to start output, the

green signal indicator LED of IU-01 blinking, push to adjust the value.

5B

Click “Clean” to clean all settings. Click “Stand Alone” to stop, the green

signal indicator LED of IU-01 becomes off.

C. Update software

Click “DMX Console”, the red signal indicator LED of IU-01 will be on and

pop-out the dialog box shown below

Click “Open” to select a ACME software file that download from our web

site, push to set upgrade speed from 100 (fastest) to 1 (slowest). Click

“Upgrade” to upgrade software for lightings.

6B

Declaration of Conformity

We declare that our products (lighting equipments) comply with the

following specification and bears CE mark in accordance with the provision

of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC.

EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008;

EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008.

&

Harmonized Standard

EN 60598-1:2008 + All:2009; EN 60598-2-17:1989 + A2:1991;

EN 62471:2008; EN 62493: 2010

Safety of household and similar electrical appliances

Part 1: General requirements

Innovation, Quality, Performance
