ACME GLORY PROFILE Manual de usuario

CONTENTS

1. Safety Instructions ......................................................................................... 2

2. Technical Specifications ................................................................................. 4

3. Control Panel ................................................................................................. 6

4. Effect Wheels and Lamp................................................................................. 7

4.1 Effect Wheels ........................................................................................... 7

4.2 Light Source ............................................................................................. 7

4.3 Change The Lamp..................................................................................... 8

5. How To Set The Unit....................................................................................... 9

5.1 Main Function.......................................................................................... 9

5.2 Home Position Adjustment .................................................................... 18

6. Control By Universal DMX Controller ........................................................... 22

6.1 DMX512 Connection.............................................................................. 22

6.2 Address Setting ...................................................................................... 23

6.3 DMX512 Configuration........................................................................... 23

7. Troubleshooting........................................................................................... 44

8. Fixture Cleaning ........................................................................................... 45

1. Safety Instructions

WARNING

Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that

they also receive this instruction manual.

Important:

Damages caused by the disregard of this user manual are not subject to warranty. The dealer will

not accept liability for any resulting defects or problems.

Unpack and check carefully to ensure that there is no transportation damage before using the

unit.

This product is for indoor use only. Use only in a dry location.

DO install and operate by qualified operator.

DO NOT allow children to operate the fixture.

Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.

The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent

surfaces.

Be sure that no ventilation slots is blocked, otherwise the unit will be overheated.

Before operation, ensure that you are connecting this product to the proper voltage in

accordance with the specifications in this manual or on the product’s specification label.

It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.

Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃.Do not

operate this product at a lower or higher temperature.

DO NOT connect the device to any dimmer pack.

During initial start-up some smoke or smell may arise. This is a normal process and does not

necessarily mean that the device is defective, and it will decrease gradually within 15 minutes.

Keep flammable materials away from the fixture while operating to avoid fire hazard.

Make sure the power cord is not crimped or damaged; replace it immediately if damaged.

Avoid any flammable liquids, water or metal from entering the unit. Once it happens, cut off

the mains power immediately.

Please read the instruction carefully which includes important information about

the installation, usage and maintenance.

DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.

DO NOT touch any wire during operation as there might be a hazard of electric shock.

Avoid entanglement of the power cord with other wires.

The minimum distance to objects/surface must be more than 2.5 meters.

Disconnect mains power before fuse/lamp replacement or servicing.

Replace fuse/lamp only with the same type.

In the event of serious operating problem, stop using the unit immediately.

Never turn on and off the unit time after time.

The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.

DO NOT open the housing as there are no user serviceable parts inside.

DO NOT attempt to operate this unit if it becomes damaged. DO NOT attempt any repairs

yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please

contact the nearest authorized technical assistance center if needed.

Disconnect this product from its power source before servicing.

DO use the original packaging if the device is to be transported.

Hot lamp explosion hazard. DO NOT open the unit within 15 minutes after switching off.

DO replace the bulb once it is damaged, deformed or life-expired.

Avoid direct eye exposure to the light source while the product is on.

Never touch bulb with bare fingers, as it is very hot after using.

DO NOT operate this product if you see damage on the housing, shields, or cables. Have the

damaged parts replaced by an authorized technician at once.

Installation:

The fixture should be fixed on the clamp. Always ensure that the unit is firmly fixed to avoid

vibration and slipping off during operation. Ensure that the trussing or area of installation must be

able to hold 10 times the weight without any deformation. Always install a safety cable that can

hold at least 12 times the weight of the fixture when installing.

DO install and operate by qualified operator. It must be installed in a place where there is out of the

reach of people.

2. Technical Specifications

Power Voltage:

230V~ 50Hz

Power Consumption:

1330W

Light Source:

OSRAM HTI 1000W

Color Temperature:

6000K

Zoom Range:

9°~61°

Movement:

Pan: 540°

Tilt: 270°

Pan/Tilt Resolution: 16 bit

Fixation: Pan/Tilt lock

Dimmer/Shutter:

Smooth dimming from 0-100%; outstanding strobe effect with variable speed

Color Wheel:

1 x color wheel with 6 fixed colors plus open, and rainbow effect

Gobo Wheel:

1 x static gobo wheel with 4 gobos and a 135˚ linear effect plus open

2 x rotating gobo wheels both with 5 gobos plus open, convenient replacement

Control:

DMX Channel: 26/34/28/24/21 channels

Control Mode: DMX512, RDM, Art-Net, Wireless(optional)

Firmware upgrade via DMX link

Construction:

Display: LCD display

Battery backup for user setup without mains connection

Data In/Out: 3/5 -pin XLR; RJ45

Power In/Out: Power Connector in

Protection Rating: IP20

Features:

Motorized focus

CMY color mixing + Linear CTO color correction

Outstanding color macro effect

Motorized linear iris

4-facet prism, rotatable in both directions

Independent frost effect

Dimension/Weight:

454x427x811mm, 40kgs

17.9"x16.8"x31.9"in, 88.2lbs

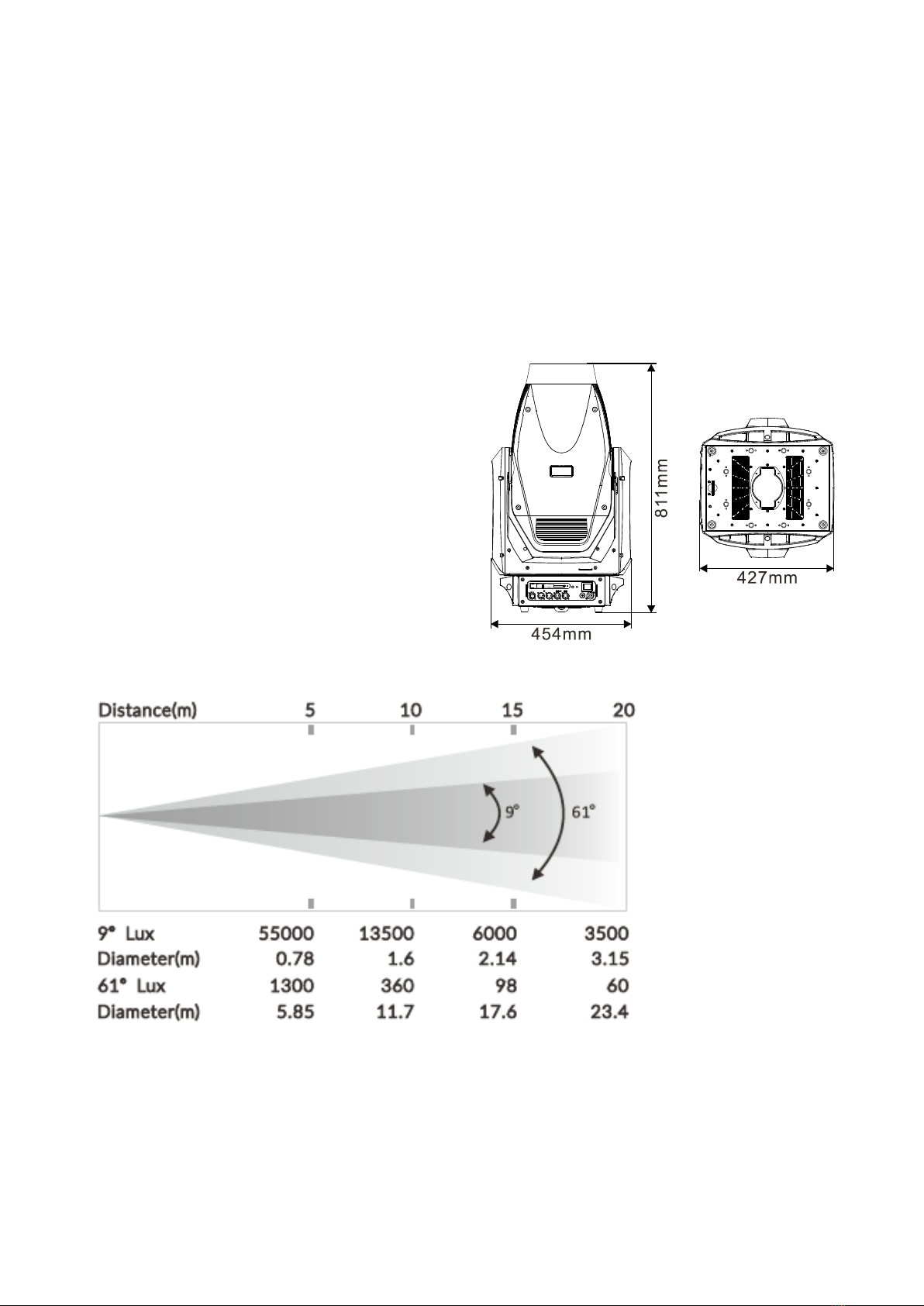

Photometric Diagram:

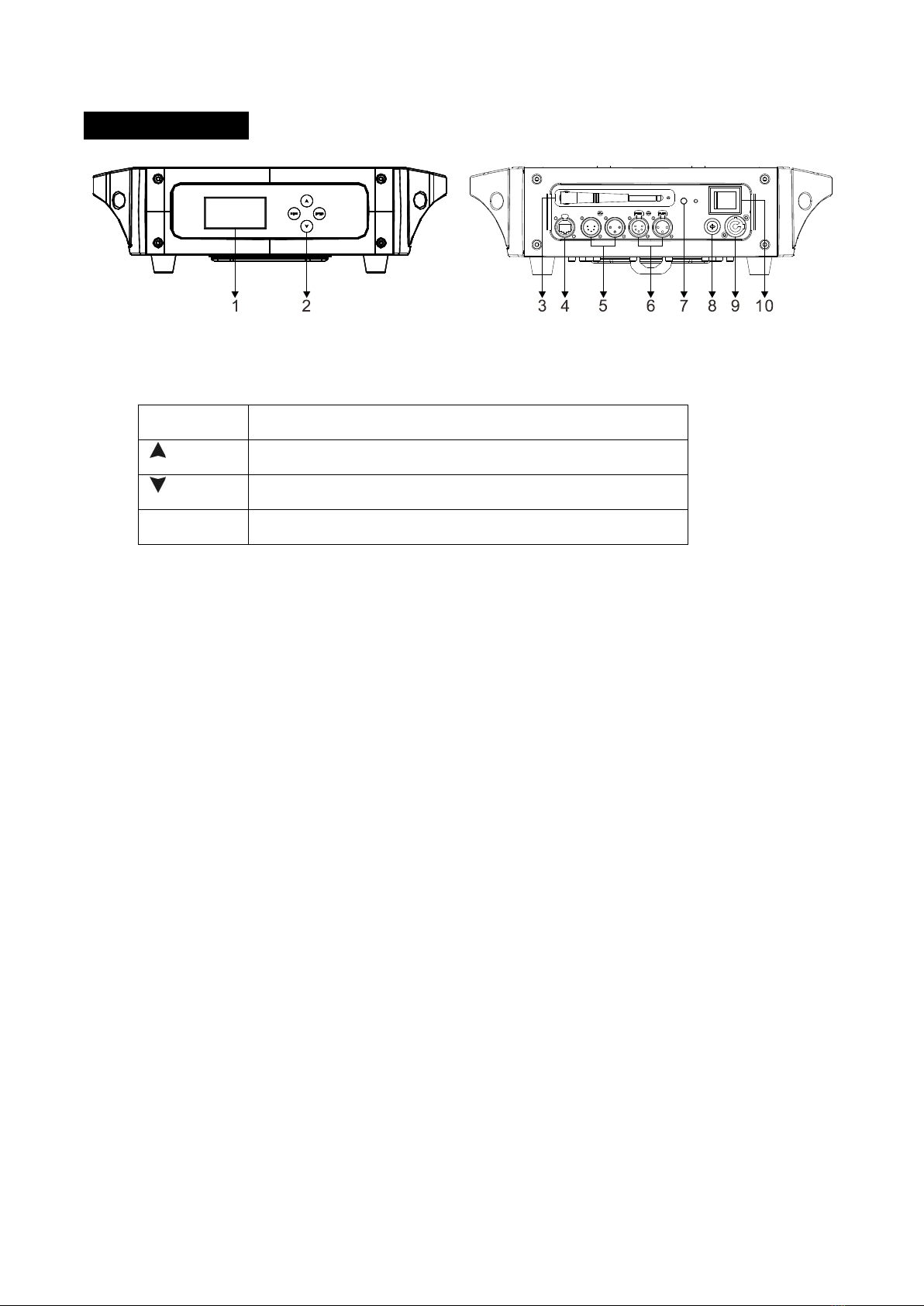

3. Control Panel

1. Display: To show the various menus and the selected functions

2. Button:

To enter into move backward or leave the menu

To go backward to move up in the menu

DOWN

To go forward to move down in the menu

ENTER

To perform the desired functions

3. WIRELESS RECEIVER: Receive the wireless DMX signal

4. ETHERNET: Transfers fixture’s information to a main controller

5. DMX IN: For DMX512 link, use 3/5 -pin XLR cable to link the unit and DMX controller

6. DMX OUT: For DMX512 link, use 3/5 -pin XLR cable to link the next units

7. BATTERY DISPLAY

8. FUSE(T 15A): Protects the unit from damage of over-voltage or short circuit

9. POWER: To connect to supply power

10. POWER SWITCH: Turns on/off the power

4. Effect Wheels and Lamp

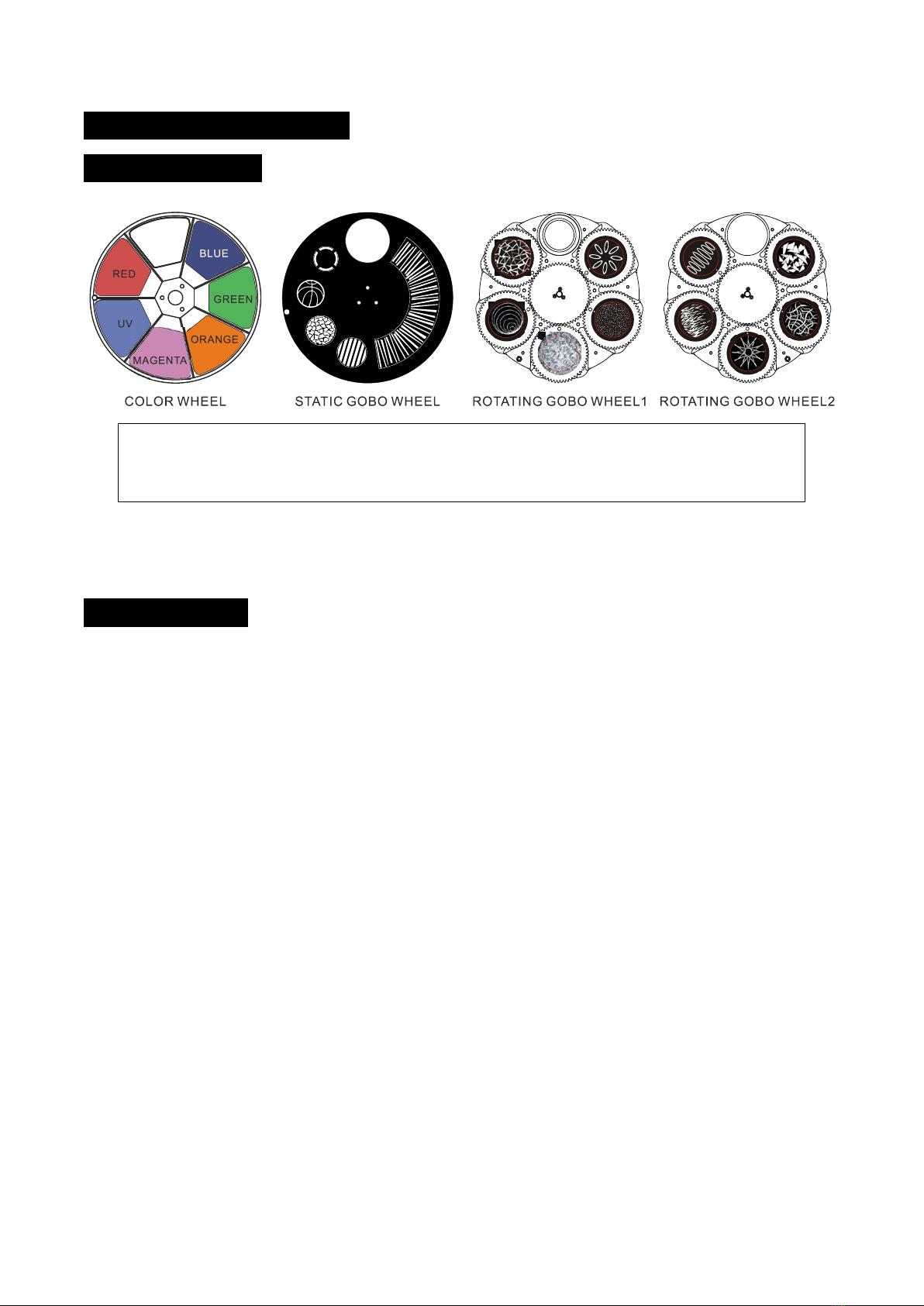

4.1 Effect Wheels

DANGER!

Install the rotating gobos with the device switched off only.

Unplug from mains before changing the rotating gobos!

CAUTION: Never unscrew the screws of the rotating gobo as the ball bearing will otherwise be

opened!

4.2 Light Source

OSRAM HTI 1000W

Because of its high internal pressure, there might be a risk that the Discharge lamp

would explode during operation. The lamp emits intense UV radiation which is harmful

to the eyes and skin. The high luminance of the arc can cause severe damage to the

retina if you take a close look at the lamp.

To protect the lamp, always turn off the lamp first (via control panel or DMX controller)

and let the unit run at least five minutes to cool down before switching off the mains

supply. Never handle the lamp or luminary when it is hot.

Do not touch the bulb with bare hands. If this happens, clean the lamp with denatured

alcohol and wipe it with a lint free cloth before installation.

The lamp generates UV radiation. Never operate the lamp without appropriate shielding.

When lighting up, the lamp operates at high pressure and there is a slight risk of arc tube

rupture. The risk increases with age, temperature and improper handling of the lamp. Do not

use the lamp longer than its lifespan.

Make sure the lamp is located in the center of the reflector for the best projection.

4.3 Change The Lamp

Attention: The entire light path and lens of the luminaire must be thoroughly cleaned before

changing the bulb.

Do not use this lamp more than 750 hours, using the lamp any longer than its set life could seriously

damage your unit. Periodically checking the lamp running time, when the lamp reaches the 750

hour mark, or close to it, we strongly suggest you switch the lamp out. Reset the lamp time after

you have replaced the lamp.

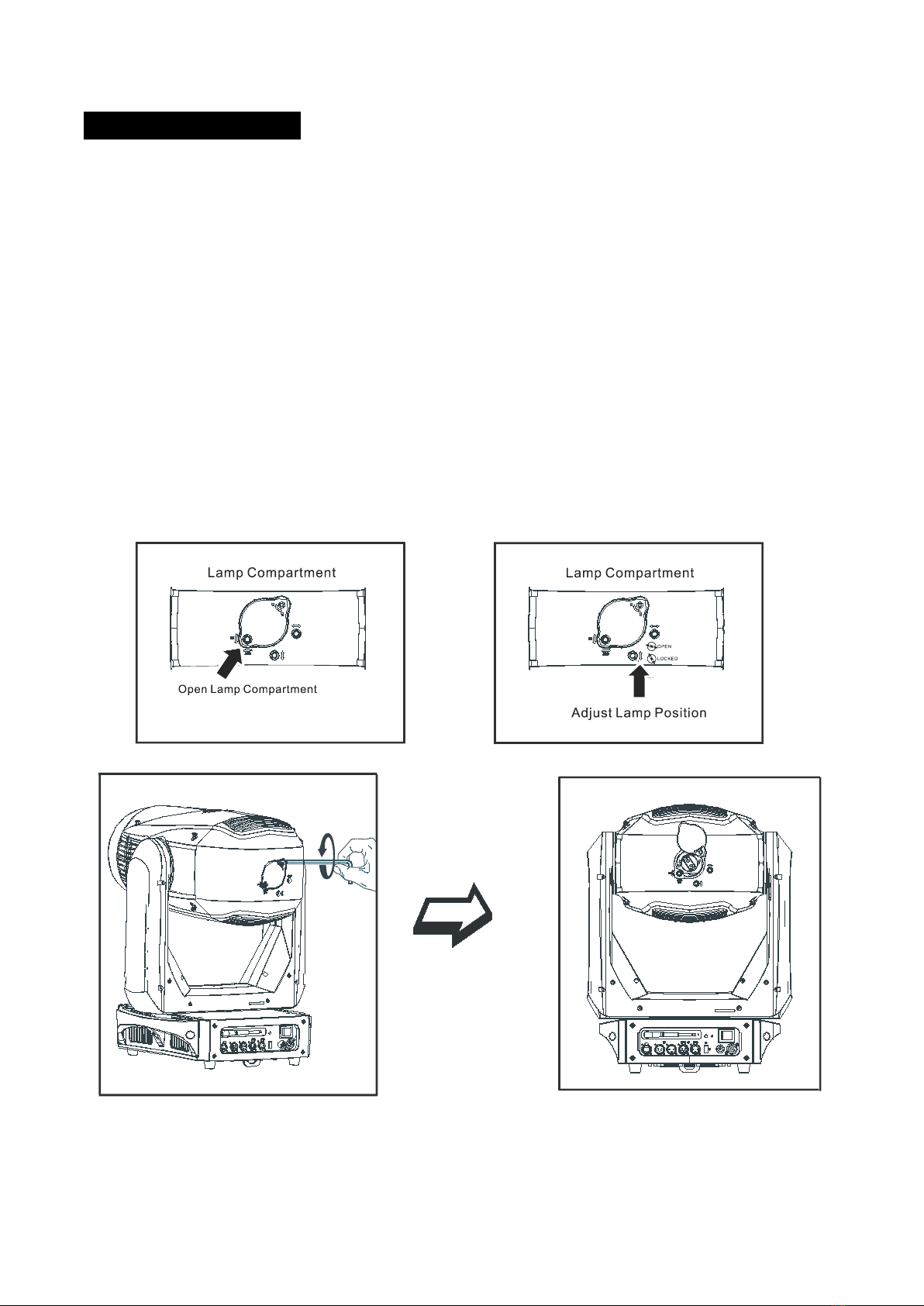

To replace the lamp:

1. Ensure that the fixture is detached from power and has cooled down completely. It is a good

idea to allow the fixture to run for 10 minutes after the lamp has been turned off, so that the

cooling fans have time to works.

2. Loosen the screws on the head of the fixture and open the fixture head covers.

3. Unplug the leads of the lamp and lift the lamp out of its recess, disconnect the lamp and

connect a new lamp that must be the same type with the old one. And then place the new lamp

into the lamp recess.

Finally reinstall the head cover, fastening it securely before reapplying power.

Attention: Damages caused by the failure to replace the bulb in time are not subject to warranty.

5. How To Set The Unit

5.1 Main Function

Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until

the required function is shown on the monitor. Select the function by pressing the ENTER button.

Use the UP/DOWN button to choose the submenu, press the ENTER button to store and

automatically return to the last menu. Press the MENU button or let the unit idle 30 seconds to exit

menu mode.

The main functions are shown below:
