ZKTeco RevFace15 Manual de usuario

Installation Guide

Version: 1.0

Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the

actual product and the written information in this manual.

RevFace15

-1-

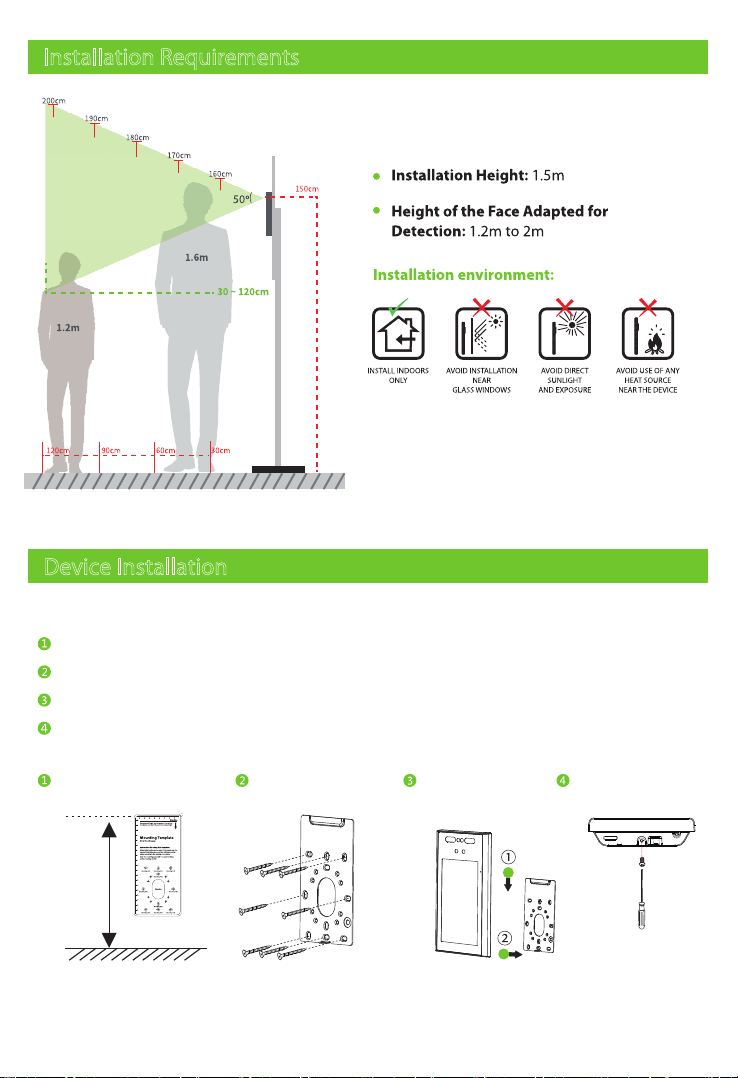

Installation Requirements

Device Installation

Installing on the wall

Baseline

1.5m

Place the mounting template sticker onto the wall, and drill holes according to the mounting paper.

Fix the back plate onto the wall using wall mounting screws.

Fix the device into back plate.

Use the safety screw to fasten the device to the back plate.

-2-

Power Connection

Recommended AC adapter: 12V 3A,

AC adapterTo share the power with other devices, use a with higher current ratings.n

DC 12V, 3A

Port Introduction

RJ45 Port

Power

RS232_TXD

RS232_RXD

GND

12VIN

AL+

AL-

COM

BUT

GND

SEN

GND

AUX

GND

12V-OUT

GND

IWD0

IWD1

WD0-OUT

WD1-OUT

12V-OUT

GND

485A

485B

RS232

RS485

Wiegand In

Wiegand Out

Alarm

Lock

Exit Button

Sensor

Auxiliary Input

Power Out

Power In

-3-

Printer Connection

RS232_TXD

RS232_RXD

GND

12VIN

RS232

Printer

Wiegand Reader Connection

Wiegand Reader

GND

+12V

WD1

WD0

Access

Controller

WD1

WD0

+12V

GND

12V-OUT

GND

IWD0

IWD1

WD0-OUT

WD1-OUT

12V-OUT

GND

485A

485B

-4-

Detector

Power

Smoke Detector

COM

RS485 Connection

RS485 Reader

485+

485-

+12V

GND

Door Sensor, Exit Button & Alarm Connection

Alarm Power

Alarm

Exit Button

Door Sensor

AL+

AL-

COM

BUT

GND

SEN

GND

AUX

GND

12V-OUT

GND

IWD0

IWD1

WD0-OUT

WD1-OUT

12V-OUT

GND

485A

485B

-5-

Lock Relay Connection

1) Device not sharing power with the lock 2) Device sharing power with the lock

The system supports both Normally Opened Lock and Normally Closed Lock. The NO Lock (normally

open when powered) is connected with 'NO' and 'COM' terminals, and the NC Lock (normally close

when powered) is connected with 'NC' and 'COM' terminals. The power can be shared with the lock or

can be used separately for the lock, as shown in the example with NC Lock below:

DC12V

FR107

NC Lock

DC12V

FR107

NC Lock

Ethernet Connection

Connect the device and the software over an Ethernet cable. An example is shown below:

: 192.168.1.201Default IP address

: 255.255.255.0Subnet mask

: 192.168.1.130IP address

: 255.255.255.0Subnet mask

Click [Comm.] > [Ethernet] > [IP Address], input the IP address and click [OK].

Note: In LAN, the IP addresses of the server (PC) and the device must be in the same network

segment when connecting to ZKBioAccess IVS software.

+12V

GND

AL+

AL-

COM

BUT

GND

SEN

GND

AUX

GND

+12V

GND

AL+

AL-

COM

BUT

GND

SEN

GND

AUX

GND

-6-

Download Center

Use the mobile phone and scan the QR Code to download the User Manual, Installation Guide and

Quick Start Guide.

Download Center

ZKTeco Industrial Park, No. 32, Industrial Road,

Tangxia Town, Dongguan, China.

Phone : +86 769 - 82109991

Fax : +86 755 - 89602394

www.zkteco.com
