ZALMAN CNPS5X PERFORMA Manual de usuario

User’s Manual

CNPS5X PERFORMA

www.ZALMAN.com

Ver.121113

To ensure safe and easy installation,

please read the following precautions

Intel Socket 1155 / 1156 / 775 CPUs

AMD Socket FM2/FM1/AM3+/AM3 / AM2+ / AM2 CPU&APUs

.COM

1. Precautions

2. Speciﬁcations

Model

Spec. CNPS 5X PERFORMA

Material Pure Copper and Aluminum

Weight 320g

Dimensions 127(L) Ⅹ64(W) Ⅹ134(H)㎜

Fan

Bearing-Type FSB(Fluid Shield Bearing)

RPM 1,400 ~ 2,800rpm ±10%

Noise Level 20 ~ 32dBA ±15%

Input Voltage 12V

Function PWM Control, Auto Restart

1) Avoidinsertingobjectsorhandsintothefanwhileitisinoperation

topreventproductdamageandinjuries.

2) Do not ingest the Thermal Grease, and avoid its contact with skin and

eyes. If contact is made with skin, wash off with water. If ingested or

irritation persists, seek medical attention.

3) To prevent possible injuries, gloves must be worn while handling this

product.

4) Excessive force exerted on the fan may cause damage to the fan and/

or system.

5) Use and keep product away from reach of children.

6) Check the components list and condition of the product before

installation. If any problem is found, contact the retailer to obtain a

replacement.

7) During transportation of the system, the cooler must be removed.

Zalman is not responsible for any damages that occur during the

transport of a system.

8) Product design and specifications may be revised to improve quality

and performance.

10) Enable PWM function in BIOS settings after installation.

Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages due

to external causes, including but not limited to, improper use,

problems with electrical power, accident, neglect, alteration,

repair, improper installation, or improper testing.

.COM

4. Installation Requirements

3. Components

65㎜

135㎜

130㎜

User’s Manual Thermal Grease

BackplateCooler

Thermal Grease

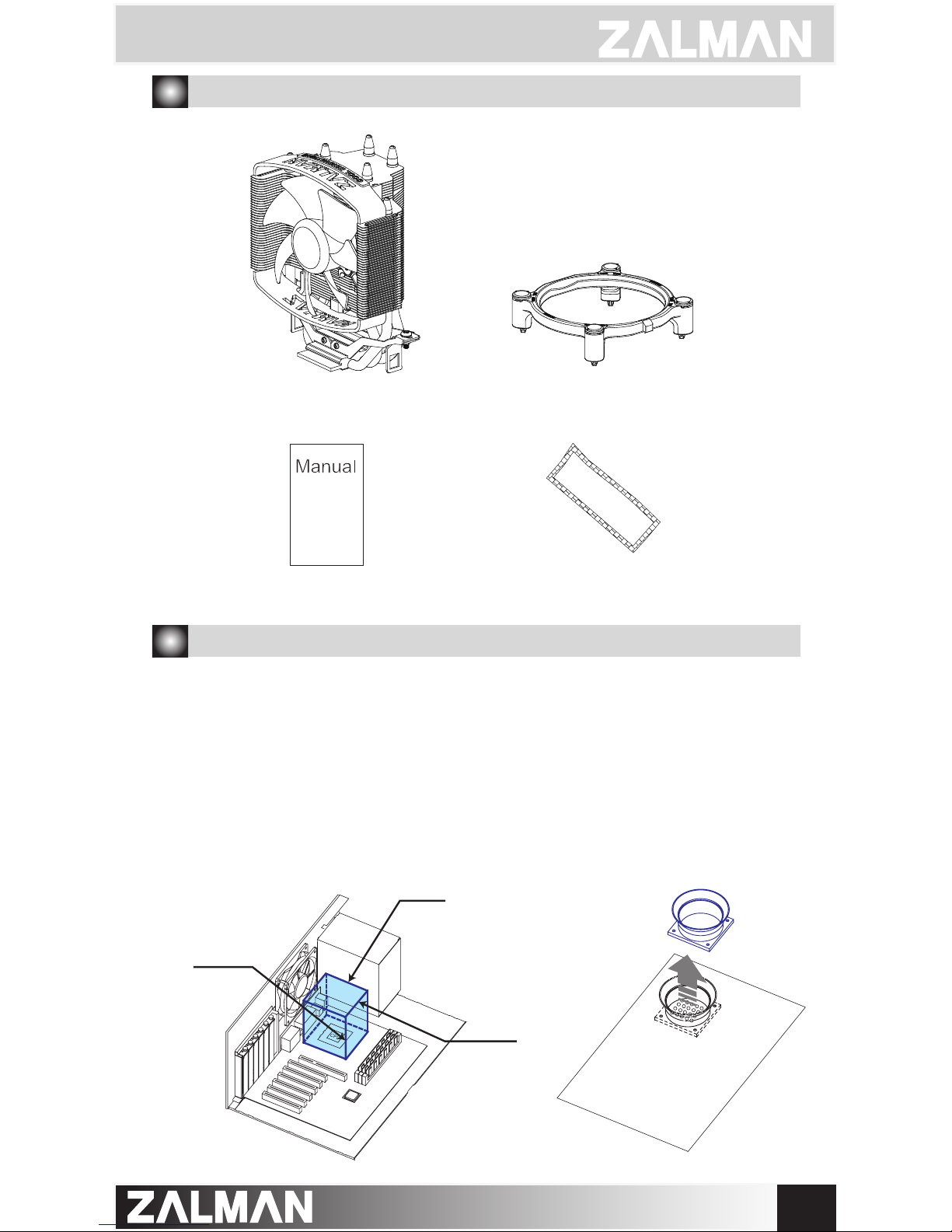

1) Space Requirements

2) Air Guide Removal

The cooler’s installation requires an unobstructed space of 130㎜(width),

65㎜(length), and 135㎜(height), with the CPU as a central reference

point. Please check if components such as ODDs and PSU protrude into

the required space.

Air guides on enclosures must be removed before the cooler’s

installation since they protrude into the cooler’s required space.

.COM

1) Intel Socket 1155 / 1156 / 775 Installation

①Install the Clip Support to the motherboard according to the socket-

type. (See diagram)

5. Installation

3) Cooler Orientation

As shown in the diagram below, it is recommended that the cooler be

installed so that air ﬂows from the cooler toward the enclosure’s rear

exhaust fan to be released.

※Recommended cooler orientation may differ according to the

motherboard model.

Socket 775Socket 1155 / 1156

.COM

M/B

②Align the Clip Support to the motherboard and fasten with the

Pushpins.

③Clear off any particles or residue from the CPU’s surface. Then

spread a thorough layer of Thermal Grease on the CPU and the base

of the cooler.

.COM

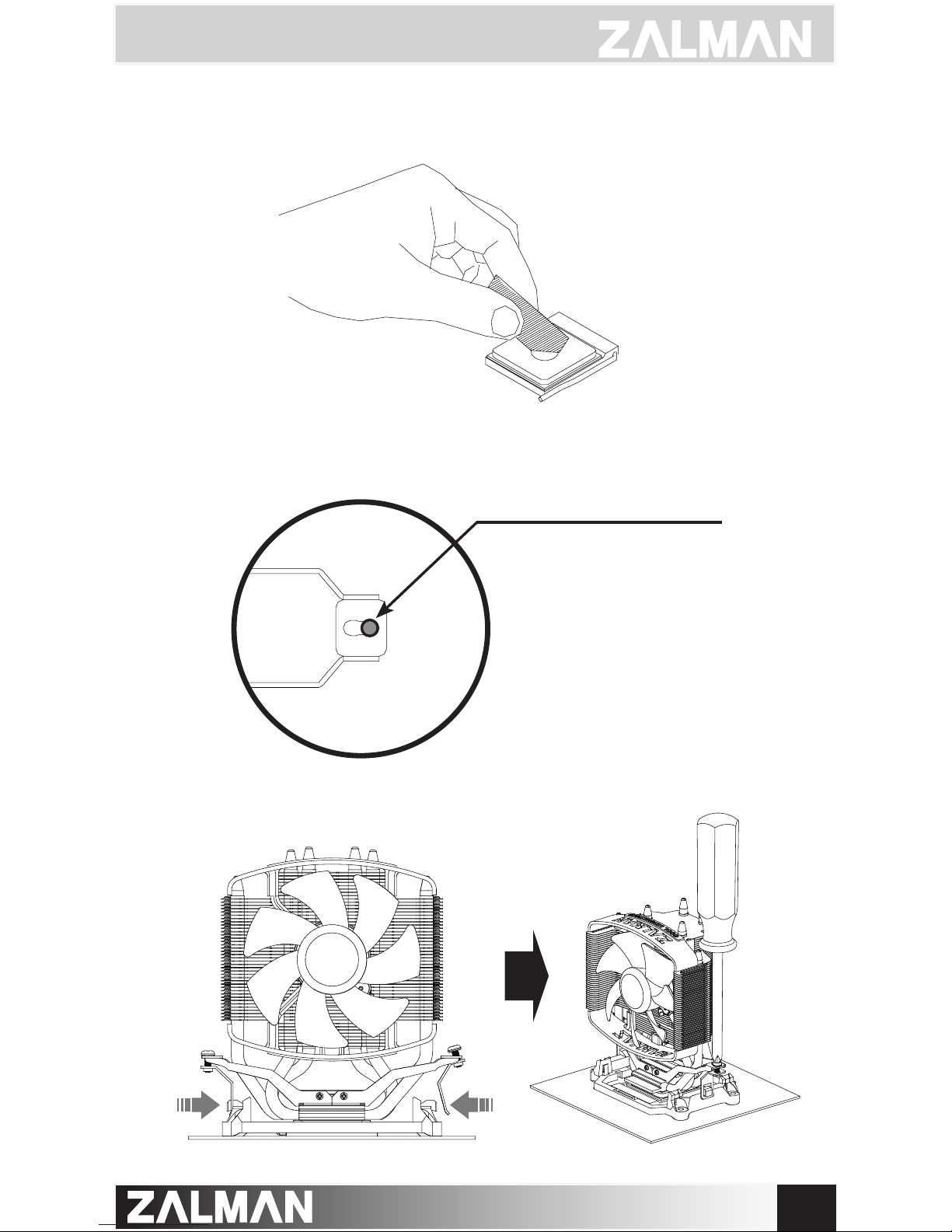

④Completely unfasten the 2 bolts already assembled on the clip and adjust

the position to ﬁt the Intel socket. When reassembling the bolt, be sure to

assemble only half way of the total length.

⑤Install the cooler on the Clip support as shown in the picture and connect the

lug slot of the clip on to the lug on the clip support. Then fasten the bolts on

each side a few turns at a time.

⑥Connect the cooler’s 4-pin connector to the motherboard’s CPU Fan header.

Location of Intel Socket bolts

M/B

The PWM fan’s operation will vary depending on the motherboard’s BIOS settings.

Caution

.COM

AMD Socket FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2 Installation

①Clear off any particles or residue from the CPU’s surface. Then spread a

thorough layer of Thermal Grease on the CPU and the base of the cooler.

②Completely unfasten the 2 bolts already assembled on the clip and adjust

the position to ﬁt the AMD socket. When reassembling the bolt, be sure to

assemble only half way of the total length.

③Install the cooler on the Clip support as shown in the picture and connect the

lug slot of the clip on to the lug on the clip support. Then fasten the bolts on

each side a few turns at a time.

Location of AMD Socket bolts

.COM

④Connect the cooler’s 4-pin connector to the motherboard’s CPU Fan header.

M/B

The PWM fan’s operation will vary depending on the motherboard’s BIOS settings.

Caution
