ZALMAN CNPS 8000 Manual de usuario
* Applies to all versions of CNPS8000 LED.
* Please read this manual thoroughly before installation.
http://www.zalman.co.kr http://www.zalmanusa.com
(English version)
CNPS 8000
(English version)
※
The specifications of any product may change without prior notice to improve performance.
1
3. Exploded View
1. Features
1) Noiseless and vibration-free operation in Silent Mode.
2) Optimum performance and quick heat dispersion achieved with the use of heatpipes.
3) Optimized fin design for lightness and higher performance.
) Ultra quiet 92mm fan.
5) Compatible with Slim and Low Profile Computer Enclosures.
6) Compatible with Intel Pentium D (Socket 775), Intel Pentium (Socket 775), AMD Athlon 6 X2
(Socket 939), and AMD Sempron/AMD6 (Socket 75 /939/9 0).
7) FAN MATE 2 included for manual adjustment of fan speed.
1) Cooler (CNPS8000)
2) FAN MATE 2
- Output Voltage : 5V ~ 11V
±
2 %
- Power Consumption : 6W or lower
2. Specifications
CNPS8000
Model
Spec.
Materials
Weight
Thermal Resistance
Dimensions
Dissipation Area
Bearing Type
Fan Speed
Noise Level
Input Voltage
Pure copper and pure aluminum
350g
0.13 ~ 0.20°C/W
108(L) X 108(W) X 62.5(H)
mm
2,815
㎠
2-Ball Bearing
1,400rpm ± 10% ~ 2,600rpm ± 10%(1)
18.0dBA ± 10% ~ 30.0dBA ± 10%(2)
12V
(Note 1)
The fan operates at 2,800rpm if connected directly to the motherboard’s fan connector without
the use of FAN MATE 2.
(Note 2) Noise measured 1m away from the source.
Fan
Heat Sink
Fan Guard
Fan Support
※
The specifications of any product may change without prior notice to improve performance.
2
Korean Patent Application No. 2005-117680
Korean Design Application No. 2005-3771
Patent Applications pending in over 10 nations around the world including the United States, Europe,
China, and Taiwan.
4. Patents
. Components
1) Common Components
❶
One CNPS8000
❷
One Thermal Grease
❸
One FAN MATE 2 (Fan Speed Controller)
❹
One Cable for FAN MATE 2
❺
One Double-sided Tape
(for attaching FAN MATE 2)
❻
One User’s Manual
2) Components for Intel Pentium
D/Pentium (Socket 775)
❼
Two Clips for Socket 775
❽
One Backplate for Socket 775
3) Components for AMD AMD6
(Socket 75 /939/9 0)
❾
One Clip-A for AMD6
❿
One Clip-B for AMD6
❸❹❺❻
❼
❾
❽
❿
❷
❶
1) Keep and store the product away from the reach of children.
2) Check the components list and condition of the product before
installation. If there is any problem, contact the shop of purchase
to get a replacement or refund.
3) If excessive force is exerted on the fan, it may result in
malfunction or damage to the product and/or system.
) Zalman Tech Co., Ltd. is not responsible for any damages
due to external causes, including but not limited to, improper
use, problems with electrical power, accident, neglect,
alteration, repair, improper installation, and improper testing.
5) CPU and motherboard are subject to damage if the product
is incorrectly installed. Familiarize yourself with the “Installation”
steps before installing the CNPS8000.
6) See the picture on the right for product dimensions to check
whether the product interferes with any motherboard
components.
6) Avoid inserting objects or fingers into the fan while it is in
operation.
5. Precautions
PSU
VGA Card Slot
Case chassis Cover
50mm 58mm
5 mm 5 mm
System Fan
62.5mm
ODD
※
The specifications of any product may change without prior notice to improve performance.
3
7. Compatible CPUs
1) All Intel Socket 775 CPUs
- Pentium D
- Pentium
- Celeron D
2) All AMD Socket 75 /939/9 0 CPUs
- Opteron
- Athlon 6 X2
- Athlon 6 FX
- Athlon 6
- Sempron
Air Guide equipped cases recommended for CPUs with high TDP.
Zalman’s Super Thermal Grease recommended for better thermal performance.

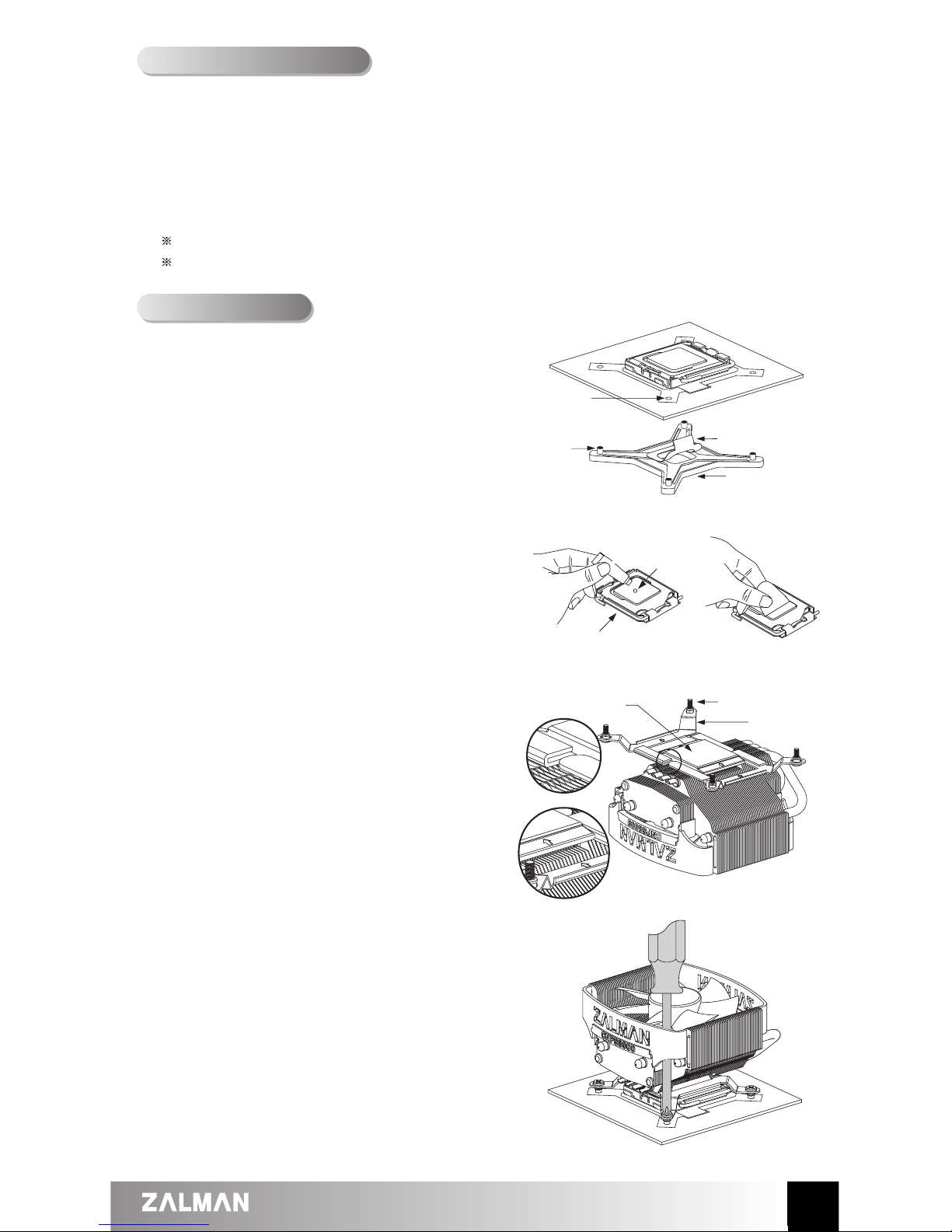

8. Installation
1) Intel Pentium D / Pentium - Socket 775
①①
Backplate Installation
Remove the protective film of theBackplate for
Socket 775, and attach the backplate after
aligning it with the holes from the backside of
motherboard.
②②
Thermal Grease Application
Clear off any particles and residue from the top
of the CPU then spread the enclosed Thermal
Grease generously on the surface of the CPU
that makes contact with the base of CNPS8000.
③③
Clip Installation
Inter rock the pair of Clips for socket 775 by
sliding them into each other between the
heatsink's base and fin.
Caution) The arrowhead marking on each clip must
be in line with the arrowhead markings on
the heatsink's base.
④④
Cooler Installation
Place the CNPS8000 on the center of the CPU.
Slightly screw the four bolts onto the backplate’s
nipples, then tighten each bolt one rotation at a
time until all are completely tightened.
Note 1) Excessive force can result in damage to the
nipples.
Note 2) Exerting excessive force on the fan with the
driver can result in malfunction.
⑤⑤
Power Connection (FAN MATE2 Installation)
Please refer to FAN MATE 2 Installation and Usage on page 5.
Mounting hole
Nipple Protective Film
Backplate for
Socket 775
Thermal Grease
CPU(IHS)
Base
Bolt
Clip for
Socket 775
※
The specifications of any product may change without prior notice to improve performance.
4
2) AMD Sempron / AMD6 - Socket 75 /939/9 0
①①
Thermal Grease Application
Clear off any particles and residue from the top
of the CPU then spread the enclosed Thermal
Grease thinly on the surface of the CPU that
makes contact with the base of CNPS8000.
②②
Clip Installation
Inter rock the pair of Clips for AMD 6 by sliding them into each other between the heatsink's base and fin.
Caution) The arrowhead marking on each clip must be in line with the arrowhead markings on the heatsink's base.
③③
Cooler Installation
Hook the hole of Clip-B onto the retention frame’s lug. Then hook the hole of Clip-A onto the retention
frame’s lug by pressing down on the lever of the Clip-A.
Note ) Set the direction of the Clips in a manner so that there is no interference with other components
of the motherboard.
Uninstalling the Cooler
To uninstall the CNPS8000, press onto the clip slot with the use of a ( -) driver, then push off the
lever to disconnect the clip hole from the retention frame’s lug.
④④
Power Connection (FAN MATE2 Installation)
Please refer to FAN MATE 2 Installation and Usage on page 5.
Clip-A for AMD6
Base
Clip-B for AMD6
Lever
Lug
Clip slot
Thermal Grease
CPU(Lid)
※
The specifications of any product may change without prior notice to improve performance.
5
10. Notes on Usage
1) Checking CPU Compatibility
Please refer to “Compatible CPUs” on page 3 to confirm that your CPU is compatible before using the
CNPS8000.
2) Cautions During Booting
The computer system may automatically shut down when booting the computer after the system
monitoring program outputs a warning stating that the CPU fan is rotating slowly. In such a case, fully
turn the speed control knob in the clockwise direction before booting to disable the ‘CPU Fan Detected’
option in BIOS setting, or set the CPU fan’s rotational speed to less than or equal to 1300rpm in the
system monitoring program.
Note) Some motherboards fail to boot if the rotational speed of the CPU fan is below a certain rpm.
However, booting can be possible even at low fan rpm if the BIOS settings are updated.
For more information on updating your BIOS, please refer to the website of your motherboard
manufacturer.
There are motherboards which fail to detect the rpm while operating the cooler on Silent Mode, but
this does not affect computing performance.
3) OVERCLOCKING
Zalman Tech Co., Ltd. is not responsible for any damages in CPU resulting from OVERCLOCKING.
9. FAN MATE 2 Installation and Usage
1) Installing FAN MATE 2 on the Inside of the System 2) Installing FAN MATE 2 on the Outside of the System
Connect the appropriate 3-pin connector on the
cable to the motherboard fan header and the
CNPS8000’s fan connector.
Pull the 6-pin connector out of the system
through the back and connect it to FAN MATE 2,
which should be installed on the case using the
included double-sided tape (⑤).
◆When the speed control knob on FAN MATE 2 is turned fully counter-clockwise, the fan operates in
Silent Mode. Turned fully clockwise, it operates in Normal Mode. You can select the desired fan speed
by turning the knob.
Note) FAN MATE 2 has been specifically designed for the fan of this product.
Zalman Tech Co., Ltd. is not responsible for any damage to systems or CPUs caused by using it
with other types of fans.
Fan Connector
(CNPS8000)
Motherboard
Double - sided Tape
FAN MATE 2
6-Pin Connector
※
The specifications of any product may change without prior notice to improve performance.
13.
Home Theatre PC Enclosures
TNN Computer Enclosures are the world’s first environment-friendly noiseless computer enclosures
that operate without the use of a fan. TNN Computer Enclosures use the aluminum enclosure itself
as a heatsink. They are ideal for environments that require silence, as well as for home theatre
systems and multi-media systems.
The HD160 is designed for ultra quiet home theatre
PC operation, utilizing optimized ventilation and
anti-vibration reinforcements, making it ideal for
environments that require silence such as living
rooms, bedrooms, educational facilities, and offices.
For more information, please visit our website.
12.
TNN (Totally No Noise) Computer Enclosures
TNN 300 TNN 500AF
HD1 0
The use of Zalman’s Noiseless Power Supply, CPU Cooler, Case Fan, Fanless Northbridge
Cooler, and Video Card Cooler will allow you to achieve stable performance and maintain a
noiseless environment.
11. Zalman Computer Noise Prevention System
Noiseless Power Supply Fanless Northbridge Cooler Heatpipe HDD Cooler
Noiseless Case Fan Quiet VGA Cooler Fan Controller
