York THGD18 THRU 60 Guía de inicio rápido

TECHNICAL GUIDE

SPLIT-SYSTEM

HEAT PUMPS

13 SEER – R-22

MODELS:

THGD18 THRU 60

(1.5 THRU 5 NOMINAL TONS, 1 PHASE)

Due to continuous product improvement, specifications

are subject to change without notice.

isit us on the web at www.york.com

dditional rating information can be found at

ww.ahridirectory.org

LISTED

ISO 9001

Certified Quality

Management System

365147-YTG-C-0608

FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE

DESCRIPTION

The heat pump condensing unit is the outdoor part of a versa-

tile system of heating and air conditioning. It is designed to be

custom-matched with one of UPG’s complete line of evapora-

tor sections, with each serving a specific function. Matching

Air Handlers are available for upflow, downflow, or horizontal

applications to provide a complete system. Electric Heaters

are available, if required. Add-on coils are available for use

with upflow, downflow, or horizontal furnaces and air han-

dlers.

WARRANTY

Single Phase Units:

5-year limited parts warranty.

5-year limited compressor warranty.

FEATURES

•QUALITY CONDENSER COILS - The coil is constructed

of copper tubing and enhanced aluminum fins for

increased efficiency and corrosion protection.

•PROTECTED COMPRESSOR - The compressor is inter-

nally protected against high pressure, temperature, and

externally by a factory installed high pressure switch. This

is accomplished by the simultaneous operation of high

pressure relief valve and a temperature sensor which pro-

tects the compressor if undesirable operating conditions

occur. A liquid line filter-drier further protects the compres-

sor.

•DURABLE FINISH - The cabinet is made of pre-painted

steel. The pre-treated galvanized steel provides a better

paint to steel bond, which resists corrosion and rust creep.

Special primer formulas and matted-textured finish insure

less fading when exposed to sunlight.

•LOWER INSTALLED COST - Installation time and costs

are reduced by easy power and control wiring connec-

tions. Available in sweat connect models only. The unit

contains enough refrigerant for matching indoor coils and

15 feet of interconnecting piping. The small base dimen-

sion means less space is required on the ground or roof.

•TOP DISCHARGE - The warm air from the top mounted

fan is blown up away from the structure and any landscap-

ing. This allows compact location on multi-unit applica-

tions.

•LOW OPERATING SOUND LEVEL - The upward air flow

carries the normal operating noise away from the living

area. The rigid top panel effectively isolates any motor

sound. Isolator mounted compressor and the rippled fins

of the condenser coil muffle the normal fan motor and

compressor operating sounds.

•LOW MAINTENANCE - Long life permanently lubricated

motor-bearings need no annual servicing.

•EASY SERVICE ACCESS - Fully exposed refrigerant con-

nections, and a single panel covering the electrical con-

trols make for easy servicing of the unit.

•SECURED SERVICE VALVES - Secured re-usable ser-

vice valves are provided on both the liquid and vapor

sweat connections for ease of evacuating and charging.

•U.L. and C.U.L. listed - approved for outdoor application.

Certified in accordance with the Unitary Small Equipment cer-

tification program, which is based on ARI Standard 210/240.

365147-YTG-C-0608

2Johnson Controls Unitary Products

All dimensions are in inches. They are subject to change

without notice. Certified dimensions will be provided upon

request.

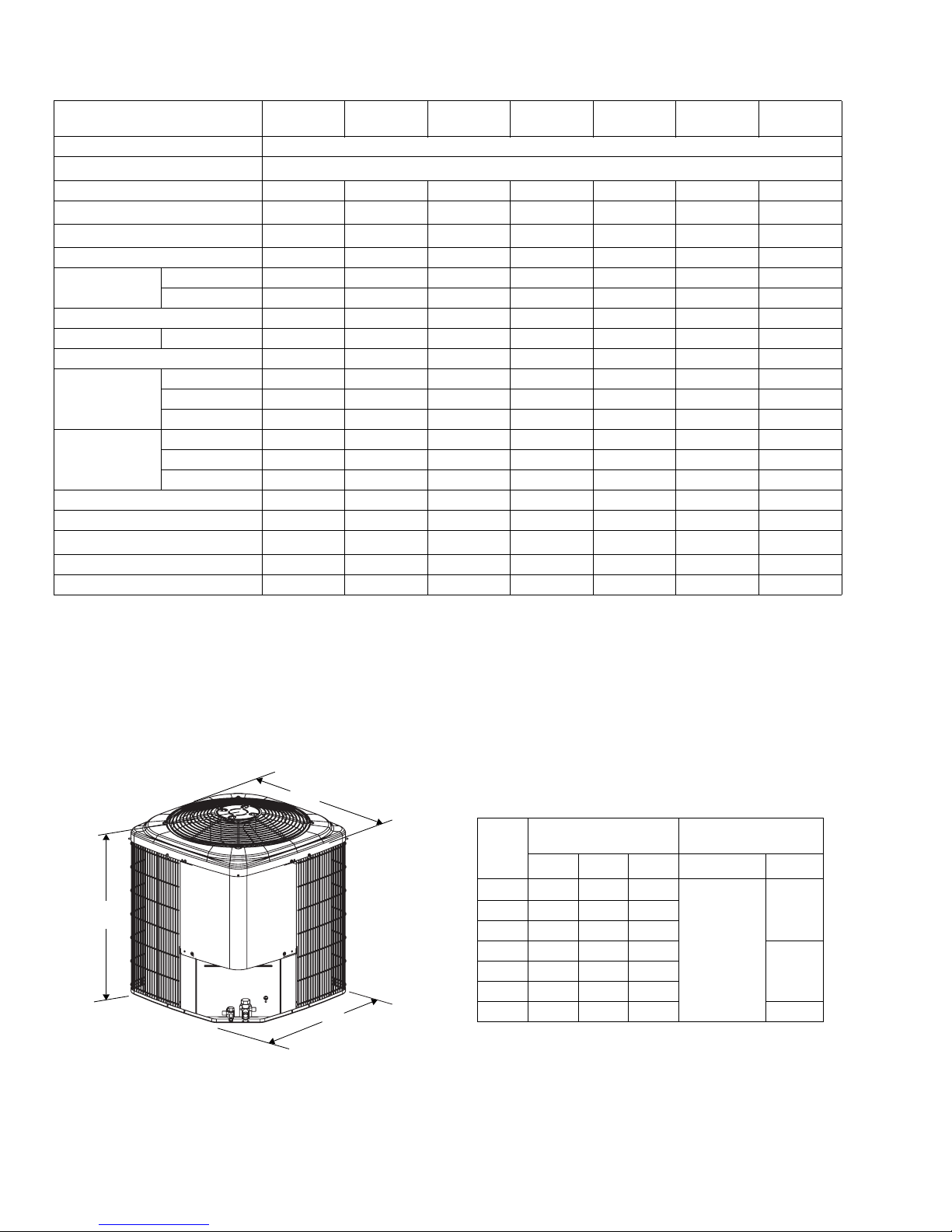

Physical and Electrical Data

MODEL THGD18

S21S1 THGD24

S21S1 THGD30

S21S1 THGD36

S21S1 THGD42

S21S1 THGD48

S21S1 THGD60

S21S1

Unit Supply Voltage 208-230V, 1φ, 60Hz

Normal Voltage Range 1187 to 252

Minimum Circuit Ampacity 9.9 13.1 17.7 19.8 24.9 40.1 40.1

Max. Overcurrent Device Amps 215 20 30 30 40 50 60

Min. Overcurrent Device Amps 315 15 20 20 25 45 45

Compressor Type Recip Recip Recip Recip Recip Scroll Scroll

Compressor Amps Rated Load 7.6 9.9 13.1 14.6 18.7 30.9 30.9

Locked Rotor 36 54 61 78 78 115 150

Crankcase Heater Yes Yes Yes Yes Yes No No

Fan Motor Amps Rated Load 0.5 1.5 1.4 1.5 1.5 1.5 1.5

Fan Diameter Inches 24 24 24 24 24 24 24

Fan Motor Rated HP 1/15 1/10 1/4 1/4 1/4 1/4 1/4

Nominal RPM 850 825 1100 850 850 850 850

Nominal CFM 2050 2250 3700 3700 3600 3450 3600

Coil Face Area Sq. Ft. 15.72 18.34 20.96 23.58 23.58 24.00 27.00

RowsDeep1111122

Fin / Inches 22 22 22 22 22 22 22

Liquid Line Set OD (Field Installed) 3/8 3/8 3/8 3/8 3/8 3/8 3/8

Vapor Line Set OD (Field Installed) 3/4 3/4 3/4 7/8 7/8 7/8 1-1/8

Unit Charge (Lbs. - Oz.) 47 - 3 7 - 7 8 - 12 9 - 1 11 - 14 13 - 4 15 - 5

Charge Per Foot, Oz. 0.68 0.68 0.68 0.70 0.70 0.70 0.76

Operating Weight Lbs. 172 184 196 208 208 275 280

1.Rated in accordance with ARI Standard 110, utilization range “A”.

2.Dual element fuses or HACR circuit breaker. Maximum allowable overcurrent protection.

3.Dual element fuses or HACR circuit breaker. Minimum recommended overcurrent protection.

4.The Unit Charge is correct for the outdoor unit, matched indoor coil and 15 feet of refrigerant tubing. For tubing lengths other than 15

feet, add or subtract the amount of refrigerant, using the difference in length multiplied by the per foot value.

Unit

Model

Dimensions

(Inches) Refrigerant Connection

Service Valve Size

1. Including Fan Guard.

* Adapter fitting required for 1-1/8” line set.

B C Liquid Vapor

18 28 34 34

3/8”

3/4”

24 32 34 34

30 36 34 34

36 40 34 34 7/8”42 40 34 34

48 40 34 34

60 40 34 34 1-1/8”

365147-YTG-C-0608

Johnson Controls Unitary Products 3

Additional R-22 Charge / Orifice Size for Various Matched Systems

Outdoor Unit THGD18

S21S1 THGD24

S21S1 THGD30

S21S1 THGD36

S21S1 THGD42

S21S1 THGD48

S21S1 THGD60

S21S1

Required Orifice or TXV 11TVM2A1 1TVM2A1 1TVM2A1 1TVM2A1 1TVM2C1 1TVM2C1 1TVM2C1

Factory Charge, lbs-oz 7 - 3 7 - 7 8 - 12 9 - 1 11 - 14 13 - 4 15 - 5

Indoor Coil2,3 Additional Charge, Oz

FC/MC/PC/UC18A2A 0––––––

FC/MC/PC/UC18B2A 0––––––

FC/MC/PC/UC24A2A 00–––––

FC/MC/PC/UC24B2A 00–––––

FC/MC/PC/UC30A2A 00–––––

FC/MC/PC/UC30B2A 00–––––

FC/MC/PC/UC32A2A –50––––

FC/MC/PC/UC35B2A –50––––

FC/MC/PC/UC35C2A –50––––

FC/MC/PC/UC37A2A – – 0 0 – – –

FC/MC/PC/UC43C2C –––––––

FC/MC/PC/UC48C2C ––––0––

FC/MC/PC/UC48D2C ––––0––

FC/PC/UC60C2C ––––20–

FC/MC/PC/UC60D2C ––––20–

FC/PC62D2C –––––20

HC18A2A 0––––––

HC30A2A –0–––––

HC36B2A –50––––

HC60C2C ––––20–

HD24A2A –4–––––

HD36B2A ––0––––

HD60D2C ––––20–

MH30S2A –6–––––

AHP18B2A 0––––––

AHP24B2A 00–––––

AHP30B2A –50––––

AHP36C2A – – 0 0 – – –

AHP48D2C ––––20–

AHP60D2C ––––20–

AV24B2A 00–––––

AV36C2A ––00–––

AV48D2C ––––00–

AV60D2C ––––00–

FC/MC/PC/UC18A3X2A+0––––––

FC/MC/PC/UC18B3X2A+0––––––

FC/MC/PC/UC24A3X2A+02A+0–––––

FC/MC/PC/UC24B3X2A+02A+0–––––

FC/MC/PC/UC30A3X –2A+0–––––

FC/MC/PC/UC30B3X –2A+0–––––

FC/MC/PC/UC32A3X –2A+52A+0––––

FC/MC/PC/UC35B3X –2A+52A+0––––

FC/MC/PC/UC35C3X –2A+52A+0––––

FC/MC/PC/UC37A3X – – 2A + 0 2A + 0 – – –

FC/MC/PC/UC43B3X – – 2A + 0 2A + 0 – – –

FC/MC/PC/UC43C3X – – 2A + 0 2A + 0 – – –

FC/MC/PC/UC48C3X – – – 2A + 3 2C + 0 – –

FC/MC/PC/UC48D3X – – – 2A + 3 2C + 0 – –

FC/PC/UC60C3X – – – 2A + 5 2C + 2 2C + 0 –

FC/MC/PC/UC60D3X – – – 2A + 5 2C + 2 2C + 0 –

FC/PC62D3X –––––2C+22C+0

For Notes See Page 4.

365147-YTG-C-0608

4Johnson Controls Unitary Products

PROCEDURES:

1. Unit factory charge listed on the unit nameplate includes refrigerant for the condenser, the smallest evaporator and 15 feet of inter-

connecting line tubing.

2. Verify the TXV or orifice and additional charge required for specific evaporator coil in the system using the above table.

3. Additional charge for the amount of interconnecting line tubing greater than 15 feet at the rate specified in Physical and Electrical

Data Table.

4. Permanently mark the unit nameplate with the total system charge. Total System Charge = Base Charge (as shipped) + adder for

evaporator + adder for line set.

HC18A3X 2A+0––––––

HC30A3X –2A+0–––––

HC36B3X –2A+52A+0––––

HC42C3X – – 2A + 0 2A + 0 – – –

HC60C3X – – – 2A + 5 2C + 2 2C + 0 –

HD24A3X –2A+4–––––

HD36B3X ––2A+0––––

HD48C3X – – – 2A + 3 – – –

HD60D3X – – – 2A + 5 2C + 2 2C + 0 –

MH24S59 –2A+62A+0––––

MH30S65 –2A+62A+0––––

AHP18B3X 2A+0––––––

AHP24B3X 2A+02A+0–––––

AHP30B3X –2A+52A+0––––

AHP36C3X – – 2A + 0 2A + 0 – – –

AHP42C3X – – – 2A + 0 – – –

AHP48D3X ––––2C+22C+0–

AHP60D3X – – – 2A + 5 2C + 2 2C + 0 –

AV24B2A 2A+02A+0–––––

AV36C2A – – 2A + 0 2A + 0 – – –

AV48D2C – – – 2A + 0 2C + 0 2C + 0 –

AV60D2C ––––2C+02C+0–

F4FP024 0––––––

F4FP030 –0–––––

F4FP040 ––0––––

F5FP045 – – – 2A + 5 2 – –

F5FP048 – – – 2A + 3 0 – –

F5FP060 – – – 2A + 5 2 0 –

F4FV060 – – – 2A + 0 0 0 –

FOOTNOTES:

1.For applications requiring a TXV use 1TVM series kit.

2.Systems matched with furnace or air handlers not equipped with blower-off delays may require blower Time Delay Kit

2FD06700224.

3.PC coils cannot be used in downflow or horizontal applications. FC coils cannot be used in horizontal applications.

Additional R-22 Charge / Orifice Size for Various Matched Systems (Continued)

Outdoor Unit THGD18

S21S1 THGD24

S21S1 THGD30

S21S1 THGD36

S21S1 THGD42

S21S1 THGD48

S21S1 THGD60

S21S1

Required Orifice or TXV 11TVM2A1 1TVM2A1 1TVM2A1 1TVM2A1 1TVM2C1 1TVM2C1 1TVM2C1

Factory Charge, lbs-oz 7 - 3 7 - 7 8 - 12 9 - 1 11 - 14 13 - 4 15 - 5

Indoor Coil2,3 Additional Charge, Oz

365147-YTG-C-0608

Johnson Controls Unitary Products 5

COOLING CAPACITY - With Air Handler Coils

UNIT

MODEL

AIR HANDLER COIL

MODEL1

COOLING

MODEL W RATED

CFM NET MBH SEER EER

TOTAL SENS.

13 SEER HP WITH MA

THGD18S21S1 MA08B 17 FC/MC18B 600 18.0 12.9 13.00 11.00

MA08B 17 FC/MC24B 600 18.0 12.9 13.00 11.00

MA08B 17 FC/MC30B 600 18.0 12.9 13.00 11.00

THGD24S21S1 MA08B 17 FC/MC24B 800 23.0 16.8 13.00 11.00

MA08B 17 FC/MC30B 800 23.0 16.8 13.00 11.00

MA08B 17 FC/MC35B 800 23.0 16.8 13.00 11.00

THGD30S21S1 MA12B 17 FC/MC35B 1000 29.0 21.2 13.00 11.00

MA12B 17 FC/MC43B 1000 29.0 21.2 13.00 11.00

THGD36S21S1 MA12B 17 FC/MC43B 1200 35.0 25.6 13.00 11.00

MA14D 24 FC/MC48D 1200 35.0 25.6 13.00 11.00

MA14D 24 FC/MC60D 1200 35.0 25.6 13.00 11.00

THGD42S21S1

MA14D 24 FC/MC48D 1400 40.0 28.8 13.00 11.00

MA16C 21 FC/MC48C 1400 40.0 28.8 13.00 11.00

MA14D 24 FC/MC60D 1400 40.0 28.8 13.00 11.00

MA16C 21 FC60C 1400 40.0 28.8 13.00 11.00

THGD48S21S1 MA16C 21 FC60C 1600 45.0 33.2 13.00 11.00

MA20D 24 FC/MC60D 1600 45.0 33.2 13.00 11.00

MA20D 24 FC/MC62D 1600 45.0 33.2 13.00 11.00

THGD60S21S1 MA20D 24 FC/MC62D 1800 55.0 40.0 13.00 11.00

13 SEER HP WITH MV - VARIABLE SPEED

THGD18S21S1 MV12B 17 FC/MC18B 600 18.0 13.3 14.00 12.00

MV12B 17 FC/MC24B 600 18.0 13.4 14.00 12.00

MV12B 17 FC/MC30B 600 18.0 13.4 14.00 12.00

THGD24S21S1 MV12B 17 FC/MC24B 800 23.0 17.4 14.00 12.00

MV12B 17 FC/MC30B 800 23.0 17.4 14.00 12.00

MV12B 17 FC/MC35B 800 23.0 17.4 14.00 12.00

THGD30S21S1

MV12B 17 FC/MC35B 1000 29.0 21.8 14.00 12.00

MV16C 21 FC/MC35C 1000 29.0 22.0 14.00 12.00

MV12B 17 FC/MC43B 1000 29.0 21.8 14.00 12.00

MV16C 21 FC/MC43C 1000 29.0 22.0 14.00 12.00

THGD36S21S1

MV12B 17 FC/MC43B 1200 35.0 26.2 14.00 12.00

MV16C 21 FC/MC43C 1200 35.0 26.4 14.00 12.00

MV16C 21 FC/MC48C 1200 35.0 26.4 14.00 12.00

MV16C 21 FC60C 1200 35.0 26.4 14.00 12.00

MV12D 24 FC/MC48D 1200 35.0 26.4 14.00 12.00

MV12D 24 FC/MC60D 1200 35.0 26.4 14.00 12.00

THGD42S21S1

MV16C 21 FC/MC48C 1400 41.0 29.4 13.85 11.00

MV20D 24 FC/MC48D 1400 41.0 29.4 13.85 11.00

MV20D 24 FC/MC60D 1400 41.0 29.4 13.85 11.00

THGD48S21S1 MV16C 21 FC60C 1200 45.0 33.2 13.25 11.00

MV20D 24 FC/MC60D 1600 46.0 33.8 13.25 11.00

MV20D 24 FC/MC62D 1600 45.0 33.6 13.30 11.00

THGD60S21S1 MV20D 24 FC/MC62D 1800 55.0 40.5 13.50 11.00

For Notes See Page 6.

365147-YTG-C-0608

6Johnson Controls Unitary Products

— = Not applicable.

13 SEER HP WITH AV / SV / F*FV - VARIABLE SPEED

THGD18S21S1 AV24 17 – 565 18.0 13.4 14.00 12.00

THGD24S21S1 AV24 17 – 770 23.0 17.5 14.00 12.00

THGD30S21S1 AV36 21 – 1015 29.0 22.0 14.00 12.00

THGD36S21S1 AV36 21 – 1270 35.0 26.2 14.00 12.00

AV/SV48 24 – 1270 35.0 26.2 14.00 12.00

THGD42S21S1 AV/SV48 24 – 1415 41.0 29.4 13.85 11.00

AV/SV60 24 – 1410 41.0 29.4 13.85 11.00

F4FV060 24 – 1410 41.0 29.4 13.85 11.00

THGD48S21S1 AV/SV48 24 – 1610 46.0 33.8 13.25 11.00

AV/SV60 24 – 1655 46.0 33.6 13.25 11.00

F4FV060 24 – 1655 46.0 33.6 13.30 11.00

13 SEER HP WITH AHP / SHP / F*FP

THGD18S21S1 AHP18 17 – 650 18.0 12.9 13.00 11.00

AHP24 17 – 655 18.0 13.0 13.00 11.00

F4FP024 17 – 655 18.0 13.0 13.00 11.00

THGD24S21S1 AHP24 17 – 830 23.0 16.9 13.00 11.00

AHP30 17 – 795 23.0 16.8 13.00 11.00

F4FP030 17 – 795 23.0 16.8 13.00 11.00

THGD30S21S1 AHP30 17 – 1015 29.0 21.2 13.00 11.00

AHP36 21 – 1040 29.0 21.2 13.00 11.00

F4FP040 21 – 1040 29.0 21.2 13.00 11.00

THGD36S21S1

AHP36 21 – 1235 35.0 25.6 13.00 11.00

AHP42 21 – 1255 35.0 25.6 13.00 11.00

AHP/SHP60 24 – 1270 35.0 26.2 14.00 12.00

F4FP045 24 – 1200 35.0 25.6 13.00 11.00

F5FP048 24 – 1200 35.0 26.2 14.00 12.00

F5FP060 24 – 1200 35.0 26.2 14.00 12.00

THGD42S21S1

AHP/SHP48 24 – 1400 40.0 29.0 13.00 11.00

AHP/SHP60 24 – 1400 41.0 29.4 13.85 11.00

F4FP045 24 – 1400 40.0 29.0 13.00 11.00

F5FP048 24 – 1400 41.0 29.4 13.85 11.00

F5FP060 24 – 1400 41.0 29.4 13.85 11.00

THGD48S21S1 AHP/SHP48 24 – 1600 45.0 33.2 13.00 11.00

AHP/SHP60 24 – 1600 46.0 33.6 13.30 11.00

F5FP060 24 – 1600 46.0 33.6 13.30 11.00

Rated in accordance with DOE test procedures (Federal Register 12-27-79 and 3-18-88) and ARI Standards 210.

Cooling MBH based on 80°F entering air temperature, 50% RH, and rated air flow.

EER (Energy Efficiency Ratio) is the total cooling output in BTU’s at 95°F outdoor ambient divided by the total electric power in watt-hours at those conditions.

SEER (Seasonal Energy Efficiency Ratio) is the total cooling output in BTU’s during a normal annual usage period for cooling divided by the total electric power

input in watt-hours during the same period.

1. MC coils available with a factory installed horizontal drain pan. See price pages for specific model number.

COOLING CAPACITY - With Air Handler Coils (Continued)

UNIT

MODEL

AIR HANDLER COIL

MODEL1

COOLING

MODEL W RATED

CFM NET MBH SEER EER

TOTAL SENS.

365147-YTG-C-0608

Johnson Controls Unitary Products 7

COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils

UNIT MODEL FURNACE** COIL

MODEL

COOLING

CFM RANGE

(Min.-max.) WRATED

CFM NET MBH SEER1EER

TOTAL SENS.

THGD18S21S1

450 - 750 14,17 FC/MC/PC/UC18 600 18.0 12.9 13.00 11.00

450 - 750 14,17 FC/MC/PC/UC24 600 18.0 12.9 13.00 11.00

450 - 750 14,17 FC/MC/PC/UC30 600 18.0 12.9 13.00 11.00

450 - 750 14 HC18 600 18.0 12.9 13.00 11.00

THGD24S21S1

600 - 1000 14,17 FC/MC/PC/UC24 800 23.0 16.8 13.00 11.00

600 - 1000 14,17 FC/MC/PC/UC30 800 23.0 16.8 13.00 11.00

600 - 1000 14 FC/MC/PC/UC32 800 23.0 16.8 13.00 11.00

600 - 1000 17,21 FC/MC/PC/UC35 800 23.0 16.8 13.00 11.00

600 - 1000 14 HC30 800 23.0 16.8 13.00 11.00

600 - 1000 17 HC36 800 23.0 16.8 13.00 11.00

600 - 1000 – HD24 800 23.0 16.8 13.00 11.00

600 - 1000 19 MH24S 800 23.0 16.8 13.00 11.00

600 - 1000 19 MH30S 800 23.0 16.8 13.00 11.00

THGD30S21S1

800 - 1200 14 FC/MC/PC/UC32 1000 29.0 21.2 13.00 11.00

800 - 1200 17,21 FC/MC/PC/UC35 1000 29.0 21.2 13.00 11.00

800 - 1200 14 FC/MC/PC/UC37 1000 29.0 21.2 13.00 11.00

800 - 1200 17,21 FC/MC/PC/UC43 1000 29.0 21.2 13.00 11.00

800 - 1200 17 HC36 1000 29.0 21.2 13.00 11.00

800 - 1200 21 HC42 1000 29.0 21.2 13.00 11.00

800 - 1200 – HD36 1000 29.0 21.2 13.00 11.00

800 - 1200 19 MH24S 1000 29.0 21.2 13.00 11.00

800 - 1200 19 MH30S 1000 29.0 21.2 13.00 11.00

THGD36S21S1

1000 - 1400 14 FC/MC/PC/UC37 1200 35.0 25.6 13.00 11.00

1000 - 1400 17,21 FC/MC/PC/UC43 1200 35.0 25.6 13.00 11.00

1000 - 1400 21,24 FC/MC/PC/UC48 1200 35.0 25.6 13.00 11.00

1000 - 1400 21,24 FC/MC/PC/UC60 1200 35.0 25.6 13.00 11.00

1000 - 1400 21 HC42 1200 35.0 25.6 13.00 11.00

1000 - 1400 24 HC60 1200 35.0 25.6 13.00 11.00

1000 - 1400 – HD48 1200 35.0 25.6 13.00 11.00

1000 - 1400 – HD60 1200 35.0 25.6 13.00 11.00

THGD42S21S1

1200 - 1600 21,24 FC/MC/PC/UC48 1400 40.0 28.8 13.00 11.00

1200 - 1600 21,24 FC/MC/PC/UC60 1400 40.0 28.8 13.00 11.00

1200 - 1600 24 HC60 1400 40.0 28.8 13.00 11.00

1200 - 1600 – HD60 1400 40.0 28.8 13.00 11.00

THGD48S21S1

1400 - 1800 21,24 FC/MC/PC/UC60 1600 45.0 33.2 13.00 11.00

1400 - 1800 24 FC/MC62 1600 45.0 33.2 13.00 11.00

1400 - 1800 24 HC60 1600 45.0 33.2 13.00 11.00

1400 - 1800 – HD60 1600 45.0 33.2 13.00 11.00

THGD60S21S1 1600 - 2000 24 FC/MC62 1800 55.0 40.0 13.00 11.00

1. Requires a 2FD06700224 Blower Time Delay unless a standard furnace is equipped with one.

** Refer to Quick Selection Chart for specific furnace match-up.

365147-YTG-C-0608

8Johnson Controls Unitary Products

COOLING CAPACITY - With Variable Speed Furnaces

UNIT MODEL VARIABLE SPEED

FURNACE MODEL COIL

MODEL1WCOOLING

RATED

CFM Net MBH SEER EER

TOTAL SENS.

13 SEER HP WITH VARIABLE SPEED FURNACES2

THGD18S21S1

PV8*A12 FC/MC/PC/UC18A 14 600 18.0 13.4 14.00 12.00

PV9*A12 FC/MC/PC/UC18A 14 600 18.0 13.3 14.00 12.00

P(C,V)9*B12 FC/MC/PC/UC18B 17 600 18.0 13.4 14.00 12.00

PV8*A12 FC/MC/PC/UC24A 14 600 18.0 13.4 14.00 12.00

PV9*A12 FC/MC/PC/UC24A 14 600 18.0 13.3 14.00 12.00

P(C,V)9*B12 FC/MC/PC/UC24B 17 600 18.0 13.4 14.00 12.00

PV8*A12 FC/MC/PC/UC30A 14 600 18.0 13.4 14.00 12.00

PV9*A12 FC/MC/PC/UC30A 14 600 18.0 13.3 14.00 12.00

P(C,V)9*B12 FC/MC/PC/UC30B 17 600 18.0 13.4 14.00 12.00

PV8*A12 HC18 14 600 18.0 13.4 14.00 12.00

PV9*A12 HC18 14 600 18.0 13.3 14.00 12.00

THGD24S21S1

PV8*A12 FC/MC/PC/UC24A 14 800 23.0 17.3 14.00 12.00

PV9*A12 FC/MC/PC/UC24A 14 800 23.0 17.3 14.00 12.00

P(C,V)9*B12 FC/MC/PC/UC24B 17 800 23.0 17.3 14.00 12.00

PV8*A12 FC/MC/PC/UC30A 14 800 23.0 17.3 14.00 12.00

PV9*A12 FC/MC/PC/UC30A 14 800 23.0 17.3 14.00 12.00

P(C,V)9*B12 FC/MC/PC/UC30B 17 800 23.0 17.3 14.00 12.00

PV8*A12 FC/MC/PC/UC32A 14 800 23.0 17.3 14.00 12.00

PV9*A12 FC/MC/PC/UC32A 14 800 23.0 17.3 14.00 12.00

P(C,V)9*B12 FC/MC/PC/UC35B 17 800 23.0 17.3 14.00 12.00

PV8*A12 HC30 14 800 23.0 17.3 14.00 12.00

PV9*A12 HC30 14 800 23.0 17.3 14.00 12.00

P(C,V)9*B12 HC36 17 800 23.0 17.3 14.00 12.00

THGD30S21S1

PV8*A12 FC/MC/PC/UC32A 14 1000 29.0 21.6 14.00 12.00

PV9*A12 FC/MC/PC/UC32A 14 1000 29.0 21.6 14.00 12.00

PV8*B16 FC/MC/PC/UC35B 17 1000 29.0 22.0 14.00 12.00

PV8*C16 FC/MC/PC/UC35C 21 1000 29.0 22.0 14.00 12.00

PV8*C20 FC/MC/PC/UC35C 21 1120 29.0 21.6 14.00 12.00

P(C,V)9*B12 FC/MC/PC/UC35B 17 1000 29.0 21.6 14.00 12.00

P(C,V)9*C16 FC/MC/PC/UC35C 21 1010 29.0 21.8 14.00 12.00

PV8*A12 FC/MC/PC/UC37A 14 1000 29.0 21.6 14.00 12.00

PV9*A12 FC/MC/PC/UC37A 14 1000 29.0 21.6 14.00 12.00

PV8*B16 FC/MC/PC/UC43B 17 1000 29.0 22.0 14.00 12.00

PV8*C16 FC/MC/PC/UC43C 21 1000 29.0 22.0 14.00 12.00

PV8*C20 FC/MC/PC/UC43C 21 1120 29.0 21.6 14.00 12.00

P(C,V)9*B12 FC/MC/PC/UC43B 17 1000 29.0 21.6 14.00 12.00

P(C,V)9*C16 FC/MC/PC/UC43C 21 1010 29.0 21.8 14.00 12.00

PV8*B16 HC36 17 1000 29.0 22.0 14.00 12.00

P(C,V)9*B12 HC36 17 1000 29.0 21.6 14.00 12.00

PV8*C16 HC42 21 1000 29.0 22.0 14.00 12.00

PV8*C20 HC42 21 1120 29.0 21.6 14.00 12.00

P(C,V)9*C16 HC42 21 1010 29.0 21.8 14.00 12.00

For Notes See Page 9.

365147-YTG-C-0608

Johnson Controls Unitary Products 9

THGD36S21S1

PV8*A12 FC/MC/PC/UC37A 14 1200 35.0 26.0 13.55 11.00

PV9*A12 FC/MC/PC/UC37A 14 1200 35.0 25.8 13.25 11.00

PV8*B16 FC/MC/PC/UC43B 17 1200 35.0 26.2 14.00 12.00

PV8*C16 FC/MC/PC/UC43C 21 1200 35.0 26.2 14.00 12.00

PV8*C20 FC/MC/PC/UC43C 21 1200 35.0 26.0 13.85 12.00

P(C,V)9*B12 FC/MC/PC/UC43B 17 1200 35.0 26.0 13.70 12.00

P(C,V)9*C16 FC/MC/PC/UC43C 21 1175 35.0 26.2 14.00 12.00

P(C,V)9*C20 FC/MC/PC/UC43C 21 1200 35.0 26.2 14.00 12.00

PV8*C16 FC/MC/PC/UC48C 21 1200 35.0 26.4 14.00 12.00

PV8*C20 FC/MC/PC/UC48C 21 1200 35.0 26.0 13.90 12.00

P(C,V)9*C16 FC/MC/PC/UC48C 21 1175 35.0 26.2 14.00 12.00

P(C,V)9*C20 FC/MC/PC/UC48C 21 1200 35.0 26.2 14.00 12.00

P(C,V)9*D20 FC/MC/PC/UC48D 24 1200 35.0 26.2 14.00 12.00

PV8*C16 HC42 21 1200 35.0 26.2 14.00 12.00

PV8*C20 HC42 21 1200 35.0 26.0 13.90 12.00

P(C,V)9*C16 HC42 21 1175 35.0 26.2 14.00 12.00

P(C,V)9*C20 HC42 21 1200 35.0 26.2 14.00 12.00

THGD42S21S1

PV8*C16 FC/MC/PC/UC48C 21 1400 40.0 29.2 13.45 11.00

PV8*C20 FC/MC/PC/UC48C 21 1400 41.0 29.2 13.55 11.00

P(C,V)9*C16 FC/MC/PC/UC48C 21 1415 40.0 29.0 13.25 11.00

P(C,V)9*C20 FC/MC/PC/UC48C 21 1400 40.0 29.2 13.45 11.00

P(C,V)9*D20 FC/MC/PC/UC48D 24 1400 40.0 29.0 13.35 11.00

PV8*C16 FC/PC/UC60C 21 1400 41.0 29.2 13.45 11.00

PV8*C20 FC/PC/UC60C 21 1400 41.0 29.2 13.60 11.00

P(C,V)9*C16 FC/PC/UC60C 21 1415 40.0 29.0 13.25 11.00

P(C,V)9*C20 FC/PC/UC60C 21 1400 41.0 29.2 13.45 11.00

P(C,V)9*D20 FC/MC/PC/UC60D 24 1400 40.0 29.0 13.40 11.00

THGD48S21S1

PV8*C16 FC/PC/UC60C 21 1500 45.0 33.4 13.25 11.00

PV8*C20 FC/PC/UC60C 21 1610 45.0 33.4 13.25 11.00

P(C,V)9*C16 FC/PC/UC60C 21 1600 45.0 33.2 13.25 11.00

P(C,V)9*C20 FC/PC/UC60C 21 1600 45.0 33.4 13.25 11.00

P(C,V)9*D20 FC/MC/PC/UC60D 24 1600 45.0 33.4 13.25 11.00

PV8*C20 FC/MC62D 24 1610 45.0 33.4 13.25 11.00

P(C,V)9*C20 FC/MC62D 24 1600 45.0 33.4 13.25 11.00

P(C,V)9*D20 FC/MC62D 24 1600 45.0 33.4 13.25 11.00

THGD60S21S1 PV8*C20 FC/MC62D 24 1730 55.0 40.0 13.50 11.00

P(C,V)9*C20 FC/MC62D 24 1620 54.0 40.5 13.50 11.00

P(C,V)9*D20 FC/MC62D 24 1620 54.0 40.5 13.50 11.00

1. MC coils available with a factory installed horizontal drain pan. See price pages for specific model number.

2. Variable speed furnaces have B.O.D (Blower on Delay) standard.

COOLING CAPACITY - With Variable Speed Furnaces (Continued)

UNIT MODEL VARIABLE SPEED

FURNACE MODEL COIL

MODEL1WCOOLING

RATED

CFM Net MBH SEER EER

TOTAL SENS.

13 SEER HP WITH VARIABLE SPEED FURNACES2

365147-YTG-C-0608

10 Johnson Controls Unitary Products

HEATING PERFORMANCE - With Air Handler

UNIT

MODEL* AIR

HANDLER COIL1

MODEL

ARI HEATING2

47°F17°FHSPF

MBH COP KW MBH COP KW STD

13 SEER HP WITH MA

THGD18S21S1 MA08B FC/MC18B 17.0 3.26 1.54 9.0 2.18 1.23 7.70

MA08B FC/MC24B 17.0 3.26 1.54 9.0 2.18 1.23 7.70

MA08B FC/MC30B 17.0 3.26 1.54 9.0 2.18 1.23 7.70

THGD24S21S1 MA08B FC/MC24B 23.0 3.72 1.82 12.0 2.44 1.47 7.70

MA08B FC/MC30B 23.0 3.72 1.82 12.0 2.44 1.47 7.70

MA08B FC/MC35B 23.0 3.72 1.82 12.0 2.44 1.47 7.70

THGD30S21S1 MA12B FC/MC35B 29.0 3.56 2.40 15.0 2.24 1.96 7.70

MA12B FC/MC43B 29.0 3.56 2.40 15.0 2.24 1.96 7.70

THGD36S21S1 MA12B FC/MC43B 34.0 3.58 2.78 21.0 2.52 2.39 8.50

MA14D FC/MC48D 34.0 3.58 2.78 21.0 2.52 2.39 8.50

MA14D FC/MC60D 34.0 3.58 2.78 21.0 2.52 2.39 8.50

THGD42S21S1

MA14D FC/MC48D 42.0 3.52 3.45 25.0 2.60 2.81 8.50

MA16C FC/MC48C 42.0 3.52 3.45 25.0 2.60 2.81 8.50

MA14D FC/MC60D 42.0 3.52 3.45 25.0 2.60 2.81 8.50

MA16C FC60C 42.0 3.52 3.45 25.0 2.60 2.81 8.50

THGD48S21S1 MA16C FC60C 48.0 3.40 4.13 37.0 2.76 3.97 7.70

MA20D FC/MC60D 48.0 3.40 4.13 37.0 2.76 3.97 7.70

MA20D FC/MC62D 48.0 3.40 4.13 37.0 2.76 3.97 7.70

THGD60S21S1 MA20D FC/MC62D 58.0 3.46 4.91 40.0 2.36 4.90 7.70

13 SEER HP WITH MV - VARIABLE SPEED

THGD18S21S1 MV12B FC/MC18B 17.0 3.44 1.43 9.0 2.30 1.10 8.00

MV12B FC/MC24B 17.0 3.46 1.41 9.0 2.30 1.10 8.00

MV12B FC/MC30B 17.0 3.46 1.41 9.0 2.30 1.10 8.00

THGD24S21S1 MV12B FC/MC24B 23.0 4.02 1.64 12.0 2.62 1.30 8.10

MV12B FC/MC30B 23.0 4.02 1.64 12.0 2.62 1.30 8.10

MV12B FC/MC35B 22.0 4.02 1.63 12.0 2.64 1.29 8.25

THGD30S21S1

MV12B FC/MC35B 29.0 3.76 2.22 14.0 2.36 1.78 7.95

MV16C FC/MC35C 28.0 3.76 2.21 14.0 2.36 1.77 7.95

MV12B FC/MC43B 29.0 3.74 2.24 14.0 2.36 1.78 7.95

MV16C FC/MC43C 28.0 3.78 2.20 14.0 2.36 1.77 7.95

THGD36S21S1

MV12B FC/MC43B 33.0 3.72 2.63 20.0 2.62 2.23 8.80

MV16C FC/MC43C 33.0 3.80 2.55 20.0 2.66 2.19 8.90

MV16C FC/MC48C 33.0 3.82 2.54 20.0 2.68 2.16 9.00

MV16C FC60C 33.0 3.82 2.54 20.0 2.68 2.16 9.00

MV12D FC/MC48D 33.0 3.82 2.54 20.0 2.68 2.16 9.00

MV12D FC/MC60D 33.0 3.78 2.55 20.0 2.66 2.18 8.90

THGD42S21S1

MV16C FC/MC48C 40.0 3.68 3.18 24.0 2.72 2.60 8.80

MV16C FC60C 40.0 3.68 3.18 24.0 2.72 2.60 8.80

MV20D FC/MC48D 40.0 3.70 3.20 24.0 2.74 2.58 8.85

MV20D FC/MC60D 40.0 3.70 3.20 24.0 2.74 2.58 8.85

THGD48S21S1 MV16C FC60C 47.5 3.44 4.04 37.2 2.78 2.92 7.80

MV20D FC/MC60D 48.0 3.48 3.99 37.0 2.82 3.84 8.00

MV20D FC/MC62D 47.5 3.50 3.98 37.0 2.82 3.84 8.10

THGD60S21S1 MV20D FC/MC62D 58.0 3.52 4.78 39.0 2.40 4.76 7.75

For Notes See Page 11.

Otros manuales para THGD18 THRU 60

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Bomba de calor de York

York

York Sunline 2000 BCH 036 Manual de usuario

York

York BUZ024 Manual de usuario

York

York SUNLINE 2000 B1HN090 Manual de usuario

York

York Sunline 2000 Manual de usuario

York

York BQ240 Guía de inicio rápido

York

York PHE6B36 Manual de usuario

York

York LX series Guía de inicio rápido

York

York B1HP024 THRU 048 Guía de inicio rápido

York

York 14 SEER-YHE SERIES Manual de usuario

York

York YD480 Series Manual de usuario

York

York YMA024 Guía de inicio rápido

York

York HMH7 Series Guía de inicio rápido

York

York EADC - 09 FSAAR Manual de usuario

York

York YHJF60 Manual de usuario

York

York Sunline 2000 Manual de usuario

York

York YCUL0026 Manual de usuario

York

York YMB018 THRU 060 Guía de inicio rápido

York

York SINGLE PACKAGE HEAT PUMP UNITS Instrucciones de funcionamiento e instalación

York

York YLUA0248 Series Manual del propietario

York

York E4TS030 Manual de usuario

York

York YCUZ330A3 Manual del propietario

York

York B1HA018A06 Manual de usuario

York

York YJ-30 Guía de inicio rápido

York

York E1FB012 Manual de usuario

Manuales populares de Bomba de calor de otras marcas

MICROWELL

MICROWELL HP 1000 GREEN Manual de usuario

Sanyo

Sanyo SAP120FCH Manual de usuario

Daikin

Daikin EHYHBH05AA Manual de usuario

Panasonic

Panasonic WH-SDF03E3E5 Guía

Bryant

Bryant 544B Manual de usuario

Airxcel

Airxcel 45000 Series Manual

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Manual de usuario

Dimplex

Dimplex LI 16I-TUR Guía del usuario

Carrier

Carrier WSHP Open v3 Guía de configuración rápida

TGM

TGM CTV14CN018A Manual de usuario

Carrier

Carrier 38MGQ Series Manual de usuario

Kokido

Kokido K2O K880BX/EU Guía de solución de problemas

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Guía rápida

Carrier

Carrier 48EZN Manual de usuario

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Instrucciones de funcionamiento

Ariston

Ariston NIMBUS Manual de usuario

Weishaupt

Weishaupt WWP L 7 Guía del usuario

GE Zoneline AZ85H09EAC Manual de usuario
