TECHNICAL GUIDE

SPLIT-SYSTEM HEAT PUMPS

13 SEER – R-410A

MODELS:

YHJD18 THRU 60

(1.5 THRU 5 NOMINAL TONS - 1PHASE)

Due to continuous product improvement, specifications

are subject to change without notice.

Visit us on the web at www.york.com

Additional rating information can be found at

www.ahridirectory.org

WARRANTY

Standard 5-year limited parts warranty.

10-year limited compressor warranty.

Extended 10-year limited parts warranty when product is

registered online within 90 days of purchase for replace-

ment or closing for new home construction.

LISTED

397855-YTG-G-0509

FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE

DESCRIPTION

The 13 SEER Series unit is the outdoor part of a versatile cli-

mate system. It is designed with a matching indoor coil compo-

nent from Johnson Controls Unitary Products. Available for

typical applications this climate system is supported with acces-

sories and documents to serve specific functions.

FEATURES

•Quality Condenser Coils - The coil is constructed of copper

tubing and enhanced aluminum fins for increased efficiency

and corrosion protection.

•Protected Compressor - The compressor is internally pro-

tected against high pressure, temperature, and externally by

a factory installed high pressure switch. This is accomplished

by the simultaneous operation of high pressure relief valve

and a temperature sensor which protects the compressor if

undesirable operating conditions occur. A liquid line filter-

drier further protects the compressor.

•Durrable Finish - The cabinet is made of pre-painted steel.

The pre-treated galvanized steel provides a better paint to

steel bond, which resists corrosion and rust creep. Special

primer formulas and matted-textured finish insure less fading

when exposed to sunlight.

•Lower Installed Cost - Installation time and costs are

reduced by easy power and control wiring connections.

Available in sweat connect models only. The unit contains

enough refrigerant for matching indoor coils and 15 feet of

interconnecting piping. The small base dimension means

less space is required on the ground or roof.

•Top Discharge - The warm air from the top mounted fan is

blown up away from the structure and any landscaping. This

allows compact location on multi-unit applications.

•Low Operating Sound Level - The upward air flow carries

the normal operating noise away from the living area. The

rigid top panel effectively isolates any motor sound. Isolator

mounted compressor and the rippled fins of the condenser

coil muffle the normal fan motor and compressor operating

sounds.

•Low Maintenance - Long life permanently lubricated motor-

bearings need no annual servicing.

•Easy Service Access - Fully exposed refrigerant connec-

tions, and a single panel covering the electrical controls

make for easy servicing of the unit.

•Secured Service Valves - Secured re-usable service valves

are provided on both the liquid and vapor sweat connections

for ease of evacuating and charging.

•U.L. and C.U.L. listed - approved for outdoor application.

•Agency Listed -U.L. and C.U.L. listed - approved for out-

door application. The unit is certified in accordance with the

Unitary Small Equipment certification program, which is

based on ARI Standard 210/240.

397855-YTG-G-0509

2Johnson Controls Unitary Products

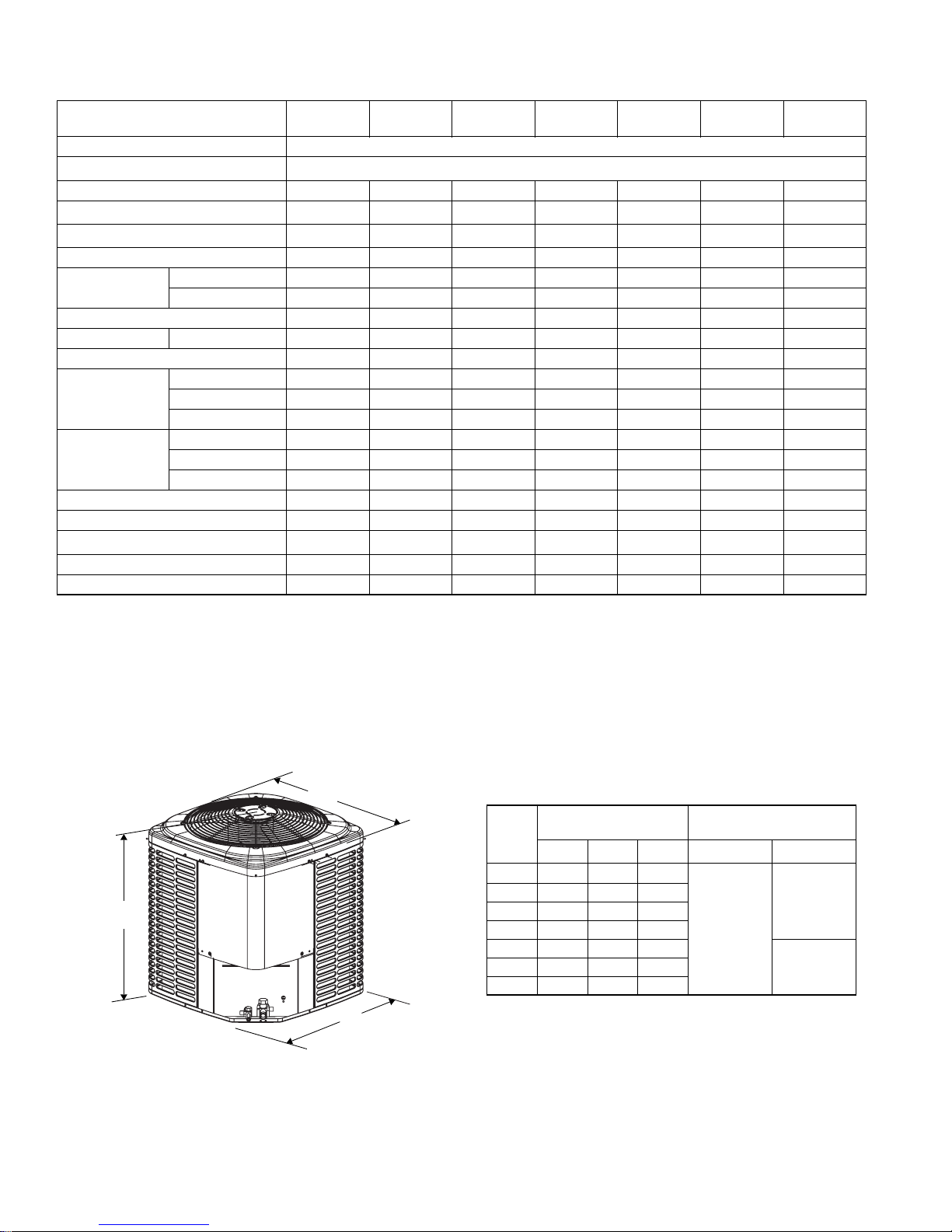

All dimensions are in inches. They are subject to change with-

out notice. Certified dimensions will be provided upon request.

Physical and Electrical Data

MODEL YHJD18

S41S1 YHJD24

S41S1 YHJD30

S41S1 YHJD36

S41S1 YHJD42

S41S1 YHJD48

S41S1 YHJD60

S41S2

Unit Supply Voltage 208-230V, 1 60Hz

Normal Voltage Range 1187 to 252

Minimum Circuit Ampacity 9.6 12.0 15.4 19.6 28.6 30.9 37.4

Max. Overcurrent Device Amps 215 20 25 30 50 50 60

Min. Overcurrent Device Amps 315 15 20 20 30 35 40

Compressor Type Recip Recip Recip Recip Scroll Scroll Scroll

Compressor Amps Rated Load 7.12 8.9 11.65 14.72 21.76 23.61 28.8

Locked Rotor 47.0 48.0 60.0 83.0 105.0 150.0 150.0

Crankcase Heater Yes Yes Yes Yes No No No

Fan Motor Amps Rated Load 0.70 0.80 0.80 1.5 1.5 1.5 1.5

Fan Diameter Inches 24 24 24 24 24 24 24

Fan Motor Rated HP 1/10 1/8 1/8 1/4 1/4 1/4 1/4

Nominal RPM 825 1075 1075 850 850 850 850

Nominal CFM 2200 2900 3100 3800 3800 3600 3600

Coil Face Area Sq. Ft. 15.7 18.3 21.0 23.58 23.58 23.58 23.6

Rows Deep 1 1 1 1 1 2 2

Fin / Inches 22 22 22 22 22 18 18

Liquid Line Set OD (Field Installed) 3/8 3/8 3/8 3/8 3/8 3/8 3/8

Vapor Line Set OD (Field Installed) 3/4 3/4 3/4 3/4 7/8 7/8 7/8

Unit Charge (Lbs. - Oz.) 46 - 5 8 - 7 9 - 12 9 - 15 9 - 12 13 - 9 13 - 6

Charge Per Foot, Oz. .62 .62 .62 .62 .67 .67 0.67

Operating Weight Lbs. 172 184 196 208 208 275 290

1. Rated in accordance with ARI Standard 110, utilization range “A”.

2. Dual element fuses or HACR circuit breaker. Maximum allowable overcurrent protection.

3. Dual element fuses or HACR circuit breaker. Minimum recommended overcurrent protection.

4. The Unit Charge is correct for the outdoor unit, matched indoor coil and 15 feet of refrigerant tubing. For tubing lengths other than 15 feet, add

or subtract the amount of refrigerant, using the difference in length multiplied by the per foot value.

Unit

Model

Dimensions

(Inches) Refrigerant Connection

Service Valve Size

1. Including Fan Guard.

B C Liquid Vapor

18 28 34 34

3/8”

3/4”

24 32 34 34

30 36 34 34

36 40 34 34

42 40 34 34 7/8”48 40 34 34

60 40 34 34

Johnson Controls Unitary Products 3

PROCEDURES:

1. Unit factory charge listed on the unit nameplate includes refrigerant for the condenser, the smallest evaporator and 15 feet of interconnecting

line tubing.

2. Verify the TXV and additional charge required for specific evaporator coil in the system using the above table.

3. Additional charge for the amount of interconnecting line tubing greater than 15 feet at the rate specified in Physical and Electrical Data Table.

4. For TXV matches requiring additional charge, the refrigerant needs to be weighed in for specific coil match and lineset length.

5. Permanently mark the unit nameplate with the total system charge. Total System Charge = Base Charge (as shipped) + adder for evaporator +

adder for line set.

System Charge for Various Matched Systems

Outdoor Unit YHJD18S41S1 YHJD24S41S1 YHJD30S41S1 YHJD36S41S1 YHJD42S41S1 YHJD48S41S1 YHJD60S41S2

Required Orifice or TXV 11TVM04E1 1TVM04G1 1TVM04G1 1TVM04H1 1TVM04H1 1TVM04J1 1TVM04K1

Factory Charge, lbs-oz 6 - 5 8 - 7 9 - 12 9 - 15 9 - 12 13 - 9 13 - 6

Indoor Coil2,3 Additional Charge, Oz

FC/MC/PC/UC18AB 0––––––

FC/MC/PC/UC24AB 4––––––

FC/MC/PC30AB 4––––––

FC/MC/PC32A –0–––––

FC/MC/PC35BC –0–––––

FC/MC/PC37A –600–––

FC/MC/PC43BC –600–––

FC/MC/PC/UC48CD – – – 10 0 – –

FC/MC/PC/UC60CD ––––00–

FC/MC62D –––––120

HC18A 1––––––

HC30A 100–––––

HC36B –0–––––

HC42 ––00–––

HC60 ––––00–

HD24 14––––––

HD36 –2–––––

HD48 ––88–––

HD60 ––––07–

AHP18 0––––––

AHP30 –0–––––

AHP36 ––00–––

AHP/SHP48 ––––00–

AHP/SHP60 –––––0–

AHX30 –0–––––

AHX36 –600–––

AHX42 ––––0––

AHX48 ––––00–

AHX60 ––––––0

AV*24 3––––––

AV*36 –600–––

AV/SV*48 ––––00–

AV/SV*60 –––––0–

F4FP24 0––––––

F4FP45 –––00––

F5FP48 ––––00–

F4FV60 –––––0–

F5FP60 –––––0–

F6FP030 –+0–––––

F6FP036 –+0+0––––

F6FP042 – – – + 10 + 0 – –

F6FP048 ––––+0+0–

F6FP060 ––––––0

FOOTNOTES:

1. For applications requiring a TXV use 1TVM0 series kit.

2. Systems matched with furnace or air handlers not equipped with blower-off delays may require blower Time Delay Kit 2FD06700224.

3. PC coils cannot be used in downflow or horizontal applications. FC coils cannot be used in horizontal applications.

397855-YTG-G-0509

4Johnson Controls Unitary Products

COOLING CAPACITY - With Air Handler Coils

UNIT

MODEL

AIR HANDLER COIL

MODEL1

COOLING

MODEL W RATED

CFM NET MBH SEER EER

TOTAL SENS.

13 SEER HP WITH MA

YHJD18S41S1 MA08B 17 FC/MC/PC18B 600 17.0 12.6 13.00 11.00

MA08B 17 FC/MC/PC24B 600 17.0 12.9 13.50 11.00

YHJD24S41S1 MA08B 17 FC/MC/PC35B 800 23.0 17.5 13.00 11.00

YHJD30S41S1 MA12B 17 FC/MC/PC43B 1000 29.0 23.4 13.00 11.00

YHJD36S41S1 MA12B 17 FC/MC/PC43B 1200 35.0 26.8 13.00 11.00

MA14D 24 FC/MC/PC48D 1200 35.0 27.0 13.00 11.00

YHJD42S41S1

MA14D 24 FC/MC/PC48D 1400 41.5 31.4 13.00 11.00

MA16C 21 FC/MC/PC48C 1400 41.5 31.4 13.00 11.00

MA14D 24 FC/MC/PC60D 1400 41.0 31.2 13.00 11.00

MA16C 21 FC/MC/PC60C 1400 41.0 31.2 13.00 11.00

YHJD48S41S1 MA16C 21 FC/MC/PC60C 1600 47.0 35.6 13.00 11.00

MA20D 24 FC/MC/PC60D 1600 47.0 35.6 13.00 11.00

MA20D 24 MC62D 1600 47.0 35.6 13.00 11.00

YHJD60S41S1 MA20D 24 MC62D 1800 54.0 42.5 13.00 11.00

13 SEER HP WITH MV - VARIABLE SPEED

YHJD18S41S1 MV12B 17 FC/MC/PC18B 600 17.0 12.9 14.00 12.00

MV12B 17 FC/MC/PC24B 600 17.0 13.2 14.00 12.00

YHJD24S41S1 MV12B 17 FC/MC/PC35B 800 23.0 17.9 14.00 12.00

MV16C 21 FC/MC/PC35C 800 23.0 17.9 14.00 12.00

YHJD30S41S1 MV16C 21 FC/MC/PC35C 1000 29.0 23.6 14.00 12.00

MV12B 17 FC/MC/PC43B 1000 29.0 23.8 14.00 12.00

MV16C 21 FC/MC/PC43C 1000 29.0 24.0 14.00 12.00

YHJD36S41S1

MV12B 17 FC/MC/PC43B 1200 35.0 27.0 13.50 11.50

MV16C 21 FC/MC/PC43C 1200 35.0 27.2 13.50 11.50

MV12D 24 FC/MC/PC48D 1150 35.0 26.8 13.50 11.50

MV16C 21 FC/MC/PC48C 1200 35.0 27.4 13.50 11.50

MV20D 24 FC/MC/PC48D 1200 35.0 27.4 13.50 11.50

YHJD42S41S1 MV16C 21 FC/MC/PC48C 1400 42.0 31.8 14.00 12.00

MV20D 24 FC/MC/PC48D 1400 42.0 32.0 14.00 12.00

MV20D 24 FC/MC/PC60D 1400 41.5 31.8 14.00 12.00

YHJD48S41S1 MV20D 24 FC/MC/PC60D 1600 47.5 36.0 14.00 11.80

MV20D 24 MC62D 1600 47.5 36.0 14.00 12.00

YHJD60S41S1 MV20D 24 MC62D 1800 54.5 43.0 13.50 11.60

13 SEER HP WITH AV / SV / F*FV - VARIABLE SPEED

YHJD18S41S1 AV*24 17 – 550 17.0 13.0 14.00 12.00

YHJD24S41S1 AV*36 21 – 725 24.0 17.8 14.50 12.50

YHJD30S41S1 AV*36 21 – 1000 29.0 24.4 14.00 12.00

YHJD36S41S1 AV*36 21 – 1190 35.0 28.2 14.00 12.00

YHJD42S41S1 AV/SV*48 24 – 1385 41.5 31.8 14.25 12.00

YHJD48S41S1 AV/SV*48 24 – 1600 47.5 36.2 14.00 11.80

AV/SV*60 24 – 1560 47.5 35.0 14.50 12.00

F4FV060 24 – 1600 47.5 36.2 14.00 11.80

For Notes See Page 5.

Johnson Controls Unitary Products 5

— = Not applicable.

13 SEER HP WITH AHP / SHP / AHX / F*FP

YHJD18S41S1 AHP18 17 – 600 17.0 12.7 13.00 11.00

F4FP024 17 – 600 17.0 12.6 13.00 11.00

YHJD24S41S1

AHP30 17 – 800 23.0 17.2 13.00 11.00

AHX30 17 – 820 24.0 18.5 14.50 12.50

AHX36 21 – 815 24.0 18.9 14.50 12.50

F6FP030 17 – 850 24.0 18.5 14.25 12.00

F6FP036 21 – 855 24.0 18.6 14.50 12.20

YHJD30S41S1 AHP36 21 – 1000 29.0 23.2 13.00 11.00

AHX36 21 – 1005 29.6 24.6 14.30 12.00

F6FP036 21 – 980 29.0 23.4 14.00 12.00

YHJD36S41S1

AHP36 21 – 1200 35.0 26.8 13.00 11.00

AHX36 21 – 1225 35.0 28.4 14.00 12.00

F4FP045 24 – 1200 35.0 26.8 13.00 11.00

F6FP042 21 – 1405 35.0 31.2 14.00 12.00

YHJD42S41S1

AHP/SHP48 21 – 1400 41.5 31.4 13.00 11.00

AHX42 21 – 1395 41.5 32.0 14.25 12.00

AHX48 24 – 1445 41.5 32.8 14.25 12.00

F4FP045 24 – 1400 41.0 31.2 13.00 11.00

F5FP048 24 – 1450 41.0 32.6 13.00 11.00

F6FP042 21 – 1455 41.5 32.6 14.25 12.00

F6FP048 24 – 1380 41.5 32.4 14.00 11.50

YHJD48S41S1

AHP/SHP60 24 – 1600 47.0 36.0 14.00 11.50

AHX48 24 – 1660 48.0 36.4 14.50 12.00

F5FP048 24 – 1700 47.5 36.6 14.00 11.50

F5FP060 24 – 1700 47.5 36.8 14.00 11.50

F6FP048 24 – 1625 48.0 36.4 14.25 12.00

YHJD60S41S1 AHX60 24 – 1680 54.5 42.0 13.50 11.50

F6FP060 24 – 1710 56.5 42.0 13.50 11.50

Rated in accordance with DOE test procedures (Federal Register 12-27-79 and 3-18-88) and ARI Standards 210.

Cooling MBH based on 8°F entering air temperature, 50% RH, and rated air flow.

EER (Energy Efficiency Ratio) is the total cooling output in BTU’s at 95°F outdoor ambient divided by the total electric power in watt-hours at those conditions.

SEER (Seasonal Energy Efficiency Ratio) is the total cooling output in BTU’s during a normal annual usage period for cooling divided by the total electric power

input in watt-hours during the same period.

1. MC coils available with a factory installed horizontal drain pan. See price pages for specific model number.

COOLING CAPACITY - With Air Handler Coils (Continued)

UNIT

MODEL

AIR HANDLER COIL

MODEL1

COOLING

MODEL W RATED

CFM NET MBH SEER EER

TOTAL SENS.

397855-YTG-G-0509

6Johnson Controls Unitary Products

COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils

UNIT MODEL

FURNACE** COIL

MODEL

COOLING

CFM RANGE

(Min.-max.) WRATED

CFM NET MBH SEER1EER

TOTAL SENS.

YHJD18S41S1

450 - 750 14,17 FC/MC/PC18 600 17.0 12.6 13.00 11.00

450 - 750 14,17 FC/MC/PC24 600 17.0 12.9 13.50 11.00

450 - 750 14 HC18 600 17.0 12.6 13.00 11.00

450 - 750 14 HC30 600 17.0 12.8 13.00 11.00

450 - 750 14 HD24 600 17.0 13.0 13.50 11.00

YHJD24S41S1

600 - 1000 14 FC/MC/PC32 800 23.0 17.5 13.00 11.00

600 - 1000 17,21 FC/MC/PC35 800 23.0 17.5 13.00 11.00

600 - 1000 14 HC30 800 23.0 17.2 13.00 11.00

600 - 1000 17 HC36 800 23.0 17.5 13.00 11.00

600 - 1000 14,17 HD36 800 23.0 16.4 13.00 11.00

YHJD30S41S1

800 - 1200 14 FC/MC/PC37 1000 29.0 23.4 13.00 11.00

800 - 1200 17,21 FC/MC/PC43 1000 29.0 23.4 13.00 11.00

800 - 1200 21 HC42 1000 29.0 23.4 13.00 11.00

800 - 1200 21,24 HD48 1000 29.0 23.4 13.00 11.00

YHJD36S41S1

1000 - 1400 14 FC/MC/PC37 1200 35.0 26.6 13.00 11.00

1000 - 1400 17,21 FC/MC/PC43 1200 35.0 26.8 13.00 11.00

1000 - 1400 21,24 FC/MC/PC48 1200 35.0 27.0 13.00 11.00

1000 - 1400 21 HC42 1200 35.0 26.8 13.00 11.00

1000 - 1400 21,24 HD48 1200 35.0 26.8 13.00 11.00

YHJD42S41S1

1200 - 1600 21,24 FC/MC/PC48 1400 41.5 31.4 13.00 11.00

1200 - 1600 21,24 FC/MC/PC60 1400 41.0 31.2 13.00 11.00

1200 - 1600 21 HC42 1400 41.0 31.2 13.00 11.00

1200 - 1600 24 HC60 1400 41.0 31.2 13.00 11.00

1200 - 1600 21,24 HD60 1400 41.5 31.4 13.00 11.00

YHJD48S41S1 1400 - 1800 24 HC60 1600 47.0 35.6 13.00 11.00

1400 - 1800 21,24 HD60 1600 47.0 35.4 13.00 11.00

1400 - 1800 21,24 MC62 1600 47.0 35.6 13.00 11.00

YHJD60S41S1 1600 - 2000 21,24 MC62 1800 54.0 42.5 13.00 11.00

1. Requires a 2FD06700224 Blower Time Delay unless a standard furnace is equipped with one.

** Refer to Quick Selection Chart for specific furnace match-up.

Johnson Controls Unitary Products 7

COOLING CAPACITY - With High Efficiency Motor Furnaces

UNIT

MODEL FURNACE

MODEL COIL

MODEL1WCOOLING

RATED

CFM Net MBH SEER EER

TOTAL SENS.

13 SEER HP WITH VARIABLE SPEED FURNACES2

YHJD18S41S1

Y*(8,L)C*A12 FC/MC/PC18A 14 620 17.6 12.3 14.50 12.30

Y*(8,L)C*B12 FC/MC/PC18B 17 580 17.4 11.9 14.40 12.20

(Y*9C/T*9V)*B12 FC/MC/PC18B 17 610 17.6 12.2 14.60 12.40

Y*(8,L)C*A12 FC/MC/PC24A 14 640 18.0 12.7 14.80 12.50

Y*(8,L)C*B12 FC/MC/PC24B 17 575 17.8 12.2 14.90 12.60

(Y*9C/T*9V)*B12 FC/MC/PC24B 17 610 18.0 12.7 14.90 12.60

Y*(8,L)C*A12 FC/MC/PC30A 14 640 18.0 12.7 14.80 12.50

Y*(8,L)C*B12 FC/MC/PC30B 17 575 17.8 12.2 14.90 12.60

(Y*9C/T*9V)*B12 FC/MC/PC30B 17 610 18.0 12.7 14.90 12.60

Y*(8,L)C*A12 HC18 14 620 17.6 12.3 14.50 12.30

Y*(8,L)C*A12 HC30 14 590 17.6 12.2 14.40 12.20

Y*(8,L)C*A12 HD24 14 640 18.0 12.6 14.90 12.60

Y*(8,L)C*B12 HD24 17 575 17.9 12.2 14.90 12.60

(Y*9C/T*9V)*B12 HD24 17 610 18.0 12.6 15.00 12.70

Y*(8,L)C*A12 UC18A 14 620 17.6 12.4 14.60 12.30

Y*(8,L)C*B12 UC18B 17 580 17.5 12.0 14.60 12.30

(Y*9C/T*9V)*B12 UC18B 17 610 17.7 12.3 14.80 12.40

Y*(8,L)C*A12 UC24A 14 640 18.0 12.8 14.80 12.50

Y*(8,L)C*B12 UC24B 17 575 17.8 12.3 14.90 12.60

(Y*9C/T*9V)*B12 UC24B 17 610 18.0 12.8 14.90 12.60

Y*(8,L)C*A12 UC30A 14 640 18.0 12.8 14.80 12.50

Y*(8,L)C*B12 UC30B 17 575 17.8 12.3 15.00 12.60

(Y*9C/T*9V)*B12 UC30B 17 610 18.0 12.8 15.00 12.60

YHJD24S41S1

T*9X*B12 FC/MC/PC35B 17 785 23.4 17.0 14.10 12.25

T*(8,L)X*A12 FC/MC/PC37A 14 840 24.2 17.9 14.30 12.60

T*(8,L)X*B12 FC/MC/PC43B 17 865 24.4 18.2 14.50 12.70

T*9X*B12 FC/MC/PC43B 17 800 24.0 17.5 14.40 12.50

T*(8,L)X*B12 FC/MC/PC35B 17 850 23.8 17.7 14.40 12.45

T*9X*C16 FC/MC/PC35C 21 715 23.2 16.3 14.60 12.20

T*(8,L)X*A12 FC/MC/PC32A 14 800 23.6 17.1 14.10 12.50

Y*(8,L)C*A12 FC/MC/PC32A 14 775 23.4 16.2 14.10 12.50

Y*(8,L)C*B12 FC/MC/PC35B 17 760 23.4 16.3 14.40 12.80

(Y*9C/T*9V)*B12 FC/MC/PC35B 17 815 23.6 16.6 14.10 12.60

Y*(8,L)C*A12 FC/MC/PC37A 14 805 23.8 16.8 14.30 12.70

Y*(8,L)C*B12 FC/MC/PC43B 17 760 23.6 16.4 14.50 12.90

(Y*9C/T*9V)*B12 FC/MC/PC43B 17 800 23.8 16.7 14.40 12.80

Y*(8,L)C*B12 HC36 17 760 23.4 16.1 14.30 12.70

(Y*9C/T*9V)*B12 HC36 17 815 23.6 16.6 14.20 12.60

Y*(8,L)C*A12 HD36 14 805 23.0 16.0 14.00 12.40

Y*(8,L)C*B12 HD36 17 760 23.0 15.5 13.90 12.50

Y*(8,L)C*C16 HD36 21 855 23.6 16.4 14.40 12.90

Y*(8,L)C*C20 HD36 21 750 23.0 15.5 14.30 12.80

(Y*9C/T*9V)*B12 HD36 17 815 23.0 16.0 14.10 12.50

(Y*9C/T*9V)*C16 HD36 21 785 23.2 16.0 14.30 12.70

(Y*9C/T*9V)*C20 HD36 21 760 23.0 15.5 14.20 12.60

YHJD30S41S1

T*(8,L)X*A12 FC/MC/PC37A 14 1105 30.4 24.4 14.40 12.10

T*9X*B12 FC/MC/PC43B 17 1095 30.4 24.4 14.45 12.15

T*(8,L)X*B12 FC/MC/PC43B 17 1125 30.4 24.2 14.40 12.10

Y*(8,L)C*A12 FC/MC/PC37A 14 980 29.4 21.8 13.60 12.30

Y*(8,L)C*B12 FC/MC/PC43B 17 990 29.6 22.2 14.10 12.70

(Y*9C/T*9V)*B12 FC/MC/PC43B 17 1035 29.4 22.0 13.70 12.30

Y*(8,L)C*C16 FC/MC/PC43C 21 990 29.8 22.4 14.50 13.00

Y*(8,L)C*C20 FC/MC/PC43C 21 1000 29.8 22.6 14.60 13.00

For Notes See Page 10.

397855-YTG-G-0509

8Johnson Controls Unitary Products

YHJD30S41S1

(Y*9C/T*9V)*C16 FC/MC/PC43C 21 1030 29.6 22.2 14.00 12.60

(Y*9C/T*9V)*C20 FC/MC/PC43C 21 995 29.6 22.4 14.40 12.80

Y*(8,L)C*C16 HC42 21 990 29.6 22.4 14.50 13.00

Y*(8,L)C*C20 HC42 21 1000 29.8 22.4 14.50 13.00

(Y*9C/T*9V)*C16 HC42 21 1030 29.4 22.2 14.00 12.60

(Y*9C/T*9V)*C20 HC42 21 995 29.6 22.4 14.40 12.80

Y*(8,L)C*A12 HD36 14 1000 28.6 21.0 13.50 12.20

Y*(8,L)C*B12 HD36 17 985 28.8 21.0 13.80 12.40

Y*(8,L)C*C16 HD36 21 1020 28.8 21.2 13.90 12.60

Y*(8,L)C*C20 HD36 21 1055 29.2 21.8 14.10 12.70

(Y*9C/T*9V)*B12 HD36 17 985 28.8 21.0 13.70 12.40

(Y*9C/T*9V)*C16 HD36 21 1005 28.8 21.2 13.90 12.60

(Y*9C/T*9V)*C20 HD36 21 1045 28.8 21.0 13.80 12.40

YHJD36S41S1

T*9X*B12 FC/MC/PC43B 17 1270 36.4 27.4 14.00 11.70

T*(8,L)X*B12 FC/MC/PC43B 17 1300 36.4 27.4 14.05 11.70

T*(8,L)X*C16 FC/MC/PC43C 21 1175 36.4 27.0 14.70 12.20

T*9X*C16 FC/MC/PC43C 21 1260 36.4 27.6 14.20 11.80

T*(8,L)X*C20 FC/MC/PC43C 21 1250 36.6 27.6 14.55 12.20

T*9X*C20 FC/MC/PC43C 21 1185 36.2 26.8 14.30 12.00

Y*(8,L)C*A12 FC/MC/PC37A 14 980 34.2 22.6 14.00 11.70

Y*(8,L)C*B12 FC/MC/PC43B 17 1210 35.4 25.0 14.00 11.70

(Y*9C/T*9V)*B12 FC/MC/PC43B 17 1200 35.4 25.0 14.00 11.70

Y*(8,L)C*C16 FC/MC/PC43C 21 1205 35.6 25.2 14.60 12.20

Y*(8,L)C*C20 FC/MC/PC43C 21 1190 35.6 25.2 14.80 12.20

(Y*9C/T*9V)*C16 FC/MC/PC43C 21 1240 35.4 25.0 14.20 11.80

(Y*9C/T*9V)*C20 FC/MC/PC43C 21 1200 35.6 25.2 14.50 12.10

Y*(8,L)C*C16 FC/MC/PC48C 21 1210 36.0 25.4 14.90 12.40

Y*(8,L)C*C20 FC/MC/PC48C 21 1155 36.0 25.4 15.10 12.50

(Y*9C/T*9V)*C16 FC/MC/PC48C 21 1195 36.0 25.4 14.70 12.20

(Y*9C/T*9V)*C20 FC/MC/PC48C 21 1330 36.0 26.2 14.70 12.10

Y*(8,L)C*C16 HC42 21 1205 35.6 25.2 14.60 12.10

Y*(8,L)C*C20 HC42 21 1190 35.6 25.2 14.70 12.20

(Y*9C/T*9V)*C16 HC42 21 1240 35.2 25.0 14.10 11.80

(Y*9C/T*9V)*C20 HC42 21 1200 35.4 25.2 14.50 12.00

Y*(8,L)C*B12 HD48 17 1210 35.0 24.8 14.30 11.70

Y*(8,L)C*C16 HD48 21 1210 35.8 25.2 14.80 12.30

Y*(8,L)C*C20 HD48 21 1155 35.8 25.2 14.90 12.40

(Y*9C/T*9V)*B12 HD48 17 1150 35.0 24.8 14.20 11.70

(Y*9C/T*9V)*C16 HD48 21 1195 35.6 25.0 14.50 12.10

(Y*9C/T*9V)*C20 HD48 21 1330 35.6 26.0 14.40 11.80

Y*(8,L)C*C16 UC48C 21 1210 35.8 25.6 15.10 12.30

Y*(8,L)C*C20 UC48C 21 1155 36.0 25.6 15.20 12.40

(Y*9C/T*9V)*C16 UC48C 21 1195 35.8 25.4 14.80 12.10

(Y*9C/T*9V)*C20 UC48C 21 1330 36.0 26.4 14.70 12.00

For Notes See Page 10.

COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)

UNIT

MODEL FURNACE

MODEL COIL

MODEL1WCOOLING

RATED

CFM Net MBH SEER EER

TOTAL SENS.

13 SEER HP WITH VARIABLE SPEED FURNACES2

Johnson Controls Unitary Products 9

YHJD42S41S1

T*(8,L)X*C16 FC/MC/PC48C 21 1360 41.5 31.4 13.80 11.75

T*9X*C16 FC/MC/PC48C 21 1425 41.5 31.8 13.60 11.50

T*(8,L)X*C20 FC/MC/PC48C 21 1475 42.0 32.6 14.00 11.75

T*9X*C20 FC/MC/PC48C 21 1420 41.5 32.0 13.60 11.70

T*9X*D20 FC/MC/PC48D 24 1435 41.5 32.0 13.70 11.75

T*(8,L)X*C16 UC48C 21 1400 42.0 32.2 13.80 11.90

T*9X*C16 UC48C 21 1425 42.0 32.0 13.60 11.70

T*(8,L)X*C20 UC48C 21 1515 42.0 33.2 13.90 11.75

T*9X*C20 UC48C 21 1420 42.0 32.0 13.50 11.60

T*9X*D20 UC48D 24 1435 41.5 32.2 13.70 11.75

Y*(8,L)C*C16 FC/MC/PC48C 21 1435 41.5 32.6 13.80 11.90

Y*(8,L)C*C20 FC/MC/PC48C 21 1410 42.0 32.8 14.00 12.00

(Y*9C/T*9V)*C16 FC/MC/PC48C 21 1395 41.5 32.6 13.60 11.70

(Y*9C/T*9V)*C20 FC/MC/PC48C 21 1430 41.5 32.6 13.60 11.70

(Y*9C/T*9V)*D20 FC/MC/PC48D 24 1450 41.5 32.6 13.70 11.80

(Y*9C/T*9V)*D20 FC/MC/PC60D 24 1445 42.0 32.8 13.90 12.00

(Y*9C/T*9V)*D20 FC/MC62D 24 1455 42.0 33.0 13.80 12.00

Y*(8,L)C*C16 FC/PC60C 21 1420 42.0 32.8 14.00 12.10

Y*(8,L)C*C20 FC/PC60C 21 1410 42.0 32.8 14.20 12.30

(Y*9C/T*9V)*C16 FC/PC60C 21 1445 42.0 32.6 13.40 11.70

(Y*9C/T*9V)*C20 FC/PC60C 21 1445 42.0 32.8 13.70 11.90

Y*(8,L)C*B12 HD48 17 1350 41.0 30.8 13.20 11.40

Y*(8,L)C*C16 HD48 21 1435 40.5 31.6 13.60 11.60

Y*(8,L)C*C20 HD48 21 1410 41.0 31.0 13.60 11.80

(Y*9C/T*9V)*B12 HD48 17 1150 39.0 28.4 13.40 11.20

(Y*9C/T*9V)*C16 HD48 21 1395 41.0 30.8 13.30 11.60

(Y*9C/T*9V)*C20 HD48 21 1430 41.5 31.8 13.40 11.70

(Y*9C/T*9V)*D20 HD48 24 1450 41.0 31.8 13.60 11.70

Y*(8,L)C*C16 UC48C 21 1435 41.5 32.4 13.80 11.90

Y*(8,L)C*C20 UC48C 21 1410 41.5 32.4 13.90 12.00

(Y*9C/T*9V)*C16 UC48C 21 1395 41.5 32.2 13.60 11.70

(Y*9C/T*9V)*C20 UC48C 21 1430 41.0 32.2 13.50 11.60

(Y*9C/T*9V)*D20 UC48D 24 1450 41.5 32.2 13.70 11.80

Y*(8,L)C*C16 UC60C 21 1420 41.5 32.0 13.80 11.90

Y*(8,L)C*C20 UC60C 21 1410 41.5 32.2 14.00 12.10

(Y*9C/T*9V)*C16 UC60C 21 1445 41.0 31.8 13.20 11.50

(Y*9C/T*9V)*C20 UC60C 21 1445 41.5 32.0 13.50 11.70

(Y*9C/T*9V)*D20 UC60D 24 1445 41.5 32.0 13.70 11.90

For Notes See Page 10.

COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)

UNIT

MODEL FURNACE

MODEL COIL

MODEL1WCOOLING

RATED

CFM Net MBH SEER EER

TOTAL SENS.

13 SEER HP WITH VARIABLE SPEED FURNACES2

397855-YTG-G-0509

10 Johnson Controls Unitary Products

YHJD48S41S1

T*(8,L)X*C16 FC/PC60C 21 1605 46.5 34.6 13.50 11.50

T*9X*C16 FC/PC60C 21 1575 46.5 34.6 13.30 11.40

T*(8,L)X*C20 FC/MC/PC60D 21 1595 46.5 34.6 13.55 11.50

T*9X*C20 FC/PC60C 21 1625 46.5 34.8 13.30 11.40

T*9X*D20 FC/MC/PC60D 24 1490 46.5 34.0 13.50 11.50

T*9X*D20 FC/MC62D 24 1610 47.0 35.4 13.40 11.50

T*(8,L)X*C16 UC60C 21 1640 46.5 34.8 13.40 11.40

T*(8,L)X*C20 UC60D 21 1540 46.5 34.2 13.70 11.70

T*9X*C16 UC60C 21 1575 46.5 34.8 13.20 11.30

T*9X*C20 UC60C 21 1625 46.5 34.8 13.10 11.30

T*9X*D20 UC60D 24 1490 46.0 33.6 13.30 11.40

(Y*9C/T*9V)*D20 FC/MC/PC60D 24 1615 46.5 35.2 13.50 11.50

(Y*9C/T*9V)*D20 FC/MC62D 24 1630 46.5 35.6 13.40 11.50

Y*(8,L)C*C16 FC/PC60C 21 1625 46.5 35.4 13.50 11.60

Y*(8,L)C*C20 FC/PC60C 21 1605 46.5 35.6 13.80 11.80

(Y*9C/T*9V)*C16 FC/PC60C 21 1590 46.5 35.2 13.30 11.40

(Y*9C/T*9V)*C20 FC/PC60C 21 1655 46.5 35.2 13.30 11.40

(Y*9C/T*9V)*D20 HC60 24 1615 46.0 35.0 13.40 11.40

Y*(8,L)C*C16 HD60 21 1625 46.5 35.4 13.50 11.60

Y*(8,L)C*C20 HD60 21 1605 47.0 35.6 13.70 11.80

(Y*9C/T*9V)*C16 HD60 21 1590 46.5 35.2 13.20 11.40

(Y*9C/T*9V)*C20 HD60 21 1655 46.5 35.2 13.20 11.40

(Y*9C/T*9V)*D20 HD60 24 1615 46.5 35.4 13.40 11.50

Y*(8,L)C*C16 UC60C 21 1625 46.0 34.4 13.40 11.40

Y*(8,L)C*C20 UC60C 21 1605 46.0 34.6 13.70 11.70

(Y*9C/T*9V)*C16 UC60C 21 1590 46.0 34.4 13.20 11.30

(Y*9C/T*9V)*C20 UC60C 21 1655 46.0 34.4 13.10 11.30

(Y*9C/T*9V)*D20 UC60D 24 1615 46.0 34.2 13.30 11.40

YHJD60S41S1

T*(8,L)X*C20 FC/MC62D 21 1665 56.0 41.5 13.80 11.50

T*9X*D20 FC/MC62D 24 1515 54.5 39.0 13.10 11.00

(Y*9C/T*9V)*D20 FC/MC/PC60D 24 1615 53.5 41.0 13.30 11.60

Y*(8,L)C*C20 FC/MC62D 21 1615 54.0 41.5 13.60 11.80

(Y*9C/T*9V)*C20 FC/MC62D 21 1655 53.5 41.0 13.20 11.40

(Y*9C/T*9V)*D20 FC/MC/PC60D 24 1615 53.5 41.0 13.30 11.60

(Y*9C/T*9V)*C20 FC/MC62D 21 1655 53.5 41.0 13.20 11.40

1. MC coils available with a factory installed horizontal drain pan. See price pages for specific model number.

2. Variable speed furnaces have B.O.D (Blower on Delay) standard.

COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)

UNIT

MODEL FURNACE

MODEL COIL

MODEL1WCOOLING

RATED

CFM Net MBH SEER EER

TOTAL SENS.

13 SEER HP WITH VARIABLE SPEED FURNACES2

Otros manuales para SPLIT-SYSTEM YHJD18 THRU 60

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Bomba de calor de York

York

York YZF024THRU 060*C Guía de inicio rápido

York

York BUZ024 Manual de usuario

York

York E2FB120 Manual de usuario

York

York EKKC-18 DS Manual de usuario

York

York SUNLINE 2000 B1CH180 Manual de usuario

York

York YLCA Manual de usuario

York

York 161038-YUM-A-1205 Guía

York

York AHV18B Guía de inicio rápido

York

York MH Guía de inicio rápido

York

York PHG6A24 Guía de inicio rápido

York

York YAWT100 Manual de usuario

York

York Sunline 2000 BQ 036 Guía de inicio rápido

York

York EA090 Guía de inicio rápido

York

York STELLAR 2000 EFD Series Guía de inicio rápido

York

York YMGE36BNO-MS-X Manual de usuario

York

York THGD18 THRU 60 Guía de inicio rápido

York

York AFFINITY BHZ Series Guía de inicio rápido

York

York SUNLINE 2000 B2CH180 Manual de usuario

York

York T2GY Instrucciones de montaje

York

York YMAA 0045 Manual de usuario

York

York TH4 Series Manual de usuario

York

York SUNLINE 2000 2000 Guía de inicio rápido

York

York Geysir Manual de usuario

York

York Predator BP078 Manual de usuario

Manuales populares de Bomba de calor de otras marcas

MICROWELL

MICROWELL HP 1000 GREEN Manual de usuario

Sanyo

Sanyo SAP120FCH Manual de usuario

Daikin

Daikin EHYHBH05AA Manual de usuario

Panasonic

Panasonic WH-SDF03E3E5 Guía

Bryant

Bryant 544B Manual de usuario

Airxcel

Airxcel 45000 Series Manual

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Manual de usuario

Dimplex

Dimplex LI 16I-TUR Guía del usuario

Carrier

Carrier WSHP Open v3 Guía de configuración rápida

TGM

TGM CTV14CN018A Manual de usuario

Carrier

Carrier 38MGQ Series Manual de usuario

Kokido

Kokido K2O K880BX/EU Guía de solución de problemas

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Guía rápida

Carrier

Carrier 48EZN Manual de usuario

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Instrucciones de funcionamiento

Ariston

Ariston NIMBUS Manual de usuario

Weishaupt

Weishaupt WWP L 7 Guía del usuario

GE Zoneline AZ85H09EAC Manual de usuario
