Yealink CP925 Manual de usuario

Yealink CP925

IP Phone

A guide to using your phone with BT Cloud Voice



Table of contents
Yealink CP925 2
Phone Installation 3
Provisioning 4
Getting to know your phone 5
Hardware Component Instructions 5
Icon Instructions 6
Phone Display (Views) 7
Basic Call Features 8
Placing Calls 8
Answering Calls 9
Transferring Calls 9
Ending Calls 9
Conference Calls 9
Do Not Disturb (DND) 10
History 10
Contact Directory 11
Voicemail 11
Additional Features 12
Wireless Expansion Microphone 12
Bluetooth 12
Wi-Fi 12
General information 13






Yealink CP925

IP Phone User guide

This user guide provides you with all the information you need to get the most from your phone. You

must first set up your phone before you can use it. This doesn’t take long as it is easy to do. Just follow

the simple instructions in this guide.

Got everything?

•IP Conference Phone

•Ethernet cable

•Quick start guide

• Power adapter

• Screwdriver and Screw

• Wireless Expansion Mic (Optional)

Need help?

If you have any problems setting up or

using your Yealink IP Phone, please

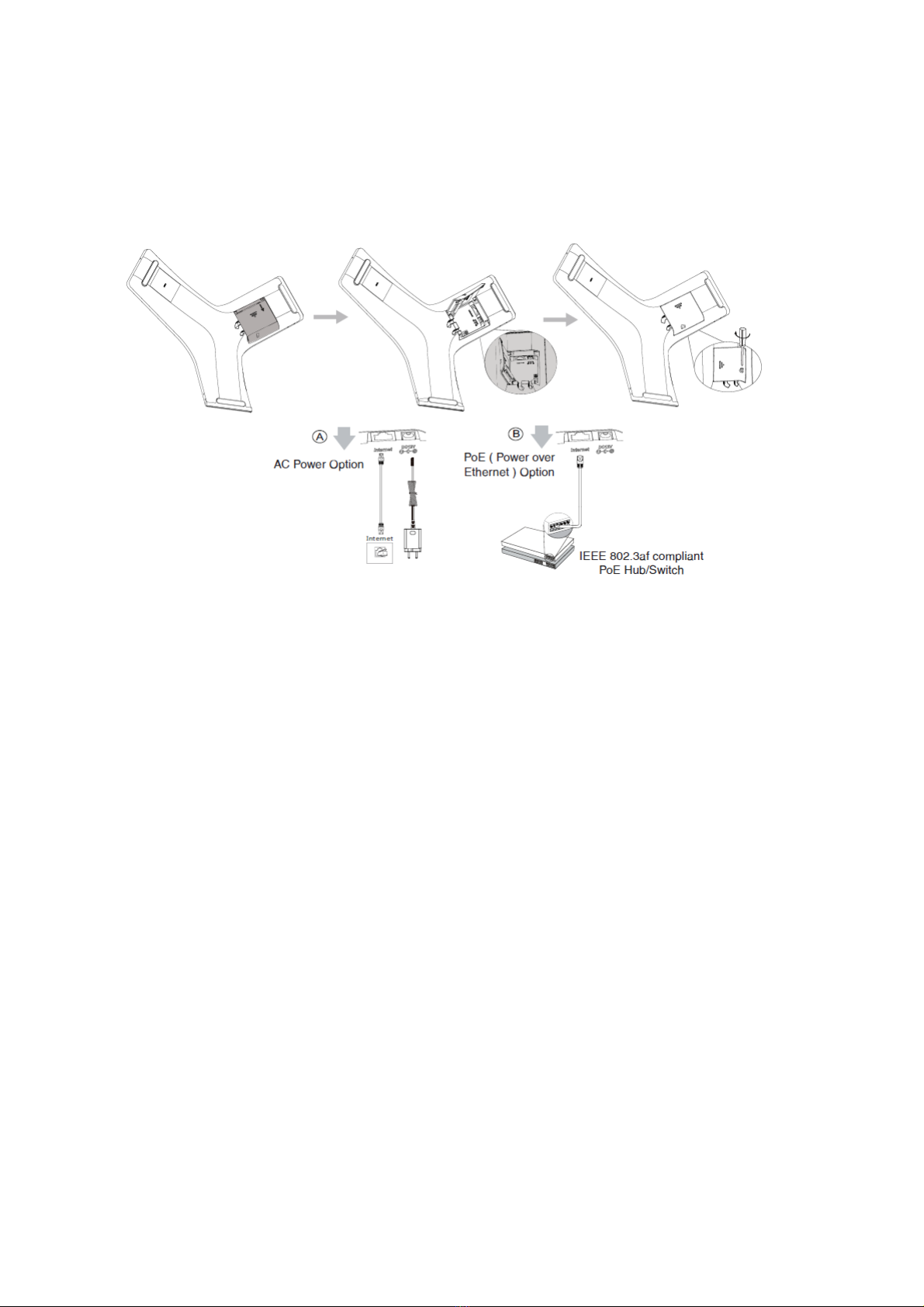

Phone Installation

1. Connect the power and wired network.

Your Yealink CP925 can use AC power or Power over Ethernet (PoE).

To connect AC power:

Take the Ethernet cable and plug it into your Yealink CP925. Plug the other end of the Ethernet cable

into your hub or switch

Connect the power adaoptor to your Yealink CP925 and switch on.

Power over Ethernet:

Connect the Ethernet cable between the internet port on the Yealink CP925 and an available port

on the in-line power switch/hub.

Note:

•If using Power over Ethernet, make sure the switch/hub is PoE-compliant.

•Do not unplug or remove power to the phone while it is updating firmware and configurations.

•The IP phone should be used with Yealink original power adapter (12V/1.25A) only. If inline power

(PoE) is provided, you don’t need to connect the power adapter.

You can also connect to the wireless network after start-up. Refer to Wireless Network Connection

mentioned below in Configuring Your Phone for more information.

Provisioning

Your Yealink CP925 IP Phone will be pre-loaded with all the information it needs to automatically

provision the BT Cloud Voice service once all the connections have been made.

1. Once connected to the network port that is providing network access the phone will do a

series of firmware updates (please allow the phone time to complete).

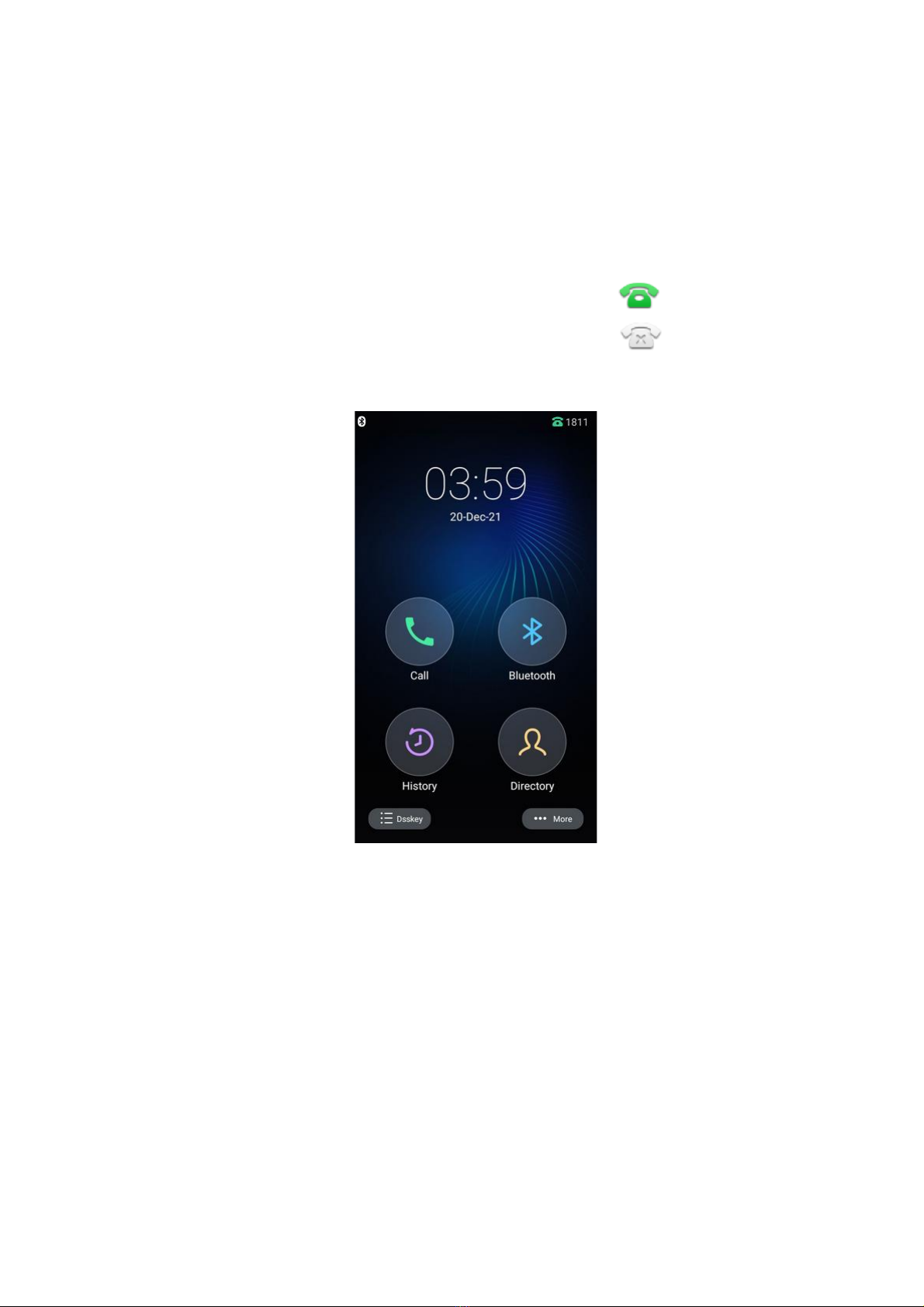

•Your phone has provisioned correctly if this symbol

is showing against the phones home screen

•Your phone has not provisioned correctly if this

symbol is showing against the phones home screen

2. Once complete the phone will now show the line number on the top of screen.

Note: If the phone fails to provision correctly, please contact us on 0800 389 0537.

Getting to know your phone

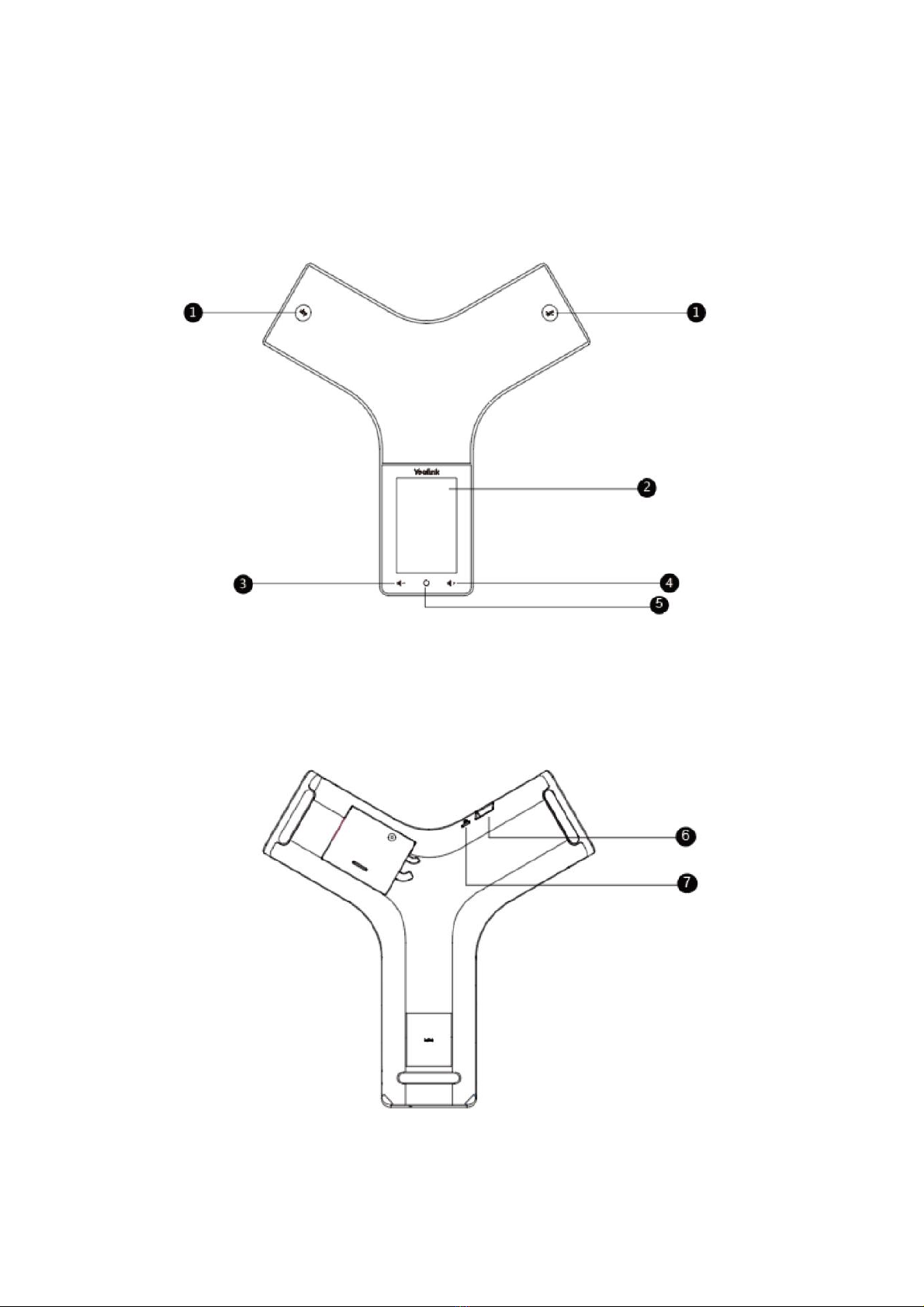

Hardware Component Instructions

Item

Description

Mute Key

Toggles mute feature.

Indicate phone and call statuses.

Touch Screen

Shows information about calls, soft keys, time, date, and other

relevant data.

Volume(-) Touch

Key

Lowers the volume of the speaker, ringer, or media.

Volume(+) Touch

Key

Increases the volume of the speaker, ringer, or media.

Home Touch Key

Returns to the idle screen.

USB Type-C Port

• Allows you to connect a USB flash drive (optional) to your phone

so you can record calls/conferences and play back recorded

files.

• Allows you to connect expansion PSTN box(es) (optional) to

experience calls in PSTN. Up to two cascaded expansion PSTN

boxes can be connected, so you can experience the local five-

way conference conveniently in excellent speech quality with

PSTN.

• Allows you to charge the Bluetooth Wireless Microphone

CPW25.

Security Slot

Allows you to connect a universal security cable to your phone so

you can lock down your phone. The phone will not be removed

after locked.

Icon Instructions

Icons appearing on the LCD screen are described in the following table:

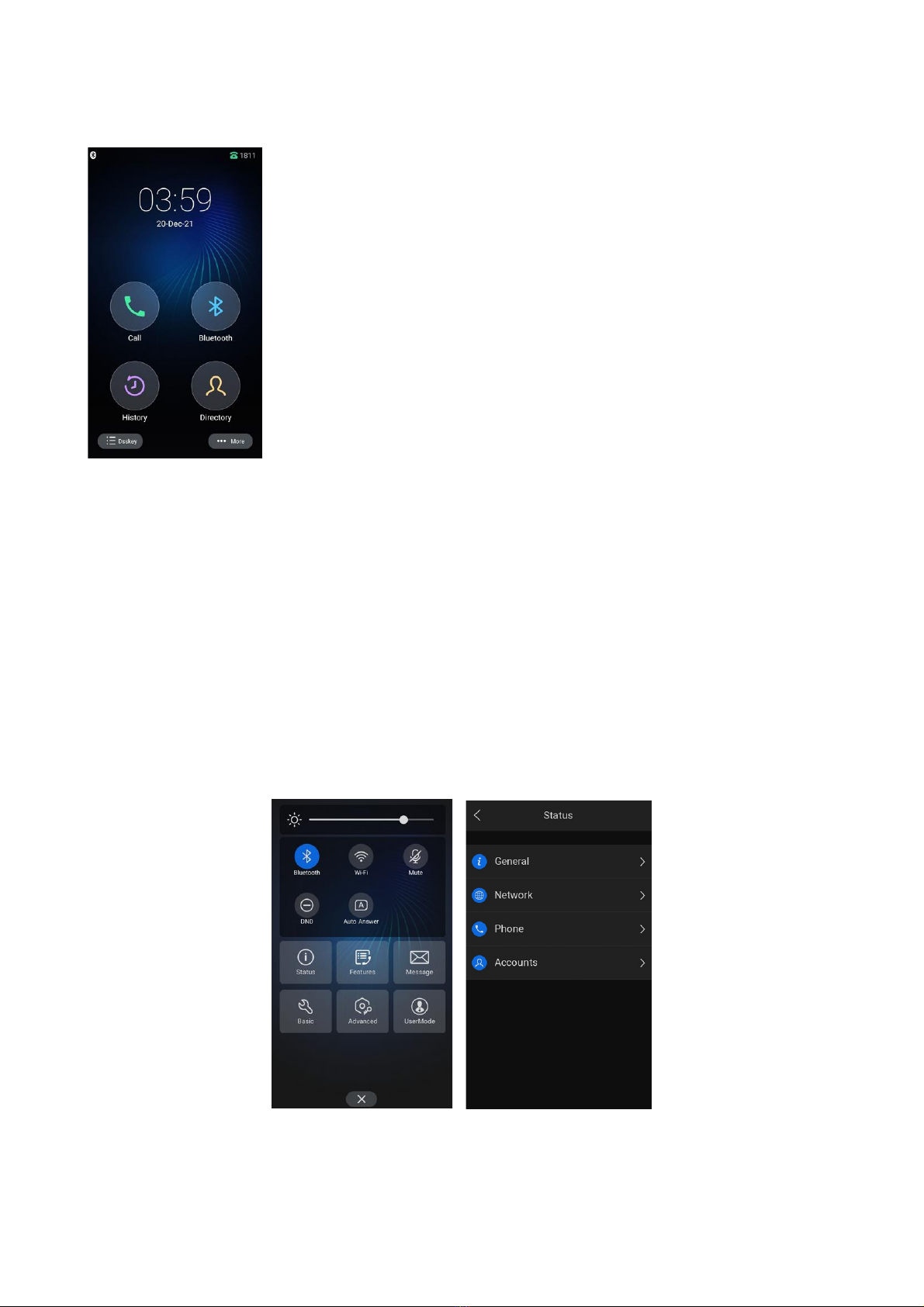

Phone Display (Views)

Idle Status

The idle screen displays the label of current account, time and date, system applications and touch

soft keys.

Phone Status

You can view phone status via the phone user interface. Available information of phone status

includes:

•Network status (e.g., IPv4 status, IP address mode, MAC address, LAN type, LAN IP and

LAN mask).

•Phone status (e.g., device model, hardware version, firmware version and product ID).

•Account status (e.g., register status of SIP accounts).

To view the phone status via phone user interface:

1. Swipe down from the top of the screen or tap More on the idle screen.

2. Tap Status.

Time and Date

The time and date is set by the Cloud Voice Service however you can change the format within

the phone preferences within basic settings.

Basic Call Features

Placing Calls

You can use your phone like a regular phone to place calls in many ways easily:

•Placing a Call from the Dialler

•Placing Multiple Calls

•Redialling a Number

•Placing a Call from the Call History

•Placing a Call from the Directory

Pacing a Call from the Dialler:

The Dialler enables you to enter a number to place a call, and it displays a list of previously placed

calls or contacts in your directory.

You can also select the desired contact from the search list, the placed call list or Directory.

1. Tap .

2. Enter a number.

3. Select Send .

The phone supports to match the number to show the contact in Directory no matter local format or

international format is dialled.

Placing Multiple Calls:

When you are in a call, you can hold your current call and place a new call.

1. Select More > New Call.

2. Enter the desired number or select a contact.

3. Select Send.

Redialling a Number:

The phone keeps a record of all the placed calls. You can recall the contact you recently called.

1. Tap .

2. The phone screen displays the placed calls list.

3. Tap the desired record.

Placing a Call from the Call History:

You can place calls to contacts from the History list, which contains the calls that were recently

placed, answered,missed, or forwarded.

1. Tap .

2. The phone screen displays all call records.

3. Tap Local Calls and select the desired history list.

4. Tap the desired entry.

Placing a Call from the Directory:

You can place a call to a contact directly from your directory.

1. Tap .

2. Select the desired directory.

3. If the contact was added to a specified contact group, you can tap Local Directory to select

the desired contact group.

4. Tap the desired contact.

5. If the selected contact has multiple numbers, tap the desired number to dial out.

Answering Calls

1. Tap Answer.

Transferring Calls

You can transfer a call to another party in one of the three ways:

•Blind Transfer: Transfer a call directly to another party without consulting.

•Semi-Attended Transfer: Transfer a call when receiving ringback.

•Attended Transfer: Transfer a call with prior consulting.

To perform a blind transfer:

1. Tap More->Transfer during a call. The call is placed on hold.

2. Enter the number you want to transfer to. You can also select a contact you want to transfer

to from Directory or History.

3. Tap Transfer.

4. Tap Transfer from the prompt box.

To perform a semi-attended transfer:

1. Tap More->Transfer during a call. The call is placed on hold. 2.Enter the number you want to

transfer to.

2. Tap Transfer.

3. Tap Send from the prompt box.

4. Tap Transfer when you hear the ring-back tone.

To perform an attended transfer:

1. Tap More->Transfer during a call. The call is placed on hold. 2.Enter the number you want to

transfer to.

2. Tap Transfer.

3. Tap Send from the prompt box.

4. Tap Transfer when the second party answers.

Ending Calls

1. Tap End Call.

Conference Calls

To initiate a conference:

1. Tap during a call.

2. Tap Call multiple members? Click here>>.

3. Enter a phone number, and then tap Add members.

4. You can also select a contact from Directory or History to join into a conference.
