YASKAWA VIPA HMI cloudPanel H41-L1A41-0 Manual de usuario
TP-cloud | H41-L1A41-0 | Manual
HB160 | TP-cloud | H41-L1A41-0 | en | 18-02
VIPA HMI
cloudPanel - TP104-CL
www.vipa.com/en/service-support/manuals
H41-L1A41-0_000_TP104-CL,1,EN - © 2018
VIPA GmbH
Ohmstr. 4
91074 Herzogenaurach
Telephone: +49 9132 744-0
Fax: +49 9132 744-1864
Email: [email protected]
Internet: www.vipa.com
Table of contents
1 General.................................................................................................................... 4
1.1 Copyright © VIPA GmbH ................................................................................. 4
1.2 About this manual............................................................................................. 5
1.3 Safety information............................................................................................. 6
2 Hardware description............................................................................................. 7
2.1 Safety information for users.............................................................................. 7
2.2 Properties......................................................................................................... 8
2.3 Structure........................................................................................................... 9
2.3.1 Overview........................................................................................................ 9
2.3.2 Interfaces..................................................................................................... 10
2.3.3 Memory management.................................................................................. 11
2.4 Dimensions..................................................................................................... 12
2.5 General data................................................................................................... 13
2.6 Technical data................................................................................................. 15
3 Deployment........................................................................................................... 18
3.1 Installation...................................................................................................... 18
3.2 Commissioning............................................................................................... 19
3.2.1 Web browser............................................................................................... 19
3.2.2 System Settings........................................................................................... 22
3.2.3 Firmware update.......................................................................................... 30
3.3 Connection to a PLC system.......................................................................... 31
4 Installation Guidelines......................................................................................... 32
4.1 Basic rules for the EMC-equitable assembly of installations.......................... 32
4.2 EMC-equitable assembly................................................................................ 35
4.3 EMC-equitable cabling................................................................................... 36
4.4 Special precautions providing high noise immunity........................................ 39
4.5 Checklist for the EMC-compliant installation of controllers............................. 40
VIPA HMI Table of contents
HB160 | TP-cloud | H41-L1A41-0 | en | 18-02 3
1 General
1.1 Copyright © VIPA GmbH
This document contains proprietary information of VIPA and is not to be disclosed or used
except in accordance with applicable agreements.
This material is protected by the copyright laws. It may not be reproduced, distributed, or
altered in any fashion by any entity (either internal or external to VIPA), except in accord-
ance with applicable agreements, contracts or licensing, without the express written con-
sent of VIPA and the business management owner of the material.
For permission to reproduce or distribute, please contact: VIPA, Gesellschaft für Visuali-
sierung und Prozessautomatisierung mbH Ohmstraße 4, D-91074 Herzogenaurach, Ger-
many
Tel.: +49 9132 744 -0
Fax.: +49 9132 744-1864
EMail: [email protected]
http://www.vipa.com
Every effort has been made to ensure that the information contained in
this document was complete and accurate at the time of publishing. Nev-
ertheless, the authors retain the right to modify the information.
This customer document describes all the hardware units and functions
known at the present time. Descriptions may be included for units which
are not present at the customer site. The exact scope of delivery is
described in the respective purchase contract.
Hereby, VIPA GmbH declares that the products and systems are in compliance with the
essential requirements and other relevant provisions. Conformity is indicated by the CE
marking affixed to the product.
For more information regarding CE marking and Declaration of Conformity (DoC), please
contact your local VIPA customer service organization.
VIPA, SLIO, System 100V, System 200V, System 300V, System 300S, System 400V,
System 500S and Commander Compact are registered trademarks of VIPA Gesellschaft
für Visualisierung und Prozessautomatisierung mbH.
SPEED7 is a registered trademark of profichip GmbH.
SIMATIC, STEP, SINEC, TIA Portal, S7-300 and S7-400 are registered trademarks of
Siemens AG.
Microsoft and Windows are registered trademarks of Microsoft Inc., USA.
Portable Document Format (PDF) and Postscript are registered trademarks of Adobe
Systems, Inc.
All other trademarks, logos and service or product marks specified herein are owned by
their respective companies.
Contact your local VIPA Customer Service Organization representative if you wish to
report errors or questions regarding the contents of this document. If you are unable to
locate a customer service centre, contact VIPA as follows:
All Rights Reserved
CE Conformity Declaration
Conformity Information
Trademarks
Information product sup-
port
VIPA HMI
General
Copyright © VIPA GmbH
HB160 | TP-cloud | H41-L1A41-0 | en | 18-02 4
VIPA GmbH, Ohmstraße 4, 91074 Herzogenaurach, Germany
Telefax: +49 9132 744-1204
EMail: [email protected]
Contact your local VIPA Customer Service Organization representative if you encounter
problems with the product or have questions regarding the product. If you are unable to
locate a customer service centre, contact VIPA as follows:
VIPA GmbH, Ohmstraße 4, 91074 Herzogenaurach, Germany
Tel.: +49 9132 744-1150 (Hotline)
EMail: [email protected]
1.2 About this manual
This manual describes the cloudPanel H41-L1A41-0 from VIPA. It contains a description
of the structure, project engineering and deployment.
Product Order number as of state:
HW FW OS
TP 104-CL H41-L1A41-0 01 V1.0.0 LinuxÒ 3.12
The manual is targeted at users who have a background in automation technology.
The manual consists of chapters. Every chapter provides a self-contained description of a
specific topic.
The following guides are available in the manual:
nAn overall table of contents at the beginning of the manual
nReferences with page numbers
The manual is available in:
nprinted form, on paper
nin electronic form as PDF-file (Adobe Acrobat Reader)
Important passages in the text are highlighted by following icons and headings:
DANGER!
Immediate or likely danger. Personal injury is possible.
CAUTION!
Damages to property is likely if these warnings are not heeded.
Technical support
Objective and contents
Target audience
Structure of the manual
Guide to the document
Availability
Icons Headings
VIPA HMI General
About this manual
HB160 | TP-cloud | H41-L1A41-0 | en | 18-02 5
Supplementary information and useful tips.
1.3 Safety information
The system is constructed and produced for:
ncommunication and process control
ngeneral control and automation tasks
nindustrial applications
noperation within the environmental conditions specified in the technical data
ninstallation into a cubicle
DANGER!
This device is not certified for applications in
– in explosive environments (EX-zone)
The manual must be available to all personnel in the
nproject design department
ninstallation department
ncommissioning
noperation
CAUTION!
The following conditions must be met before using or commis-
sioning the components described in this manual:
– Hardware modifications to the process control system should only be
carried out when the system has been disconnected from power!
– Installation and hardware modifications only by properly trained per-
sonnel.
– The national rules and regulations of the respective country must be
satisfied (installation, safety, EMC ...)
National rules and regulations apply to the disposal of the unit!
Applications conforming
with specifications
Documentation
Disposal
VIPA HMI
General
Safety information
HB160 | TP-cloud | H41-L1A41-0 | en | 18-02 6
2 Hardware description
2.1 Safety information for users
VIPA modules make use of highly integrated components in MOS-Technology. These
components are extremely sensitive to over-voltages that can occur during electrostatic
discharges. The following symbol is attached to modules that can be destroyed by elec-
trostatic discharges.
The Symbol is located on the module, the module rack or on packing material and it indi-
cates the presence of electrostatic sensitive equipment. It is possible that electrostatic
sensitive equipment is destroyed by energies and voltages that are far less than the
human threshold of perception. These voltages can occur where persons do not dis-
charge themselves before handling electrostatic sensitive modules and they can damage
components thereby, causing the module to become inoperable or unusable. Modules
that have been damaged by electrostatic discharges can fail after a temperature change,
mechanical shock or changes in the electrical load. Only the consequent implementation
of protection devices and meticulous attention to the applicable rules and regulations for
handling the respective equipment can prevent failures of electrostatic sensitive modules.
Modules must be shipped in the original packing material.
When you are conducting measurements on electrostatic sensitive modules you should
take the following precautions:
nFloating instruments must be discharged before use.
nInstruments must be grounded.
Modifying electrostatic sensitive modules you should only use soldering irons with
grounded tips.
CAUTION!
Personnel and instruments should be grounded when working on electro-
static sensitive modules.
Handling of electrostatic
sensitive modules
Shipping of modules
Measurements and altera-
tions on electrostatic sen-
sitive modules
VIPA HMI Hardware description
Safety information for users
HB160 | TP-cloud | H41-L1A41-0 | en | 18-02 7
2.2 Properties
The VIPA cloudPanel allows you to visualize and alter operating states and recent
process values of a connected PLC. The cloudPanel is a compact and modular
embedded PC based on LinuxÒ. WEB-based projects are displayed via a WEB browser.
Here the cloudPanel can simply be configured, controlled and remoted.
nOperating system LinuxÒ 3.12
nProcessor ARM Cortex A8 1GHz
nFlash memory 4GB, RAM 512MB DDR
nRS232/RS422/RS485 (not available for WebVisu projects),
USB-A and Ethernet interface
nRobust plastic case
nDisplay resolution 272 x 480 / 480 x 272, 64K colors
nBattery backed clock
nResistive analog touch screen
nEasy mounting via mounting clips
nProtection class IP66, Type 2 and 4X (Front) / IP20 (Back)
Order data
Type Order number Description
TP 104-CL H41-L1A41-0 4.3'' TFT color, RS232/RS422/RS485, USB-A, Ethernet RJ45
General
VIPA HMI
Hardware description
Properties
HB160 | TP-cloud | H41-L1A41-0 | en | 18-02 8
2.3 Structure
2.3.1 Overview
1 Interfaces
2 Display with touch sensitive area (Touch-Screen)
1 USB-A interface USB 2.0
2 RJ45 jack for Ethernet communication LAN
3 RS232/RS422/RS485 interface COM
4 Slot for DC 24V voltage supply
Front view
Bottom view
VIPA HMI Hardware description
Structure > Overview
HB160 | TP-cloud | H41-L1A41-0 | en | 18-02 9

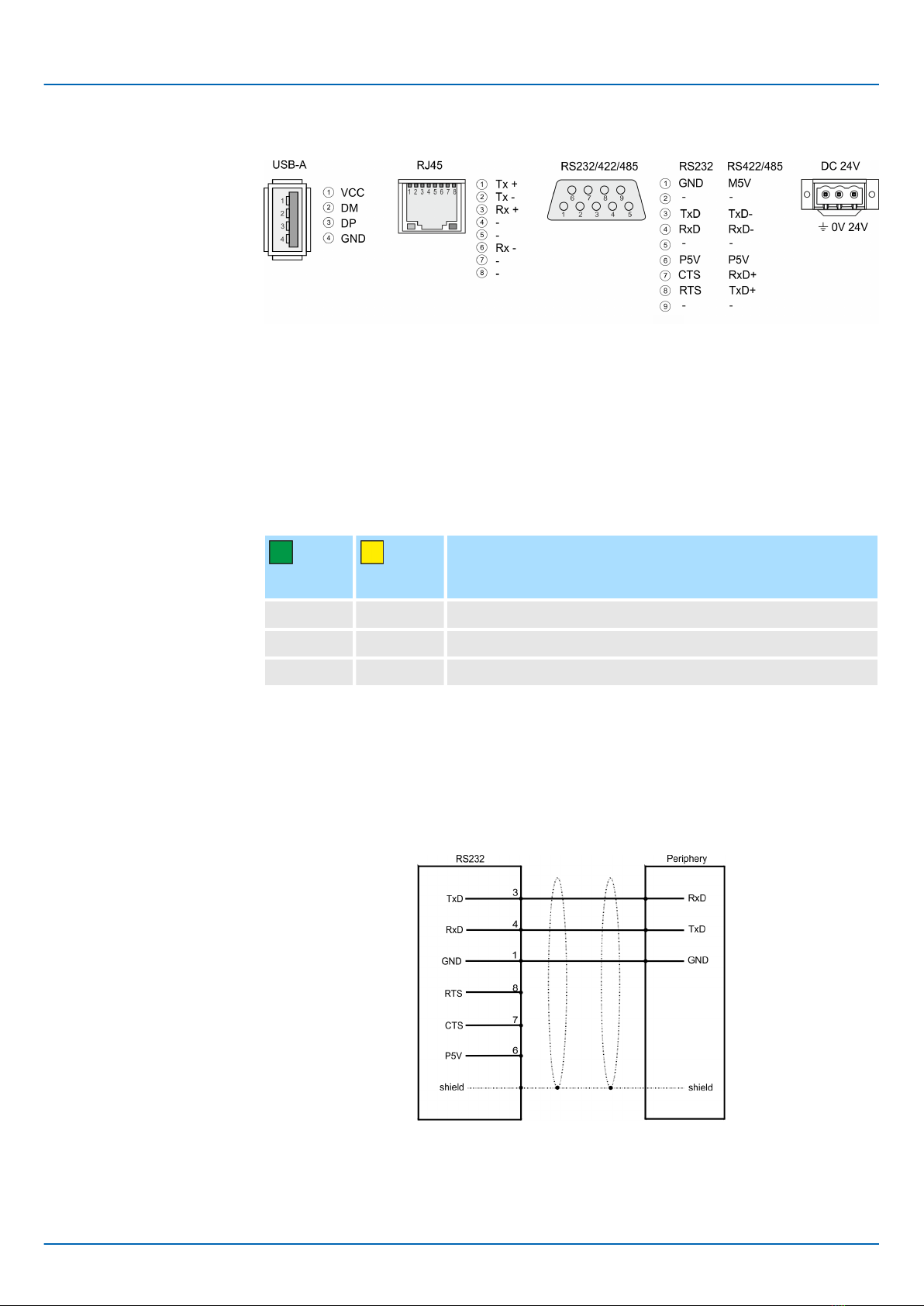

2.3.2 Interfaces
Using the "Host"-USB-A interface USB mouse, keyboard, stick or USB hard discs can be
connected.
The RJ45 jack provides the interface to the twisted pair cable, required for Ethernet. The
Ethernet interface has got two LEDs for status display.
LEDs
green yellow
Description
on off no link
blinks on 100Mbit/s link
blinks off 10Mbit/s link
9 pin SubD plug
nInterface is compatible to the COM interface of a PC
nLogical signals as voltage levels
nPoint-to-point links with serial full-duplex transfer in two-wire technology up to 15m
distance
nData transfer rate up to 115.2kbit/s
"Host"-USB-A
Ethernet connection
RS232 interface
VIPA HMI
Hardware description
Structure > Interfaces
HB160 | TP-cloud | H41-L1A41-0 | en | 18-02 10
Tabla de contenidos
Otros manuales de Unidad de control de YASKAWA
YASKAWA
YASKAWA CANopen SI-S3/V Manual de usuario
YASKAWA
YASKAWA S-II Series Manual de usuario
YASKAWA
YASKAWA SI-EP3/V Manual de usuario
YASKAWA
YASKAWA FM 050 Manual de usuario
YASKAWA
YASKAWA motoman NX100 Manual de usuario
YASKAWA
YASKAWA S-II Series Manual de usuario
YASKAWA
YASKAWA SI-EM3 Manual de usuario
YASKAWA
YASKAWA SI-ES3 Manual de usuario
YASKAWA
YASKAWA MECHATROLINK Sigma 2 Series Manual de usuario
YASKAWA
YASKAWA AC Drive V1000 Option SI-EM3/V Manual de usuario
YASKAWA
YASKAWA YASNAC 3000G Manual de usuario
YASKAWA
YASKAWA SPEED7 CPU-SC 313-5BF23 Manual de usuario
YASKAWA
YASKAWA Varispeed f7 Manual de usuario
YASKAWA
YASKAWA FM 054 Manual de usuario
YASKAWA
YASKAWA 62K-JJK0 Manual de usuario
YASKAWA
YASKAWA U1000 Series Manual de usuario
YASKAWA
YASKAWA SGD7S series Manual de usuario
YASKAWA
YASKAWA S-V Series Manual de usuario
YASKAWA
YASKAWA GPD 506/P5 Manual de usuario
YASKAWA
YASKAWA IM 053MT Manual de usuario
Manuales populares de Unidad de control de otras marcas
Festo
Festo Compact Performance CP-FB6-E Manual de lista de piezas
Elo TouchSystems
Elo TouchSystems DMS-SA19P-EXTME Manual de usuario
JS Automation
JS Automation MPC3034A Manual de usuario
JAUDT
JAUDT SW GII 6406 Series Guía rápida
Spektrum
Spektrum Air Module System Manual de usuario
BOC Edwards
BOC Edwards Q Series Manual de usuario
