Owner’s Manual

NetworkAmp Manager—Owner’s Manual

Important Information

Special Notices

•The software and this owner’s manual are the exclusive copyrights of Yamaha Corporation.

•Use of the software and this manual is governed by the license agreement which the pur-

chaser fully agrees to upon breaking the seal of the software packaging. (Please read care-

fully the Software LicensingAgreement at the beginning of the printed ACU16-C/NHB32-C

Owner’s Manual before installing the application.)

•Copying of the software or reproduction of this manual in whole or in part by any means is

expressly forbidden without the written consent of the manufacturer.

•Yamaha makes no representations or warranties with regard to the use of the software and

documentation and cannot be held responsible for the results of the use of this manual and

the software.

•This disc is a CD-ROM. Do not attempt to play the disc on an audio CD player. Doing so

may result in irreparable damage to your audio CD player.

•Copying of the commercially available music sequence data and/or digital audio ﬁles is

strictly prohibited except for your personal use.

•The screen displays as illustrated in this owner’s manual are for instructional purposes, and

may appear somewhat different from the screens which appear on your computer.

•Future upgrades of application and system software and any changes in speciﬁcations and

functions will be announced separately.

Trademarks

CobraCAD, CobraNet, and Peak Audio are trademarks of Cirrus Logic, Inc. Ethernet is a

trademark of Xerox Corporation. Windows is a registered trademark of Microsoft Corpo-

ration. Yamaha is a trademark of Yamaha Corporation. All other trademarks are the prop-

erty of their respective holders and are hereby acknowledged.

Yamaha Web Site

Information about NetworkAmp Manager, related products, and other Yamaha profes-

sional audio equipment is available on the Yamaha Professional Audio Web site at:

http://www.yamahaproaudio.com/.

Speciﬁcations and descriptions in this owner’s manual are for information purposes only.

Yamaha Corporation reserves the right to change or modify products or speciﬁcations at

any time without prior notice. Since speciﬁcations, equipment, or options may not be the

same in every locale, please check with your Yamaha dealer.

NetworkAmp Manager—Owner’s Manual

Contents

1 Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

What is CobraNet? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Using Multiple PCs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Installing NetworkAmp Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Starting NetworkAmp Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Quitting NetworkAmp Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Configuring NetworkAmp Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Working with Projects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3 Touring NetworkAmp Manager . . . . . . . . . . . . . . . 10

Main Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Network Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4 NHB Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

CobraNet Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Patch Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Word Clock Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

5 ACU Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

CobraNet Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Patch Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Amp Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Channel Detail Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Threshold Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

6 Other Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Logging Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Locking NetworkAmp Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Using COM & MIDI Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Group View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Control Link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Keyboard Shortcuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Introduction 4

NetworkAmp Manager—Owner’s Manual

1 Welcome

Introduction

The Yamaha NetworkAmp Manager software is for controlling and monitoring Yamaha

PCxxxxN series power ampliﬁers, the ACU16-C Amp Control Unit, and the NHB32-C

Network Hub and Bridge. It runs on standard Windows PCs and can be connected to an

ACU16-C or NHB32-C by using either USB or RS-232C. Multiple ACU16-Cs and

NHB32-Cs can be managed from a single PC running NetworkAmp Manager, which can

be connected to any ACU16-C or NHB32-C on the CobraNet network.

NetworkAmp Manager can record log ﬁles listing various operations and warnings (e.g.,

output shorts, overheating) for troubleshooting analysis after a performance.

Several PCs running NetworkAmp Manager can be connected to the CobraNet network,

offering simultaneous control and monitoring from several locations within a venue.

NetworkAmp Manager can control and manage the following:

Up to 512 Yamaha PCxxxxN series power ampliﬁers (32 amps per ACU16-C)

Up to 4,096 ampliﬁer channels (8 channels per ampliﬁer)

Up to 16 ACU16-Cs

Up to 8 NHB32-Cs

PCxxxxN Series Amp Parameters That Can Be Controlled

PCxxxxN Series Amp Parameters That Can Be Monitored

Parameter Details

Power1

1. Affects the entire amplifier. All other parameters can be set for each channel individually.

On/standby

Attenuator 63-step control

Input phase Normal/reverse

Mute On/off

Parameter Details

Amp mode Stereo/parallel/bridge

Input level 12-segment meter

Output level 12-segment meter (watt/volt)

Output clip Output clipping indicator

Impedance Indicates current load impedance

Protection Protection system status

Temperature Heatsink temperature, 12-segment meter (centigrade/Fahrenheit)

5Welcome

NetworkAmp Manager—Owner’s Manual

What is CobraNet?

CobraNet is technology developed by Peak Audio (Cirrus Logic, USA) that transmits

uncompressed digital audio signals in realtime over a fast Ethernet cable. It can carry up to

64 channels in each direction or 128 channels total for both directions (64 channels total for

both directions in a network that uses a repeater hub). (However, the number of channels

is limited by conditions such as the performance of your equipment and on the type of

audio signal.)

Transmission of up to 100 meters is possible with Category 5 metal cable, or up to 2 km with

multi-mode optical ﬁber cable.

A CobraNet network can carry digital audio at sampling frequencies of 48 kHz or 96 kHz

and 16/20/24 bit resolutions, but the ACU16-C/NHB32-C support the 48 kHz sampling

frequency at 20/24 bit resolutions. A ﬁxed latency is added to the audio data each time it

passes through a CobraNet network. You can select this latency from 5.33 ms / 2.67 ms /

1.33 ms.

A CobraNet network can carry audio over an existing Fast Ethernet network to which other

devices such as computers and printers are already connected, but we strongly recommend

that you set up a dedicated network for CobraNet.

In a CobraNet network, digital audio is distributed in packets called“bundles.”Each bundle

contains between three and eight channels of audio, depending on conditions such as the

bit depth and latency.

Bundles are assigned a number in the range of 0 through 65,279. Bundles can be transmit-

ted either as “multicast bundles” which occupy more network bandwidth but allow audio

to be distributed to multiple devices simultaneously, or as “unicast bundles” which use less

network bandwidth but can distribute audio to only a single device. The number assigned

to the bundle determines which of these two types it is. Number 0 indicates a null setting

that disables transmission or reception of bundles, numbers 1 through 255 indicate multi-

cast bundles, and numbers 256 through 65,279 indicate unicast bundles. The

ACU16-C/NHB32-C support bundle numbers 0 through 16,383.

The ACU16-C can accept up to four input bundles simultaneously, and the NHB32-C can

use four input bundles and four output bundles simultaneously. However if you set the

latency to 1.33 ms, the number of bundles usable on the NHB32-C will be a maximum of

four (total for input and output).

A CobraNet network also provides a Serial Bridge feature that allows serial data to be trans-

mitted over the network. The ACU16-C and NHB32-C normally use the Serial Bridge to

transmit amp control data, but you can also use COM mode or MIDI mode to send other

data between two NHB32-C units via the Serial Bridge.

A glossary of CobraNet, NetworkAmp Manager, ACU16-C, and NHB32-C related terms is

provided in this manual (see page 39). A wealth of information about CobraNet, with sec-

tions especially for designers and installers, is available on the Peak Audio Web site at

http://www.peakaudio.com. If you are designing a CobraNet network, we strongly recom-

mend that you visit this Web site and study the information available in order to take full

advantage of the CobraNet technology. Peak Audio also provide a list of Ethernet devices

that have been tested with CobraNet, including switching hubs and media converters.

Using Multiple PCs 6

NetworkAmp Manager—Owner’s Manual

Using Multiple PCs

Several PCs running NetworkAmp Manager can be connected to the CobraNet network,

offering simultaneous control and monitoring from several locations within a venue.

Up to 16 channels of real-time data (e.g.,level meter information) can be transmitted across

the network simultaneously. When operating NetworkAmp Manager on several PCs simul-

taneously, operation of the meter displays on the following pages may be interrupted:

•Amp pages

•Channel Detail page

•Group View page

When one of the above pages is selected, any other PCs displaying one of these pages will

automatically switch to its Network page and display the same information. For example, if

PC #1 is displaying the Amp 00–07 page, and PC #2 is displaying the Amp 24–31 page, if the

Amp 08–15 page is selected on PC #1, PC #2 will switch to its Network page and display the

same information. PCs that are not displaying one of the above pages do nothing.

7Getting Started

NetworkAmp Manager—Owner’s Manual

2 Getting Started

Installing NetworkAmp Manager

System requirements and installation instructions for NetworkAmp Manager can be found

in the printed ACU16-C/NHB32-C Owner’s Manual.

Starting NetworkAmp Manager

To start NetworkAmp Manager, double-click the NetworkAmp Manager icon. If a startup

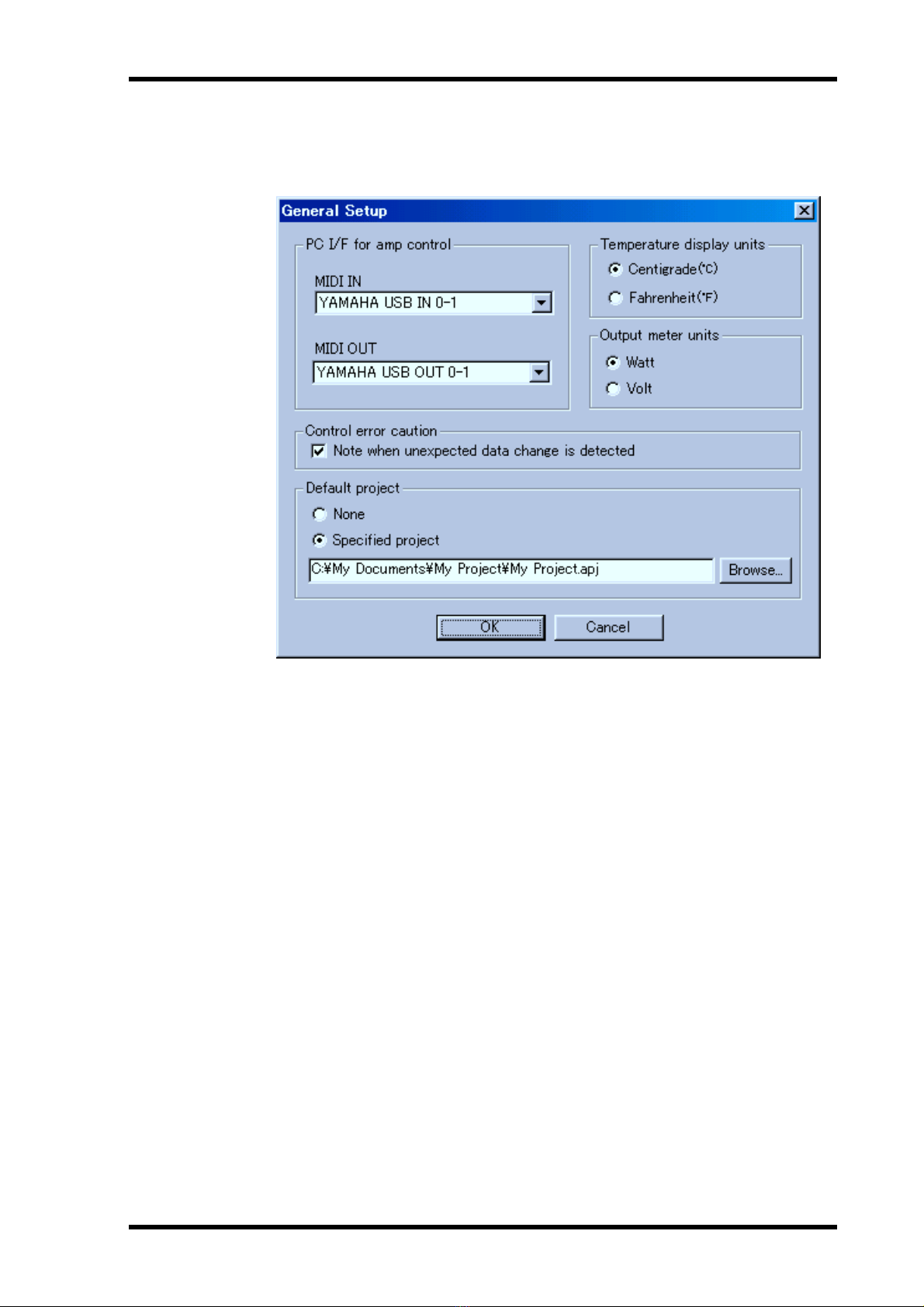

project has been speciﬁed on the General Setup dialog box (see page 8), that project is

opened. Otherwise, the Open dialog box appears and you can select the project you want to

open. NetworkAmp Manager can also be started by double-clicking a project ﬁle. In either

case, the following dialog box appears.

Disconnect from network: Start NetworkAmp Manager but do not connect to the

network.

Connect to network: Start NetworkAmp Manager and connect to the network, getting

the settings of all devices on the network and updating the project settings accordingly.

Connect & send to network: Start NetworkAmp Manager, connect to the network,

and send the project settings to all devices on the network, updating them accordingly.

Quitting NetworkAmp Manager

To quit NetworkAmp Manager, choose Exit from the File menu, or click the main window’s

Close button. A conﬁrmation message appears. Click Yes to quit. Click No to cancel.

If there are no unsaved changes, NetworkAmp Manager quits. If there are unsaved changes,

a dialog box asking if you want to save the changes before quitting appears. Click Yes to save

the changes and quit. Click No to quit without saving the changes.

Caution: Don’t transmit any audio data until all networked devices (ACU16-C, NHB32-C,

and power ampliﬁers) have been turned on, the power ampliﬁer’s REMOTE indicators are

on, and the system has stabilized (about 10 seconds). Doing so may produce loud noises.

Note: If you change any settings on the Windows Display control panel, NetworkAmp Man-

ager’s windows may not display properly. In this case, you should reset the Display control

panel settings to their defaults.

Configuring NetworkAmp Manager 8

NetworkAmp Manager—Owner’s Manual

Conﬁguring NetworkAmp Manager

The General Setup dialog box is used to conﬁgure NetworkAmp Manager. To open the

General Setup dialog box, choose General Setup from the Option menu.

PC I/F for amp control: These options are used to specify the MIDI interface Net-

workAmp Manager should use to communicate with the connected ACU16-C/NHB32-C.

The options available depends on what MIDI drivers you have installed on your PC.Choose

the Yamaha CBX Driver (for use with serial ports) or Yamaha USB Driver (for use with USB

ports). See the ACU16-C/NHB32-C Owner’s Manual for information on installing these

drivers.

Control error caution: When this option is selected, a message is displayed in the Log

window when a parameter is adjusted on another PC or an ACU16-C or NHB32-C.

Default project: These options determine how NetworkAmp Manager behaves when it’s

started. When “None” is selected, the project open dialog box appears automatically and

you can select a project ﬁle manually. When the “Speciﬁed project” option is selected, the

speciﬁed project is opened automatically. Click the Browse button to select the project ﬁle

to be opened automatically. If you enter the ﬁlename manually, be sure to include the full

path (e.g., C:\My Documents\NetworkAmp Manager\My Project.apj).

Temperature display units: These options determine the units NetworkAmp Manager

uses to display temperature values: Centigrade (˚C) or Fahrenheit (˚F).

Output meter units: These options determine the units NetworkAmp Manager uses to

display power ampliﬁer output values: Watt (W) or Volt (V).

The “PC I/F for amp control” and “Default project” settings are stored in the Windows Reg-

istry. All other settings are stored in the project ﬁle.

9Getting Started

NetworkAmp Manager—Owner’s Manual

Working with Projects

NetworkAmp Manager setups are stored as projects.

Project ﬁles have the ﬁle name extension “.apj”.

•To create a new project, choose New from the File menu.

•To open a previously saved project, choose Open from the File menu.

•To save the current project, choose Save from the File menu.

•To save the current project with a new name, choose Save As as from the File menu.

Only one project can be open at a time. If you create a new project or open a previously

saved project, you’ll be prompted to save any unsaved changes.

Main Window 10

NetworkAmp Manager—Owner’s Manual

3 Touring NetworkAmp Manager

Main Window

This is NetworkAmp Manager’s main window. The left pane displays the CobraNet net-

work tree, consisting of ACU16-Cs, NHB32-Cs, and power amps. The right pane displays

the various NHB and ACU pages. The name and unit ID of the device currently selected in

the network tree are displayed at the top of the right pane. If it’s an ACU16-C,“ACU - name

[Unit ID]” is displayed. If it’s an NHB32-C, “NHB - name [Unit ID]” is displayed. You can

set the device names in NetworkAmp Manager (see page 13). Unit IDs are set on the actual

devices.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Software de Yamaha

Yamaha

Yamaha S90 Manual de usuario

Yamaha

Yamaha DM 1000 Manual de usuario

Yamaha

Yamaha EZ-220 Page Turner Manual de usuario

Yamaha

Yamaha MOTIF RACK XS Editor Manual de usuario

Yamaha

Yamaha 02R96 Version 2 Manual de usuario

Yamaha

Yamaha Sound Editor ver. 2.10 Manual de usuario

Yamaha

Yamaha ASIO DirectKS Manual de usuario

Yamaha

Yamaha M7CL-32 Manual de usuario

Yamaha

Yamaha CobraNet MY16-CII Manual de usuario

Yamaha

Yamaha DSP5D Editor Manual de usuario

Yamaha

Yamaha MOTIF XF Manual de usuario

Yamaha

Yamaha FIRESTATION Instrucciones de operación

Yamaha

Yamaha MOTIF RACK ES Manual

Yamaha

Yamaha Studio Manager v.2 Manual de usuario

Yamaha

Yamaha CL3 Manual de usuario

Yamaha

Yamaha PM1D Manager V2 Instrucciones y recetas

Yamaha

Yamaha Add-On Effects Manual de usuario

Yamaha

Yamaha A3000 Manual de usuario

Yamaha

Yamaha S90 Manual de usuario

Yamaha

Yamaha Extension Manual de usuario

Yamaha

Yamaha PM5D Manual de usuario

Yamaha

Yamaha DM 1000 Manual de usuario

Yamaha

Yamaha MagicStomp Manual de usuario

Yamaha

Yamaha QS1-WD Manual de usuario

Manuales populares de Software de otras marcas

COMPRO

COMPRO COMPROFM Manual de usuario

Muratec

Muratec OFFICEBRIDGE ONLINE Manual de usuario

Oracle

Oracle Contact Center Anywhere 8.1 Manual de usuario

Adobe

Adobe 65007312 - Photoshop Lightroom Manual

Avaya

Avaya NULL One-X for RIM Blackberry Manual de usuario

HP ProLiant BL420c Manual de usuario

PS Audio

PS Audio PowerPlay Manual del propietario

Brady

Brady LOCKOUT PRO 3.0 Manual de servicio

Avaya

Avaya Interaction Center Manual de usuario

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manual

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manual de usuario

Oracle

Oracle Application 9i Manual de usuario

Acer

Acer RDM Manual de usuario

Canon

Canon Vixia HF21 Manual de usuario

Canon

Canon ZR950 Manual de usuario

Samsung

Samsung Auto Backup Manual de usuario

Polycom

Polycom Vortex EF2201 Instrucciones de instalación y funcionamiento

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manual de usuario
