Owner’s Manual

VINTAGE STOMP PACKAGE

What Are ADD-ON EFFECTS?

ADD-ON EFFECTS are software packages that install additional high-quality effects programs on digital

consoles.

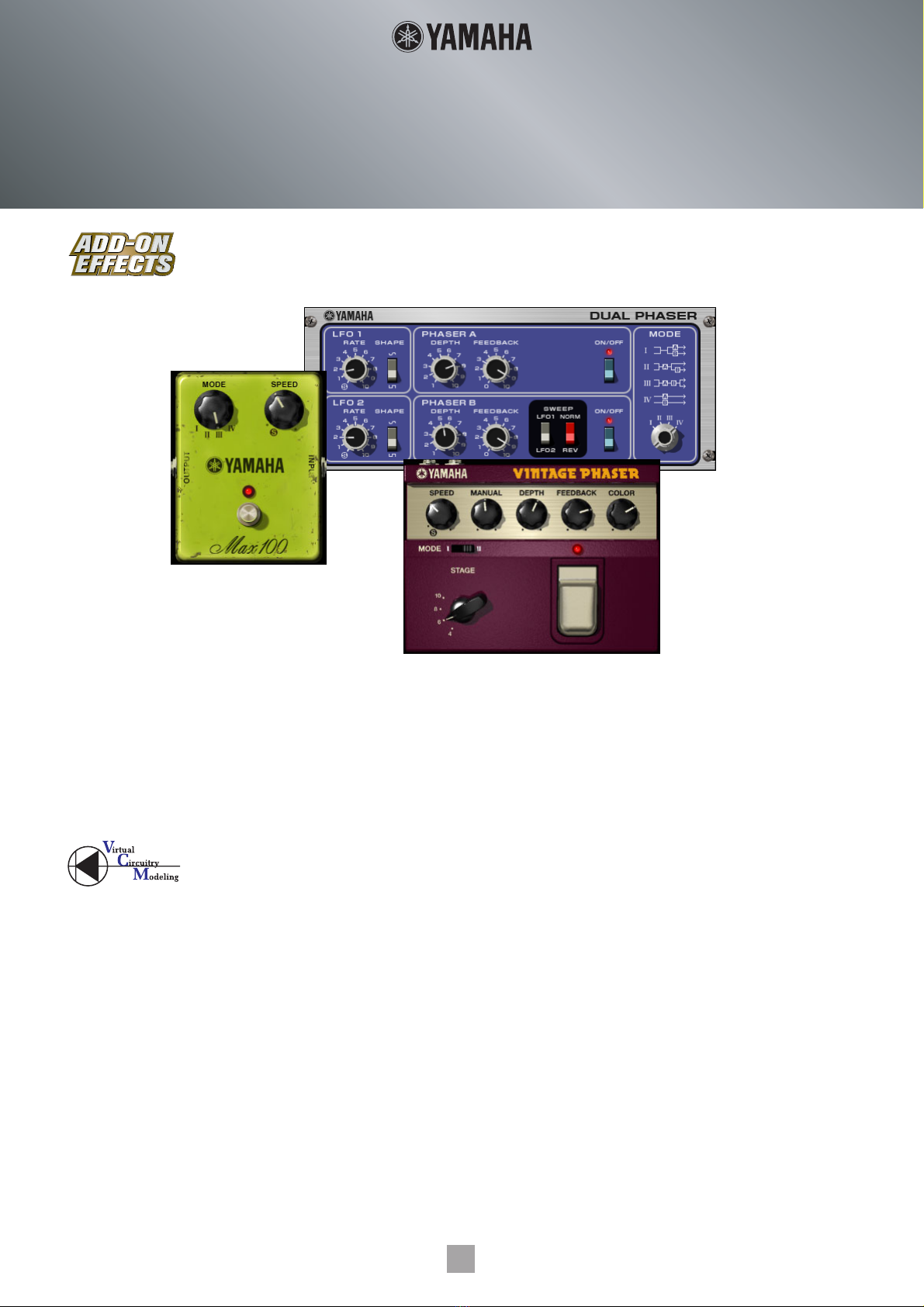

What is the Vintage Stomp Package?

Vintage Stomp is one of the ADD-ON EFFECTS packages.

It simulates the characteristics of analog phasers from the 1970s.

It offers three program types that you can use to match your purposes: Max100, Vintage Phaser, and Dual Phaser.

Max100 is a model that reproduces vintage effects manufactured only during the second half of the Seventies.

Dual Phaser is a model that reproduces vintage effects manufactured only during the mid-Seventies. The Vintage Phaser does

not limit itself to reproducing any particular model. Instead, it offers an extremely high level of freedom in creating the sounds

expected from phasers.

What is VCM (Virtual Circuitry Modeling)?

VCM is a technology that enables you to model element levels in analog circuits (such as resistors and

capacitors). This technology was developed by an engineering group led by Mr. Kunimoto, an engineer

who developed the ﬁrst physical modeling synthesizers, VL1 and VP1.

Vintage Stomp utilizes VCM technology.

Special Note

• Copying of the commercially available music sequence data and/or digital audio ﬁles is strictly prohibited except for your personal use.

• The software and this Owner’s Manual are exclusive copyrights of Yamaha Corporation.

•Copying of the software or reproduction of this manual in whole or in part by any means is expressly forbidden without the written consent of

the manufacturer.

•Yamaha makes no representations or warranties with regard to the use of the software and documentation and cannot be held responsible for

the results of the use of this manual and the software.

•The screen displays as illustrated in this Owner’s Manual are for instructional purposes, and may appear somewhat different from the screens

which appear on your computer.

• The company names and product names in this Owner’s Manual are the trademarks or registered trademarks of their respective companies.

Installing the Vintage Stomp Package

See the “ADD-ON EFFECTS Installation Guide” for information about the installation method for Vintage Stomp Package.

Max100

Using Max100

As with other effects, you can recall and edit the Max100 program on the console or in Studio Manager.

The basic operation is as follows:

1Select one of the internal effects processors.

2Patch the signal to and from the currently selected effects processor.

3Locate the Effects Library page.

4Select and recall Max100.

nWhen you recall the program, all effects processor outputs will be muted temporarily.

5Locate the Effects Edit page.

6Set the parameters. (See the “Part Names and Functions” on page 3 for more information on Max100 parameters.)

The procedure for recalling and editing Max100 varies depending on the console you are using.

Refer to the Owner’s Manual that came with your console for more information.

Editing Parameters in Studio Manager

In Studio Manager, editable parameters appear in both the Max100 window and the Generic Editor window.

The Max100 window enables you to edit Max100 speciﬁc parameters, and the Generic Editor window enables you to edit

parameters common to Max100 and other Effects.

Refer to the Studio Manager Owner’s Manual for your console for more information on the Generic Editor window.

Studio Manager Generic Editor window

Part Names and Functions

1MODE

Switches the sound quality (tone).

There are four types available, each with differences in modulation amplitude and in the amount of feedback.

2SPEED

Adjusts the rate of modulation.

3FOOT SW

The foot switch acts as a bypass.

It turns the effect ON or OFF.

4MIX BALANCE

Sets the balance between the direct sound and the effect sound.

Although this parameter is shared by the various effects in the console, a setting of 100 percent is recommended when

using Max100.

Studio Manager Max100 window Console display

Dual Phaser

Using Dual Phaser

As with other effects, you can recall and edit the Dual Phaser program on the console or in Studio Manager.

The basic operation is as follows:

1Select one of the internal effects processors.

2Patch the signal to and from the currently selected effects processor.

3Locate the Effects Library page.

4Select and recall Dual Phaser.

nWhen you recall the program, all effects processor outputs will be muted temporarily.

5Locate the Effects Edit page.

6Set the parameters. (See the “Part Names and Functions” on page 5 for more information on Dual Phaser parameters.)

The procedure for recalling and editing Dual Phaser varies depending on the console you are using.

Refer to the Owner's Manual that came with your console for more information.

Editing Parameters in Studio Manager

In Studio Manager, editable parameters appear in both the Dual Phaser window and the Generic Editor window.

The Dual Phaser window enables you to edit Dual Phaser speciﬁc parameters, and the Generic Editor window enables you to

edit parameters common to Dual Phaser and other Effects.

Refer to the Studio Manager Owner's Manual for your console for more information on the Generic Editor window.

Studio Manager Generic Editor window

Part Names and Functions

The Dual Phaser consists of two low frequency oscillators (LFOs) and two phasers.

The Phase A LFO is ﬁxed as LFO 1, but either LFO 1 or LFO 2 can be selected as the Phaser B LFO. You can also select normal

or reverse for the phase.

You can also rearrange the way the two phasers are connected.

1LFO 1 RATE

Adjusts the rate for LFO 1.

2LFO 1 SHAPE

Changes the waveform for LFO 1.

3PHASER A DEPTH

Adjusts the depth of modulation for Phaser A.

4PHASER A FEEDBACK

Adjusts the amount of feedback for Phaser A.

5PHASER A ON/OFF

Turns Phaser A ON or OFF.

6LFO 2 RATE

Adjusts the rate for LFO 2.

7LFO 2 SHAPE

Changes the waveform for LFO 2.

8PHASER B DEPTH

Adjusts the depth of modulation for Phaser B.

9PHASER B FEEDBACK

Adjusts the amount of feedback for Phaser B.

)PHASER B ON/OFF

Turns Phaser B ON or OFF.

!SWEEP LFO 1/LFO 2

Selects the LFO for Phaser B.

@SWEEP NORM/REV

Selects the LFO phase for Phaser B.

Selecting NORM sets normal phase. Selecting REV sets

reverse phase.

#MODE

Rearranges the way the two phasers are connected.

I: The stereo input is mixed. Then the Phaser A effect is

applied to the sound that is output from left channel.

Phaser B applied to the sound that is output from the

right channel.

II: The stereo input is mixed. Phaser A is applied to the

sound that is output from the left channel. Phaser A and

then Phaser B is applied to the sound being output from

the right channel.

III: The stereo input is mixed. Phaser A and then Phaser

B are applied to the sound, which is then output from

both the left and right channels.

IV: Phaser A is applied to the input on the left channel,

which is then output from the left channel. Phaser B is

applied to the input on the right channel, which is then

output from the right channel.

$MIX BALANCE

Sets the balance between the direct sound and the effect

sound.

Although this parameter is shared by the various effects

in the console, a setting of 100 percent is recommended

when using Dual Phaser.

)

7 ! @8 9 ) #

3 4 5

Studio Manager Dual Phaser window Console display

L+R A L

III

LAL

RBR

L+R A L

L+R A B L

Vintage Phaser

Using Vintage Phaser

As with other effects, you can recall and edit the Vintage Phaser program on the console or in Studio Manager.

The basic operation is as follows:

1Select one of the internal effects processors.

2Patch the signal to and from the currently selected effects processor.

3Locate the Effects Library page.

4Select and recall Vintage Phaser.

nWhen you recall the program, all effects processor outputs will be muted temporarily.

5Locate the Effects Edit page.

6Set the parameters. (See the “Part Names and Functions” on page 7 for more information on Vintage Phaser parameters.)

The procedure for recalling and editing Vintage Phaser varies depending on the console you are using.

Refer to the Owner's Manual that came with your console for more information.

Editing Parameters in Studio Manager

In Studio Manager, editable parameters appear in both the Vintage Phaser window and the Generic Editor window.

The Vintage Phaser window enables you to edit Vintage Phaser speciﬁc parameters, and the Generic Editor window enables

you to edit parameters common to Vintage Phaser and other Effects.

Refer to the Studio Manager Owner's Manual for your console for more information on the Generic Editor window.

Studio Manager Generic Editor window

Part Names and Functions

1SPEED

Adjusts the rate of modulation.

2MANUAL

Adjusts the center frequency of modulation.

3DEPTH

Adjusts the depth of modulation.

4FEEDBACK

Adjusts the amount of feedback.

5COLOR

Fine tunes the sound quality (tone).

6MODE and 7STAGE are valid only during the following combinations:

6MODE

Sets the type of circuit conﬁguration being modeled.

Changes the sound quality (tone).

7STAGE

Sets the scale of the circuit being modeled.

Changes the sound quality (tone).

8FOOT SW

The foot switch acts as a bypass.

It turns the effect ON or OFF.

9MIX BALANCE

Sets the balance between the direct sound and the effect sound.

Although this parameter is shared by the various effects in the console, a setting of 100 percent is recommended when

using Vintage Phaser.

MODE STAGE

I10

II 6

II 8

3 4 5

Studio Manager Vintage Phaser window Console display
