Yakima StickUp Manual de usuario

1033429E-1/21

Warranty registration on-line at: Yakima.com

TOOLS REQUIRED:

ADJUSTABLE WRENCH

Important warnIng

ItIs crItIcal that all yakIma racks and accessorIes be properly and securely attached to your vehIcle. Improper attachment could

result In an automobIle accIdent, and could cause serIous bodIly Injury or death to you or to others. you are responsIble for

securIng the racks and accessorIes to your car, checkIng the attachments prIor to use, and perIodIcally InspectIng the products

for adjustment, wear, and damage. therefore, you must read and understand all of the InstructIons and cautIons supplIed wIth

your yakIma product prIor to InstallatIon or use. Ifyou do not understand all of the InstructIons and cautIons, or If you have no

mechanIcal experIence and are not thoroughly famIlIar wIth the InstallatIon procedures, you should have the product Installed by a

professIonal Installer.

•Do not use with a

hitch-extender.

•Only use with Yakima

2" hitch adapter.

•Do not use TubeTop

accessory with this

product.

In addition, some

undersized receivers may

not accept this product.

If you do not know the

capabilities of your hitch

receiver, consult an

automotive professional.

HEX WRENCH (1X)

MAST (1X)

WHEEL HOOP (2X)

WHEEL TRAY (2X)

SUPPORT TUBE (2X) CAP SCREW (2X)

NYLOC NUT (2X)

WASHER (4X)

WRENCH (2X)

HITCH BOLT (2X)

LOCK

WASHER (2X)

SAFETY PIN (1X)

BOLT (1X)

WASHER (2X)

TOUNGE (1X)

NYLOC NUT (1X)

Part #1033429 Rev.E

LONG STRAP (1X)

1033429E-2/21

FaStEn HItCH BoLt.

•Insertboltthroughwasher,

and through holes on

tongue and main assembly.

•Install second washer and

nyloc nut.

•Tightenwithsupplied

wrenches.

For 1 1/4" HItCH onLy: rEmovE tHE HItCH adaptEr.

•Removethe

set screw.

For 2" HItCHES SkIp tHIS StEp and proCEEd to StEp 3.

attaCH tonguE to maIn aSSEmBLy.

Align holes on tongue assembly

with holes on main assembly.

Align holes on hitch

and tongue.

•Inserthitch

bolt and lock-

washer from

right to left.

•Tightenwith

adjustable

wrench.

•Installsafetypin.

•Removetheadapter.

NOTE: Long bolt for 2" receivers.

Short bolt for 1 1/4" receivers.

1033429E-3/21

FLIp outErmoSt Support tuBE.

•Usingsupplied

wrench remove

both sets of bolts,

washers, and lock

washers. Set aside.

•Removesupporttube.

•Rotatesupporttube180°.

Place rotated support

tube back on bracket.

Align holes.

Secure support tube using

supplied wrench. Fasten and

tighten both sets of bolts,

washers, and lock washers.

1033429E-4/21

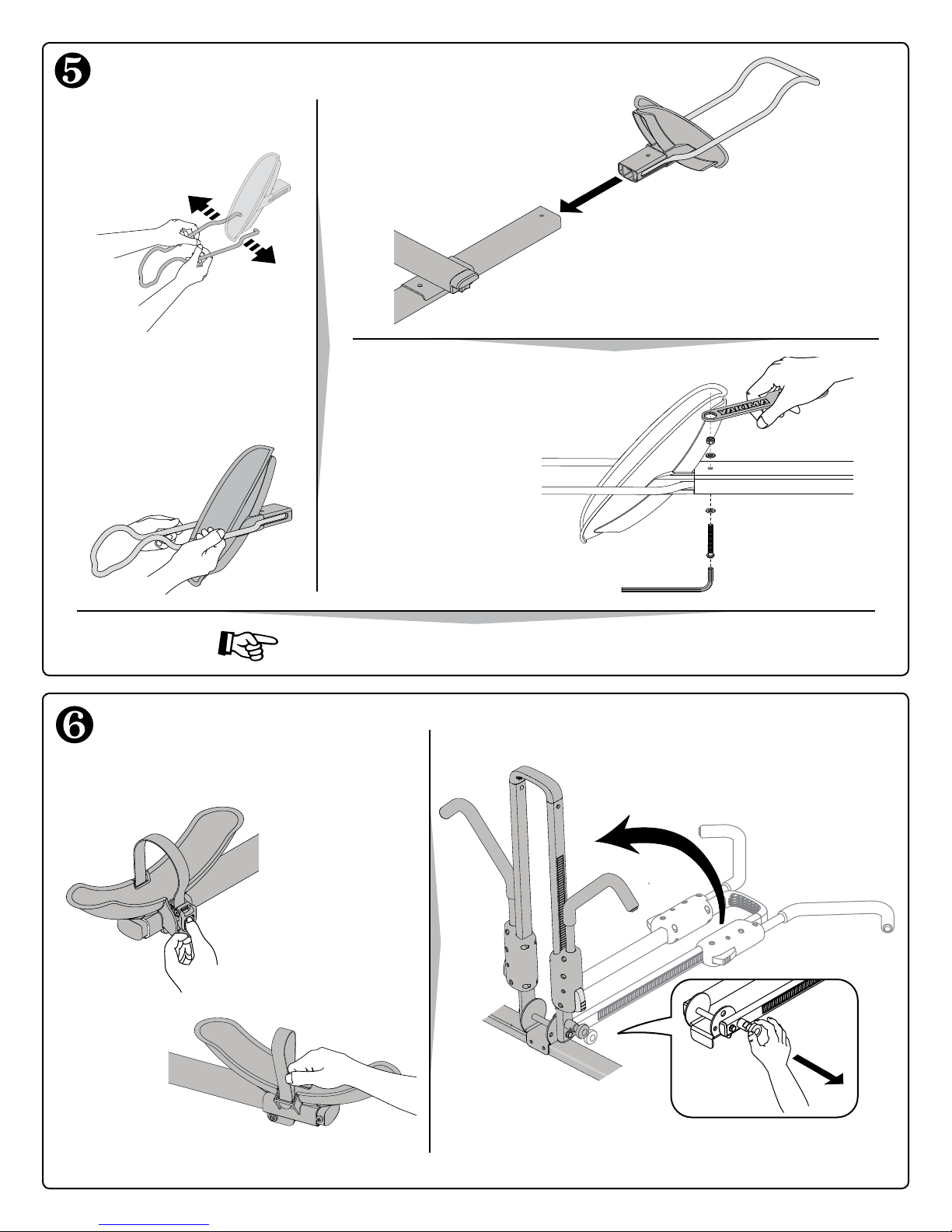

InStaLL wHEEL trayS.

•Insertcapscrew

through washer, and

through holes on tube.

•Install second washer

and nyloc nut.

•Tighten using

supplied wrench, and

supplied hex wrench.

rEpEat For SECond FIXEd wHEEL tray.

prEparE For LoadIng.

Tuck strap into slot at

rear of wheeltray.

Release

wheelstrap

by pressing

the lever on

the buckle.

Pull Knob.

Raise Mast.

Pull wheel hoop

apart. Put in place

around wheeltray

as shown below.

Release letting wire rest in

hole, and slot of wheeltray.

Insert into

opening of tube.

1033429E-5/21

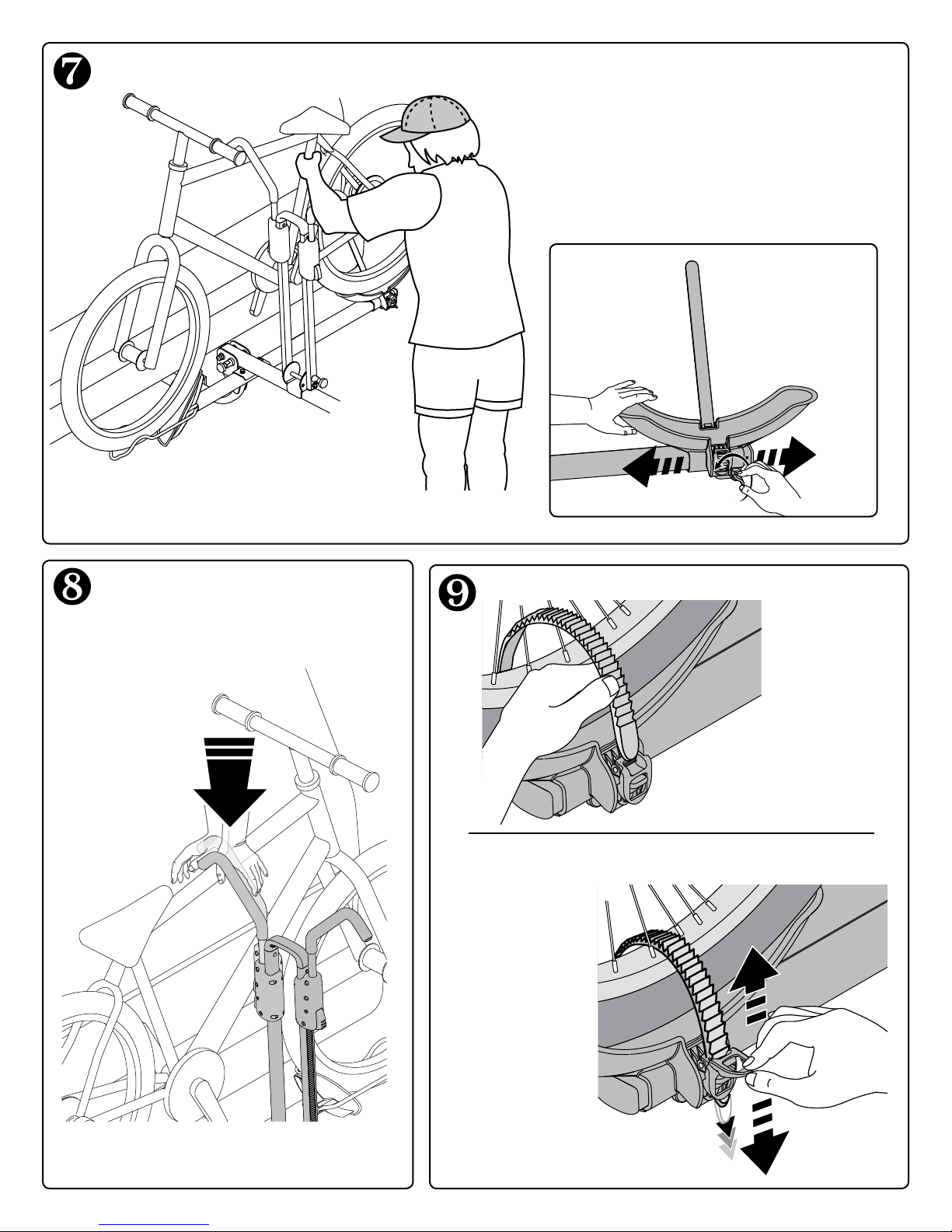

Load your BIkES. •Loadheaviestbike

ﬁrst. Load it closest

to the vehicle.

•Set your bike in

place.

•Loosen sliding

wheel tray, and

adjust if necessary.

•Tighten knob.

Insert the strap end

through the top of

the ratchet buckle.

Move the ratchet

tab up and down to

tighten the strap.

tIgHtEn rEar wHEEL Strap.

SECurE tHE Hook.

Compress the

hook against

the frame by

applying ﬁrm

pressure.

Feed the

strap through

the spokes of

wheel.

Rotate the wheel

slightly, if necessary.

SECurE rEar wHEEL Strap.

1033429E-6/21

Now that you’ve installed your

Yakima StickUp take a moment to

enjoy your beverage of choice.

Use the built in bottle opener to

crack open a cold one.

•Donotdrinkalcoholanddrive.

•Donotdrinkalcoholandride.

Pull Knob.

Fold mast down.

Push rear hook

in securing it

underneath

wheel tray.

Push front hook

in as shown.

Fold StickUp up. Be sure it

locks into upright position.

Pull Knob.

wHEn not In uSE FoLd StICkup up.

•Use Long Strap

to secure bikes

to mast.

•Secure loose

strap end.

SECurE BIkES.

1033429E-7/21

•Neverdriveoff-roadwithbicyclesloaded.

•Donotusewithbikesthathavestepthroughorseverely

sloped, angled top tubes.

•DonotuseTubeTopaccessorywiththisproduct.

•Donotinstallontrailers,campers,orRVs.

•Donotpositionbicycletiresnearvehicle’shotexhaust.

•Donotinstallifsparetirecausesinterferencewithbikesor

folded carrier.

•Beforedrivingawayalwayscheckthatallhardwarehasbeen

fully tightened.

BIkES:

•Makesureyourtiresarelledtorecommendedpressurefound

on the tire.

•Donotcarrytandemorrecumbentbikes.

•Do not transport bicycles with attached baby seats, panniers,

wheel covers, full bike covers or motors.

Important Load LImItS:

HItCH Load IS LImItEd to 45 LBS. (20kg) pEr BIkE.

InStaLL tHIS

produCt on 2"

and 1 1/4" HItCH

rECEIvErS onLy.

Remove this rack before entering an automatic car

wash, and when not in use.

MAINTENANCE: Periodically use non-water soluble

lubricant on moving metal parts. Use a soft cloth with

water and mild detergent to clean rubber parts.

In addition, some undersized

receivers may not accept this

product. If you do not know the

capabilities of your hitch receiver,

consult an automotive professional.

•Donotusewitha 

hitch-extender.

•Onlyusetheincluded

2” hitch adapter.

TECHNICAL ASSISTANCE OR REPLACEMENT PARTS:

GO ONLINE: WWW.YAKIMA.COM

Contact your dealer or call

(888) 925-4621

Monday through Friday

7:00 am to 5:00 pm PST

k E E p t H E S E I n S t r u C t I o n S !

Attachment hardware can loosen over time. Check before each use, and tighten if necessary.

Failure to obey load limits can result in property damage, personal injury, or death.

This product is covered by YAKIMA’s

“Love It Till You Leave It” Limited Lifetime Warranty

To obtain a copy of this warranty, go online to www.yakima.com

or email us at [email protected]

orcall(888)925-4621

1033429E-8/21

CLÉ HEXAGONALE (X 1)

MÂT (X 1)

APPUIE-ROUE (X 2)

GOUTTIÈRES (X 2)

SUPPORT (X 2) BOULONS À TÊTE

RONDE (X 2)

ÉCROU NYLOC (X 2)

RONDELLES (X 4)

CLÉ (X 2)

BOULONS D'ATTELAGE (X 2)

RONDELLES DE

SÉCURITÉ (X 2)

BROCHE DE SÛRETÉ (X 1)

BOULON (X 1)

RONDELLES (X 2)

COUDE (X1)

ÉCROU NYLOC (X 1)

• Ne pas employer avec

une rallonge d'attelage.

• N'employer qu'avec

l'adaptateur Yakima pour

attelagede51mm(2po).

• Ne pas employer

l'accessoire TubeTop

avec ce produit.

Par ailleurs, il est possible que

certains attelages plus petits

n'acceptent pas ce produit. Si

l'on ne connaît pas la solidité

du tube d'attelage du véhicule,

consulter un professionnel de

l'automobile. receiver, consult

an automotive professional.

avErtISSEmEnt Important:

Il est ImpÉratIf Que les porte-bagages et les accessoIres yakIma soIent correctement et solIdement fIxÉs au

vÉhIcule. un montage mal rÉalIsÉ pourraIt provoQuer un accIdent d’automobIle, QuI pourraIt entraÎner des

blessures graves ou mÊme la mort, À vous ou À d’autres personnes. vous Êtes responsable de l’InstallatIon du

porte-bagages et des accessoIres sur votre vÉhIcule, d’en vÉrIfIer la solIdItÉ avant de prendre la route et de les

Inspecter rÉgulIÈrement pour en contrÔler l’État, l’ajustement et l’usure. vous deveZ donc lIre attentIvement

toutes les InstructIons et tous les avertIssements accompagnant votre produIt yakIma avant de l’Installer

et de l’utIlIser. sI vous ne compreneZ pas toutes les InstructIons et tous les avertIssements, ou sI vous n’aveZ

pas de compÉtences en mÉcanIQue et ne compreneZ pas parfaItement la mÉthode de montage, vous devrIeZ faIre

Installer le produIt par un professIonnel.

outILS nÉCESSaIrES:

clé à molette

SANGLE

LONGUE (X1)

StickUp

1033429E-9/21

mEttrE En pLaCE LE BouLon

d'attELagE.

•Enlerleboulonmunid'une

rondelle dans les trous du

coude et de l'assemblage.

•Poser la deuxième

rondelle et l'écrou Nyloc.

•Serreraveclesclés

fournies.

pour LES attELagES dE 32 mm (1 ¼ po) SEuLEmEnt : EnLEvEr L'adaptatEur pour attELagE.

•Enleverlavis

de blocage.

pour LES attELagES dE 51 mm (2 po) : paSSEr dIrECtEmEnt À L'opÉratIon 3.

FIXEr LE CoudE À L'aSSEmBLagE prInCIpaL.

Aligner les trous du coude avec

ceux de l'assemblage principal.

Aligner les trous

du coude et de

l'attelage.

•Poserlabrochedesûreté.

•Enleverl'adaptateur.

•Enlerleboulonmuni

de sa rondelle de la

droite vers la gauche.

•Serreraveclacléà

molette.

REMARQUE: Pour les attelages de 32

mm (1 ¼ po) seulement : Employer

boulons d'attelage court.

Pourlesattelagesde51mm(2po)

seulement : employer boulons

d'attelage long.

1033429E-10/21

rEtournEr LE Support EXtÉrIEur.

•Àl'aidelacléfournie,

enlever les deux

boulons avec leurs

rondelles et leurs

écrous.Lesconserver.

•Enleverlesupport.

•Retournerlesupportde180°.

Replacer le support en position en

alignant les trous.

Fixerlesupportàl'aidedela

cléfournieenserrantbienles

boulonsetlesécrous.
