LS Flex/430
LabStation
ba75968d02 11/2018
LS Flex/430
Copyright ©2018, Xylem Analytics Germany GmbH
Printed in Germany.
LS Flex/430 Contents
3
ba75968e02 11/2018
Contents
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Battery operation with LS Flex/430 . . . . . . . . . . . . . . . . . . . . . . . 5
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Overview LS Flex/430
4ba75968e02 11/2018
1 Overview
With the LabStation, which is available as an accessory, you can con-
veniently use your pHotoFlex in the laboratory.
Laboratory operation with the LabStation enables the following addi-
tional functions:
With photometric measurements, the zero measurement is retained
even after switching the pHotoFlex off and on again
You can connect a bar code reader for the simplified calling up of
programs
The LSdata software included serves to easily enter user-defined
programs
Operation with power pack and rechargeable battery (included in the
scope of delivery of the LabStation). The rechargeable battery in the
pHotoFlex is automatically charged as soon as the meter is placed
in the LabStation.

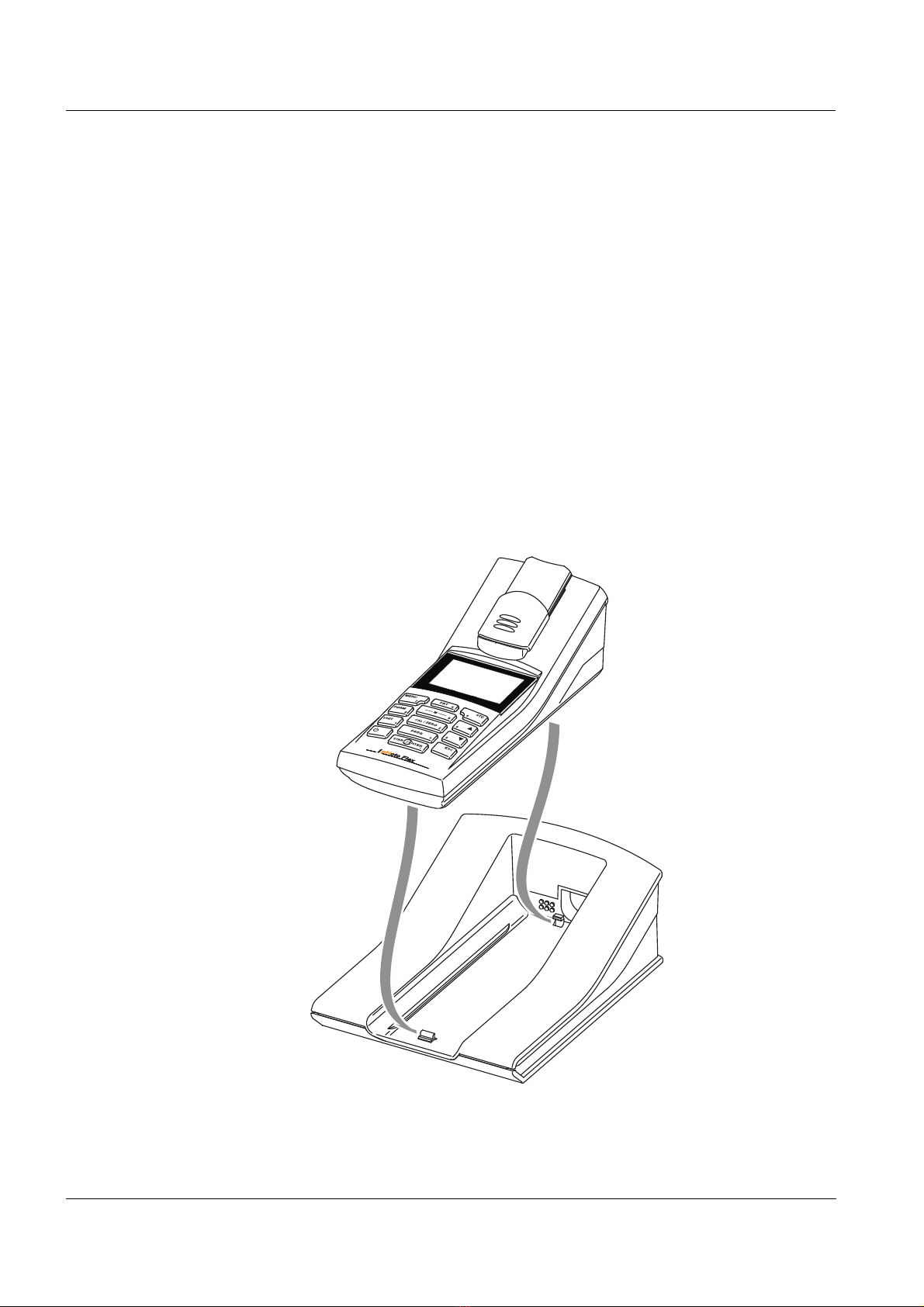

Fig. 1-1 LabStation
LabStation
LS Flex 430
LS Flex/430 Battery operation with LS Flex/430
5
ba75968e02 11/2018
2 Battery operation with LS Flex/430
Battery operation The LS Flex/430 is supplied with power with the power pack included.
If the meter and the LS Flex/430 are connected to each other, the
LS Flex/430 supplies the meter with power. At the same time, the re-
chargeable battery (rechargeable batteries) in the meter is charged.
The rechargeable battery is charged even while the meter is switched
off.
Charging time of the
rechargeable battery
approx. 36 hours.
CAUTION
Use original power packs only.
The line voltage at the operating site must lie within the input volt-
age range of the original power pack (SEE chapter 3 TECHNICAL DA-
TA).
NOTE
The rechargeable battery will eventually discharge even when the me-
ter is switched off. If you do not work with the meter for a longer period
of time you should charge the rechargeable battery every 6 months to
avoid total discharging. Rechargeable batteries that are often totally
discharged have a shorter service life.
Inserting the
rechargeable battery
1
2
3
Battery operation with LS Flex/430 LS Flex/430
6ba75968e02 11/2018
Connecting the LS Flex/
430
When the pHotoFlex LS Flex/430 is operated in the LabStation, a bar
code reader can be connected. A bar code reader enables to select
program numbers in a simplified manner.
Recommended bar code readers (see operating manual of your pHo-
toFlex).
For the interface of your meter, set the same baud rate that is set for

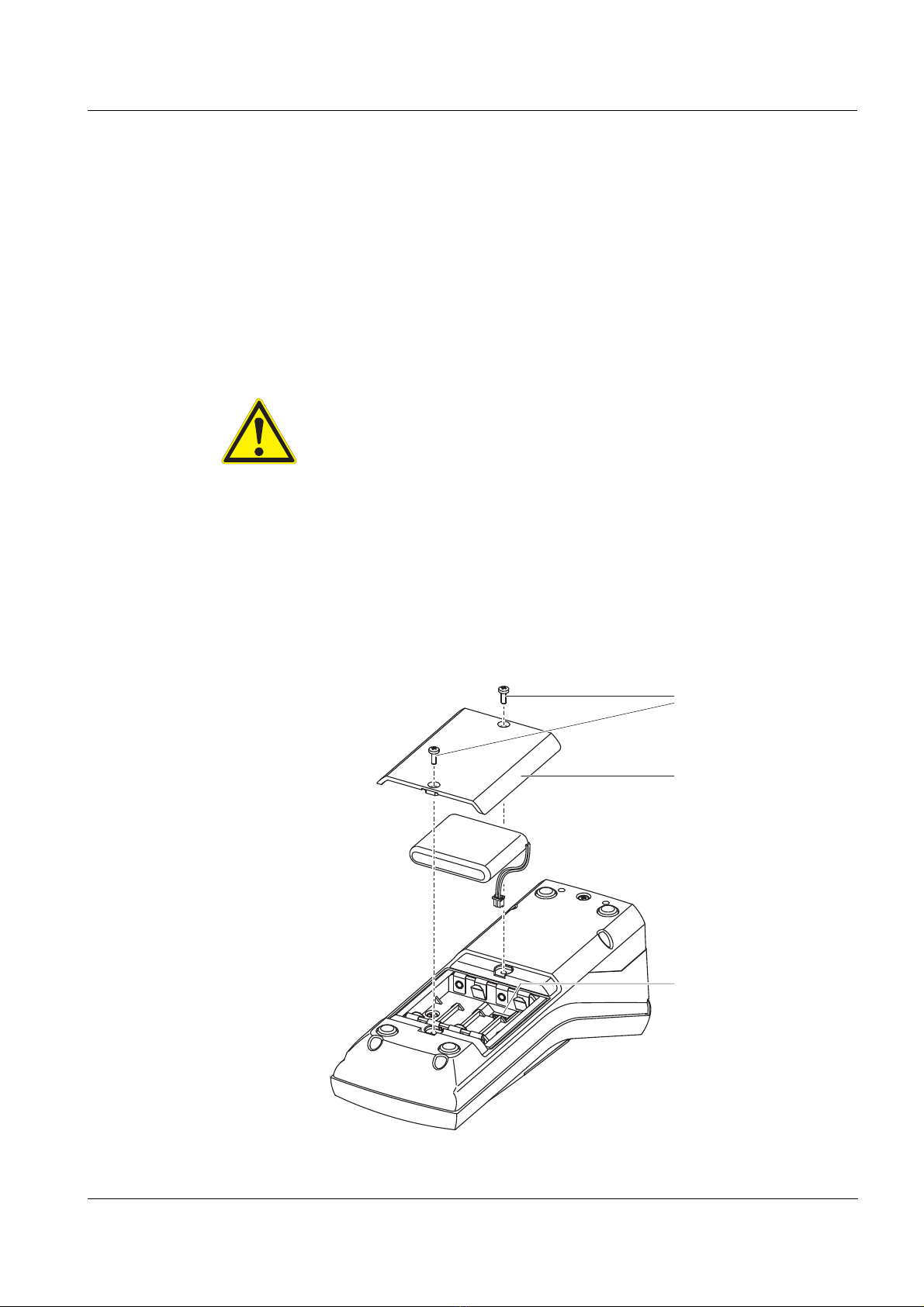

1Open the battery compartment:
– Unscrew the two screws (1) on the underside of the meter,
– Remove the lid of the battery compartment (2).
2 If necessary, take four old batteries out of the battery compart-
ment.
3Connect the cable of the rechargeable battery with the socket
(3) on the bottom of the battery compartment and insert the re-
chargeable battery in the battery compartment.
4 Close the battery compartment and fix it with the screws.
1If necessary, replace the Euro plug (1) on the power pack (2)
by the country-specific plug suitable for your country.
2 Connect the plug (3) to the socket (4) of the LabStation.
3Connect a PC, printer or bar code reader to the socket (5) of
the LabStation as necessary.
5
4
3
2
1
LS Flex/430 Battery operation with LS Flex/430
7
ba75968e02 11/2018
the bar code reader (see operating manual of your pHotoFlex).
The baud rate of the bar code reader is given in the operating manual
of the bar code reader.
4Connect the power pack to an easily accessible power socket.

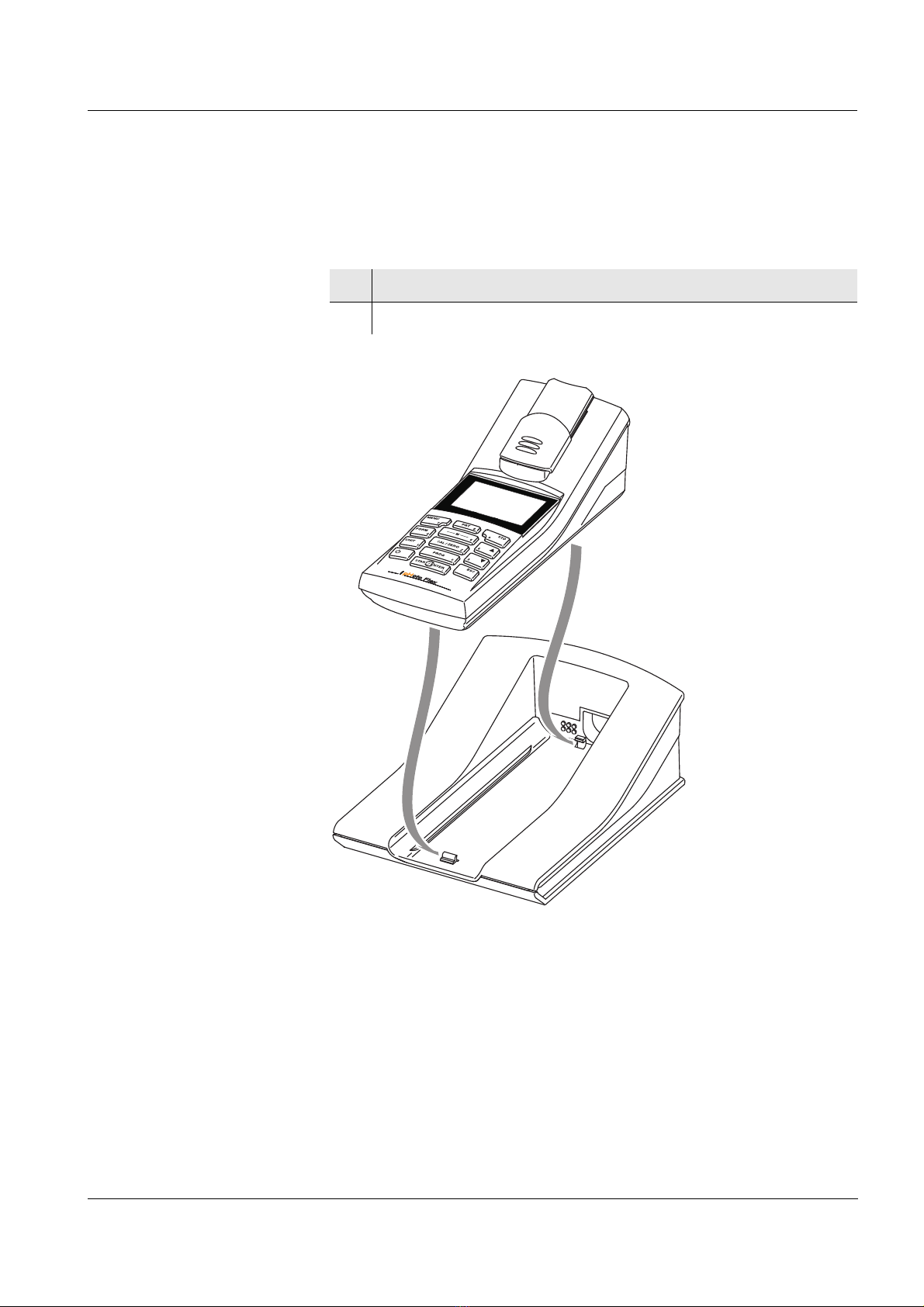

5 Insert the pHotoFlex in the LS Flex/430.
LabStation
LS Flex 430
Technical data LS Flex/430
8ba75968e02 11/2018
3 Technical data
Dimensions approx. 236 x 82 x 170 mm
Weight approx. 0.6 kg
Power
supply
Power pack FRIWO FW7555M/09, 15.1432.500-00
Friwo Part. No. 1883259
-------------------
RiHuiDa RHD20W090150
-------------------
Input: 100 ... 240 V ~ / 50 ... 60 Hz / 400 mA
Output: 9 V = / 1.5 A
Connection max. overvoltage category II
Primary plugs contained in the scope of de-
livery: Euro, US, UK and Australian.
Serial
interface
Connection of the null modem cable (included in the scope of delivery)
Baud rate Adjustable:
1200, 2400, 4800, 9600, 19200 Baud
Type RS232
Data bits 8
Stop bits 2
Parity None
Handshake RTS/CTS
Cable length Max. 15 m
Applicable directives
and standards
EMC EC directive 89/336/EEC
EN 61326-1/A3:2003
FCC Class A
Meter safety EEC directive 73/23/EEC
EN 61010-1 :2001
UL3101-1
CAN/CSA-C22.2 No. 1010.1-92
Climatic class VDI/VDE 3540
IP protection class EN 60529:1991
