INTRODUCTION

This manual provides informations for operating the Xerox Interface Module.

Welcome to the Xerox Interface Module. This product is an interface for the DocuTech 120 prin-

ter.

The XIM will enable in line finishing by receiving sheets from the host printer and sendinig

these sheets in to a stacker or other Finishing device.

The information contained in this manual is based on the most current information available at

the time of editing.

Operator Manual

Page 9 - 5

Initial issue: 02/03

Latest revision: 10/03

DESCRIPTION OF THE PROCESS

Schematic view of the paper path.

Operator Manual

Page 9 - 6

Initial issue: 02/03

Latest revision: 10/03

WITHOUT ROTATION WITH ROTATION

Centered input -> Centered output Centered input -> Centered output

Centered input -> Registred output Centered input -> Registred output

DESCRIPTION OF THE MACHINE

1 - Features description

General:

Height of the entrance / exit: 860mm / 33.8in.

Height of the exit : 860 mm (33.8 in.) or 1020mm (40.1 in.)

(Adjustable : + 60mm / 2.4in. and - 15mm / .6in.).

Operator Manual

Page 9 - 7

Initial issue: 02/03

Latest revision: 10/03

OUT

Front door

Top cover

Led display

Front

Top tray

Power cord

The power supply

cord is used as

the disconnect

device. There is

no Main switch.

Docking plate to

downstream

device.

Keyboard and switch for

service use only.

2 - Technical specifications

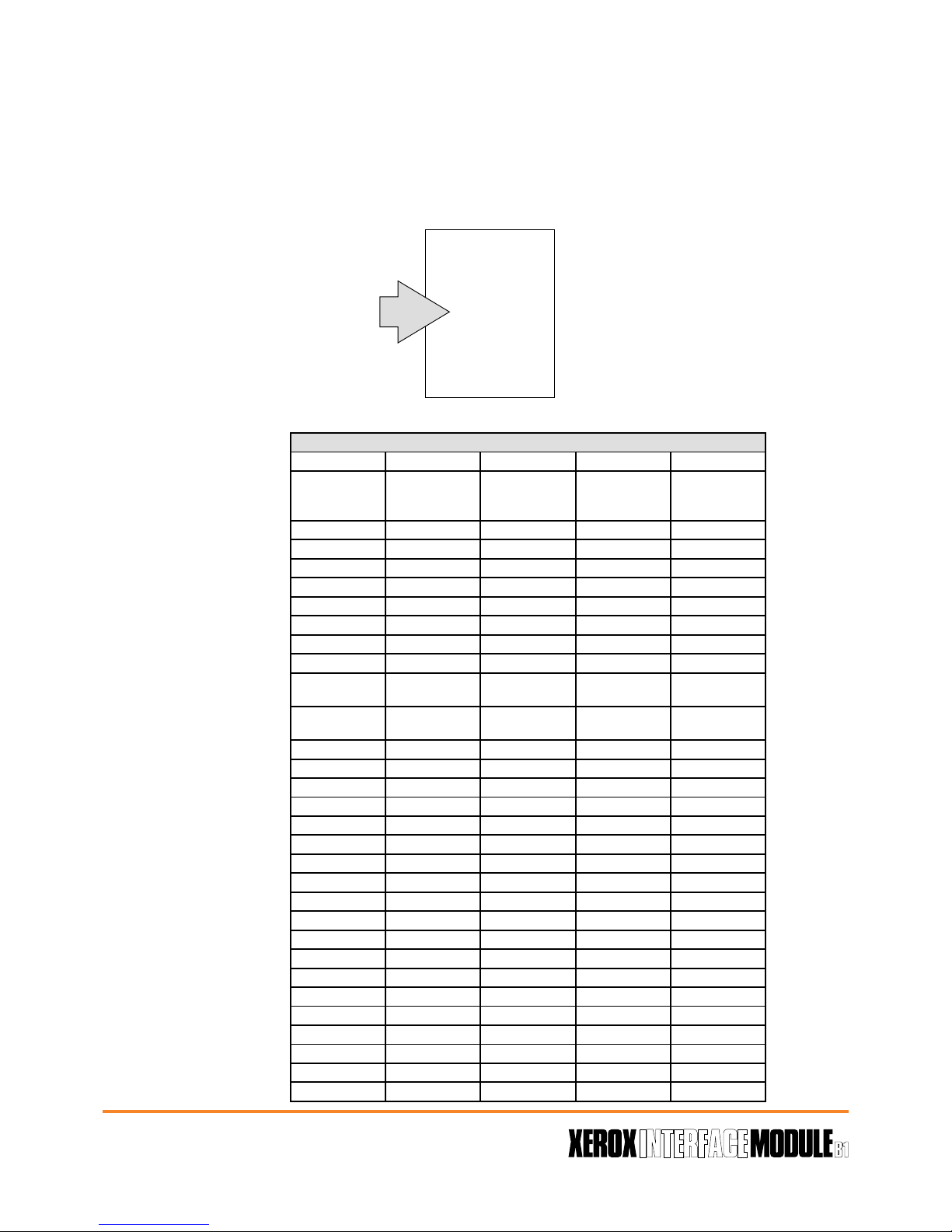

Paper type:

Paper format:

Operator Manual

Page 9 - 8

Initial issue: 02/03

Latest revision: 10/03

Min: 178 mm (7 in.)

Max: 470 mm (18.5 in.)

Paper processing

direction

Min: 254 mm (10 in.)

Max: 364 mm (14.33 in.)

LEF SEF Inches mm

Envelopes

#102to 9"x12"

4.12x9.5 to

9"x12"

105x241 to

229x305

A5 X (5.83x8.27) 148x210

Statement X 5.5x8.5 (140x216)

7x10 X 7x10 (178x254)

B5 - JIS X (7.17x10.12) 182x257

Executive X 7.25x10.5 (184x267)

16K (Taiwan)3X (7.64 x 10.51) 194x267

8x10 X 8x10 (203x254)

Letter X 8.5x11 (215/216x279)

Ltr Cover X 9x11 (229x279)

Ltr Tab1X 9x11 (229x279)

210x270 X (8.27x10.63) 210x270

A4 X (8.27x11.69) 210x297

210x330 X (8.27x13) 210x330

215x275 X (8.46x10.83) 215x275

215x356 X (8.46x14.02) 215x356

216x273 X (8.5x10.7) 216x273

A4 Cover X (8.78x11.69) 223x297

A4 Tab1X (8.78x11.69) 223x297

Spanish – XE X (8.46x12.4) 215x315

8x13 X 8x13 (203x330)

Paper Size / Orientation

Notes :

1 Tabs are fed tab trailing.

2 #10 Envelopes enters IOT with flap open, flap trailing and front side facing down.

Paper orientation , excluding Envelopes, encompass both long grain and short grain papers.

Brackets ( ) indicate the equivalent size for informational purposes only.

3 Korea and Taiwan: Actual FX APO market region includes this set of papers and the ESG set

of papers.

Paper capacity :

Maximum 465 mm (18.3 in.)

Input speed :

DocuTech 120 : up to 216 ppm

Operator Manual

Page 9 - 9

Initial issue: 02/03

Latest revision: 10/03

215x330 X (8.46x13) 215x330 72

Foolscap – XE X 8.5x13 (216x330) 72

220x330 X (8.66x13) 220x330 72

Legal X 8.5x14 (216x356) 72

9x14 X 9x14 (229x356) 72

SB4 X (9.9x14.1) 252x358 72

B4 –JIS X (10.12x14.33) 257x364 72

8K (Taiwan)3X (10.51x15.28) 267x388 72

A3 X (11.69x16.54) 297x420 72

Ledger X (11x17) (279x432) 72

12x18 X 12x18 (305x457) 48

12x18.5 X 12x18.5 (305x470) 48

12.2x17 X (12.2x17) 310x432 48

4 up-6x9 X 12.5x18.5 (317.5x470) 48

2 up-6x9 X 12.5x9.5 (317.5x241.3) 96

SRA4

2 up-A5

SRA3

4 up-A5

Labels X X See 16.0-3 See 16.0-3

120

(12.6x17.7)

320x450

(12.6x8.9)

320x225

PPM

LEF SEF Inches mm

Paper Size / Orientation

JAM DETECTION

The display represents the top tray and the paper path area. When part of the mimic is

illuminated, there is a problem in this area.

Operator Manual

Page 9 - 10

Initial issue: 02/03

Latest revision: 10/03

Top tray

This window is

blinking when the

machine does a

set-up, and ligh-

ted when the

machine is ready.

If the top tray area is illuminated, you have to open the top cover to

check the area and clear the problem.

If the paper path area is illuminated, you have to open the top cover to

check the area and clear the problem.

Paper path
