X-Vision VIS430R Guía
CCTV
Model: VIS430R
Colour 30 metreIR Long
Range Camera
Model: VIS450R
Colour 50 metreIR Long
Range Camera
CCTV
Model:
VIS430R/450R
Colour 30/50 metre IR Long
Range Cameras
Manufactured exclusively for:
Xvision (Europe) Group,
Head Office: London, U.K.
Email: [email protected].uk
Web: www.x-vision.co.uk
TECHNICAL SUPPORT:
For Technical Support for any Xvision product please contact your local
distributor.
LIMITED WARRANTY:
This product is supplied with a 2 Year warranty. The Warranty excludes
products that have been misused, (including accidental damage) and
damage caused by normal wear and tear. In the unlikely event that you
encounter a problem with this product, it should be returned to the
place of purchase.
Before you begin
•Please unpack the box carefully and identify that all the parts are present.
•Do not cut the camera cables, this will void the warranty.
•Make sure you use only the recommended power supply. Damage caused to the camera by
incorrect voltage or wiring is not covered by the warranty.
The camera is suitable for indoor or outdoor use. Please bear in mind the following points when
choosing a mounting position.
•The camera must be positioned so that it will not point directly into the sun (sunrise and
sunset) or any bright light, as this may cause damage to the camera.
•Avoid viewing areas where half the area is in bright sunlight and the other half is dark,
such as in the shadow of a building. All types of cameras have difficulty in ‘seeing’ with
such a large lux level variation.
Specification
Model: VIS430R/VIS450R
Picture Type: Day/Night (B/W & Colour)
Image Sensor: Sony 1/3” Super HAD CCD
DSP: Xvision IXC1DN
Resolution: 480TVL
Lens Viewing Angle: 43° (VIS430R)
35° (VIS450R)
Infra Red Nightvision: 30 metres (VIS430R)
50 metres (VIS450R)
Minimum Illumination: 0.1 Lux
Audio: No
Operating Voltage: 12V DC 1500mA
Suggested Power Supply: 12V DC 3500mA Regulated
Mounting: Wall
Weatherproofing: Yes
Dimensions: Ø104.7x182.5mm

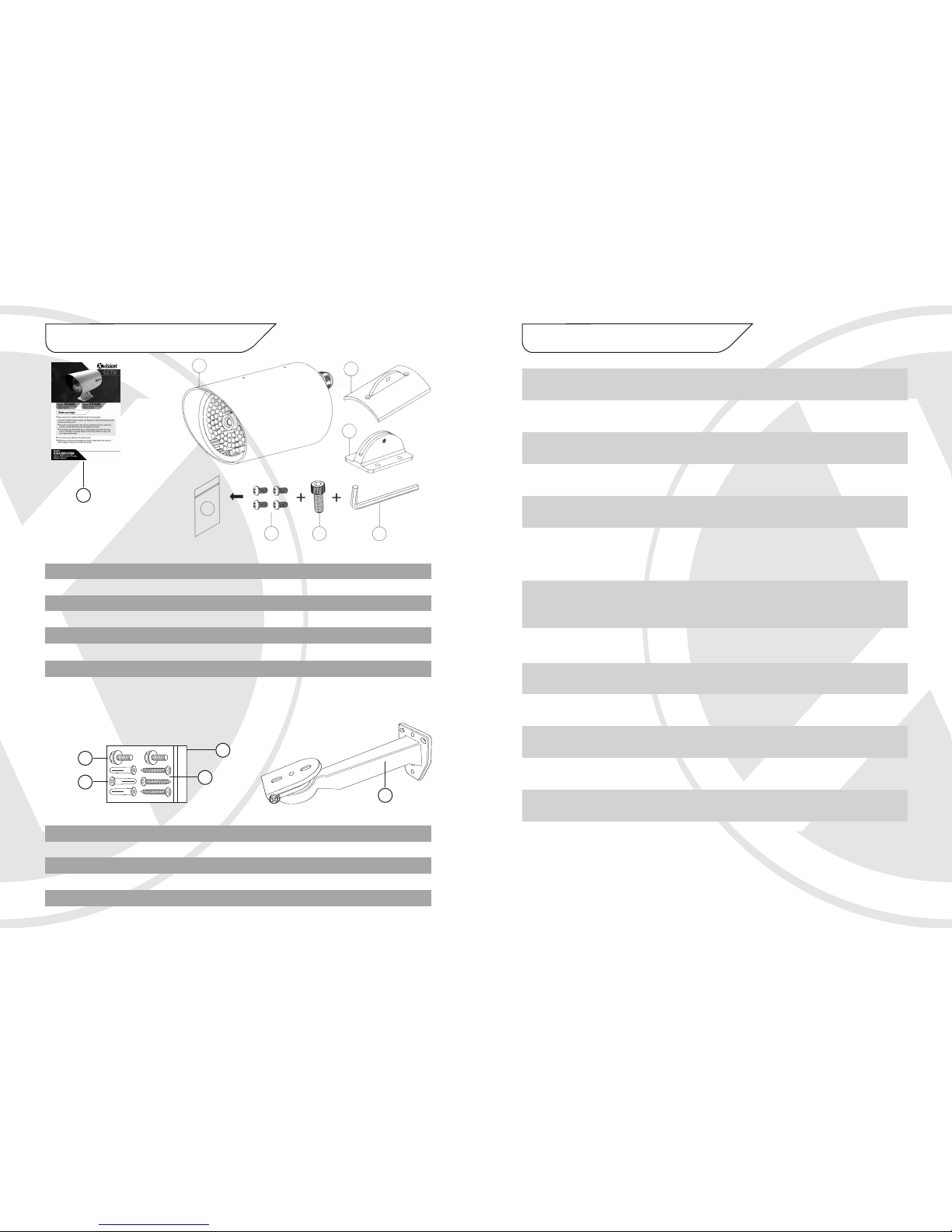

1. Contents
ITEM NAME OF PART QTY
1Instruction Manual 1
2 Long Range IR Camera 1
3Camera Bracket 1 1
4Camera Bracket 2 1
5 Accessories Bag containing A, B, C 1
AFixing screws for Bracket 1 & Camera Body 4
B Hex head bolt for fixing Bracket 1 & 2 1
CL-wrench 1
1
7
23
4
5
B
AC
In the mounting bracket box contained within the main camera box
you will find the following items:
ITEM NAME OF PART QTY
6Wall Mount Bracket 1
7 Accessories Bag containing D, E, F 1
D Fixing screws 4
E Wall Plugs 4
FMounting Bolts 2
6
D
F
E
Dual mode Very High Resolution CCD sensor provides very good quality
Colour images in low light conditions of 0.1 lux or above and B/W
images in low light conditions below 0.1 lux and in complete darkness
Integrated Long Life Infra Red LEDs turn on automatically when the
camera switches to B/W mode and provides 30 to 50 metres night
vision
Light emitted from the Infra Red LEDS is not visible to the human eye,
however to the camera the light is clearly visible
Traditional styling makes them ideal for use in situations where an
instant deterrent or heavy duty camera is required
Sony 1/3" Super HAD CCD image sensor for 480 TVL resolution images
and 0.1 lux low light sensitivity
Xvision IXC1DN Digital Signal Processing (DSP) chip which has been
optimised for internal or external viewing and features Auto Gain
Control, Auto Electronic Iris, Auto White Balance, Back Light
Compensation, Low Smear, Edge Enhancement, Zero Colour Rolling and
Day/Night
3. Features
The VIS430R/VIS450R Colour Long Range IR cameras are designed for
medium to high risk applications. Their traditional styling makes them
ideal for use in situations where an instant deterrent or heavy duty
camera is required and they offer high resolution 480 TVL images from
their Sony 1/3" Super HAD CCD sensors and will provide images in
complete darkness up to 30 to 50 metres (depending on model) and
beyond 30 to 50 metres in light levels above 0.1 lux. The cameras can
be used externally and can be wall mounted, they also feature an
integrated sun/rain shield.
2. Product Description
STEP 4: The horizontal and vertical angles can be adjusted by loosening
(as shown in Figure 4).
Figure 4
STEP 3: Secure Bracket 1 and the camera onto Bracket 2 using the screws
(as shown in Figure 3).
Figure 3
4B
3
A
3
2
3
4
A
B
A
3
STEP 1: Place Bracket 2 onto the desired ceiling or wall and fix using four
screws (as shown in Figure 1).
STEP 2: Alternatively you can attach Bracket 2 to the Mounting Bracket
supplied (as shown in Figure 2).
4. Installation & Operation
Figure 1
Figure 2
4
The VIS430R features a 6.0mm focus free lens for a 43° viewing angle
and up to 30 metres night vision and the VIS450R features an 8.0mm
lens for a 35° viewing angle and up to 50 metres night vision
Durable Corrosion Proof Metal Casing
Designed for External use and Wall mounting with the bracket supplied
Integrated sun/rain shield
F
