X-Vision VIS338D Manual de usuario

CCTV

Model: VIS338D

Colour Varifocal Dome

Camera

CCTV

Model:

VIS338D

Colour Varifocal Dome Camera

Manufactured exclusively for:

Xvision (Europe) Group,

Head Office: London, U.K.

Email: [email protected].uk

Web: www.x-vision.co.uk

TECHNICAL SUPPORT:

For Technical Support for any Xvision product please contact your local

distributor.

LIMITED WARRANTY:

This product is supplied with a 2 Year warranty. The Warranty excludes

products that have been misused, (including accidental damage) and

damage caused by normal wear and tear. In the unlikely event that you

encounter a problem with this product, it should be returned to the

place of purchase.

Beforeyou begin

•Please unpack the box carefully and identify that all the parts are present.

•Do not cut the camera cables, this will void the warranty.

•Make sure you use only the recommended power supply. Damage caused to the camera by

incorrect voltage or wiring is not covered by the warranty.

The camera is suitable for indoor or outdoor use. Please bear in mind the following points when

choosing a mounting position.

•The camera must be positioned so that it will not point directly into the sun (sunrise and

sunset) or any bright light, as this may cause damage to the camera.

•Avoid viewing areas where half the area is in bright sunlight and the other half is dark,

such as in the shadow of a building. All types of cameras have difficulty in ‘seeing’ with

such a large lux level variation.

Specifications

Model: VIS338D

Picture Type: Colour

Image Sensor: Sony 1/3” HQ1 Super HAD CCD

DSP: Xvision IXC1HQE

Resolution: 550 TVL

Lens Viewing Angle: 23 to 90°

Infra Red Nightvision: No

Minimum Illumination: 0.2 Lux

Audio: No

Operating Voltage: 12V DC 145mA

Suggested Power Supply: 12V DC 300mA Regulated

Mounting: Ceiling

Weatherproofing: No

Dimensions (ØxD): 140x81mm

THANK YOU VERY MUCH FOR PURCHASING OUR PRODUCT

The VIS338D colour varifocal dome camera is designed for high risk

applications. It offers super high resolution 550 TVL images from its

Sony 1/3" HQ1 Super HAD CCD sensor and Xvision Pixel+ Varifocal lens

which allows easy selection of the optimum viewing angle required

during installation, and will provide images in light levels as low as 0.2

lux. The camera is designed for internal use and ceiling mounting.

•Super High Resolution CCD sensor provides great quality Colour images

in light levels of 0.2 lux and above

•Discreet styling for unobtrusive low profile use

•Tamper resistant and easy to clean as all moving parts are behind the

dome cover

•Sony 1/3" HQ1 Super HAD CCD image sensor for 550 TVL resolution

images and 0.2 lux low light sensitivity

2. Product Description

Package Contents

1. Instruction Manual

2. VIS338D Dome Camera 3. Plastic Bag- containing

4x fixing screws,

1x retaining screw

1 2 3

3. Features

7DIP Switch Setting

7.1 Flickerless Function- Set switch -OFF/FL to Flicker to enable

flickerless function. In this mode the switch AES/OFF is auto

disabled.

7.2 AGC-Hi/AGC-Lo Function- Adjusting the switch to AGC indicates

AGC-Hi and in the OFF position indicates AGC-Low. In AGC-Hi

mode, the maximum AGC gain is approximately 26dB. In AGC-Lo

mode, the maximum AGC gain is approximately 16dB.

7.3 Auto Iris Function- When using an Auto Iris lens the switch

AES/OFF should be in the OFF position to disable the AES

function. Adjust the LEVEL with the VR to the proper level.

7.4 BLC Function- Set switch OFF/BLC to BLC position to enable

Back Light Compensation (BLC) function

F.L.: Flickerless On/OFF

AGC:Auto Gain Control High/Low

AES: Auto Electronic Shutter

LLC: Back Light Compensation

VR Adjustment Level for DC Drive Lens

Inside Control Board

(Colour Normal Resolution)

•Xvision IXC1HQE Digital Signal Processing (DSP) chip which has been

optimised for internal viewing and features Automatic Gain Control,

Automatic Electronic Iris, Auto White Balance, Back Light Compensation,

Low Smear, Edge Enhancement and Zero Colour Rolling

•Xvision Pixel+ Varifocal 3.3 to 12.0mm Auto Iris lens with 23° to 90°

viewing angle for super sharp images and easy selection of the

optimum viewing angle during installation

•Designed for internal use and ceiling mounting

STEP 1: Select a suitable position on the ceiling to install the camera.

STEP 2: Rotate the dome housing counterclockwise to remove it from

the mounting base (as shown in Figure 1).

STEP 3: Position the mounting base on to the ceiling and centre it over the

mounting hole. Fix with the four fixing screws (supplied). Allow the cable

connnectors to pass through (as shown in Figure 2).

Figure 1

Installation

STEP 6:

6.1 Connect the Video Output to the monitor or other video device

through a 75 Ohms type coaxial cable.

6.2 Connect the DC Jack or AC/DC Terminator with the power source.

6.3 Once the picture appears on the monitor, open the cover and make

the Zoom Adjustment by rotating the screw (NEAR-Anti-clockwise,

FAR-Clockwise) until you get the desired view. Next make the Focal

Adjustment by rotating the screw (TELE-Anti-clockwise, WIDE-

Clockwise) until you get the desired view. After adjustment tighten both.

STEP 4: Set the final image position by moving the camera body (some

model types limit the PCB board to 180° rotational

adjustment) and set the focus by turning the lens to the left or

right. When the camera focus adjustment is complete, replace

the dome housing by rotating clockwise to secure it (as shown

in Figure 3).

STEP 5: Secure the dome to the base of the camera by using the retaining

screw supplied (as shown in Figure 4).

Figure 3

Figure 4

Figure 5

Figure 2

Figure 6

Tabla de contenidos

Otros manuales de Cámara de seguridad de X-Vision

X-Vision

X-Vision XIR538 Manual de usuario

X-Vision

X-Vision X100 Series Manual de usuario

X-Vision

X-Vision XPD700WIR-2 Manual de usuario

X-Vision

X-Vision XSD27ZIR Manual de usuario

X-Vision

X-Vision XIR621 Manual de usuario

X-Vision

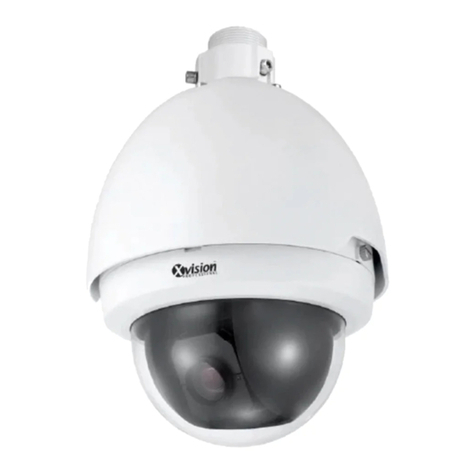

X-Vision XP1080S20 Manual de usuario
