Winmate DS424PMB Manual de usuario

Industrial Grade Chassis Monitor

42"(16:9)

Model Name

Viewable Size Image

Active Display Area(mm)

Pixel Pitch(mm)

Number of Pixels

Contrast Ratio

Display Color

Brightness(cd/m )

Viewing Angle(CR>=10)

W42L100-OML2

42” (16:9)

930.24 (H) x 523.26 (V)

0.4845 x 0.4845

1920 x 1080

1300:1(typ.)

1073M

500(typ.)

-89~89(H);-89~89(V)

1 x DVI

1 x Display Port

1 x VGA

2 x HDMI

1 x DVI

1 x Line in

1 x USB

1 x Audio in

1 x Component (YPbPr)

1 x IR in

1 x LAN

1 x RS232

Industrial Grade Chassis

Monitor

Output Signal

Internal Speaker

Power Source

Operating Temperature

Operating Humidity

Dimension(mm)

VESA compatible arm

mounting interface

1 x Display Port

1 x Line out

1 x IR out

1 x RS232

1 x speaker out

10W + 10W

AC100~240V, Universal, 10%

0~50 deg.C

20~80% (without condensation)

946.94(W) x 540.96(H) x 56.8(D)

(without handle)

200 x 200 mm

SSpecifications

Note: All Specifications are subject to change without prior notice! Revised date: 20-Dec-2019 V1.3

1920 x 1080 @ 60Hz

Recommended Resolution

Input Signal

DS424PMB/DS424PMC:

Switch the audio mute ON/OFF

2[MUTE] MUTE Button

3[INPUT] Input Button

• Use this button to select the input source.

• When the On Screen Display menu is active, this is also used as the [SET] button.

Increase the adjustment while OSD menu is on, or increase the audio output

level while OSD menu is off.

4[ ] Button

Decrease the adjustment while OSD menu is on, or decrease the audio output

level while OSD menu is off.

5[ ] Button

Move the highlight bar up to adjust the selected item while OSD menu is on.

6[ ] Button

Move the highlight bar down to adjust the selected item while OSD menu is on.

7[ ] Button

Return to previous menu while OSD menu is on, or to activate the OSD menu

when OSD menu is off.

8[MENU] MENU Button

• Receives command signals from the remote control.

• Indicates the operating status of the display

9Remote control sensor and power status indicator

1[ ] Power Button

Use this button to turn the display in or put the display to standby

Monitor

1AC IN

AC power input from the wall outlet.

2MAIN POWER SWITCH

Switch the main power on/o

IR signal input for the loop-through function.

IR signal output for the loop-through function.

ff.

3IR IN

4IR Out

5RS232C IN

RS232C network input for the loop-through function.

6RS232C OUT

RS232C network output for the loop-through function.

7LAN

LAN port connection for remote control.

8HDMI1 IN

11 DVI OUT

DVI video output.

HDMI2 IN

HDMI video/audio input.

10 DVI IN

DVI-D video input.

12 Display Port IN

13 Display Port Out

14 VGA IN (D-Sub)

VGA video input.

Display port video output

Display port video input

15 COMPONENT IN (BNC)

16 COMPONENT IN (BNC)

17 AUDIO IN

Audio input from external AV device (RCA).

18 SPEAKER SWITCH

Internal speaker on/off switch.

Line input

Line output

19 LINE IN

LINE OUT

USB

SPEAKER OUT

External speakers output.

Use for F/W update and media player.

Component YPbPr video source input.

Industrial Grade Chassis

Industrial Grade Chassis Monitor

Monitor

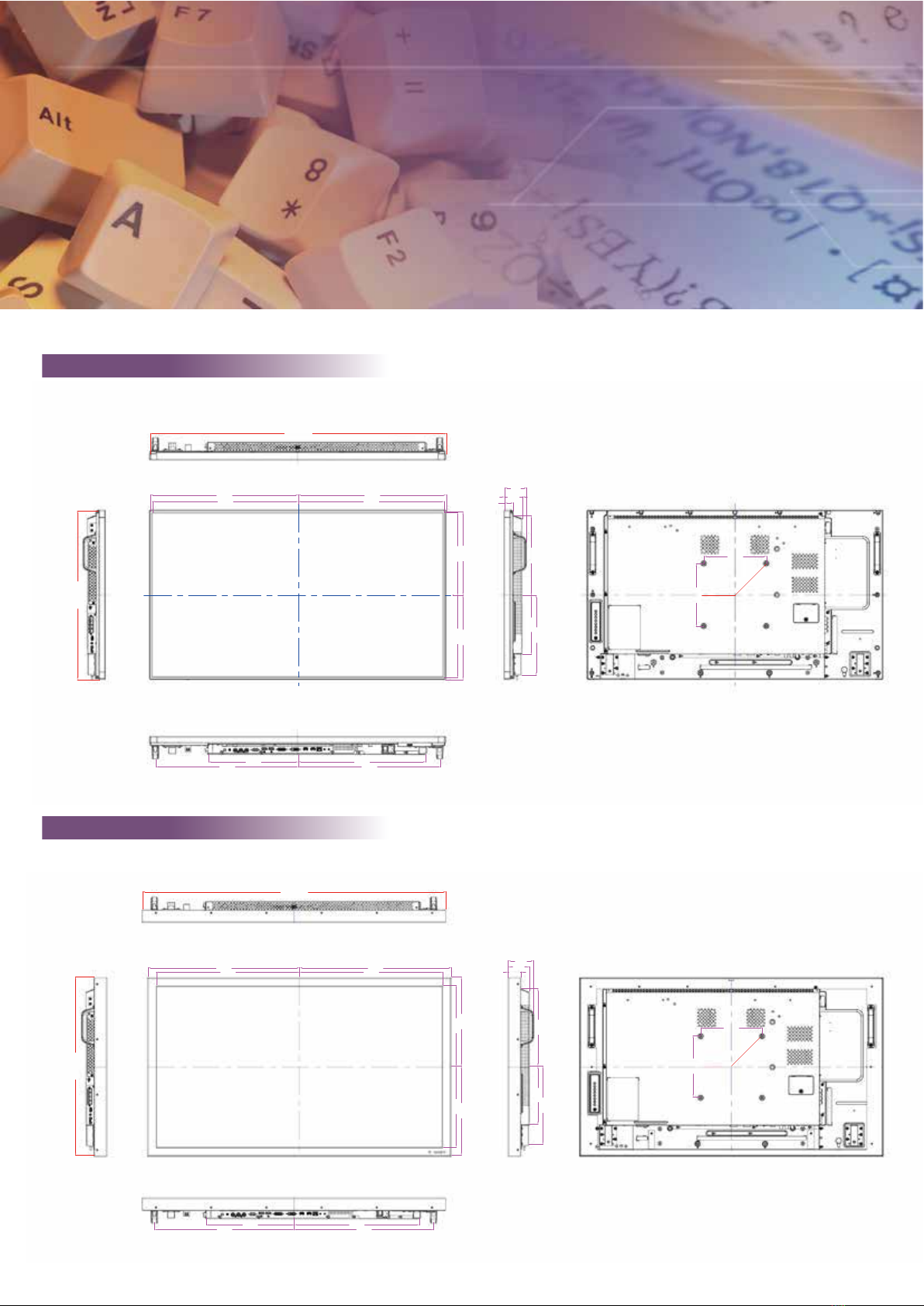

Mechanical Drawing (Only Panel)

Mechanical Drawing (with SAW Touch)

467.0467.0

494.6 494.6

263.5

290.7

263.5

290.7

41.6

68.7

83.0

252.9189.9

255.7

287.5 407.8

454.9454.9

200.0

4-M6 SCREW

989.2ā1.0

581.5ā1.0

467.0467.0

473.5 473.5

264.0

266.8

264.0

270.5

28.2

56.8

71.1

253.4189.9

255.7

287.5 407.8

454.9454.9

200.0

4-M6 SCREW

946.9±1.0

541.0ā1.0
