Winmate G-WIN Slim IP65 Manual de usuario

Please read these instructions carefully before using this product, and save this manual for future use.

G-WIN Slim IP65

P-CAP Display

W07L100-GSM1(HB)

W10L100-GSH2

W10L100-GSH1(HB)

R12L100-GSM2(HB)

R15L600-GSC3(HB)

Quick Start Guide

V1.0

For more information on this and

other Winmate products, please

visit our website at:

www.winmate.com

Document Part Number: 91521110100Q

- 2 -

FCC Statement

This device complies with part 15 FCC rules.

Operation is subject to the following two conditions:

This device may not cause harmful interference.

This device must accept any interference received including

interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a class

"B" digital device, pursuant to part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to

cause harmful interference in which case the user will be required to correct the

interference at him own expense.

European Union

Electromagnetic Compatibility Directive (2014/30/EU)

EN55024: 2010/ A1: 2015

oIEC61000-4-2: 2009

oIEC61000-4-3: 2006+A1: 2007+A2: 2010

oIEC61000-4-4: 2012

oIEC61000-4-5: 2014

oIEC61000-4-6: 2014

oIEC61000-4-8: 2010

oIEC61000-4-11: 2004

EN55032: 2012/AC:2013

EN61000-3-2:2014

EN61000-3-3:2013

Low Voltage Directive (2014/35/EU)

EN 60950-1:2006/A11:2009/A1:2010/A12:2011/ A2:2013

This equipment is in conformity with the requirement of the following EU

legislations and harmonized standards. Product also complies with the Council

directions.

- 3 -

No part of this document may be reproduced, copied, translated, or transmitted in

any form or by any means, electronic or mechanical, for any purpose, without the

prior written permission of the original manufacturer.

Trademark Acknowledgement

Brand and product names are trademarks or registered trademarks of their

respective owners.

Disclaimer

Winmate Inc. reserve the right to make changes, without notice, to any product,

including circuits and/or software described or contained in this manual in order to

improve design and/or performance. We assume no responsibility or liability for the

use of the described product(s) conveys no license or title under any patent,

warranties that these products are free from patent, copyright, or mask work right

infringement, unless otherwise specified. Applications that are described in this

manual are for illustration purposes only. We make no representation or guarantee

that such application will be suitable for the specified use without further testing or

modification.

Warranty

Winmate Inc. warranty guarantees that each of its products will be free from material

and workmanship defects for a period of one year from the invoice date. If the

customer discovers a defect, we will, at his/her option, repair or replace the

defective product at no charge to the customer, provide it is returned during the

warranty period of one year, with transportation charges prepaid. The returned

product must be properly packaged in its original packaging to obtain warranty

service. If the serial number and the product shipping data differ by over 30 days,

the in-warranty service will be made according to the shipping date. In the serial

numbers the third and fourth two digits give the year of manufacture, and the fifth

digit means the month (e. g., with A for October, B for November and C for

December).

For example, the serial number 1W16Axxxxxxxx means October of year 2016.

- 4 -

Customer Service

We provide a service guide for any problem by the following steps: First, visit the

website of our distributor to find the update information about the product. Second,

contact with your distributor, sales representative, or our customer service center for

technical support if you need additional assistance.

You may need the following information ready before you call:

Product serial number

Software (OS, version, application software, etc.)

Description of complete problem

The exact wording of any error messages

In addition, free technical support is available from our engineers every business

day. We are always ready to give advice on application requirements or specific

information on the installation and operation of any of our products.

Safety Information

WARNING! / AVERTISSEMENT!

Always completely disconnect the power cord from your chassis

whenever you work with the hardware. Do not make connections

while the power is on. Sensitive electronic components can be

damaged by sudden power surges. Only experienced electronics

personnel should open the PC chassis.

Toujours débrancher le cordon d’alimentation du chassis lorsque

vous travaillez sur celui-ci. Ne pas brancher de connections

lorsque l’alimentation est présente. Des composantes

électroniques sensibles peuvent être endommagées par des sauts

d’alimentation. Seulement du personnel expérimenté devrait ouvrir

ces chassis.

CAUTION/ATTENTION

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution, use a

grounding wrist strap at all times. Place all electronic components

in a static-dissipative surface or static-shielded bag when they are

not in the chassis.

Toujours verifier votre mise à la terre afin d’éliminer toute charge

statique avant de toucher la carte CPU. Les équipements

électroniques moderns sont très sensibles aux décharges

d’électricité statique. Toujours utiliser un bracelet de mise à la

terre comme précaution. Placer toutes les composantes

électroniques sur une surface conçue pour dissiper les charge, ou

dans un sac anti-statique lorsqu’elles ne sont pas dans le chassis.

- 5 -

CONTENTS

INTRODUCTION 6

Features 6

Package Contents 7

Description of Parts 8

Physical Buttons and LED Indicators 12

GETTING STARTED 14

Turning On Your Device 14

Turning Off Your Device 14

INSTALLATION 15

Wiring Requirements 15

Connecting to Other Devices 16

Connector Description 17

Power Input Connector 17

AC Adapter (For 7” Display) 18

VGA Connector 19

USB for Touch Connector 20

Mounting 21

VESA Mounting 21

Panel Mounting 22

SPECIFICATIONS 23

Hardware Specifications 23

APPENDIX 26

Appendix A: Cleaning the Monitor 26

Appendix B: Available Input Signals 27

- 6 -

INTRODUCTION

Congratulations on purchasing Winmate® G-WIN Slim IP65 P-CAP Display. The

elegantly designed, yet rugged, industrial grade G-WIN S65 series is designed

for usability with brilliant true-flat screens, which offer superior readability and

Projected Capacitive Multi-Touch (P-CAP) technology, available in 7”, 10.1”, 12.1”

and 15” options.

G-WIN Slim IP65 Display features Projected Capacitive Multi-Touch (P-CAP).

These models are full IP 65 dustproof and waterproof and have M12 connectors.

Features

Winmate® G-WIN Slim IP65 with P-CAP Display features:

Projected Capacitive Multi-Touch (P-CAP)

Full IP65 rating

Wide operating temperature -10°C~55°C

M12 connectors: 12V DC, 1 x VGA, 1 x USB for Touch

- 7 -

Package Contents

Carefully remove the box and unpack your device. Please check if all the items

listed below are inside your package. If any of these items are missing or

damaged contact us immediately.

Standard factory shipment list:

Display

Quick Start Guide

(Hardcopy)

AC Adapter

(For 7” Display only)

Varies by product

specifications

91521110100Q

50W: 90PO12050006

M12 Power Cable

(Not supplied with

7” Display)

VGA Cable

USB for Touch Cable

94J003L020K8

9441150120Q0

94E0127040K0

I/O Protective Cap x 3

60Y031131000

- 8 -

Description of Parts

W07L100-GSM1(HB)

Unit: mm

Dimensions: 189.4 x 145.4 x 39.8

№

Description

№

Description

󰪦

12V DC (M12 Type)

󰪨

USB for Touch (M12 Type)

*Only for touch

󰪧

VGA (M12 Type)

󰪩

OSD Control Panel

- 9 -

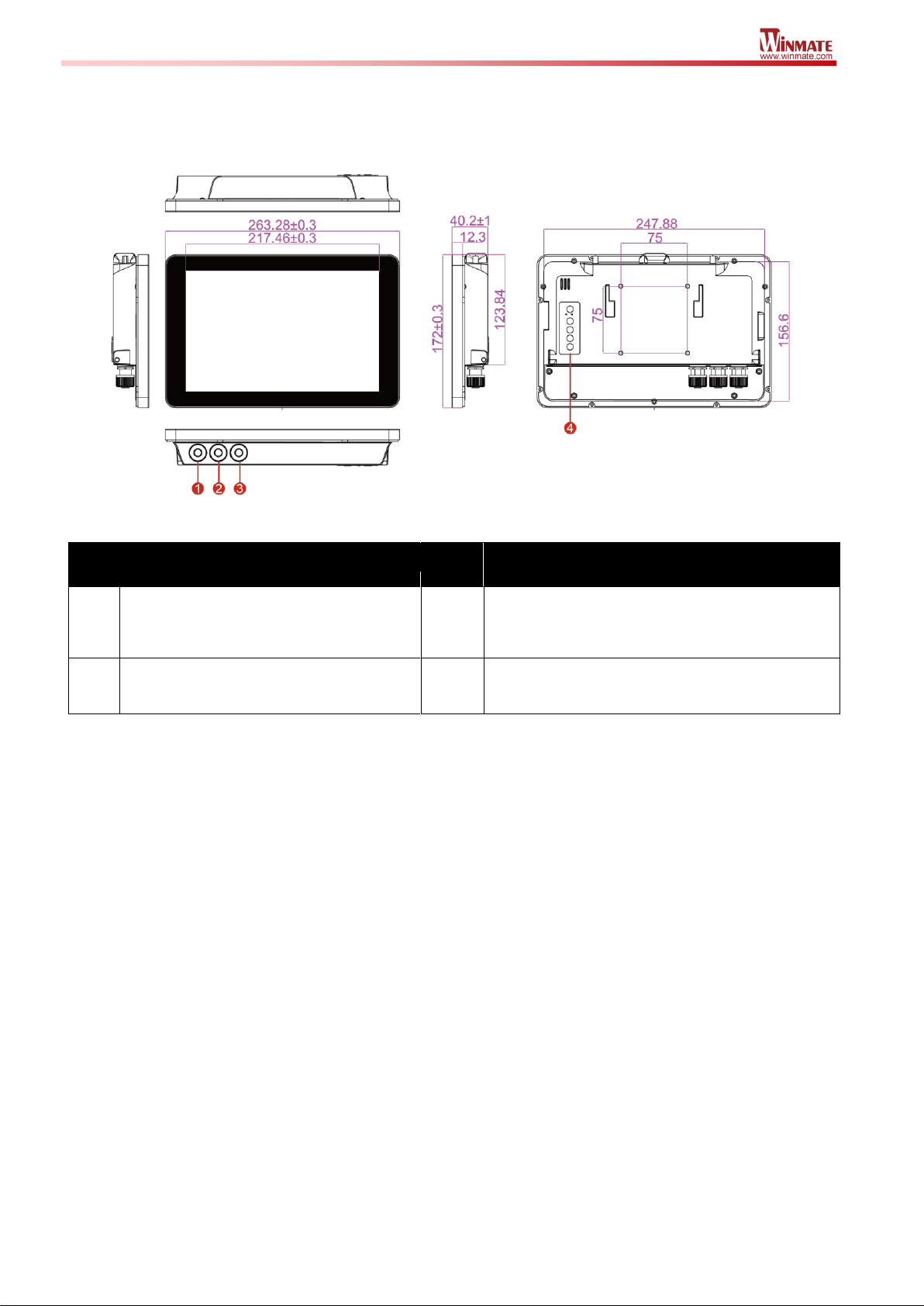

W10L100-GSH2, W10L100-GSH1(HB) Unit: mm

Dimensions: 263.28 x 173.6 x 40.2

№

Description

№

Description

󰪦

12V DC (M12 Type)

󰪨

USB for Touch (M12 Type)

*Only for touch

󰪧

VGA (M12 Type)

󰪩

OSD Control Panel

- 10 -

R12L100-GSM2(HB) Unit: mm

Dimensions: 296.2 x 226.7 x 45.5

№

Description

№

Description

󰪦

12V DC (M12 Type)

󰪨

USB for Touch (M12 Type)

*Only for touch

󰪧

VGA (M12 Type)

󰪩

OSD Control Panel
