Wilson Electronics Weboost AH100-PRO Manual de usuario

Installation Guide

Cell Signal Booster

AH100-PRO

A WILSON ELECTRONICS BRAND

NEED HELP? BoltonTechnicalAfrica.com+27796793305

Package Contents 1

Preparation 2

STEP 1: Connect Inside Antenna To Booster 3

STEP 2: Mount & Point Outside Antenna Toward Nearest

Cell Tower 4

STEP 3: Route & Connect Cable To System 7

STEP 4: Power Up The Booster & Optimize System 8

Measuring Booster Performance 10

Light Patterns 12

Troubleshooting 13

Safety Guidelines 14

Speciﬁcations 17

Warranty Back Page

______

Index

SINGLE ROOM CELL PHONE SIGNAL BOOSTER

______

Package

Contents

Outside Antenna Options

Inside Antenna Options

In All Kits

Outside

Yagi Antenna

Wall Mount

Panel

AM100

Booster

Outside

Omni Antenna

Dome Antenna

Power

Supply

Roof/Pole

Mount

Bracket

Wall Mount

Bracket

2 Coax Cables

(1 x 10m; 1 x 5m)

2CELL PHONE SIGNAL BOOSTER SINGLE ROOM

______

Preparation

You Will Need (tools not included)

Make sure the following materials are prepared and ready for your

installation.

oLadder

oPhillips-head screwdriver

o10mm open-end wrench or adjustable wrench

oDrill (if routing cable through wall)

o3-5cm diameter pole existing pole (or order BT512631)

oRecommended: Power Strip with surge protection

1 to 2 hours

2 people (a person to help with antenna calibration)

SINGLE ROOM CELL PHONE SIGNAL BOOSTER

45 cm Apart

POWER

INSIDE

ANTENNA

______

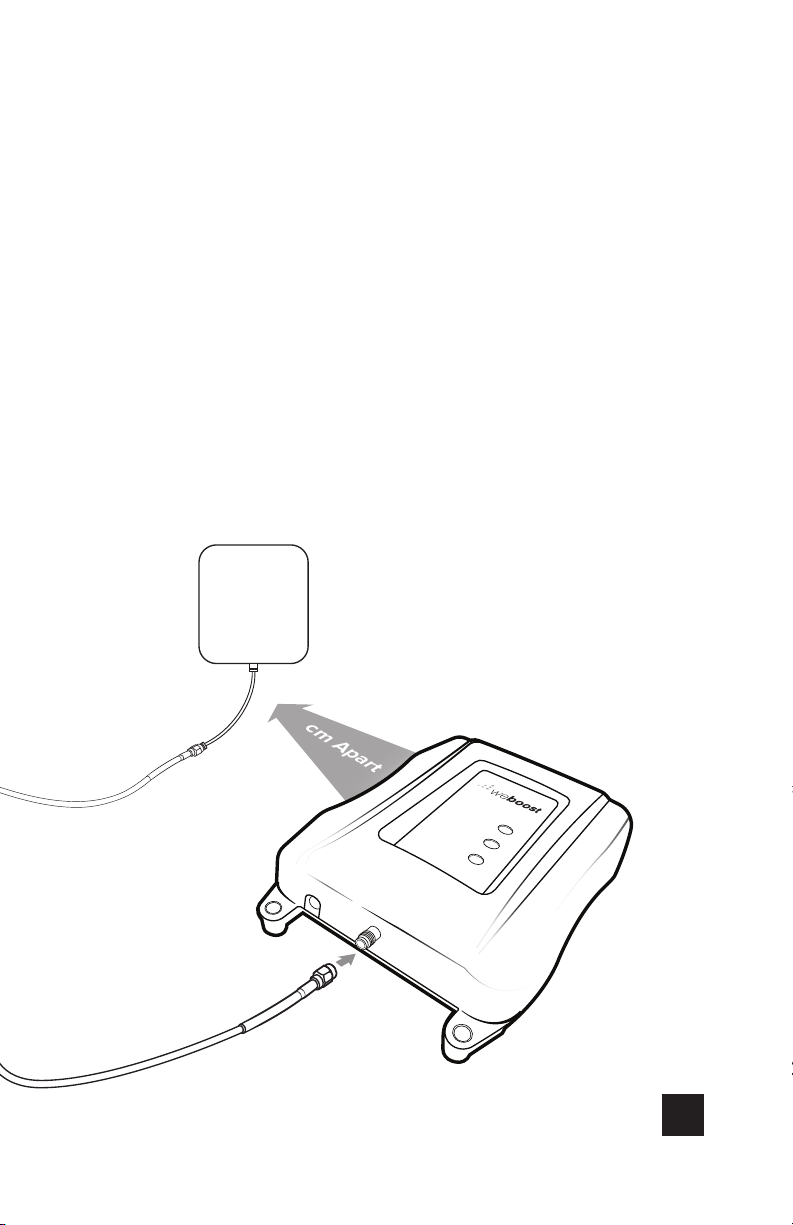

Step 1-A & B: Connect Inside

Antenna To Booster

Connect Inside Antenna cable to the bottom port on AH100-PRO

booster labeled ‘INSIDE’ and place Inside Antenna in weak signal area at

least 45 Centimeters away from booster.

NOTE: Do not connect booster to power until the system is fully installed.

Inside

Antenna

Booster

4CELL PHONE SIGNAL BOOSTER SINGLE ROOM

______

Step 2: Mount & Point

Outside Antenna Toward

Nearest Cell Tower

Locate your cell towers by using apps such as ‘Network Cell Info Lite’ or

‘Open Signal’. This is a critical step of the installation process because

it will determine the overall performance of the booster system. Point

the Outside Antenna toward the nearest cell phone tower if using a Yagi

directional antenna.

Cell Tower

Outside Antenna

NOTE: The Outside Antenna must be at least

15 meters horizontal or 6 meters vertical from the

Inside Antenna for best performance. Make sure the

Inside Antenna and Outside Antennas are setup so

they are facing away from each other.

SINGLE ROOM CELL PHONE SIGNAL BOOSTER

If using an omni-directional antenna, ensure that antenna is placed on

highest point on roof for optimal broadcasting and reception.

NOTE: Mounting on existing roof pipe would

be a good time-saver option. eg. satellite dish pole.

______

(STEP 2 cont.)

Cell Tower

Outside Antenna

Pole Mounting Option

6CELL PHONE SIGNAL BOOSTER SINGLE ROOM

______

(STEP 2 cont.)

Drill holes using

3/16 inch bit

Tap anchors in

Fasten bracket to back

of Outside Antenna Secure bracket to wall

mounting

Outside Antenna

on wall bracket

sideview

Wall Mounting Option

______

Step 2-B Cont. Installing the

indoor wall panel

SINGLE ROOM CELL PHONE SIGNAL BOOSTER

______

Step 3: Route & Connect

Cable To System

Connect the LMR240 Cable to Outside Antenna and route cable into

the home. All connections should be hand tightened only.

A Window Entry Cable is available as an optional extra purchase.

Outside

Antenna Inside

Antenna

LMR240 Cable

Booster

Inside

Antenna

Outside

Antenna

Cell

Tower

Booster

8CELL PHONE SIGNAL BOOSTER SINGLE ROOM

______

Step 4: Power Up The

Booster & Optimize the

System

Plug the Power Supply into wall outlet then connect to AH100-PRO booster.

Outside

Antenna

Outside

Antenna

Cell

Tower

Inside

Antenna

RG-6 Cable RG-6 Cable

Window

Entry Cable

Booster

to power

Inside

Antenna

Power Supply

Window Entry Cable

15 METERS HORIZONTAL OR

6 METERS VERTICAL DISTANCE

Booster

Warning: Do Not connect power

supply to booster before connecting

both outside and indoor antennas
