Wilson Electronics 271245 Manual de usuario

Amplifier

Installation

ide

stallatio

stallat

Mobile Wireless

Dual-Band

Cellular / PCS

Ampliﬁer

Contents:

Guarantee and Warranty · · · · · · · · · · · · · · · · · · · · · · · · 1

How it Works · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 2

Before Getting Started · · · · · · · · · · · · · · · · · · · · · · · · · · 3

Installing a Wilson Outside Antenna · · · · · · · · · · · · · · · 4

Installing a Wilson Ampliﬁer · · · · · · · · · · · · · · · · · · · · · · 5

Installing the Low-Proﬁle Antenna · · · · · · · · · · · · · · · · · 6

Powering Up a Wilson Ampliﬁer · · · · · · · · · · · · · · · · · · · 7

Warnings and Recommendations · · · · · · · · · · · · · · · · · 8

Understanding the Ampliﬁer Lights · · · · · · · · · · · · · · · · 9

About Wilson Electronics · · · · · · · · · · · · · · · · · · · · · · · 10

Ampliﬁer Speciﬁcations · · · · · · · · · · · · · · · · · · Back Cover

Wilson

Electronics, Inc.

Warning: This manual contains

important safety and operating information.

Please read and follow the instructions

in this manual. Failure to do so could be

hazardous and result in damage to your

ampliﬁer.

30-Day Money-Back Guarantee

All Wilson Electronics products are protected by Wilson’s 30-day money-back

guarantee. If for any reason the performance of any product is not acceptable,

simply return the product directly to the reseller with a dated proof of purchase.

1-Year Warranty

Wilson Electronics ampliﬁers are warranted for one (1) year against defects in

workmanship and / or materials. Warranty cases may be resolved by returning the

product directly to the reseller with a dated proof of purchase.

Ampliﬁers may also be returned directly to the manufacturer at the consumer’s

expense, with a dated proof of purchase and a Returned Material Authorization

(RMA) number supplied by Wilson Electronics. Wilson shall, at its option, either

repair or replace the product. Wilson Electronics will pay for delivery of the repaired

or replaced product back to the original consumer.

This warranty does not apply to any ampliﬁers determined by Wilson Electronics

to have been subjected to misuse, abuse, neglect, or mishandling that alters or

damages physical or electronic properties.

RMA numbers may be obtained by phoning Technical Support at 866-294-1660.

Disclaimer: The information provided by Wilson Electronics, Inc. is believed to

be complete and accurate. However, no responsibility is assumed by Wilson

Electronics, Inc. for any business or personal losses arising from its use, or for

any infringements of patents or other rights of third parties that may result from

its use.

Operation is subject to the following two conditions: (1) This device may not cause

interference, and (2) this device must accept any interference, including interference that

may cause undesired operation of this device.

Installation Instructions for the Following Wilson Ampliﬁer:

Mobile Wireless Dual-Band Ampliﬁer

Model # 271245, Part # 801201

FCC ID: PWO8012SM IC: 4726A-8012SM

The term “IC” before the radio certiﬁcation number only signiﬁes that Industry Canada

technical speciﬁcations were met.

Inside this Package

How it Works

Your new Wilson ampliﬁer has been carefully engineered to signiﬁcantly improve the

performance of your cell phone or cellular data card in mobile applications. Together with

an outside antenna (sold separately), the ampliﬁer’s state-of-the-art technology is designed

to increase your signal up to 10 times, reduce disconnects and dropouts, and increase data

communication rates needed for 3G technologies.

The outside antenna will collect the cell tower signal and send it through the cable to the

ampliﬁer. The signal is then boosted and sent through the inside antenna. Your cell phone

or data card then communicates with the improved signal. When the cell phone or data

card transmits, the signal goes through the inside antenna, is boosted by the ampliﬁer and

broadcast back to the cell tower through the outside antenna.

Wilson Electronics manufactures a wide variety of antennas to help you customize your

ampliﬁer for your speciﬁc application. Several are shown below. See your dealer or visit

www.wilsonelectronics.com.

Wireless

ampliﬁer DC plug-in

power supply Low-proﬁle

antenna

NMO

Mount

Dual-BandMagnet

Mount

Dual-Band Trucker

Mount

Dual-Band

Mini

Magnet

Dual-Band Marine

Antenna

Dual-Band

NOTE: Use of this ampliﬁer with an

antenna gain higher than 6.12 dBi is in

violation of FCC regulations for which the

offender is fully liable. All Wilson mobile

antennas are 6.12 dBi or less.

Before Getting Started

This guide will help you properly install Wilson’s dual-band, mobile wireless ampliﬁer. It is

important to read through all of the installation steps for your particular application

prior to installing any equipment. Read through the instructions, visualize where all the

equipment will need to be installed and do a soft installation before mounting any equipment.

If you do not understand the instructions in full, seek professional help, or contact Wilson

Technical Support at 866-294-1660.

Warning: In a wireless installation,

do not plug the ampliﬁer directly into the

cell phone or data card using an antenna

adapter. It will damage the ampliﬁer.

Outside

Antenna

Inside

Antenna

Ampliﬁer

DC Power

Supply

Cell Phone

PDA

Notebook

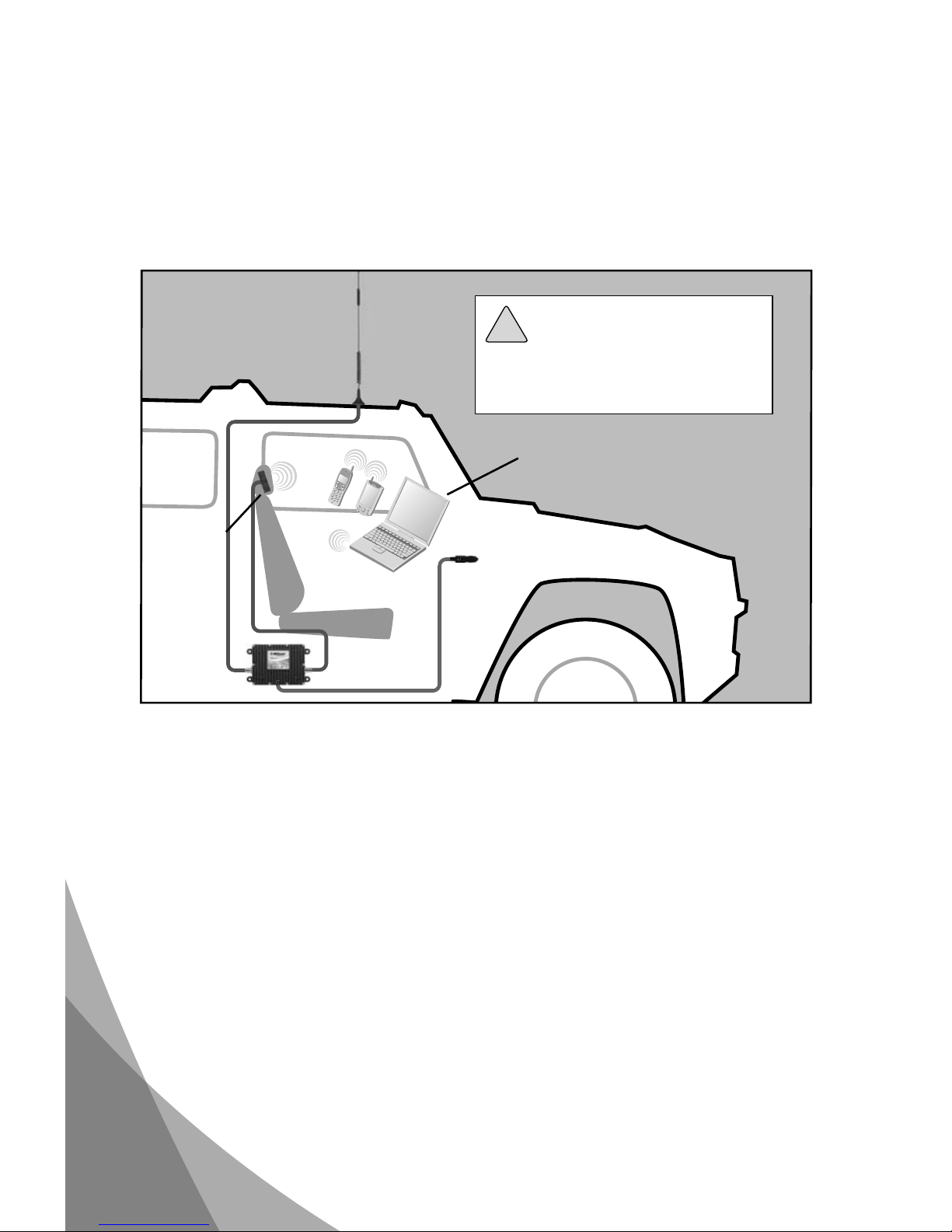

Installation Diagram

Installing a Wilson Outside Antenna

To receive the best cell signal, select a location in the center of the vehicle’s roof 12 inches

away from any other antennas and free of obstructions.

Follow the speciﬁc antenna installation instructions included with the outside antenna (sold

separately).

The outside antenna must be installed

vertically. Signal performance will be

degraded if the antenna is not vertical.

The antenna cable may be run through the

door to the ampliﬁer.

The antenna cable is small enough to easily

tuck under the door seal or plastic molding.

For a more professional-looking installation,

the antenna cable may be run under the

door seal. Carefully pull down the door

seal. Run the cable through the seal

and push the seal back into place. This

prevents constant wear and tear on the

cable as the door opens and closes.

Warning: Do not use any type of glass-

mount antenna with this ampliﬁer. The outside

and inside antennas must be shielded from

each other to prevent oscillation.

Optional Magnet-

Mount Antenna

Shown

Part #301103

Carefully

Pull Down

Door Seal

Run Cable

Under

Seal

Tuck Cable

Under Seal

Warning: The outside antenna must

have a separation of at least 10 inches from all

persons during normal operation.

Installing a Wilson Ampliﬁer

Warning: Do not plug in the DC power

supply until the outside and inside antenna

cables are attached to the ampliﬁer.

Select a location to install the ampliﬁer that

is away from excessive heat, direct sunlight

or moisture and that has proper ventilation.

Recommended installation locations are:

• Under the seat

• Under the dash

Run the cable from the outside antenna and

attach it to the FME-Male connector labeled

“outside antenna” on the ampliﬁer.

Attach the inside antenna cable to the FME-

Male connector labeled “inside antenna” on

the ampliﬁer.

Install the low-proﬁle inside antenna 8-12

inches from where the cell phone or cellular

data card will be used.

Place the inside antenna on the side of the

driver’s seat for maximum performance.

Install the inside antenna at least eight

inches, but not more than 12 inches, from

where the cell phone or cellular data card

will be used.

Install the inside antenna at the same angle

as the cell phone when held in use, or place

next to the laptop’s cellular data card. This

will maximize the signal strength.

For a more professional-looking installation,

the low-proﬁle antenna may be slid under

the seat cover or leather, high on the

driver’s seat.

Warning: Do not install the low-proﬁle

antenna within four inches of metal. (Metal

found inside the vehicle’s seat will not affect

the antenna’s performance.)

Ampliﬁer

Low-proﬁle

Antenna

Installing the Low-Proﬁle Antenna

Warning: The inside antenna must

be installed with a separation of at least

eight inches from all persons and must not

be located in conjunction with any other

antenna or ampliﬁer.

Powering up a Wilson Ampliﬁer

Make sure both the outside and inside

antenna cables are connected before

powering up the ampliﬁer.

Connect the power cable from the DC

plug-in power supply to the ampliﬁer

marked “Power” and insert the large end

into DC power socket (the cigarette lighter

outlet.)

The ampliﬁer may remain on all the time.

However, leaving the ampliﬁer on in a

vehicle when it is not running can discharge

the battery in a day or two.

A good option is to power the ampliﬁer

through the ignition switch so the ampliﬁer

is turned on and off with the vehicle.

NOTE: The aluminum casing of a Wilson ampliﬁer will adjust very quickly to the ambient

temperature of its environment. For example, in the summer, when the inside of a car can

reach 140 degrees Fahrenheit, the ampliﬁer temperature may be 150 degrees or higher.

The casing will be hot to the touch, similar to a metal door handle or a steering wheel. Such

high temperatures will not damage the ampliﬁer, nor do they pose a ﬁre risk to the vehicle.

As recommended in these instructions, install the ampliﬁer in a location with adequate

ventilation, such as under the seat, in the trunk or under the dashboard. Keep the area free

of items that could block air ﬂow to the ampliﬁer.

Carefully insert the power cable.

IMPORTANT: Do not power up the ampli-

ﬁer unless antenna cables are attached to

ampliﬁer.

Warning: Use only the power

supply provided in this package. The

power supply must be 6 V DC.

Warnings and Recommendations

Warning: In a wireless installation, do not plug the ampliﬁer directly into

the cell phone or cellular data card using an antenna adapter. It

will damage the cell phone or cellular data card.

Warning: Do not plug in the DC power supply until the outside and inside

antenna cables are attached to the ampliﬁer.

Warning: RF Safety: The inside antenna must be installed with a

separation of at least eight inches from all persons and must not

be located in conjunction with any other antenna or ampliﬁer.

Warning: RF Safety: The outside antenna must be installed with a

separation of at least 10 inches from any of the vehicle’s

occupants or nearby persons and must not be located or

operating in conjunction with any other antenna or ampliﬁer. All

roof-mount antennas should be centrally located on the roof of

the vehicle. Mirror-mount antennas should be at least six inches

from the ground and leave at least 20 inches of separation from

any persons near or around the vehicle. Use of this cellular

ampliﬁer with an antenna gain higher than 6.12 dBi is in violation

of FCC regulations for which the offender is fully liable. All

Wilson mobile antennas are 6.12 dBi or less.

Separation of inside and outside antennas is very important. The metal

roof of the vehicle acts as a barrier and helps shield the two antennas from

each other, preventing oscillation.

If the vehicle has a sunroof, it is important to separate the inside and outside antennas

by at least ﬁve feet. This prevents the ampliﬁer from overloading or oscillating.

Distance between antennas

through a sunroof must be

5 feet or more.

Understanding the Ampliﬁer Lights

The power light PWR will turn green

when the ampliﬁer is successfully

powered up. When the 800 MHz or

1900 MHz lights are lit green, the

ampliﬁer is amplifying the outside

signal.

If one or both frequency lights turn

red, oscillation is occurring and the

ampliﬁer has powered down. The

outside antenna needs to be moved

farther from the inside antenna. Move

the outside antenna on the roof of

the car to the rear of the car, but at

least 8-12 inches from the rear or

side windows. Remove power from

the ampliﬁer and reinstall power - this

resets the ampliﬁer.

If the lights are now green, the

oscillation has stopped and the

ampliﬁer is working. If the red light is

still on, move the antenna farther away

and repeat the process.

Always use a magnet-mount or roof-

mount antenna. Do not use a glass-

mount antenna, as oscillation may

cause continuous shut-down of the

ampliﬁer.

An amber light in either the 800

MHz or 1900 MHz position indicates

overload from the cell site. The

ampliﬁer has temporarily shut down

and will automatically reset.

Otros manuales para 271245

Tabla de contenidos

Otros manuales de Amplificador de Wilson Electronics

Wilson Electronics

Wilson Electronics WilsonPro ENTERPRISE A8000 Manual de usuario

Wilson Electronics

Wilson Electronics SignalBoost DT Manual de usuario

Wilson Electronics

Wilson Electronics 271245 Manual de usuario

Wilson Electronics

Wilson Electronics WILSONPRO ENTERPRISE 1300 Manual de usuario

Wilson Electronics

Wilson Electronics U-Booster 2B5225 Manual de usuario

Wilson Electronics

Wilson Electronics 271247-75 Manual de usuario

Wilson Electronics

Wilson Electronics BD800AM-M Manual de usuario

Wilson Electronics

Wilson Electronics iDEN Manual de usuario

Wilson Electronics

Wilson Electronics 801105 Manual de usuario

Wilson Electronics

Wilson Electronics SIGNALBOOST MobilePro Manual de usuario

Wilson Electronics

Wilson Electronics 271265 Instrucciones de funcionamiento y mantenimiento

Wilson Electronics

Wilson Electronics 811101 Manual de usuario

Wilson Electronics

Wilson Electronics 801247 Manual de usuario

Wilson Electronics

Wilson Electronics 801230 Manual de usuario

Wilson Electronics

Wilson Electronics SIGNALBOOST 811210 Manual de usuario

Wilson Electronics

Wilson Electronics 801105 Manual de usuario

Wilson Electronics

Wilson Electronics Smart Technology 801201-A Manual de usuario

Wilson Electronics

Wilson Electronics BD800AM Manual de usuario

Wilson Electronics

Wilson Electronics SignalBoost Manual de usuario

Wilson Electronics

Wilson Electronics PRO 710i Manual de usuario

Wilson Electronics

Wilson Electronics WILSONPRO ENTERPRISE 4300R Manual de usuario

Wilson Electronics

Wilson Electronics 271245 Manual de usuario

Wilson Electronics

Wilson Electronics PRO 710i Manual de usuario

Wilson Electronics

Wilson Electronics 801306 Manual de usuario

Manuales populares de Amplificador de otras marcas

ASTRO

ASTRO HVO V40 P Manual de usuario

Marantz

Marantz SUPERSCOPE BLA-545 Instrucciones de montaje

NAD

NAD CI980 Manual de usuario

Technics

Technics SE-CH770 Manual de usuario

Harman Kardon

Harman Kardon HK6300 Manual de usuario

NAD

NAD T975 Manual de usuario

McIntosh

McIntosh MA6850 Manual de usuario

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manual de usuario

Viatron

Viatron Autrix Manual de usuario

GME

GME GA9800 Manual de usuario

Atlas

Atlas CP700 Manual de usuario

Roland

Roland KC-1000 Manual de usuario

Pyle

Pyle PFMRA350BW Manual de usuario

Advantage

Advantage S-250 Manual de usuario

IRT Electronics

IRT Electronics DVA-3007 Manual de usuario

Dimavery

Dimavery BA-100 Series Manual de usuario

Sony

Sony XM-S400D Manual de usuario

Schertler

Schertler ROY X Manual de usuario
