Wilson Electronics IoT 5-Band Manual de usuario

IoT 5-Band

Direct-Connect Cell Signal Ampliﬁer

Installation Guide

Index

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

IoT Retail Application Steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-6

IoT Security Application Steps ..........................................7-10

Status Light Patterns ....................................................11

Safety Guidelines ......................................................12

Specifications .........................................................16

Warranty .............................................................17

IoT 5-Band

Direct-Connect Cell Signal Ampliﬁer

The WilsonPro IoT 5-Band is a “Direct-Connect” solution for amplifying cellular

network capable equipment and devices, including vending machines, ATMs,

security panels, and cellular “hotspots”. The IoT 5-Band is “carrier agnostic” and pre-

approved by all major cell carriers under FCC “part 20” rules. No additional carrier

or FCC approvals are required.

The IoT 5-band is available in three dierent kit options: 460119: basic kit with

traditional a/c power supply, 460219: with “hard-wired” DC power supply (for

supplying power from a vehicle or similar power source), and the 461119 Security Kit

which includes MMCX cables for interfacing with security control panel cell modems,

and an outside antenna.

Package Contents

IoT 5-Band

Cell Signal Amplifier

(460019)

Kit Options (IoT 5-Band Cell Signal Ampliﬁer included)

IoT 5-Band Kit

460119

■6 ft. RG-174 w/SMA

■5V / 4A A/C Power

Supply

■4 in. Mini Magnetic

Antenna

IoT DC Hardwire Kit

460219

■6 ft. RG-174 w/SMA

■6V / 2A Hardwired

Power Supply

■4 in. Mini Magnetic

Antenna

■12 in. RG-316

w/MMcx

■12 in. Adapter

w/MMcx

■10ft. RG-58

w/SMA

■30ft. RG-58

w/SMA

■5V / 4A

A/C Power Supply

■Omni Antenna

IoT Security Kit

461119

Any Kit Option

Below

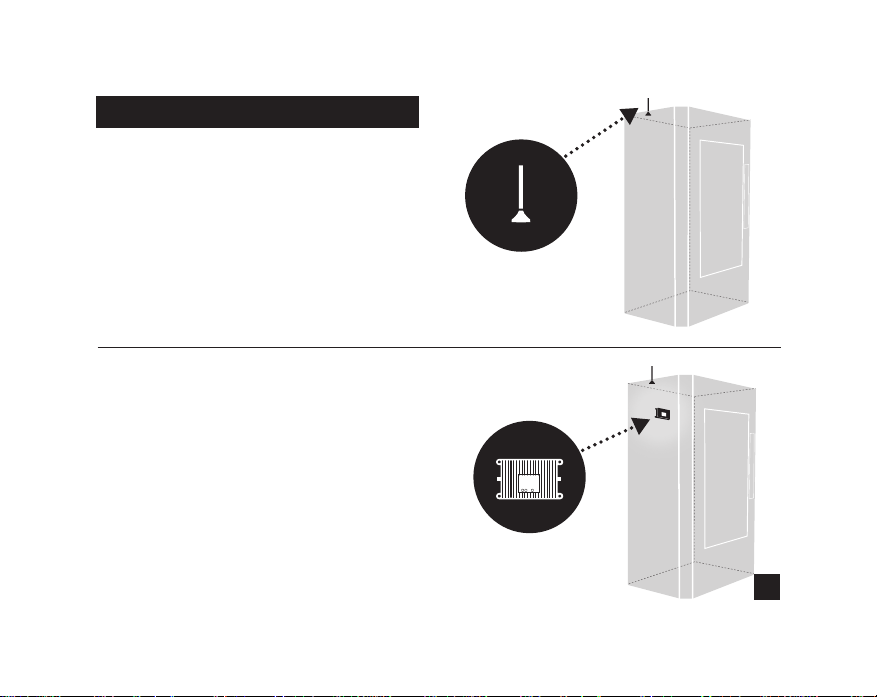

STEP 1 Outside Antenna

Placement

Mount the Outside Antenna on top

of a metal structure that is free of

obstructions and 12 in. away from any

other antennas.

Select a location to install the Signal

Ampliﬁer that is away from excessive

heat, direct sunlight, moisture and that

has proper ventilation.

STEP 2 Ampliﬁer Placement

Outside Antenna

5-Band Ampliﬁer

IoT Retail Application Example

Run the Outside Antenna Cable to

the Signal Ampliﬁer and attach it

to the connector labeled Outside

Antenna. Finger tighten only.

STEP 3 Route & Connect

Antenna to Ampliﬁer

Outside Antenna

IoT 5-Band

Signal Ampliﬁer

Connect the provided cable to

the cellular device (adapter may

be needed) then to the connector

labeled Data Device on the Signal

Ampliﬁer. Finger tighten only.

STEP 4 Connect Device

to Ampliﬁer

Outside Antenna

IoT 5-Band

Signal Ampliﬁer

Data

Device

Plug the Power Supply into an outlet

(or connect to hardwired 12V DC

source if kit 460219 is used) then

connect to end of ampliﬁer

labeled POWER.

STEP 5 Power Up the

Ampliﬁer

Outside Antenna

IoT 5-Band

Signal Ampliﬁer

Power Supply

■If the ampliﬁer loses power, internal circuitry will

bypass the ampliﬁer switch so that a connection

is made directly to the antenna.

■Safeguard your devices. Using a surge

protector is always recommended for these

applications.

Important

Modem

IoT 5-Band

Ampliﬁer Antenna

IoT 5-Band

Signal Ampliﬁer

Data

Device

Outside Antenna

Diagram

Cellular Modem

IoT 5-Band

Ampliﬁer

Power Supply

Surge Protector

STEP 1 Outside Antenna

Placement

Mount the Outside Antenna on top

of a metal structure that is free of

obstructions and 12 in. away from

any other antennas.

Select a location to install the Signal

Ampliﬁer that is away from excessive

heat, direct sunlight, moisture and that

has proper ventilation.

STEP 2 Ampliﬁer Placement 5-Band

Ampliﬁer

IoT Security Application Example Omni Outside

Antenna

When using the Omni Outside

Antenna, connect the N-Type

connector to the antenna, then

the SMA end to the amplifier.

Finger tighten only.

STEP 3 Route & Connect

Antenna to Ampliﬁer

IoT 5-Band

Signal Ampliﬁer

Connect the provided MMCX

cable to the Security Control Panel

(adapter may be needed) then to

the connector labeled Data Device

on the Signal Amplifier.

STEP 4 Connect Device

to Ampliﬁer

Omni Outside

Antenna

Omni Outside

Antenna

IoT 5-Band

Signal Ampliﬁer Security

Control Panel
