WIKA TGS55 Manual de usuario

Operating instructions

Betriebsanleitung

Mode d'emploi

Manual de instrucciones

Bimetal thermometer,

model TGS55

Gas-actuated thermometer with

capillary, model TGS73

Thermometers with inductive contacts 831,

for hazardous areas, models TGS55, TGS73

Thermometer mit Induktivkontakt 831, für explosions-

gefährdete Bereiche, Typen TGS55, TGS73

Thermomètres avec contacts inductifs 831, pour

zones explosives, types TGS55, TGS73

Termómetros con contacto inductivo 831, para zonas

potencialmente explosivas, modelos TGS55, TGS73

14327097.02 09/2019 EN/DE/FR/ES

WIKA operating instructions models TGS55, TGS73 with 831 (Ex)

Operating instructions

Models TGS55, TGS73

Page 3 - 34

Betriebsanleitung

Typen TGS55, TGS73

Seite 35 - 64

Mode d‘emploi

Types TGS55, TGS73

Page 65 - 94

Manual de instrucciones

Modelos TGS55, TGS73

Página 95 - 124

WIKA®is a registered trademark in various countries.

WIKA®ist eine geschützte Marke in verschiedenen Ländern.

Prior to starting any work, read the operating instructions!

Keep for later use!

Vor Beginn aller Arbeiten Betriebsanleitung lesen!

Zum späteren Gebrauch aufbewahren!

Lire le mode d‘emploi avant de commencer toute opération !

A conserver pour une utilisation ultérieure !

¡Leer el manual de instrucciones antes de comenzar cualquier trabajo!

¡Guardar el manual para una eventual consulta!

WIKA operating instructions models TGS55, TGS73 with 831 (Ex)

14327097.02 09/2019 EN/DE/FR/ES

Contents

1. General information 5

2. Design and function 6

2.1 Overview . . . . . . . . . . . . . . . . . . 6

2.2 Description . . . . . . . . . . . . . . . . . 6

2.3 Scope of delivery . . . . . . . . . . . . . . . 7

3. Safety 7

3.1 Explanation of symbols . . . . . . . . . . . . . 7

3.2 Intended use . . . . . . . . . . . . . . . . . 8

3.3 Improper use . . . . . . . . . . . . . . . . . 9

3.4 Responsibility of the operator . . . . . . . . . . . 9

3.5 Personnel qualification . . . . . . . . . . . . .10

3.6 Personal protective equipment . . . . . . . . . . .10

3.7 Labelling, safety marks . . . . . . . . . . . . . 11

3.8 Ex marking . . . . . . . . . . . . . . . . .12

3.9 Specifications and temperature limits . . . . . . . .13

3.10 Special conditions for safe use (X conditions). . . . . .15

4. Transport, packaging and storage 16

4.1 Transport . . . . . . . . . . . . . . . . . . 16

4.2 Packaging and storage . . . . . . . . . . . . .16

5. Commissioning, operation 17

5.1 Use of thermowells. . . . . . . . . . . . . . . 19

5.2 Thermal contact medium. . . . . . . . . . . . . 20

5.3 Electrical connection . . . . . . . . . . . . . . 20

5.4 Adjusting the set pointers . . . . . . . . . . . .21

14327097.02 09/2019 EN/DE/FR/ES

4WIKA operating instructions models TGS55, TGS73 with 831 (Ex)

Contents

Declarations of conformity can be found online at www.wika.com.

6. Faults 22

7. Maintenance and cleaning 25

7.1 Maintenance . . . . . . . . . . . . . . . . .25

7.2 Cleaning . . . . . . . . . . . . . . . . . .26

8. Dismounting, return and disposal 27

8.1 Dismounting . . . . . . . . . . . . . . . . .27

8.2 Return . . . . . . . . . . . . . . . . . . .28

8.3 Disposal . . . . . . . . . . . . . . . . . . 29

9. Specifications 29

9.1 Standard cable socket . . . . . . . . . . . . .29

9.2 Inductive contact model 831 . . . . . . . . . . . 30

9.3 Associated isolating amplifiers . . . . . . . . . . . 31

9.4 Contact thermometer . . . . . . . . . . . . . .31

Annex: EU declaration of conformity 33

WIKA operating instructions models TGS55, TGS73 with 831 (Ex)

14327097.02 09/2019 EN/DE/FR/ES

1. General information

■

The thermometers with switch contacts described in these operating

instructions have been designed and manufactured using state-of-

the-art technology. All components are subject to stringent quality and

environmental criteria during production. Our management systems

are certied to ISO 9001 and ISO 14001.

■

These operating instructions contain important information on

handling the instrument.Working safely requires that all safety

instructions and work instructions are observed.

■

Observe the relevant local accident prevention regulations and

general safety regulations for the instrument's range of use.

■

The operating instructions are part of the product and must be kept

in the immediate vicinity of the instrument and readily accessible to

skilled personnel at any time. Pass the operating instructions on to the

next operator or owner of the instrument.

■

Skilled personnel must have carefully read and understood the

operating instructions prior to beginning any work.

■

The general terms and conditions contained in the sales

documentation shall apply.

■

Subject to technical modications.

■

Further information:

- Internet address: www.wika.de / www.wika.com

- Relevant data sheet: TV 25.01 (model TGS55)

TV 27.01 (model TGS73)

- Application consultant: Tel.: +49 9372 132-0

Fax: +49 9372 132-406

[email protected]

1. General information

14327097.02 09/2019 EN/DE/FR/ES

6WIKA operating instructions models TGS55, TGS73 with 831 (Ex)

2. Design and function

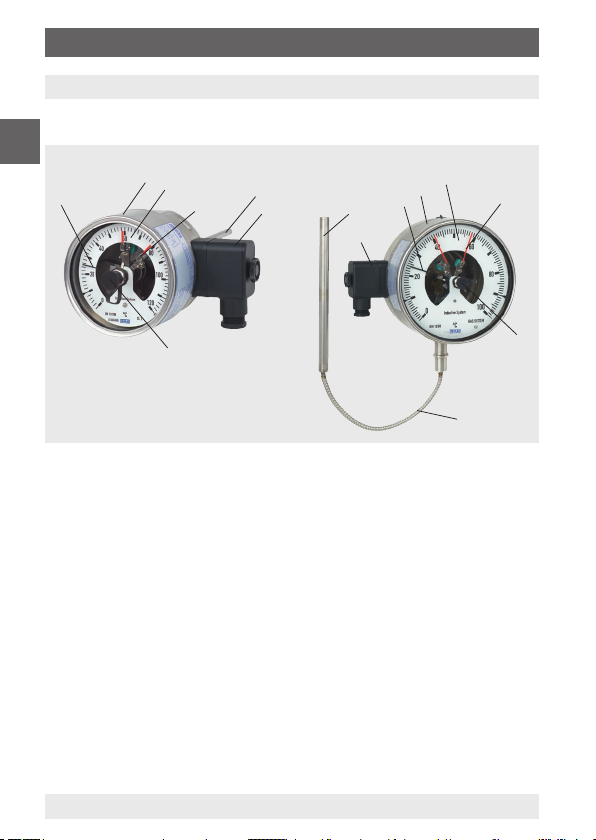

2.1 Overview























Example: model TGS55 Example: model TGS73

2. Design and function

Adjustable pointer

Case

Dial

Switch contact model 831

Stem

Cable socket

Adjustment key

Capillary

2.2 Description

These thermometers with inductive contact(s) have been designed

specically for applications in hazardous areas. WIKA manufactures

and qualies these instruments in accordance with the EN 13190 and

DIN 16196 standards.

WIKA operating instructions models TGS55, TGS73 with 831 (Ex)

14327097.02 09/2019 EN/DE/FR/ES

Switch contact model 831

The built-in electrical inductive contacts are non-contact slot-type

inductive proximity sensors, which are powered from isolating ampliers

with certied intrinsically safe circuits. On exceeding the adjustable limit

values, their output circuits are either opened or closed.

2.3 Scope of delivery

Cross-check scope of delivery with delivery note.

3. Safety

3.1 Explanation of symbols

WARNING!

... indicates a potentially dangerous situation that can result in

serious injury or death, if not avoided.

CAUTION!

... indicates a potentially dangerous situation that can result in

light injuries or damage to property or the environment, if not

avoided.

DANGER!

... identies hazards caused by electrical power. Should the

safety instructions not be observed, there is a risk of serious

or fatal injury.

WARNING!

... indicates a potentially dangerous situation that can result in

burns, caused by hot surfaces or liquids, if not avoided.

2. Design and function / 3. Safety

14327097.02 09/2019 EN/DE/FR/ES

8WIKA operating instructions models TGS55, TGS73 with 831 (Ex)

Information

... points out useful tips, recommendations and information for

ecient and trouble-free operation.

3.2 Intended use

The instruments serve for temperature measurement in the chemical

and petrochemical industries, oil and gas industries and also for the

energy and shipbuilding industries.Through the high ingress protection

of the thermometer (IP65) and its liquid dampening, operation under

high vibration conditions is possible. In addition they full the high

requirements for resistance against aggressive media.The contact

thermometer, with up to 3 integrated model 831 inductive contacts,

displays the process temperature on-site and opens/closes circuits at

dened temperature values.

The instrument oers many application possibilities for gaseous and

liquid aggressive media that are not highly viscous or crystallising.

Only use the instrument in applications that lie within its technical

performance limits (e.g. temperature limits, material compatibility, ...).

→ For performance limits, see chapter 9 “Specications”.

The instrument has been designed and built solely for the intended use

described here, and may only be used accordingly.

The manufacturer shall not be liable for claims of any type based on

operation contrary to the intended use.

3. Safety

WIKA operating instructions models TGS55, TGS73 with 831 (Ex)

14327097.02 09/2019 EN/DE/FR/ES

3.3 Improper use

WARNING!

Injuries through improper use

Improper use of the instrument can lead to hazardous

situations and injuries.

▶Refrain from unauthorised modications to the instrument.

▶Do not use the instrument with abrasive or viscous media.

Any use beyond or dierent to the intended use is considered as

improper use.

Do not use this instrument in safety or emergency stop devices.

3.4 Responsibility of the operator

The instrument is used in the industrial sector.The operator is therefore

responsible for legal obligations regarding safety at work.

The safety instructions within these operating instructions, as well as the

safety, accident prevention and environmental protection regulations for

the application area must be maintained.

The operator is obliged to maintain the product label in a legible

condition.

To ensure safe working on the instrument, the operating company must

ensure

■

that suitable rst-aid equipment is available and aid is provided

whenever required.

■

that the operating personnel are regularly instructed in all topics

regarding work safety, rst aid and environmental protection

and know the operating instructions and, in particular, the safety

instructions contained therein.

■

that the instrument is suitable for the particular application in

accordance with its intended use.

■

that personal protective equipment is available.

3. Safety

14327097.02 09/2019 EN/DE/FR/ES

10 WIKA operating instructions models TGS55, TGS73 with 831 (Ex)

3.5 Personnel qualication

WARNING!

Risk of injury should qualication be insucient

Improper handling can result in considerable injury and

damage to equipment.

▶The activities described in these operating instructions

may only be carried out by skilled personnel who have the

qualications described below.

Skilled personnel

Skilled personnel, authorised by the operator, are understood to

be personnel who, based on their technical training, knowledge

of measurement and control technology and on their experience

and knowledge of country-specic regulations, current standards

and directives, are capable of carrying out the work described and

independently recognising potential hazards.

Special operating conditions require further appropriate knowledge, e.g.

of aggressive media.

3.6 Personal protective equipment

The personal protective equipment is designed to protect the skilled

personnel from hazards that could impair their safety or health during

work.When carrying out the various tasks on and with the instrument,

the skilled personnel must wear personal protective equipment.

Follow the instructions displayed in the work area regarding personal

protective equipment!

The requisite personal protective equipment must be provided by the

operating company.

3. Safety

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Termómetro de WIKA

Manuales populares de Termómetro de otras marcas

Delton

Delton 981A Manual de usuario

Baker

Baker MM2P Manual de usuario

Tarmo

Tarmo 320281 Manual de usuario

Citizen

Citizen CTD 504 Manual de usuario

TFA

TFA 14.1500 Manual de usuario

Vive

Vive DMD1010 Manual de usuario

Gotemp

Gotemp THB4002 Manual de usuario

GREISINGER

GREISINGER G 1202 Manual de usuario

Amprobe

Amprobe TMD-53W Manual de usuario

Trotec

Trotec BP10 Manual de usuario

Radiance instruments

Radiance instruments RT616 Series Manual de usuario

Eurolec

Eurolec IR151 Manual de usuario

Scaneo

Scaneo TS42B Manual de usuario

Sper scientific

Sper scientific 800043 Manual de usuario

Microlife

Microlife NC 200 Manual de instrucciones

Motorola

Motorola MBP69SN Guía de configuración

The MeatStick

The MeatStick The MeatStick Manual de usuario

Hama

Hama TH35-A Manual de usuario
