K746W

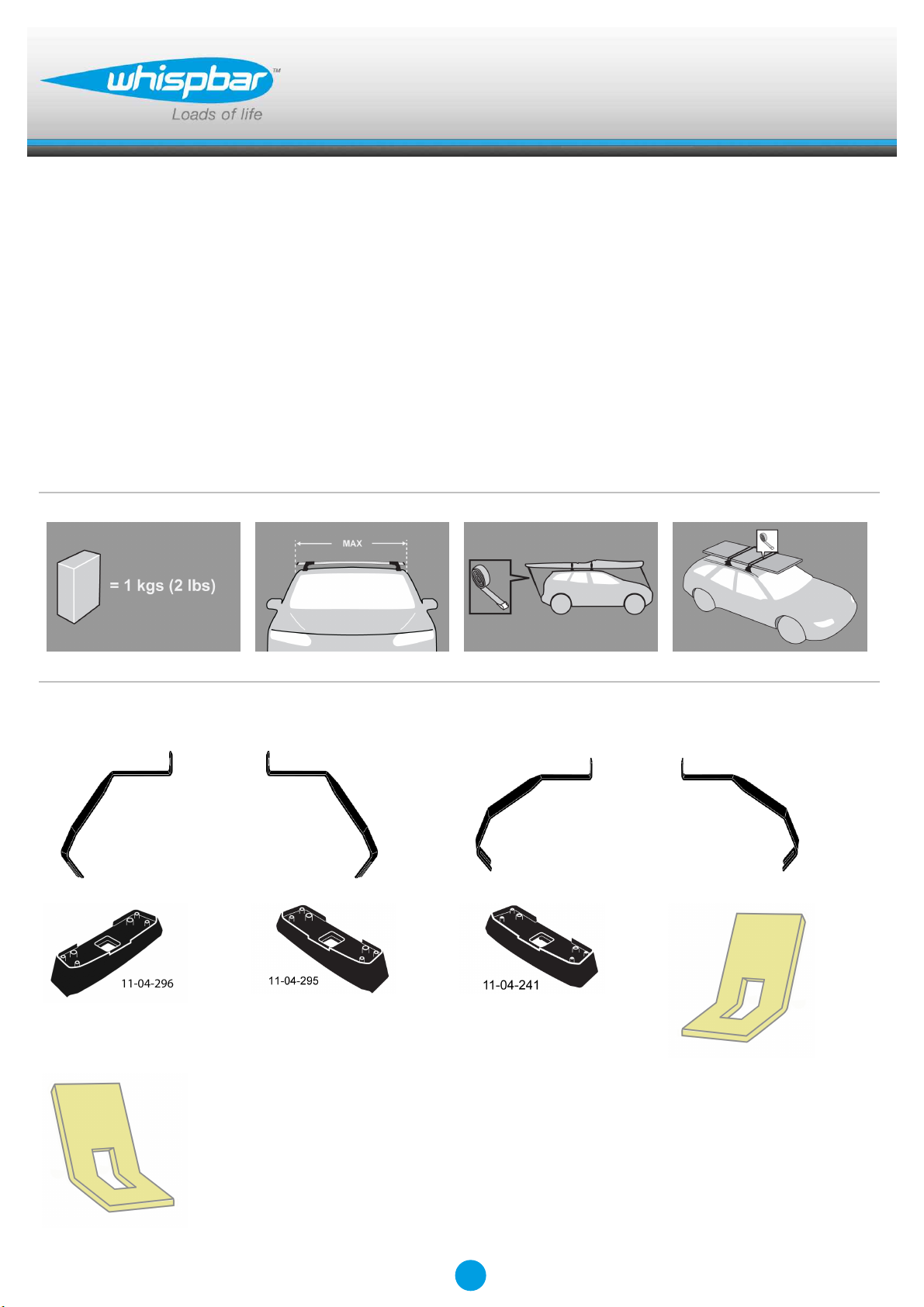

Fitting Kit
EN Fitting Instructions for Basic Carrier
DE Montageanleitung für Basisträgersystem
ES Instrucciones de montaje para el sistema
de transporte
FR Instructions de montage pour Basic Carrier
NO Monteringsanvisning for takstativ
PT Instruções de Montagem para sistema de
transporte.
RU Установочные Инструкции для
Поперечных Балок
x 1 x 1 x 1 x 1
x 1 x 1 x 2 x 2
x 2
Revision No: 3C 1
Fitting Kit K746W
MAX kgs (lbs)
W/P WHD
Volkswagen
CC, 4dr Coupe 12-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)
CC, 4dr Coupe 12-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)
CC, 4dr Coupe 12-17 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
CC, 4dr Coupe 12-17 AU 75 kgs (165 lbs) 75 kgs (165 lbs)
CC, 4dr Coupe 12-17 EU 75 kgs (165 lbs) 75 kgs (165 lbs)
CC, 4dr Coupe 12-17 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
Passat CC, 4dr Coupe 08-11 AU 75 kgs (165 lbs) 75 kgs (165 lbs)
Passat CC, 4dr Coupe 08-11 EU 75 kgs (165 lbs) 75 kgs (165 lbs)
Passat CC, 4dr Coupe 08-11 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
Passat CC, 4dr Coupe 08-11 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
Passat CC, 4dr Coupe 09-12 CN 75 kgs (165 lbs) 75 kgs (165 lbs)
2
Fitting Kit K746W
X
A B C 1 2 3
CC, 4dr Coupe 12-+ (US) -290mm 410mm - 922mm 870mm -
-11 -7/16ths" 16 1/8ths" - 36 5/16ths" 34 1/4ths" -
CC, 4dr Coupe 12-+ (CN) -290mm 410mm - 922mm 870mm -
-11 -7/16ths" 16 1/8ths" - 36 5/16ths" 34 1/4ths" -
CC, 4dr Coupe 12-17 (NZ) -290mm 410mm - 922mm 870mm -
-11 -7/16ths" 16 1/8ths" - 36 5/16ths" 34 1/4ths" -
CC, 4dr Coupe 12-17 (AU) -290mm 410mm - 922mm 870mm -
-11 -7/16ths" 16 1/8ths" - 36 5/16ths" 34 1/4ths" -
CC, 4dr Coupe 12-17 (EU) -290mm 410mm - 922mm 870mm -
-11 -7/16ths" 16 1/8ths" - 36 5/16ths" 34 1/4ths" -
CC, 4dr Coupe 12-17 (ZA) -290mm 410mm - 922mm 870mm -
-11 -7/16ths" 16 1/8ths" - 36 5/16ths" 34 1/4ths" -
Passat CC, 4dr Coupe 08-11 (AU) -290mm 405mm - 925mm 865mm -
-11 -7/16ths" 15 15/16ths" - 36 7/16ths" 34 1/16ths" -
Passat CC, 4dr Coupe 08-11 (EU) -290mm 405mm - 925mm 865mm -
-11 -7/16ths" 15 15/16ths" - 36 7/16ths" 34 1/16ths" -
Passat CC, 4dr Coupe 08-11 (NZ) -290mm 405mm - 925mm 865mm -
-11 -7/16ths" 15 15/16ths" - 36 7/16ths" 34 1/16ths" -
Passat CC, 4dr Coupe 08-11 (ZA) -290mm 405mm - 925mm 865mm -
-11 -7/16ths" 15 15/16ths" - 36 7/16ths" 34 1/16ths" -
Passat CC, 4dr Coupe 09-12 (CN) -290mm 405mm - 925mm 865mm -
-11 -7/16ths" 15 15/16ths" - 36 7/16ths" 34 1/16ths" -
3
Fitting Kit EN
K746W
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
NOTE: Clamp images in these instructions may
not be representative of the clamps in this kit
4
Fitting Kit EN
K746W
●Use keys to remove covers.
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
5
Fitting Kit EN
K746W
●Remove locking screw.
●Apply protective strip as shown.
Trim if required.
●It is important to put the clamps in the
correct position on the vehicle.
●Letters refer to the part numbers stamped
on clamps.
●Clamp Part Number:
A = 149A
B = 150A
C = 151A
D = 152A
6
Fitting Kit EN
K746W
●Attach clamp to each leg. NOTE; clamps
may have labels showing their positions on
the vehicle (For example; "Front Right").
●Refit locking screw so that it goes through
the hole in the clamp. Do not begin to
tighten the locking screw.
●It is important to put the pads in the correct
position on the vehicle.
●Letters refer to the pad part numbers and
position.
●Pad Part Number:
A = 241
B = 295
C = 296
7
Fitting Kit EN
K746W
●Fit rubber pads (supplied with fitting kit) to
foot. Pad may vary in shape to that shown.
●Make sure the pad fits into the holes
underneath the foot.
●Clamps onto anchor points under rubber
door frame mouldings
8
Fitting Kit EN
K746W
●The rubber seal must be peeled back from
the vehicle body to allow the clamp to be
inserted between the vehicle body and the
rubber seal.
Fitment
●Place crossbar on vehicle. Minimum
recommended spacing between the bars is
700mm (27 1/2") (unless otherwise stated).
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Press adjusting screw to adjust the leg
positions on the crossbar.
9
Fitting Kit EN
K746W
●Tighten adjusting screw to 5 Nm (3.7 ft lb)
hand tight.
●Tighten locking screw on both legs evenly.
●Check crossbar is securely attached to the
vehicle.
10
