Whispbar K462 Guía de instalación

FittingKit

K462

Fitting Instruction for Accessory

x 6

x 1

Revision No:

FittingKit

K462

MAX kgs

W/P

WHD

W/P

WHD

Citroen

Jumpy , 5dr Van 07-+

100

Jumpy , 5dr Van 07-+

100

Jumpy , 5dr Van 07-+

100

Fiat

Scudo , 5dr Van 07-+

175

100

Scudo , 5dr Van 07-+

175

100

Scudo , 5dr Van 07-+

175

100

Peugeot

Expert , 5dr Van 07-

100

Expert , 5dr Van 07-+

100

Expert , 5dr Van 07-+

100

FittingKit

K462

First Time Installation

Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

This kit fits type A, B, C and D.

These instructions show type B crossbar

fitted. They also apply to type A, C and D.

Use keys to remove covers.

FittingKit

K462

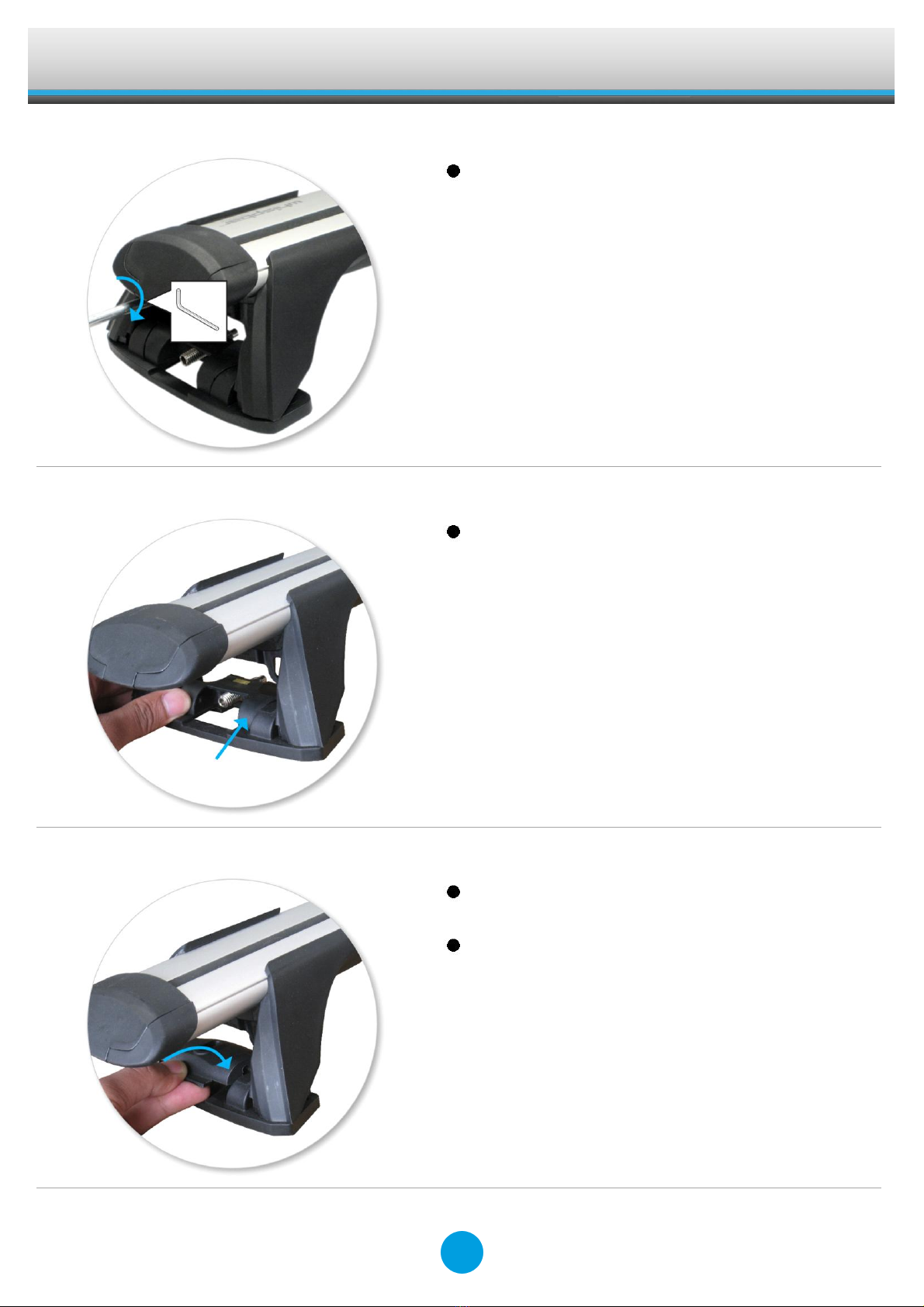

Use hex screwdriver to reverse adjusting

screw 10 turns.

Press adjusting screw and pull crossbar legs

out. Refer to the crossbar instructions for

crossbar adjustment.

Ensure each end of the crossbar is adjusted

equally.

Set bars to length (refer to the crossbar

instructions for crossbar adjustment).

Please check the rear of this manual for

information relating specifically to your

vehicle.

FittingKit

K462

Tighten adjusting screw to 5 Nm (3.7 ft lb).

Remove plastic clamp block by gripping bar

leg with fingers and push firmly with thumbs

until clamp block drops out behind leg.

Select plastic internal block (from fitting kit)

and insert into foot.

Repeat for all legs.

FittingKit

K462

Fit rubber pad (supplied with crossbar) to

foot.

Make sure the pad fits into the holes

underneath the foot.

Apply protective strip as shown.

Trim if required.

Fitment

Slide nut under fixed-point mount

FittingKit

K462

Place crossbar foot over fixed-point mount.

Tighten the red plastic knob.

Do not over tighten.

Ensure the red plastic knob is in the position

shown when fully tightened.

Repeat for all legs.

FittingKit

K462

Check crossbar is securely attached to the

vehicle.

Use keys to fit and lock covers

CAUTION:

Recheck all fasteners immediately after a load is

applied to the crossbars.

Regularly check screws are tight.

FittingKit

K462

Maintenance

Clean the car roof and surfaces of the

product that will be in contact with the car

roof.

Follow the fitting instructions for fitting the

product to your vehicle. Make sure all steps

are carried out in order.

Set crossbars a minimum distance of 700mm

(27 1/2") apart where no other distance is

specified in the fitting instructions. This is

especially important when carrying long

loads.

Check unit is securely attached whenever

you refit it to the vehicle. If the unit feels

loose, refer to the fitting instructions and

readjust.

Some glass/panoramic roofs and radio

antennae may not be able to be used when

the product is fitted.

Do not modify this product.

Refer to the maximum permitted load

capacity specified in the fitting instructions.

Do not exceed the vehicle manufacturers

roof load rating if it is lower than the

maximum load capacity specified in the fitting

instructions.

Loads should not overhang the sides of the

product and be evenly distributed with the

lowest possible centre of gravity.

Long loads should be secured with non-

elastic straps to the front and rear of the

vehicle.

Objects with pointed ends (e.g. ski poles)

should be carried with the pointed ends to

the rear of the vehicle.

Remove all loose or removable objects from

the load prior to loading.

Make sure all loads are securely fastened

with non-elastic straps. Check regularly

during longer journeys.

FittingKit

K462

A loaded roof rack system can alter the

performance of your vehicle. Be especially

aware of the effects of side winds, changing

of direction, and braking performance. Avoid

rapid acceleration and deceleration. Drive

carefully.

Note that the total height of the vehicle

increases when upright loads are carried.

Products should be locked during transport if

they have locks fitted.

Check and replace worn out or defective

parts.

Keep the product clean and maintained.

Never drive into a car wash with the roof rack

system fitted.

Lubricate locks and adjusting screws at

regular intervals.

Remove the products from the vehicle when

not in use. Make sure all loose parts are

stored safely.

Hubco Automotive Ltd

P. O. Box 11017

Christchurch

NEW ZEALAND

www.whispbar.com

www.whispbar.com.au

www.whispbar.co.nz

www.whispbar.co.uk

www.whispbar.co.za

www.whispbar.eu

www.whispbar.ca
