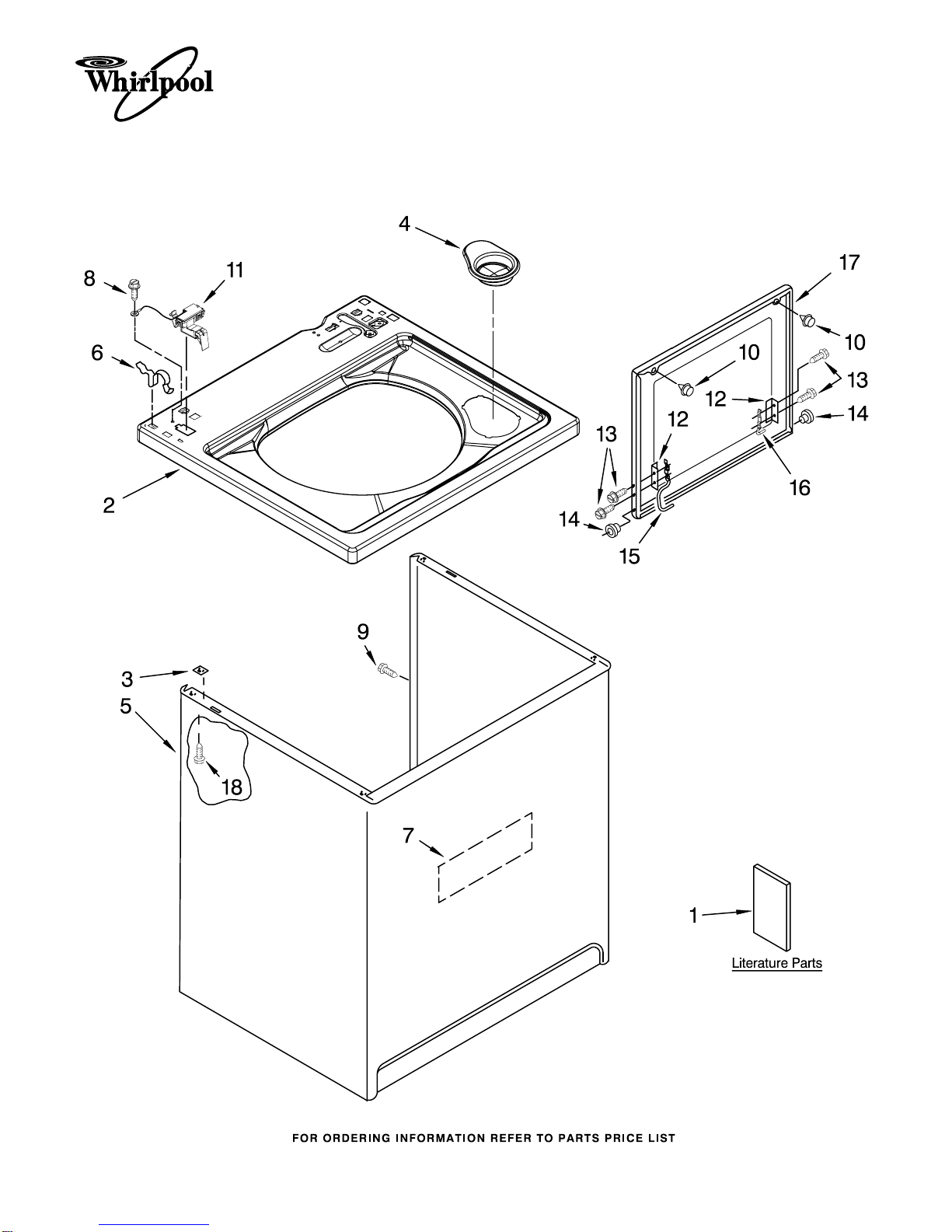

TOP AND CABINET PARTS

For Models: WTW5800SW0, WTW5800SG0

(White/Grey) (Biscuit/Gold)

AUTOMATIC

WASHER

4−06 Litho in U.S.A. (drd) Part No. 8181212 Rev. A

TOP AND CABINET PARTS

For Models: WTW5800SW0, WTW5800SG0

(White/Grey) (Biscuit/Gold)

8181212

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10044800

Installation

Instructions

3955884 Use & Care Guide

3957873 Feature Sheet

W10023760

Energy Guide

8577790 Wiring Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

4313896 Manual, Washer

2 Top

8566017 White

8580044 Biscuit

3 62750 Spacer, Cabinet To

Top (4)

4 8566266 Dispenser, Bleach

5 Cabinet

63424 White

3954357 Biscuit

6 62780 Clip, Top & Cabinet

& Rear Panel (2)

7 3976348 Cabinet−Sound

Damper

8 3351614 Screw, Ground

9 3357011 Screw, 10−16 x 1/2

10 9724509 Bumper, Lid (2)

11 8318084 Switch, Lid

12 21097 Pad, Hinge

13 355274 Screw, Lid Hinge

Mounting (4)

14 8319539 Bearing, Lid

Hinge (2)

15 8559336 Hinge, Lid (L.H.)

16 91770 Hinge, Lid (R.H.)

17 Lid

8580057 White

8580058 Biscuit

18 3390631 Screw,

10−16 x 3/8 (4)

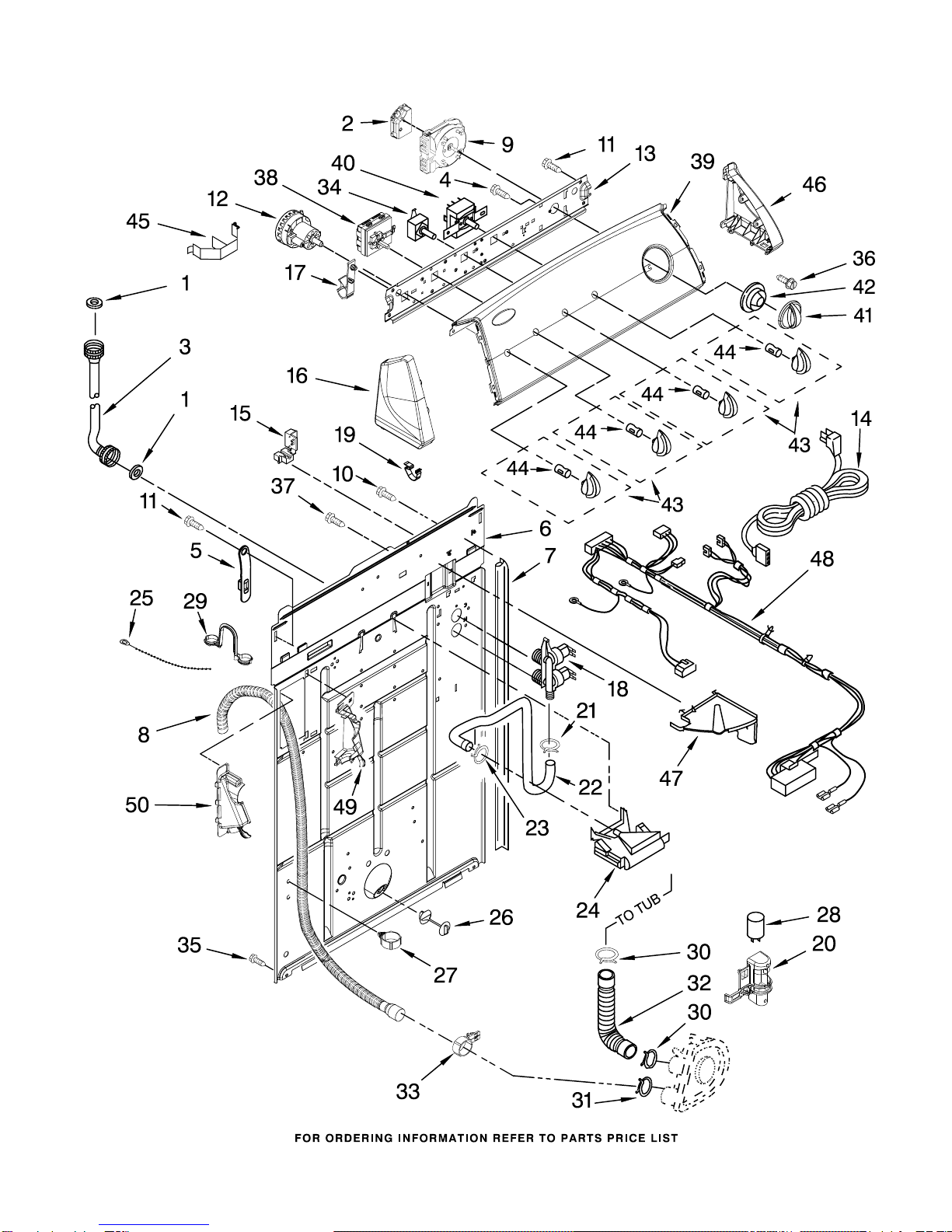

CONTROLS AND REAR PANEL PARTS

For Models: WTW5800SW0, WTW5800SG0

(White/Grey) (Biscuit/Gold)

8181212

CONTROLS AND REAR PANEL PARTS

For Models: WTW5800SW0, WTW5800SG0

(White/Grey) (Biscuit/Gold)

8181212

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3976300 Washer, Water

Inlet Hose (4)

(1−1/16 x 5/8)

2 8576472 Circuit Board,

Agitation Delay

3 Hose, Water

Inlet (2)

8571377 Blue Coupler

8571378 Red Coupler

4 3400073 Screw, Ground

5 8568314 Strap, Console (2)

6 8318015 Panel, Rear

7 62747 Pad, Rear Panel

8 8559373 Drain Hose

Assembly (Includes

Items 27 & 33)

9 8577787 Timer, Control

(60 Hz.)

(Motor Not A

Service Part)

10 3351614 Screw, Ground

11 90767 Screw, 8−18 X 3/8

12 8577842 Switch,

Water Level

13 8566003 Bracket, Control

14 3956162 Cord, Power

(Includes Item 15)

15 3952821 Strain Relief,

Power Cord

16 Cap, End (L.H.)

(Includes Item 19)

8566035 White

8566036 Biscuit

17 8317975 Retainer, Harness

18 3979347 Valve, Water Inlet

& Thermistor Assy.

19 8312709 Clip, Console

20 8318046 Clip, Capacitor

21 301958 Clamp, Hose

22 8317974 Hose, Vacuum

Break

23 370450 Clamp, Hose

24 387606 Break, Vacuum

25 3347868 Cable Tie

26 8519200 Support, Rear

Panel

27 8541667 Clamp, Hose

28 8572718 Capacitor,

Motor Start

29 8577378 U−Bend,

Drain Hose

30 3363366 Clamp, Hose

31 8317496 Clamp, Hose

32 3951449 Hose, Pump To Tub

(Includes Item 30)

33 8541668 Clamp, Hose

34 3949187 Switch, Rotary

35 62863 Screw, 10−16 x 3/8

36 3400818 Screw, Timer

Mounting

37 9740848 Screw, 8−18 x 1/2

38 8577786 Switch, Water

Temperature (ATC)

39 Panel, Console

8578811 Silver

8578812 Gold

40 8578536 Switch, Rotary

41 Knob, Timer

W10034730

Silver

W10034740

Biscuit

42 8566018 Dial, Timer

43 Knob, Control

W10034380

Silver

W10034390

Biscuit

44 8536939 Clip, Knob

45 8055003 Clip, Harness

& Pressure Hose

46 Cap, End (R.H.)

(Includes Item 19)

8566032 White

8566033 Biscuit

47 8539874 Shield, Suds

48 3958083 Harness, Wiring

(Includes Item 40)

(For Detail See

Pages 9 & 10)

49 8541669 Bucket, Drain Hose

(Left Half)

50 8541658 Bucket, Drain Hose

(Right Half)

AGITATOR, BASKET AND TUB PARTS

For Models: WTW5800SW0, WTW5800SG0

(White/Grey) (Biscuit/Gold)

8181212

AGITATOR, BASKET AND TUB PARTS

For Models: WTW5800SW0, WTW5800SG0

(White/Grey) (Biscuit/Gold)

8181212

Illus. Part

No. No. DESCRIPTION

1 8575076 Dispenser

2 358237 Screw & Washer

(5/16−24 x 1)

3 3363003 Clothes Mover

4 3951632 Agitator

5 8528150 Tub Ring & Gasket

6 3976308 Seal, Tub Ring

7 3354845 Clip, Agitator

8 8543666 Washer, Agitator

9 3951682 Cam, Driven

10 3366877 Dog, Agitator

Clutch (4)

11 3952374 Bearing−Driven

Cam

12 21366 Nut, Spanner

13 8526016 Basket & Balance

Ring

14 2219077 Clip, Pressure

Switch Hose

15 8519788 Balance Ring

16 63849 Tub

17 389140 Block, Basket

Drive

18 383727 Gasket, Centerpost

19 3347780 Hose, Pressure

Switch

20 3951744 Agitator

(Complete)

22 3951608 Spacer, Thrust

23 3354733 Cap, Barrier

24 3348855 Seal, Inner Cap

26 3949550 Washer

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

For Models: WTW5800SW0, WTW5800SG0

(White/Grey) (Biscuit/Gold)

8181212

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 388952 Brake & Drive

Tube (Complete)

(Refer to Page 11

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 3951311 Clutch (Complete)

6 3951308 Band & Lining,

Clutch (Includes

Items 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 3946792 Spring, Clutch

9 3360630 Gearcase

(Complete)

(Refer To Page 12

For Further

Breakdown)

10 3357334 Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 285753 Coupling, Motor

& Isolation

15 3355454 Clip,

Anti−Rattle

16 3400516 Screw

17 3349637 Retainer, Motor (2)

18 3362089 Shield, Tub

To Motor

19 8529935 Motor, Main

Drive

20 8529896 Switch, Main

Drive Motor

21 8546127 Retainer, Pump (2)

22 3363394 Pump (Complete)

23 3387485 Screw, 10−16 x 5/8

24 3946532 Shield, Motor

MACHINE BASE PARTS

For Models: WTW5800SW0, WTW5800SG0

(White/Grey) (Biscuit/Gold)

8181212

Illus. Part

No. No. DESCRIPTION

1 3400076 Screw, Bracket

Mounting

(10−32 x 5/8)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring

Suspension,(3)

4 8575214 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 63466 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

10 8546455 Bearing,

Centerpost (2)

11 357409 Seal, Centerpost (3)

12 8318050 Spring,

Counterweight

13 62568 Pad, Plate

14 3946509 Plate, Suspension

(Includes Item 13)

15 3363660 Pad, Base

16 3946512 Base Assembly

(Includes Items 6,

7, 8, 9, 13, 14,

15 & 22)

17 3359452 Nut, Lock (2)

(3/8−16)

18 389102 Foot, Front (2)

19 8577376 Seal, Centerpost

20 285203 Centerpost

Bearing Kit

(Includes Items

10, 11 & 19)

21 63134 Ring, Sound

Deadening

22 63806 Retainer,

Suspension Spring

WIRING HARNESS PARTS

For Models: WTW5800SW0, WTW5800SG0

(White/Grey) (Biscuit/Gold)

8181212

WIRING HARNESS PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3349557 Clip, Harness

2 388498 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

5 90016 Clip, Harness

6 3390496 Clip, Harness

7 389379 Retainer,

(Suds Models)

8 Timer, Block

Disconnect

3948614 White

352089 Black

9 62889 Receptacle,

Terminal

(3−Way)

(Lid Switch)

(Use Term.94613)

Or 94614.)

10 353424 Plug, Terminal

(3−Way)

(Power Cord)

(Use Term.94613)

11 62505 Block, Disconnect

(Motor 2 Speed)

(Use Term.352088)

12 3347243 Block, Disconnect

(Use Term. 352088)

13 63523 Protector

14 717252 Connector

(2−Way)

(Use Term.94614)

15 3352944 Clip, Harness

16 3390423 Block, Disconnect

(12−Way)

(Timer)

(Use Term. 94613)

17 3347730 Receptacle

(6−Way)

(Use Term. 94613)

18 3349494 Connector, Etc

19 3407125 E.T.C. Control

20 3948617 Connector (T.P.A.)

(3−Circuit)

(Lid Switch)

21 3360056 Connector (T.P.A)

(3−Circuit)

(Pressure Switch)

22 Block, Connector

3354925 Cold Valve

3354926 Hot Valve

For Models: WTW5800SW0, WTW5800SG0

(White/Grey) (Biscuit/Gold)

8181212
