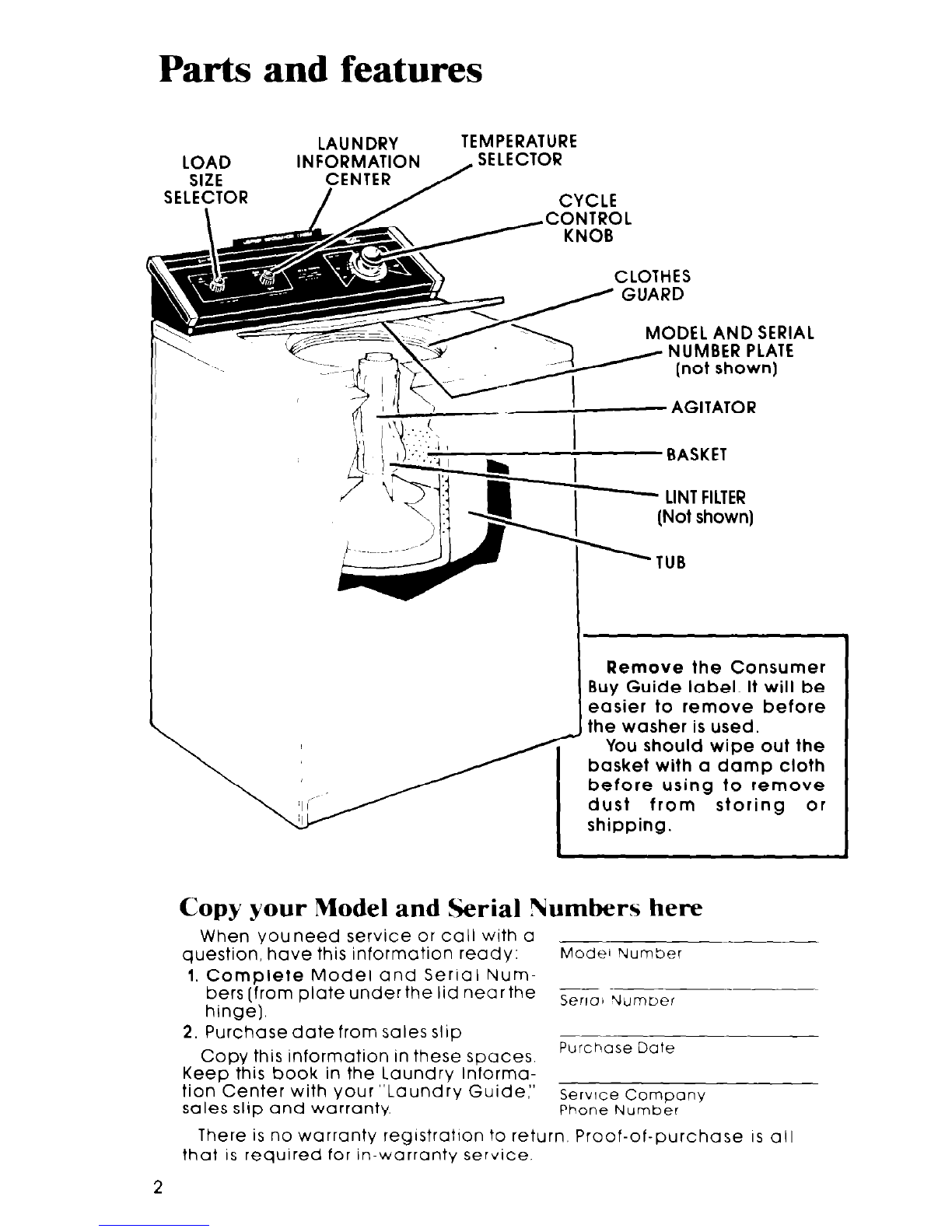

Parts and features

LAUNDRY TEMPERATURE

LOAD INFORMATION

SIZE CENTER / SELECTOR

SELECTOR

/ /

CLOTHES

:. .I, h

BASKET

LINT FILTER

,!! ;I; shown)

Remove the Consumer

Buy Guide label. It will be

easier to remove before

the washer is used.

You should wipe out the

basket with a damp cloth

before using to remove

dust from storing or

Copy your Model and Serial Numbers here

When youneed service or call with a

question, have this information ready:

Model Number --

1. Complete Model and Serial Num-

bers [from plate under the lid nearthe __ -___~-

hinge).

Serfa

Yumoer

2. Purchase date from sales slip

Copy this information in these spaces. Purchase Date

Keep this book in the Laundry Informa-

tion Center with your “Laundry Guide:’

sales slip and warranty

Service Company

Phone Number

There is no warranty reglstratlon to return, Proof-of-purchase IS all

that IS required for in-warranty service.

Your responsibilitie

Read this “Use and Care Guide”

and your “Laundry Guide” care-

fully for important use and safety

information.

You are personally responsible

for making sure that your

washer...

is installed by a qualifiedinstaller.

is properly installed and

leveled on a floor that can

support the weight.”

is connected to the right kind

of outlet, electric supply, water

supply and drain.*

is properly grounded.’

is used only for jobs normally

expected of home automatic

washers.

is properly maintained.

is protected from the weather

and kept where the tempera-

ture will not fall below freezing.

is not run by children or anyone

unable to operate it properly.

*See the ‘Installation Instructions”

for complete information.

Contents Paw

PARTS AND FEATURES

YOUR RESPONSIBILITIES

SAFETY FIRST

STARTING YOUR WASHER

WHAT HAPPENS IN EACH

CYCLE

OTHER OPERAiliG

INSTRUCTIONS

For a Rinse and Spin

For a Drain and Spin

ForaSoak

Cleaning the Lint F&r

CARING FOR YOUR WASHER

Winterizing

IF YOU NEED SERVICE OR

ASSISTANCE.

1 Before Calling for’

-2

ICI

Assistance

2 If You Need Assistance

3. If You Need Service

4. If You Have a Problem

(~1985 Whirlpool Corporation

Starting your washer

1 Measure and add detergent.

2 Place sorted load in washer

3 Start washer.

Select a

1. LOAD SIZE Select WATER

TEMPERATURES

9 Turn the knob to point at a setting

that describes the size of load you

Match the wash water temperature

want to wash to the type of fabrics and soils being

washed.

The water level can be set for SMALL

(a few items) or LARGE [a full load).

See your “Laundry Guide” for details

on load sizes.

All rinses are cold.

Recommended wash temperatures

can be found in your “Laundry Guide”.

LOAD SIZES AND WATER LEVELS

For best cleaning results, the

load must be able to move freely

in the water. Too big a load or too

little water can cause wear or

tearing of load items

DO NOT

OVERLOAD WASHER.

‘Approximate

fill with load.

LARGE (17.2 gals./651 L)’

SMALL (9.5 gals./360 L)’

3. Start the washer

Push in the Control Knob and

turn it to the right. It must be

pushed In and turned only

clockwise

Stop on a number in the cycle

you want. The numbers are min-

utes of wash time. The drawing

shows 14 minutes of agitation in

the REGULAR HEAVY Cycle. Note:

The washer will till only when

the knob points within a FILL

area.

Start the washer by pulling out

the Control Knob. The washer

WIII fill to the level you set with

wash water of the selected

temperature. After filling, the

washer WIII agitate for the

selected number of minutes

To stop the washer at any time

push in the Control Knob. To

restart the washer, pull out the

Control Knob.

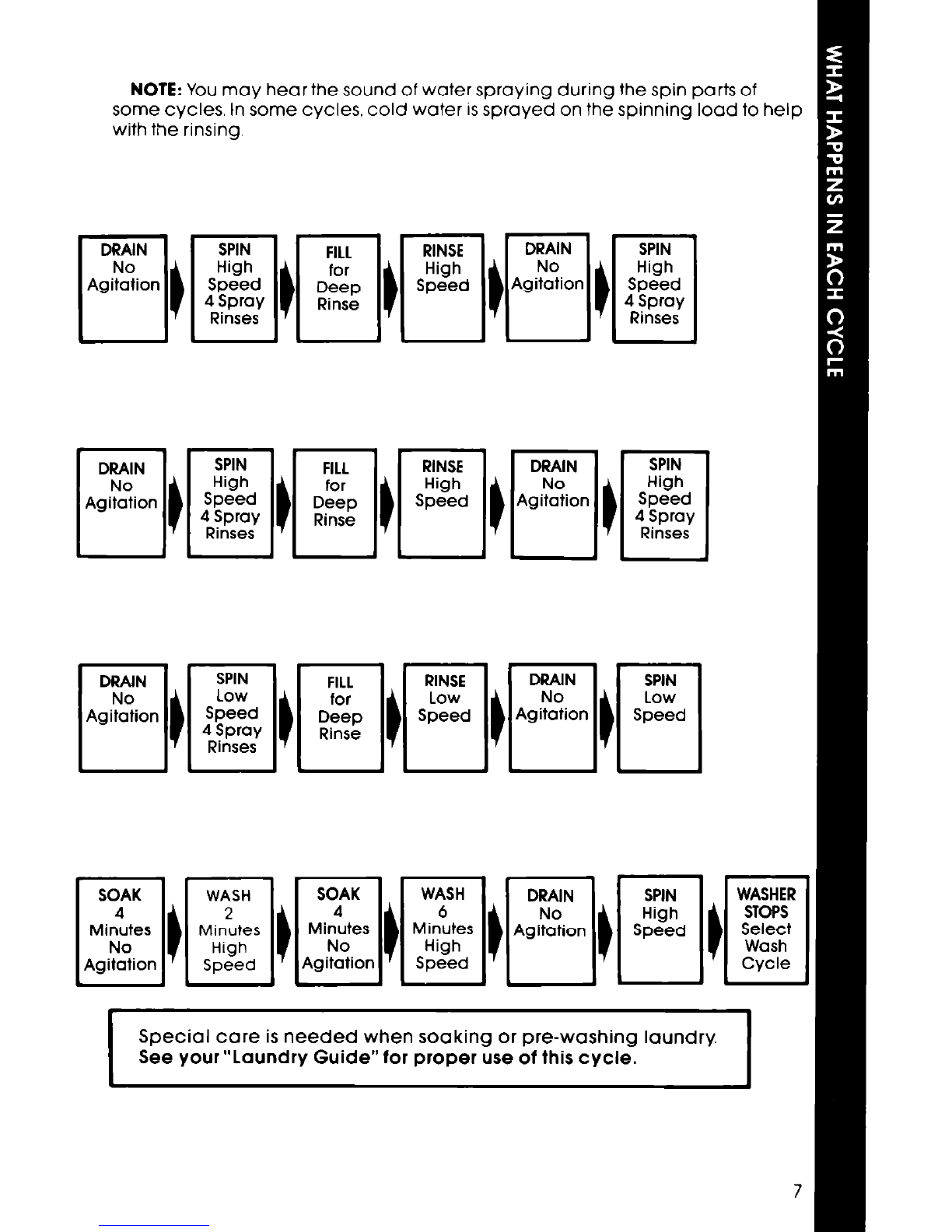

What happens in each cycle*

Each cycle has been designed for different kinds of fabrics. Numbers on the

dial in each cycle are the minutes of WASH agitation time.

When the Cycle Control Knob is set to a number and pulled out, the washer

fills before agitation and timing starts. After agitation starts, the knob turns clock-

wise until it points to OFF and the cycle ends

REGULAR HEAVY Cycle

A cycle for sturdily con-

strutted fabrics that are

heavily soiled.

REGULAR Cycle

A cycle for regular loads of

fabrics that are moderately

soiled.

KIVITWGENTLE Cycle

A cycle that gently washes

and spins delicate items

and washable knits.

SOAK Cycle

Brief periods of agitation

and soak time help remove

heavy soils and certain

stains that need extra

pretreatment. Use recom-

mended amount of

detergent. The SOAK Cycle

should always be fol-

lowed by a Wash Cycle.

NOTE: you may hear the sound of wate

some cycles. In some cycles, cold water

with the rinsing

‘r spraying during the spin parts of

is sprayed on the spil ining I load to he

DRAIN

Agltation

SPIN

High

I Speed

Special care is needed when soaking or pre-washing laundry.

See your “Laundry Guide” for proper use of this cycle.

Other operating instructions

For a rinse and spin For a drain and spin

You may need an extra rinse and

spin for heavily soiled loads which

need more detergent. (Extra de-

tergent can require an extra rrnse.]

Push Control Knob In.

9 Turn clockwrse to any aon the dial.

See above drawing.

Pull Control Knob out.

The washer will fill to selected

level; agitate 2 minutes: drain

and spin.

Your washer can be set to drain

and spin out water.

* Push Control Knob in.

Turn clockwise to the bar lust before

OFF in any cycle. See above

drawing.

Pull Control Knob out

The washer will drain and spin.

For agitation and spin speeds in each cycle, see pages band 7.

For a soak

Push Control Knob in.

Turn clockwise to point at a number

in the SOAK Cycle...use the 6-minutes

mark for a pre-wash?

Pull Control Knob out to start washer.

When the cycle is over, add de-

tergent for the next selected wash

cycle. The SOAK Cycle should

For best results, use warm water always be followed by a Wash

for soaking or pre-washing stained Cycle.

laundry. Hot water can set stains. Important: See additional care

Use recommended amount of information on page 7 of your

detergent or pre-soak product. “Laundry Guide!’

‘To start soak or pre-wash with agitation, the Cycle Control Knob

must point to a number in the SOAK Cycle.

Cleaning the lint filter

Clean filter after every load for best

filtering results. Note: The load type

will vary the amount of lint build-up.

To clean:

Lift off the agitator barrel.

Wash or wipe the filter clean in the

bottom of the agitator barrel. The

filter is not removable.

Replace the agitator barrel and

snap into place.

LINT FILTER

Caring for your was her

WHEN NOT WASHING, keep both

water faucets turned off. This takes

the pressure off the water inlet

Valve

and hoses.

AFTER WASHING, use a sofl dry cloth

to wipe the outside and inside dry.

Leave the lid up until the basket is dry.

Wipe up spills right away. Spills can

dull or damage the finish.

REMOVE SHARP OBJECTS such as pins,

buckles, etc., from clothes before

washing. Close metal zippers.

SHARP OR HEAVY OBJECTS should

never be put on or in the washer.

Check pockets for bolts, nuts,

tools, etc.

SOME PRETREATMENT PRODUCTS

can damage washer and dryer dial!

consoles and finishes. Do not use

these products on or near your

washer or dryer.

Winterizing

Because some water stays in the washer, freez-

ing can cause a lot of damaae. If your washer is

stored or moved during the cold weather.

1. Shut off both water 2. Put a quart of

faucets. Discon- automobile-type

nect and drain antifreeze in the

water inlet hoses. basket.

To use the washer again.. .

1. Flush water pipes and hoses.

2. Connect hoses to the washer.

3. Turn on the water faucets

3. Set the washer for a

DRAIN and SPIN

(see page 8). Let it

run for about 30

seconds to mix the

antifreeze and

water.

4. Run the washer

through a com-

plete cycle with

one cup of deter-

gent to clean out

the antifreeze.
