Whirlpool LBT6233DQ0 Manual de usuario

1 357213 Nut, Push-In (2)

2 Top

3358226 White

3 62750 Spacer, Cabinet To Top (4)

5 Cabinet

63128 White

6 62780 Clip, Top & Cabinet & Rear Panel (2)

8 3356311 Screw & Washer, Lid Switch (2)

11 3352631 Switch, Lid

13 3351355 Screw, Lid Hinge Mounting (4)

15 54584 Hinge, Lid (L.H.)

16 54583 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 21258 Bearing, Lid Hinge (2)

19 Lid

3361392 White

20 358684 Strike, Lid Switch

21 3362952 Dispenser, Bleach

22 93770 Bumper, Lid (2)

28 384435 Screw, 10-16 x 1/2 (4)

31 90016 Clip, Harness

LITERATURE PARTS

LIT3360057 Sheet, Installation Instructions

LIT3363555 Guide, Use and Care

LIT3948625 Energy Guide

LIT3948359 Label, Wiring Diagram

LIT4313896 Manual, (Washer) Do-It-Yourself

OPTIONAL PARTS NOT INCLUDED

PAINT,TOUCH UP (1/2 oz.)

72017 White

72107 Almond

72110 Golden Harvest

PAINT PRESSURIZED SPRAY (13 oz.)

350938 Primer, Gray

350930 White

350956 Almond

261890 Golden Harvest

PAINT,BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

261891 Golden Harvest (Uncut)

OIL 350572 Oil, Gearcase (16 Oz.)

LUBRICANT

285208 Lubricant (Use Only in Brake Shoe Assembly On Roller and Pin)

SEALER285195 Sealer, Gasket (.20 Fl. Oz.) (6 ml)

SHIPPING KIT

3348675 Shipping Kit

ACCESSORY PARTS

63580 Fabric Dispenser

89121 Stand-Pipe Kit

367031 Drain Protector

285320 Siphon Break Kit

1 16123 Washer, Water Inlet Hose (4) (1-1/16 x 5/8)

3 3354858 Hose, Water Inlet (2)

4 3357027 Nozzle-Drain Hose

5 387402 Hinge, Console (2)

6 3357976 Panel, Rear

7 62747 Pad, Rear Panel

8 661575 Hose, Drain (4'-8")

661577 Hose, Drain (9'-9") (Not Included)

3357090 Extension, Drain Hose (21 Inches.) (Not Included.)

9 3948357 Timer, Control (60 Hz.) (Motor Not A Service Part)

11 90767 Screw, 8A x 3/8

12 3356467 Switch, Water Level

13 3358897 Bracket, Control

14 3948063 Cord, Power

15 63848 Strain Relief, Power Cord

16 Cap, End (L.H.)

3358528 White/Chrome

17 96160 Screen, Filter (2)

18 3360392 Valve, Water Mixing

19 90864 Screw, 10-24 x 3/8 (2)

21 370451 Clamp, Hose

272846 (Alt.)

353367 (Alt.)

22 62662 Hose, Vacuum Break

23 371503 Clamp, Hose

24 3347034 Break, Vacuum

25 63290 Support, Rear Panel

26 3361805 Hose-Corrugated Assy.

27 356138 Clamp, Hose

30 371502 Clamp, Hose

31 660628 Clamp, Hose

272858 (Alt.)

370447 (Alt.)

353097 (Alt.)

32 62731 Hose, Pump To Tub

35 3363323 Switch, Water Temperature

3347117 (Alt.)

3348352 (Alt.)

36 96435 Screw, Timer Mounting (10-32 x 1) (2)

39 3947796 Panel, Console

44 3364291 Knob, Timer

45 3946261 Dial, Timer

47 3358435 Knob, Control

49 388326 Screw, 8-18 x 1.25 (Panel to Top)

50 62863 Screw, 10-16 x 3/8

51 Cap, End (R.H.)

3358513 White/Chrome

55 3357331 Clamp, Drain (For Detail See Hose)

59 3357011 Screw, 10-16 X 1/2

60 3948411 Harness, Wiring (For Detail See Wiring Harness Parts Page.)

Also See Clips.

1 3355758 Cap, Agitator

2 358237 Screw & Washer (5-16-24 x 1)

3 3349019 Clothes-Mover

4 3350830 Agitator

5 3360611 Tub Ring

6 3359586 Gasket, Tub Ring

7 387867 Clip, Balance Ring (8)

8 387868 Balance Ring

9 3363663 Cam, Driven

10 3361948 Filter, Plate

11 3363661 Bearing-Driven Cam

12 21366 Nut, Spanner

13 387713 Basket & Balance Ring

14 63125 Tub

15 389140 Block, Basket Drive

16 383727 Gasket, Centerpost

17 386757 Hose, Pressure Switch

18 3366877 Dog, Agitator (Clutch)

19 3358198 Hose, Bleach

20 3350829 Agitator, Asy. (Complete)

21 3350389 Spacer, Thrust

22 3347290 Cap, Barrier

23 3348855 Seal-Inner Cap

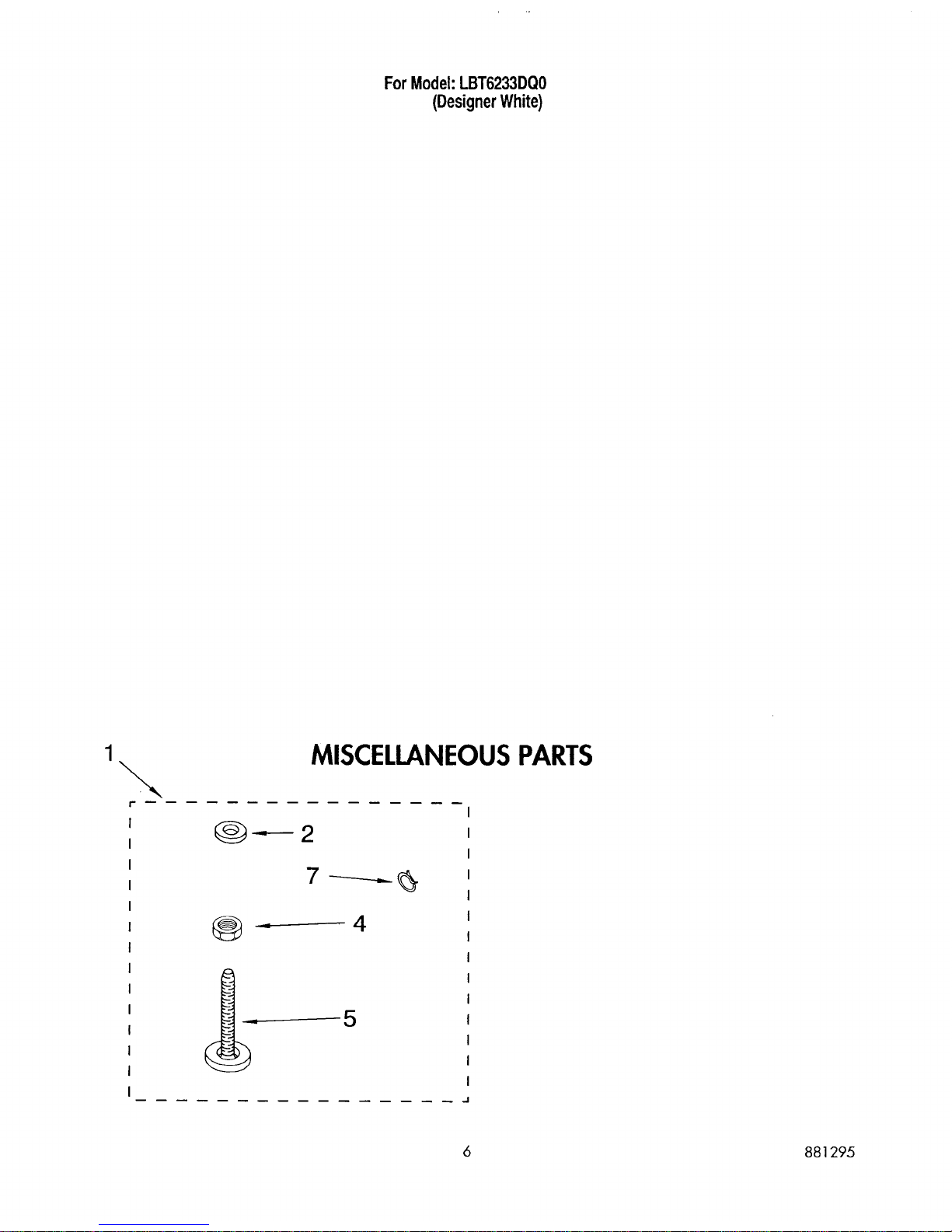

1 3356711 Miscellaneous Parts Bag

2 16123 Washer, Inlet Hose (1-1/16 x 5/8) (4)

4 62739 Nut, Lock (2) (3/8-16)

5 389102 Foot, Front (2)

7 356138 Clamp, Hose
