Whirlpool 7MLSR5132JQ3 Manual de usuario

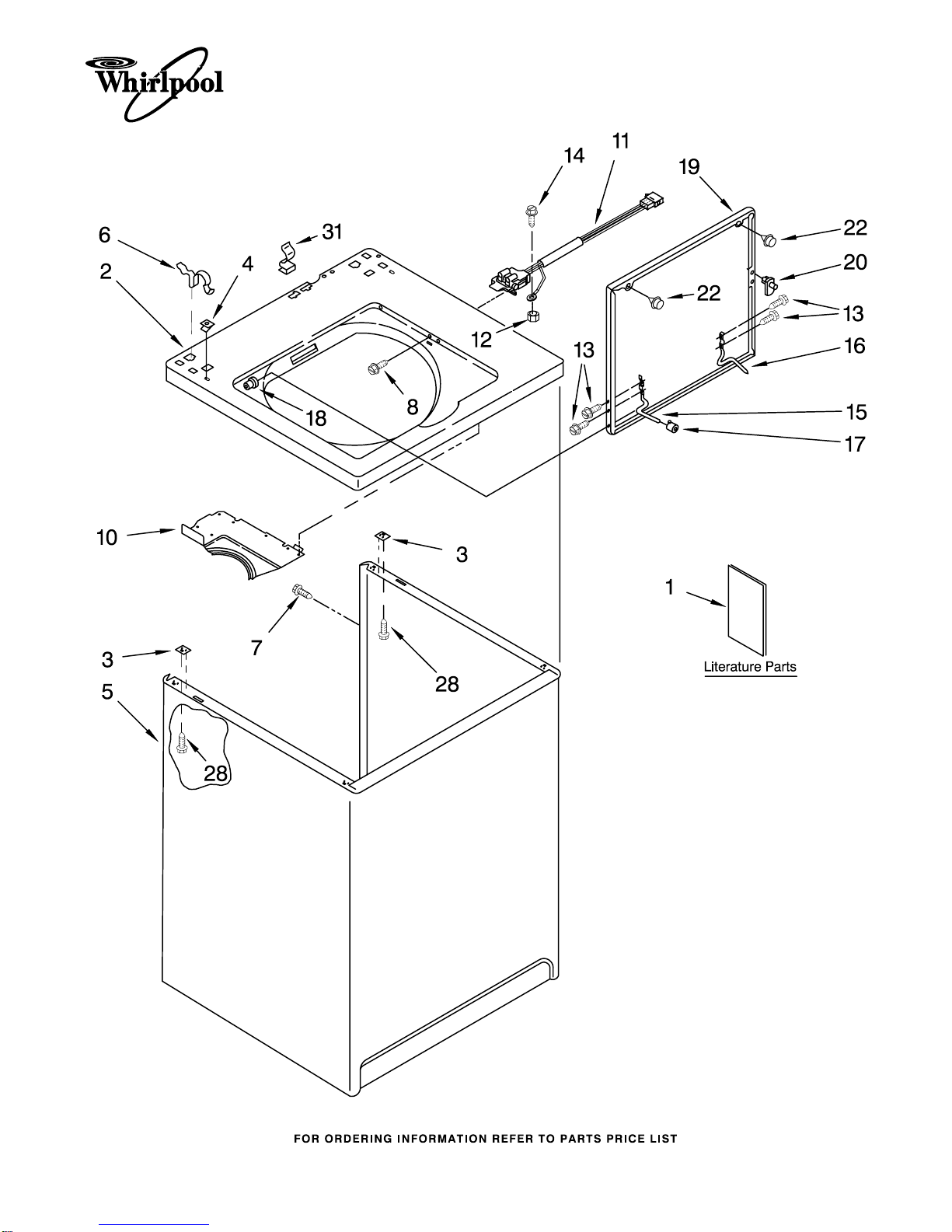

TOP AND CABINET PARTS

For Model: 7MLSR5132JQ3

(Designer White)

11−02 Litho in U.S.A. (drd) Part No. 8179920

AUTOMATIC

WASHER

TOP AND CABINET PARTS

For Model: 7MLSR5132JQ3

(Designer White)

8179920

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT3954763

Installation

Instructions

LIT8532147

Use & Care Guide

LIT8532072

Energy Guide

(Mexico)

LIT3954132

Wiring Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT4313896

Manual, Washer

2 8274315 Top

3 62750 Spacer, Cabinet To

Top (4)

4 357213 Nut, Push−In (2)

5 63424 Cabinet

6 62780 Clip, Top & Cabinet

& Rear Panel (2)

7 3357011 Screw, 10−16 x 1/2

8 3356311 Screw & Washer,

Lid Switch (2)

10 3950994 Shield, Lid Switch

11 3950298 Switch, Lid

12 3400901 Nut, Hex

13 3351355 Screw, Lid Hinge

Mounting (4)

14 3351614 Screw, 10−24 x 3/8

15 54584 Hinge, Lid (L.H.)

16 91770 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 21258 Bearing, Lid

Hinge (2)

19 3954598 Lid

20 357913 Strike, Lid Switch

22 9724509 Bumper, Lid (2)

28 3390631 Screw

10−16 X 3/8 (4)

31 90016 Clip, Harness

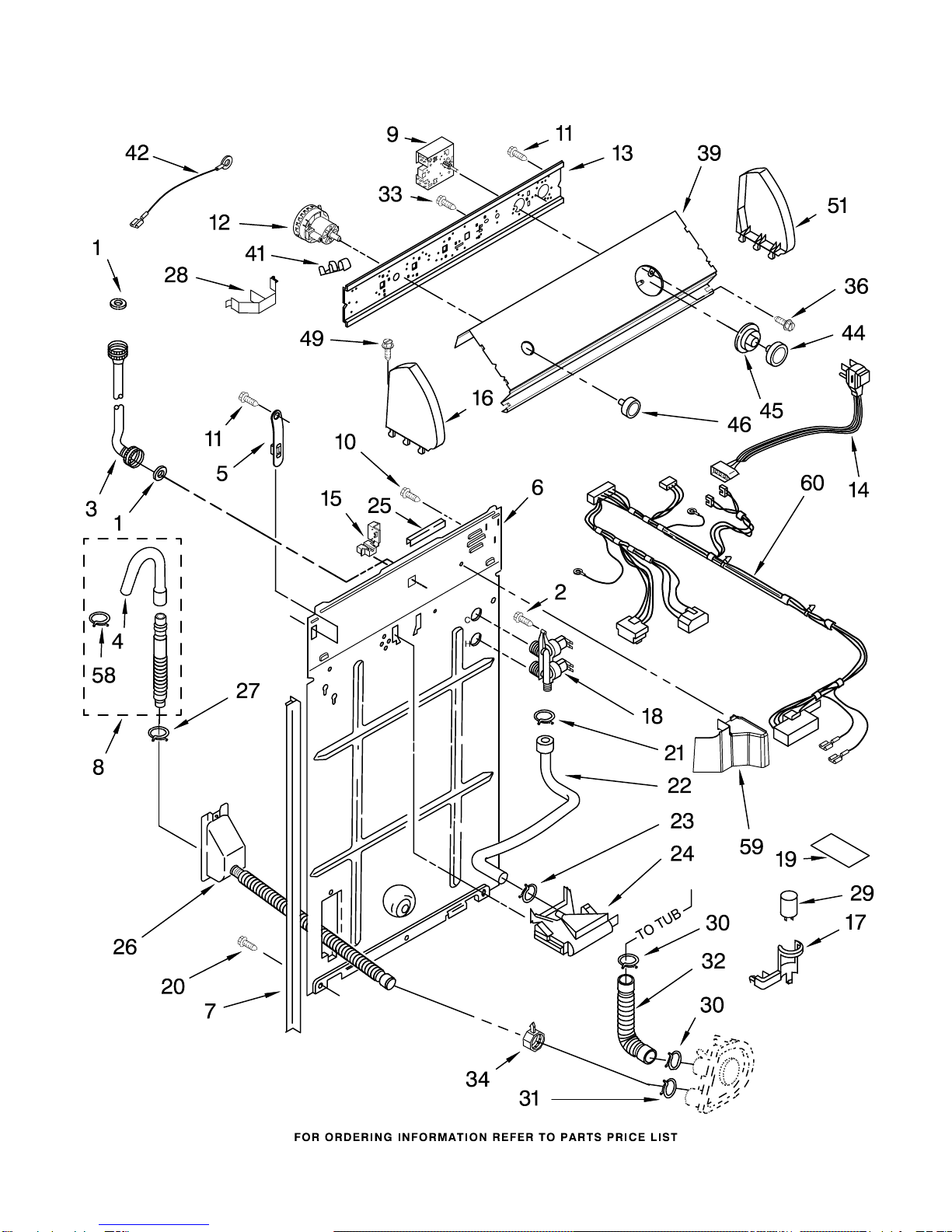

CONTROLS AND REAR PANEL PARTS

For Model: 7MLSR5132JQ3

(Designer White)

8179920

CONTROLS AND REAR PANEL PARTS

For Model: 7MLSR5132JQ3

(Designer White)

8179920

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3976300 Washer, Water

Inlet Hose (4)

(1−1/16 x 5/8)

2 9740848 Screw

3 Hose, Water

Inlet (2)

3949374 Blue Coupler

3949375 Red Coupler

4 3357027 Nozzle−Drain

Hose

5 8318255 Strap, Console (2)

6 8318405 Panel, Rear

7 62747 Pad, Rear Panel

8 3951609 Hose, Drain

(4 ft.)

661577 Hose, Drain

(9 ft.)

(Not Included)

3357090 Extension,

Drain Hose

(21 Inches.)

(Not Included.)

9 3951166 Timer, Control

(60 Hz.)

(Motor Not A

Service Part)

10 3351614 Screw, Ground

11 90767 Screw, 8−18 x 3/8

12 3366849 Switch, Water Level

13 3948608 Bracket, Control

14 8532158 Cord, Power

(Includes #15)

15 3949468 Strain Relief,

Power Cord

16 8271369 Cap, End (L.H.)

17 8318201 Clip, Capacitor

18 3952164 Valve, Water

Mixing

19 3976286 Shield, Capacitor

20 62863 Screw, 10−16 x 3/8

21 370451 Clamp, Hose

22 3357328 Hose, Vacuum

Break

23 371503 Clamp, Hose

24 387606 Break, Vacuum

25 303294 Edge Protector

26 8317940 Drain Hose

Assembly

27 3366912 Clamp, Hose

28 8055003 Clip, Harness

& Pressure Hose

29 661606 Capacitor,

Motor Start

30 3363366 Clamp, Hose

31 8317496 Clamp, Hose

32 3951449 Hose, Pump To Tub

(Includes #30)

33 3179795 Screw, Ground

34 3976395 Clamp, Hose

36 3400818 Screw, Timer

Mounting

39 8531978 Panel, Console

41 357572 Clip, Grounding

42 3398893 Wire, Ground

44 8271345 Knob, Timer

45 8271351 Dial, Timer

46 8271339 Knob, Control

49 388326 Screw, Console

(Panel to Top)

51 8271363 Cap, End (R.H.)

58 3366913 Clamp, Drain

Hose

59 8314879 Shield, Inlet

Valve

60 3956164 Harness, Wiring

(For Detail See

Page 9 & 10)

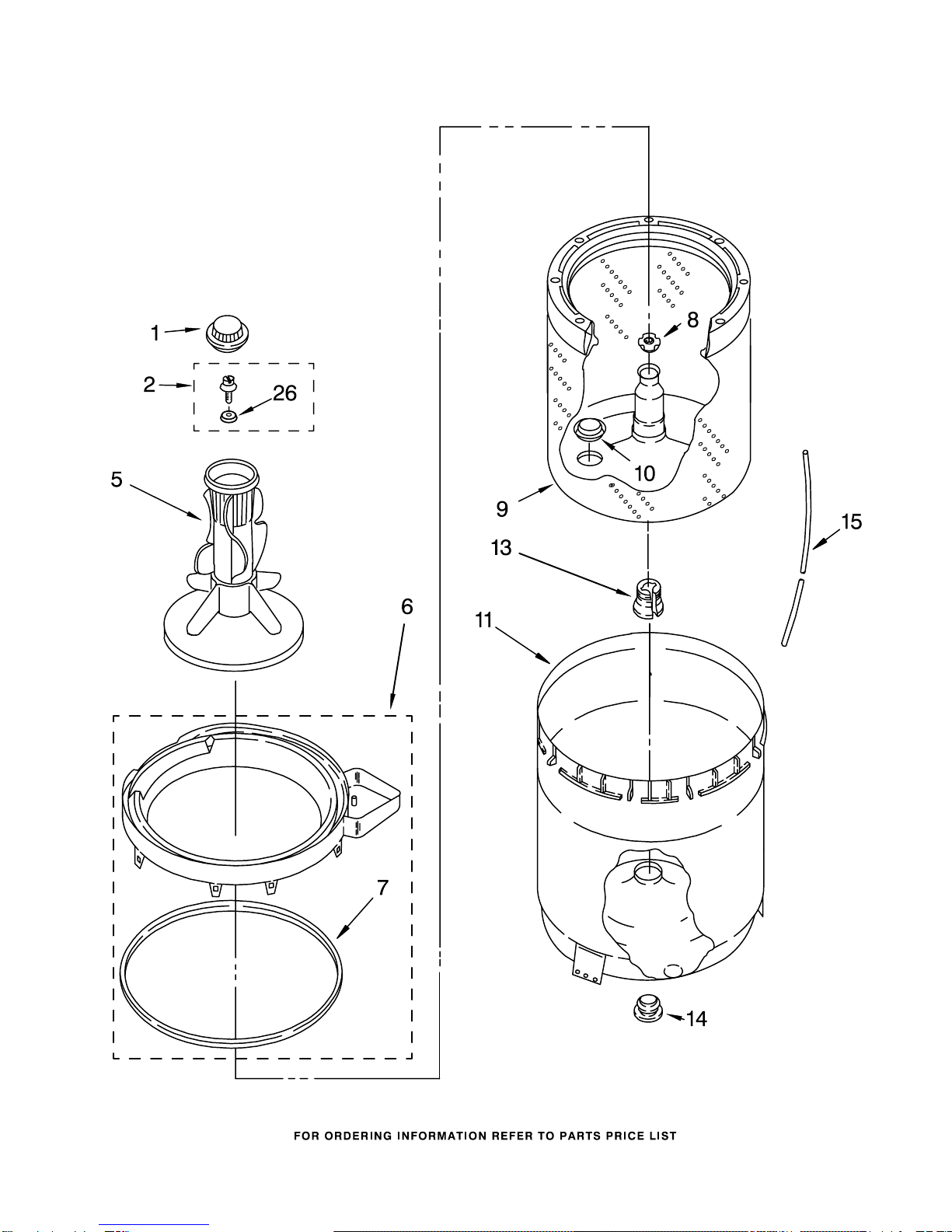

AGITATOR, BASKET AND TUB PARTS

For Model: 7MLSR5132JQ3

(Designer White)

8179920

AGITATOR, BASKET AND TUB PARTS

For Model: 7MLSR5132JQ3

(Designer White)

8179920

Illus. Part

No. No. DESCRIPTION

1 3355758 Cap, Agitator

2 358237 Screw & Washer

5 63235 Agitator

6 8528150 Tub Ring

7 3359585 Gasket, Tub Ring

8 21366 Nut, Spanner

9 3951989 Basket & Balance

Ring

(Also Order # 10)

10 8522271 Filter Plug

11 63849 Tub

13 389140 Block, Drive

14 383727 Gasket, Centerpost

15 3347780 Hose, Pressure

Switch

26 3949550 Washer

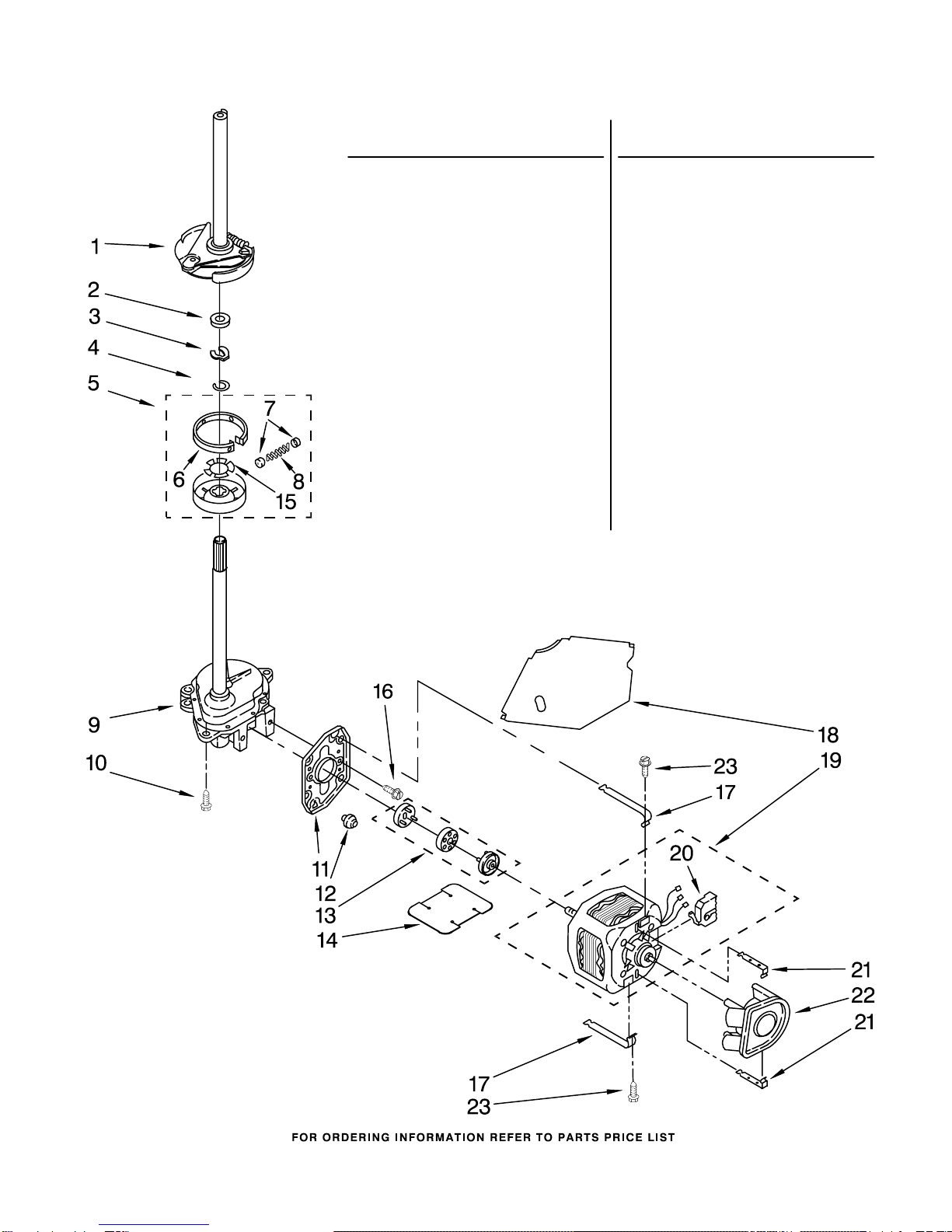

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

For Model: 7MLSR5132JQ3

(Designer White)

8179920

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 388952 Brake & Drive

Tube (Complete)

(Refer to Page 11

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 3951311 Clutch (Complete)

6 3951308 Band & Lining,

Clutch (Includes

Illus. 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 3946792 Spring, Clutch

9 8532118 Gearcase

(Complete)

(Refer To Page

12 For Further

Breakdown)

10 3357334 Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 285753 Coupling, Motor

And Isolation

14 8316060 Shield, Motor

15 3355454 Clip,

Anti−Rattle

16 3400516 Screw

17 3349637 Retainer, Motor (2)

18 3362089 Shield, Tub

To Motor

19 8528157 Motor, Main

Drive

20 3952056 Switch, Main

Drive Motor

21 62700 Retainer, Pump (2)

22 3363394 Pump (Complete)

23 3387485 Screw,

10−16 x 5/8

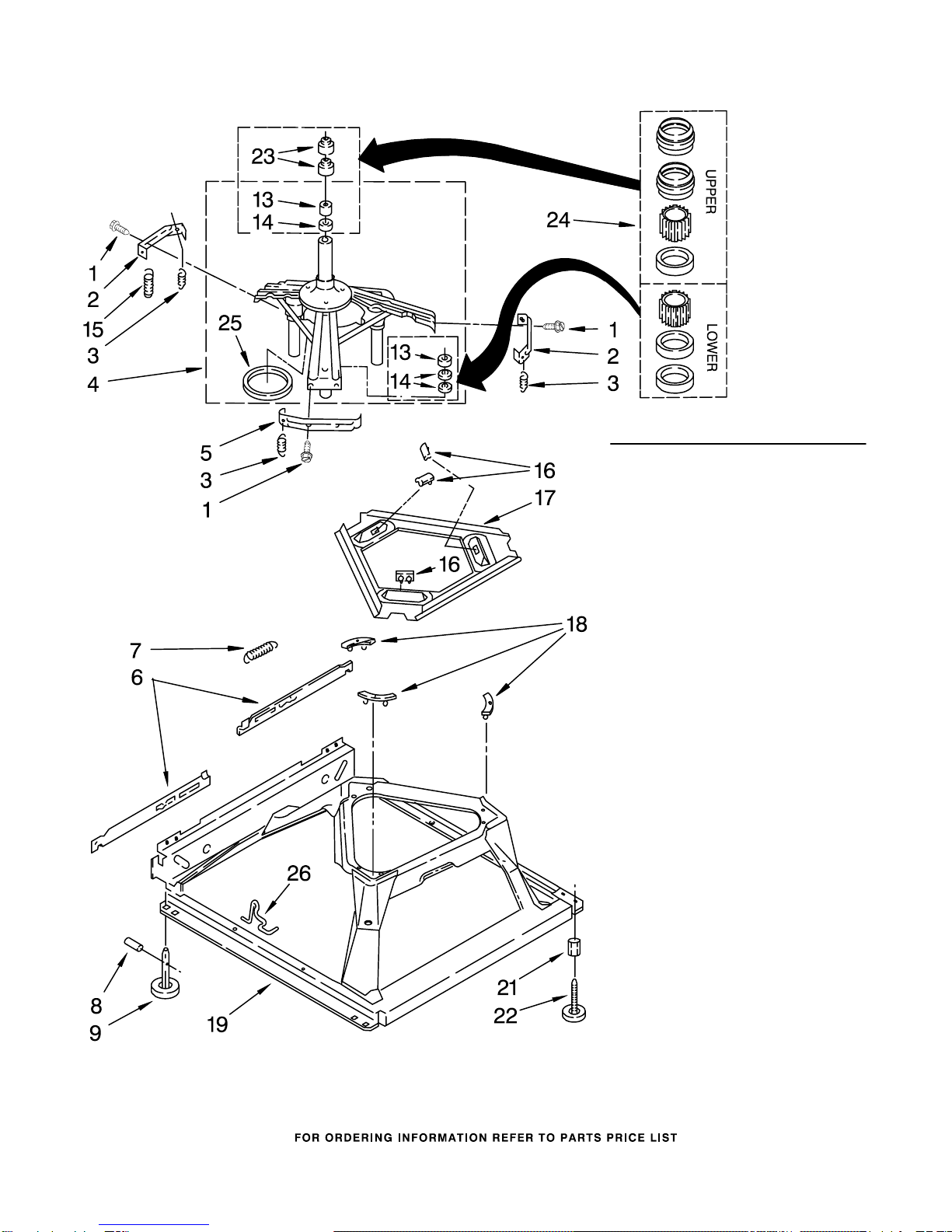

MACHINE BASE PARTS

For Model: 7MLSR5132JQ3

(Designer White)

8179920

Illus. Part

No. No. DESCRIPTION

1 3400076 Screw, Bracket

Mounting

(10−32 x 5/8)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring, Suspension (3)

4 3362087 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 63466 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

13 3347047 Bearing,

Centerpost (2)

14 357409 Seal, Centerpost (3)

15 388492 Spring,

Counterweight

16 62568 Pad, Plate

17 3946509 Plate, Suspension

(Includes Illus. 16)

18 3363660 Pad, Base

19 3946512 Base Assembly

(Includes Illus, 6,

7, 8, 9, 16, 17

18 & 26)

21 3359452 Nut, Lock

(3/8−16)

22 389102 Foot, Front (2)

23 356934 Seal, Centerpost (2)

24 285203 Centerpost

Bearing Kit

(Includes Illus.

13, 14 & 23)

25 63134 Ring, Sound

Deadening

26 63806 Retainer,

Suspension Spring

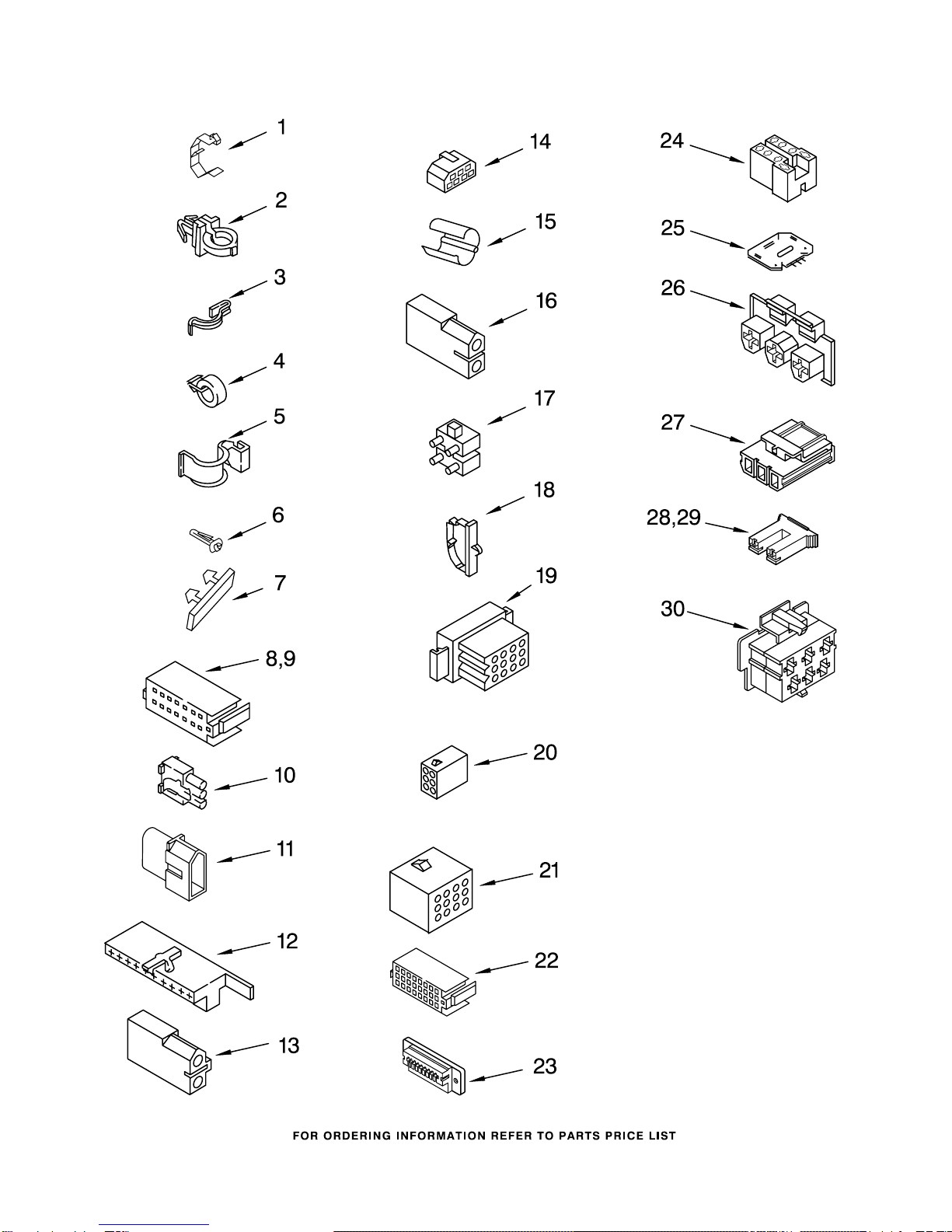

WIRING HARNESS PARTS

WH2G

For Model: 7MLSR5132JQ3

(Designer White)

8179920

WIRING HARNESS PARTS

WH2G

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

FOR COMPLETE WIRING HARNESS REFER TO

CONTROL AND REAR PANEL PARTS PAGE

1 3349557 Clip, Harness

2 388498 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

5 90016 Clip, Harness

6 3390496 Clip, Harness

7 389379 Retainer,

(Suds Models)

8 352090 Timer, Block

Disconnect

(White)

9 352089 Timer, Block

Disconnect

(Black)

10 62889 Receptacle,

Terminal

(3−Way)

(Lid Switch)

(Use Term.94613)

Or 94614.)

11 353424 Plug, Terminal

(3−Way)

(Power Cord)

(Use Term.94613)

12 62505 Block, Disconnect

(Motor 2 Speed)

(Use Term.352088)

13 3348075 Block, Disconnect

(Motor 3 Speed)

(Use Term. 94613

Or 94614.)

14 3347243 Block, Disconnect

(Use Term. 352088)

15 63523 Protector

16 717252 Connector

(2−Way)

(Use Term.94614)

17 387566 Plug, Terminal

(4−Way)

(Power Cord)

(Use M3 Screws)

18 3352944 Clip, Harness

19 3390423 Block, Disconnect

(12−Way)

(Timer)

(Use Term. 94613)

20 3347730 Receptacle

(6−Way)

(Use Term. 94613)

21 388818 Plug, Terminal

(12−Way)

(Use Term. 94613

Or 94614.)

22 3369366 Timer, Block

Disconnect

(Black) (Amp)

(Use Term.3369365)

23 3349494 Connector, Etc

24 60687 Connector, Relay

(Use Term.308569)

25 3407125 E.T.C. Control

26 3948617 Connector (T.P.A.)

(3−Circuit)

(Lid Switch)

(Use Term. 3948619

OR 3948620.)

27 3360056 Connector (T.P.A)

(3−Circuit)

(Pressure Switch)

(Use Term.3948619

OR 3948620.)

28 3354925 Block, Connector

(Cold Valve)

(Use Term.693217)

29 3354926 Block, Connector

(Hot Valve)

(Use Term.693217)

30 3948615 Connector (T.P.A.)

(6−Circuit)

(Temp. Switch)

(Use Term.3948619

OR 3948620.)

For Model: 7MLSR5132JQ3

(Designer White)

8179920
