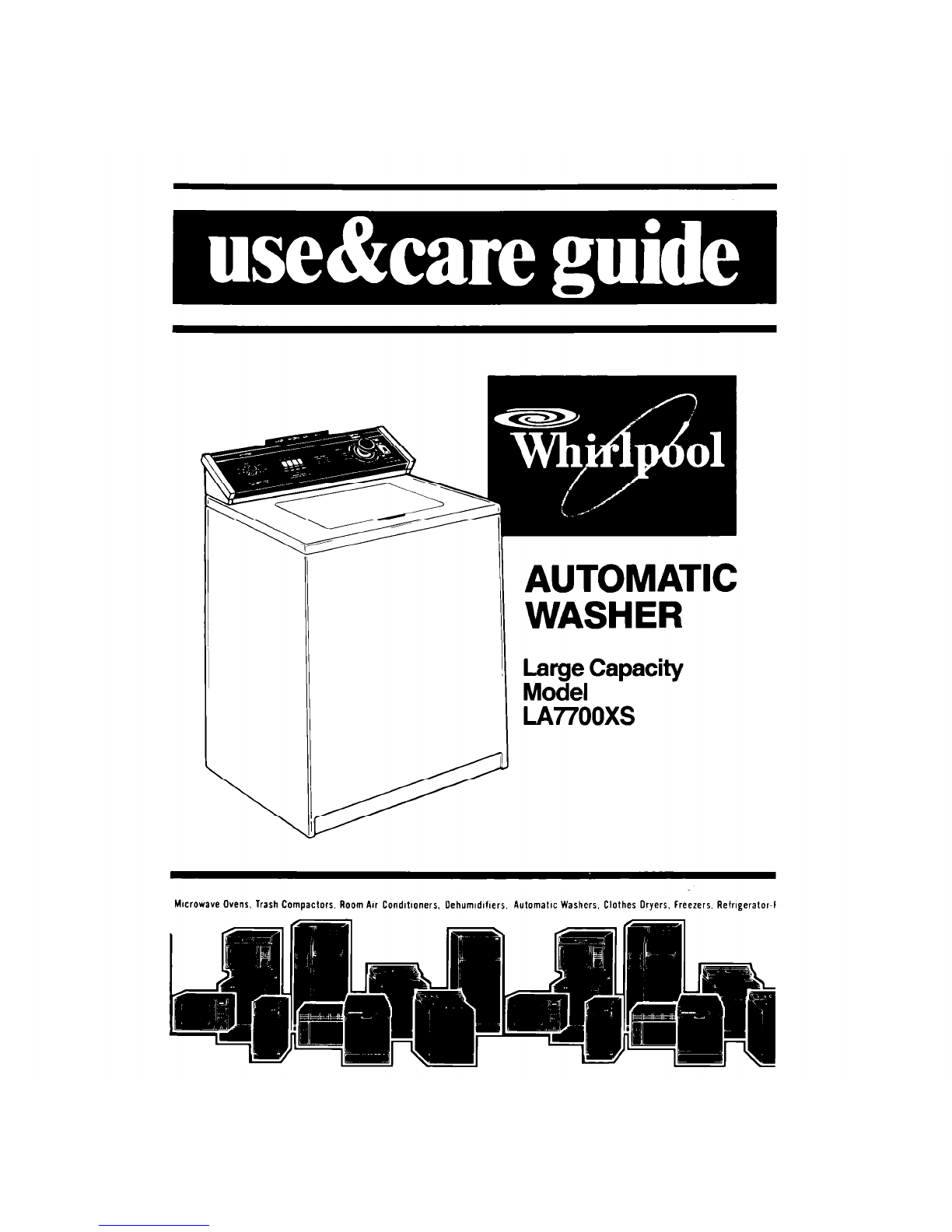

Whirlpool LA77O0XS Manual de usuario

AUTOMATIC

WASHER

MIcrowave Ovens. Trash Compaclots. Room Au Condltloners. Oehumldlflers. Automatic Washers, Clothes Oryers. Freezers. Refrigerator-f

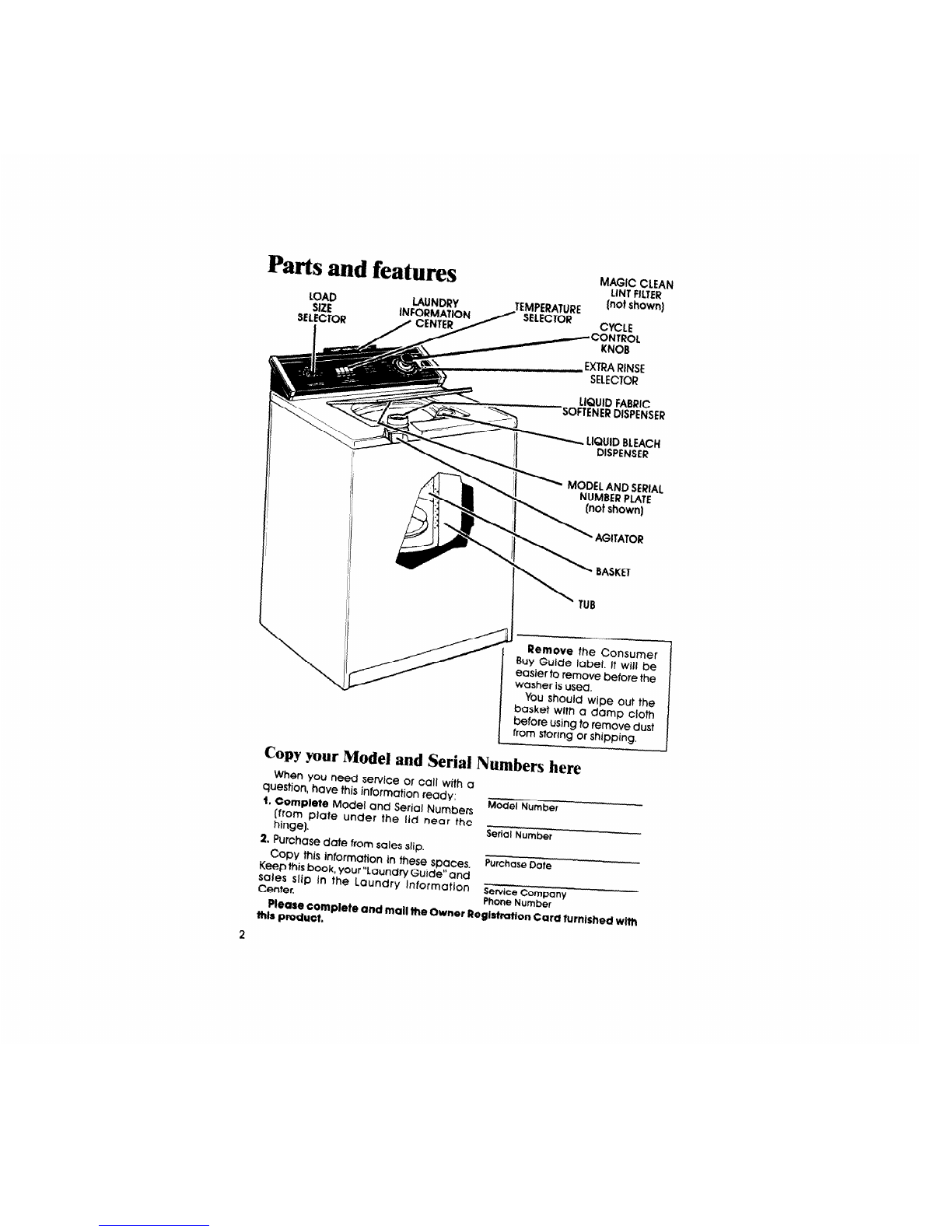

Parts

and features

MAGfC CLEAN

LfNTFILTER

‘:2*

SELECTOR

LfQlffD FABRfC

OFTENERDfSPENSER

MODELAND SERIAL

NUMBERPLATE

fnot shown)

\ss;i:$

YOUshould wipe out the

basket with a damp Cloth

before using to remove dust

from storing or shipping.

COPY YOU

Model

and Serial Numbers here

W-en YOUneed service or call with u

question, have this information ready:

complete

Model and Serial Numbers

(from plate under the lid near the

hinge).

2. Purchase date from sales slip.

Copy. this information in these spaces

Keep this book, your “laundry Guide” and

sales slip

Center. in the laundry Information

Model Number

SefiOlNumber

PurchaseDate

Service Company

Phone Number

this product.

please COmPiete

and mall

the Owner Regirtmtion Card furnished witi

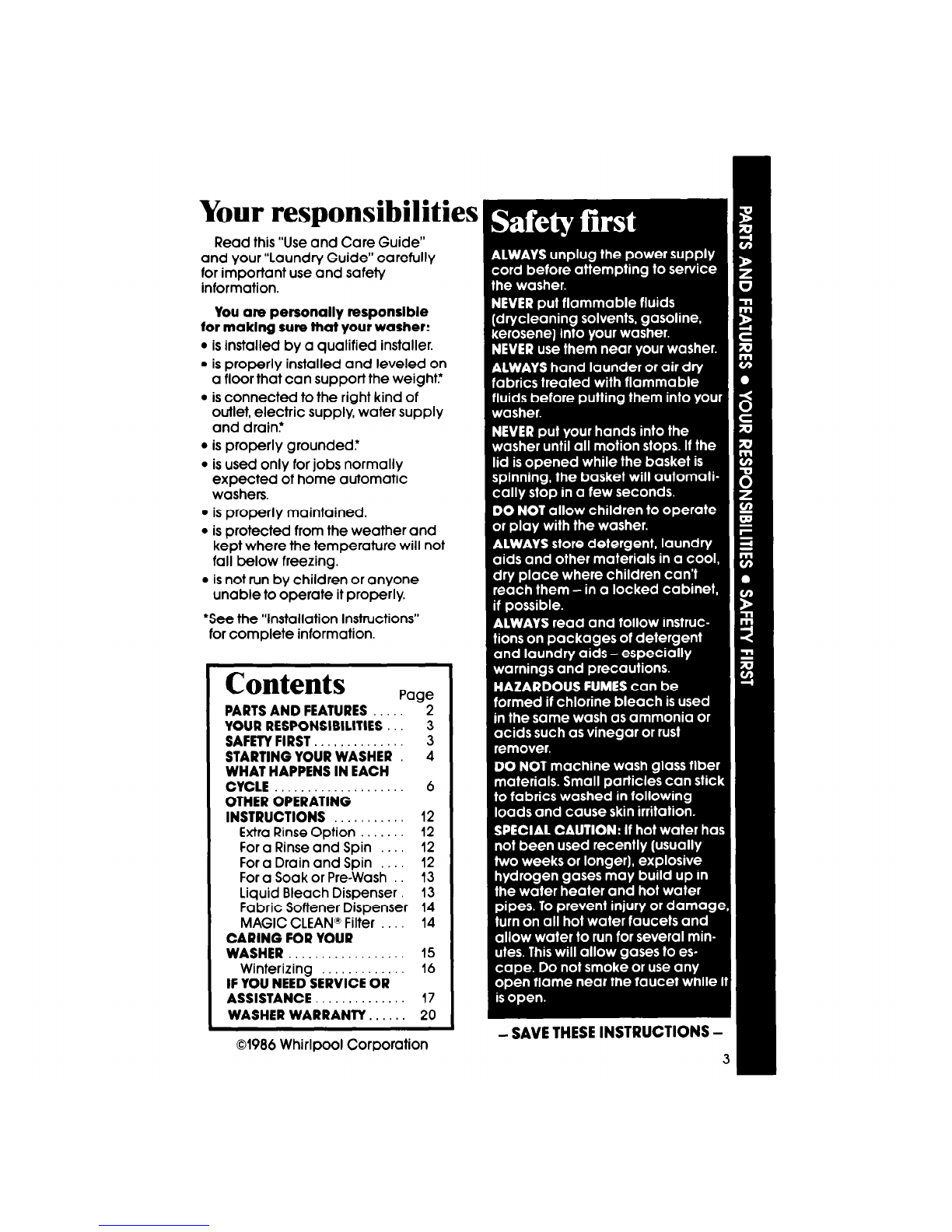

Your Nsponsibilitie

Read this “Use and Care Guide”

and your “Laundry Guide” carefully

for important use and safety

information.

You are personally responsible

for maklng sure that your washer:

l is installed by a qualified installer.

l is properly installed and leveled on

a floor that can support the weight!

l is connected to the right kind of

outlet, electric supply, water supply

and drain.*

l is properly grounded:

l is used only for jobs normally

expected of home automatic

washers.

l is properly maintained.

l is protected from the weather and

kept where the temperature will not

fail below freezing.

l isnot run by children or anyone

unable to operate it properly.

*See the “Installation instructions”

for complete information.

Contents

Page

PARTS AND FEATURES 2

YOUR RESPONSIBILITIES 3

SAFETY FIRST 3

STARTING YOUR WASHER 4

WHAT HAPPENS IN EACH

CYCLE 6

OTHER OPERATING

INSTRUCTIONS

Extra Rinse Option 12

For a Rinse and Spin . 12

For a Drain and Spin 12

Fora Soak or Pre-Wash 13

Liquid Bleach Dispenser. 13

Fabric Softener Dispenser 14

MAGIC CLEAN@Filter 14

CARING FOR YOUR

WASHER

Winterizing . 16

IF YOU NEED SERVICE OR

ASSISTANCE .

WASHER WARRANTT . . . . 20

01986 Whirlpool Corporation

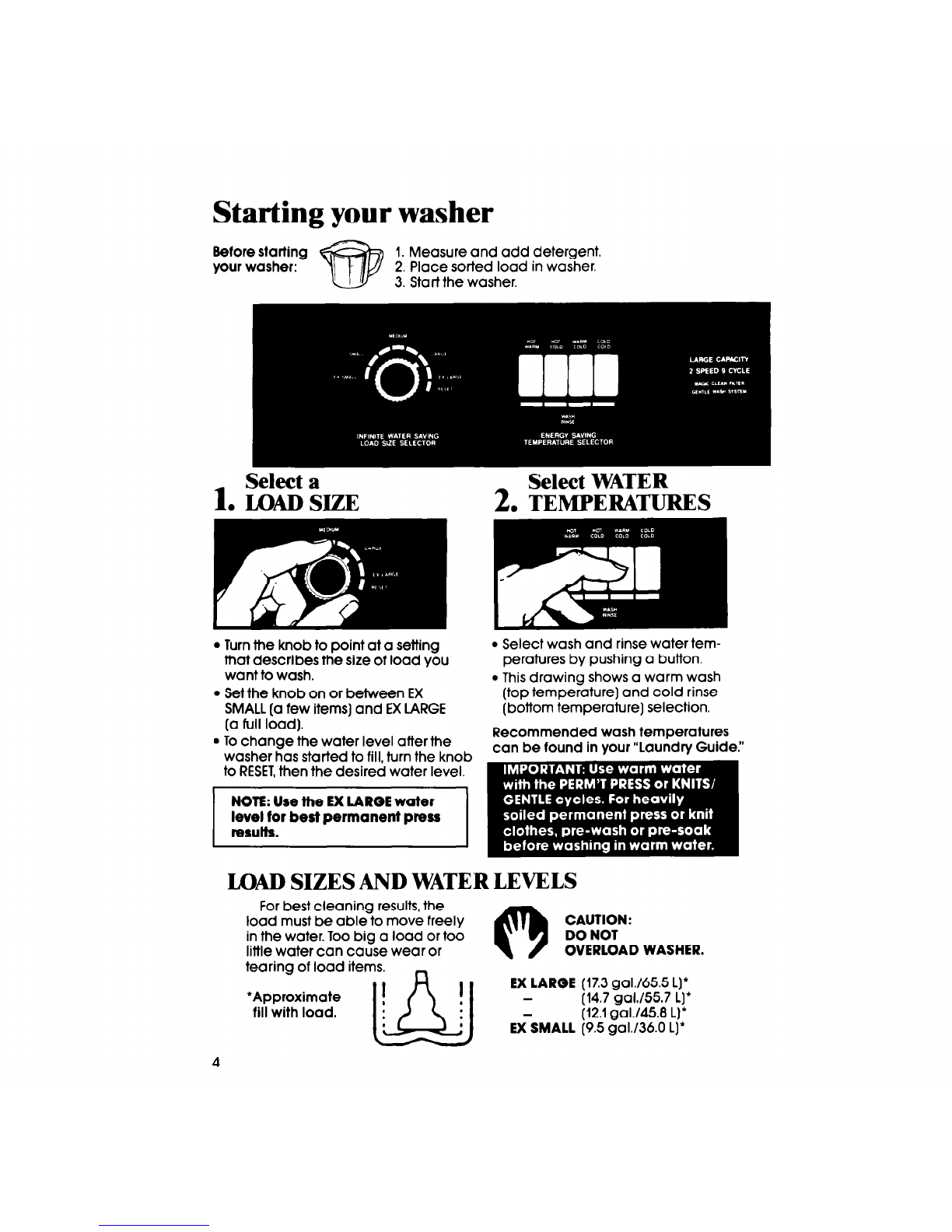

Starting your washer

Before starting

your washer: 1.Measure and add detergent.

2. Place sorted load in washer.

3. Start the washer.

Select WATER

TEMPERATURES

l Turn the knob to point at a setting

that describes the size of load you

want to wash.

l Setthe knob on or between EX

SMALL[a few items] and EXLARGE

(a full load).

l Tochange the water level after the

washer has started to fill, turn the knob

to RESET,then the desired water level.

l Select wash and rinse water tem-

peratures by pushing a button.

l This drawing shows a warm wash

(top temperature] and cold rinse

(bottom temperature) selection.

Recommended wash temperatures

can be found in your “Laundry Guide:’

LOAD SIZES AND WATER LEVELS

for best cleaning results, the

load must be able to move freely

CAUTION:

in the water. Too big a load or too

DO NOT

little water can cause wear or

OVERLOAD WASHER.

tearing of load items. (17.3gal./655 L)’

*Approximate (14.7gal./557 L)’

fill with load. (12.1galI45.8 L)*

U(SMALL

(9.5 gaU36.0 L)’

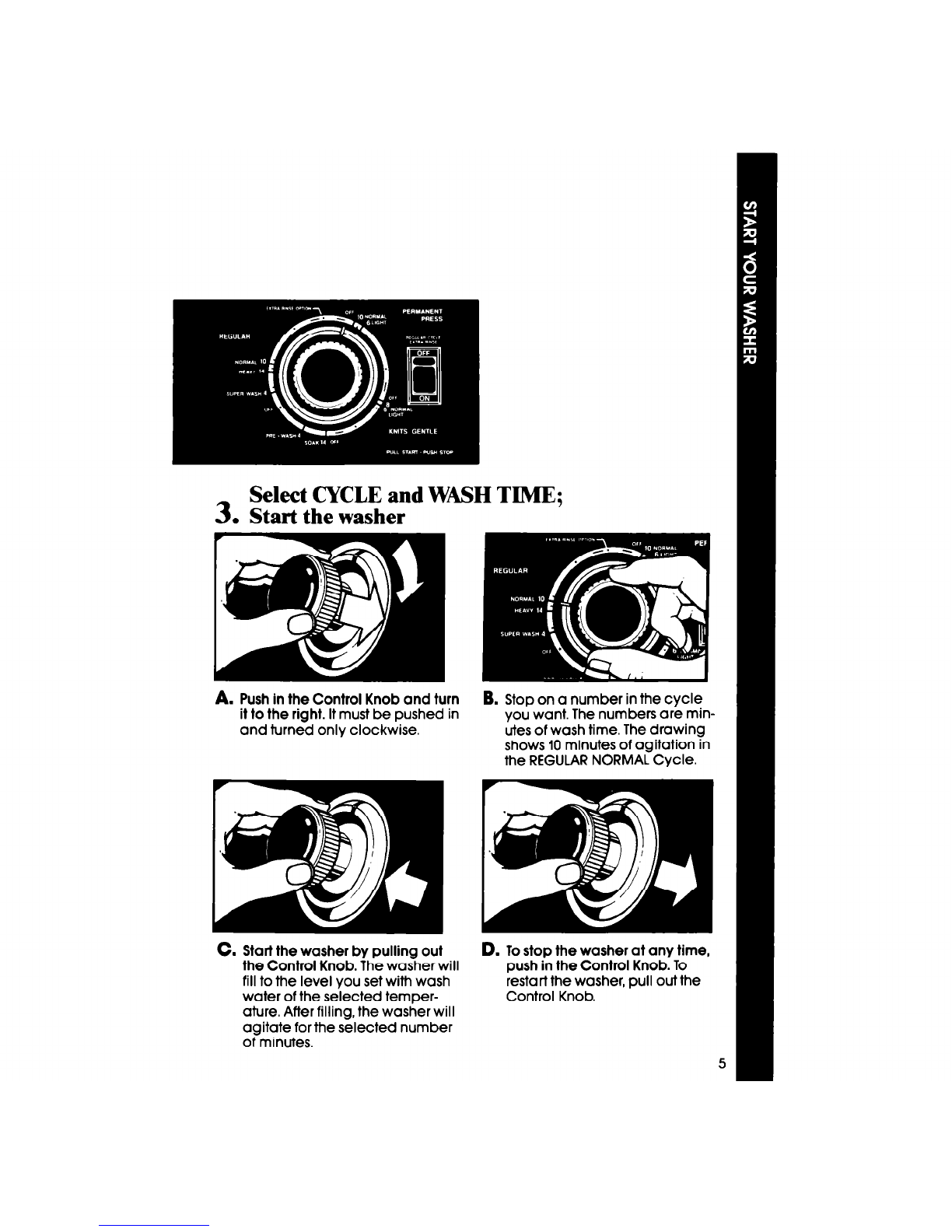

Select CYCLE and WASH TIME;

Start the washer

Push in the Control Knob and turn

it to the right. It must be pushed in

and turned only clockwise.

Stop on a number in the cycle

you want. The numbers are min-

utes of wash time. The drawing

shows 10minutes of agitation in

the REGULARNORMAL Cycle.

Start the washer by pulling out

the Control Knob. The washer will

fill to the level you set with wash

water of the selected temper-

ature. After filling, the washer will

agitate for the selected number

of minutes.

Tostop the washer at any time,

push in the Control Knob. To

restart the washer, pull out the

Control Knob.

What happens in each cycle*

Each cycle has different agitation and spin speeds designed for different

kinds of fabrics. Numbers on the dial in each cycle are the minutes of WASH

agitation time.

When the Cycle Control Knob is set to a number and pulled out, the washer fills

before agitation and timing starts. Affer agitation starts, the knob turns clock-wise

until it points to OFFand the cycle ends.

REGULAR HEAVY Cycle

A cycle for sturdily con-

structed fabrics that are

heavily soiled.

REGULAR NORMAL Cycle

A cycle for regular loads

of fabrics that are moder-

ately soiled.

PERMANENT PRESS NORMAL Cycle

A cycle designed for mod-

erately soiled permanent

press and some synthetic

fabrics. The cool-down

REFILL

COOL

DOWN

rinse helps keep wrinkles

from setting into these

fabrics.

NOTE: You may hear the sound of water spraying during the spin parts of some

cycles. In some cycles, cold water is sprayed on the spinning load to help with

the rinsing.

For better fabric care in the REGULARcycles, the agitation speed is reduced

during the last few minutes of wash time.

NOTE:

Always use

cold rinse water

for permanent press fabrics.

The washer

will

proceed

to EXTRA

RINSEif

selected

PERMANENT PRESS LIGHT Cycle

pi$E&gq

cycle designed for

lightly soiled permanent

press and some synthetic

fabrics. The

cool-down

rinse helps keep wrinkles

from setting into these fabrics,

KNITS/GENTLE NORMAL Cycle

A cycle that gently

washes and spins moder-

ately soiled delicate items

and washable knits.

KNITS/GENTLE LIGHT Cycle

KNITS GENTLE

A cycle that gently

washes and spins lightly

soiled delicate items and

washable knits.

A Indicates the machine is

pausing for a brief soak

perlod.

A lndlcates the machine is

pauslng for a brief soak

period.

NOTE:

Always use

cold rinse water

for permanent press fabrics.

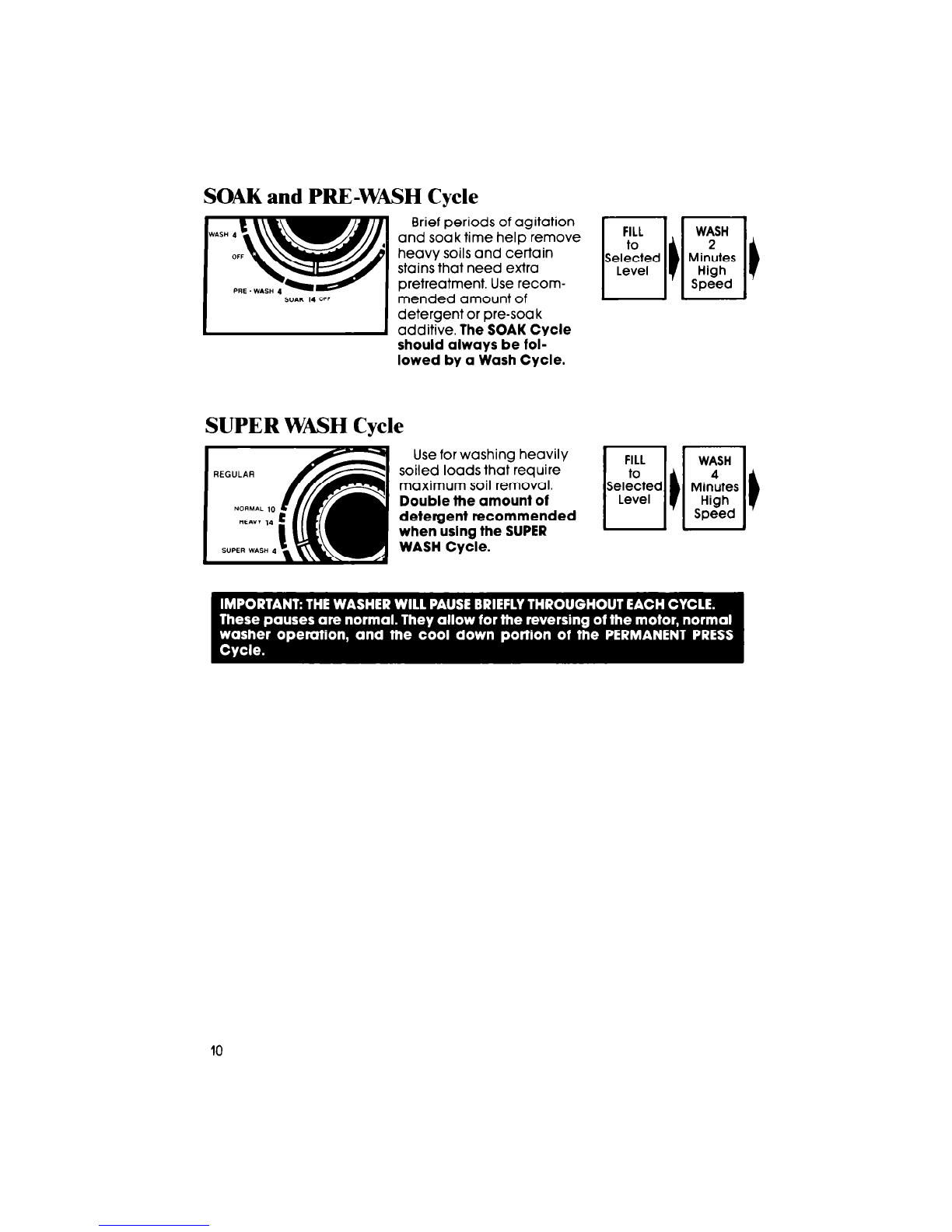

SOAK and PRE-WASH Cycle

SUPER WASH Cycle

Brief periods of agitation

and soak time help remove

heavy soils and certain

stains that need extra

pretreatment. Use recom-

mended amount of

detergent or pre-soa k

additive.

The SOAK Cycle

should always be fol-

lowed by a Wash Cycle.

Usefor washing heavily

soiled loads that require

maximum soil removal.

Double the amount of

detergent recommended

when using the SUPER

WASH Cycle.
